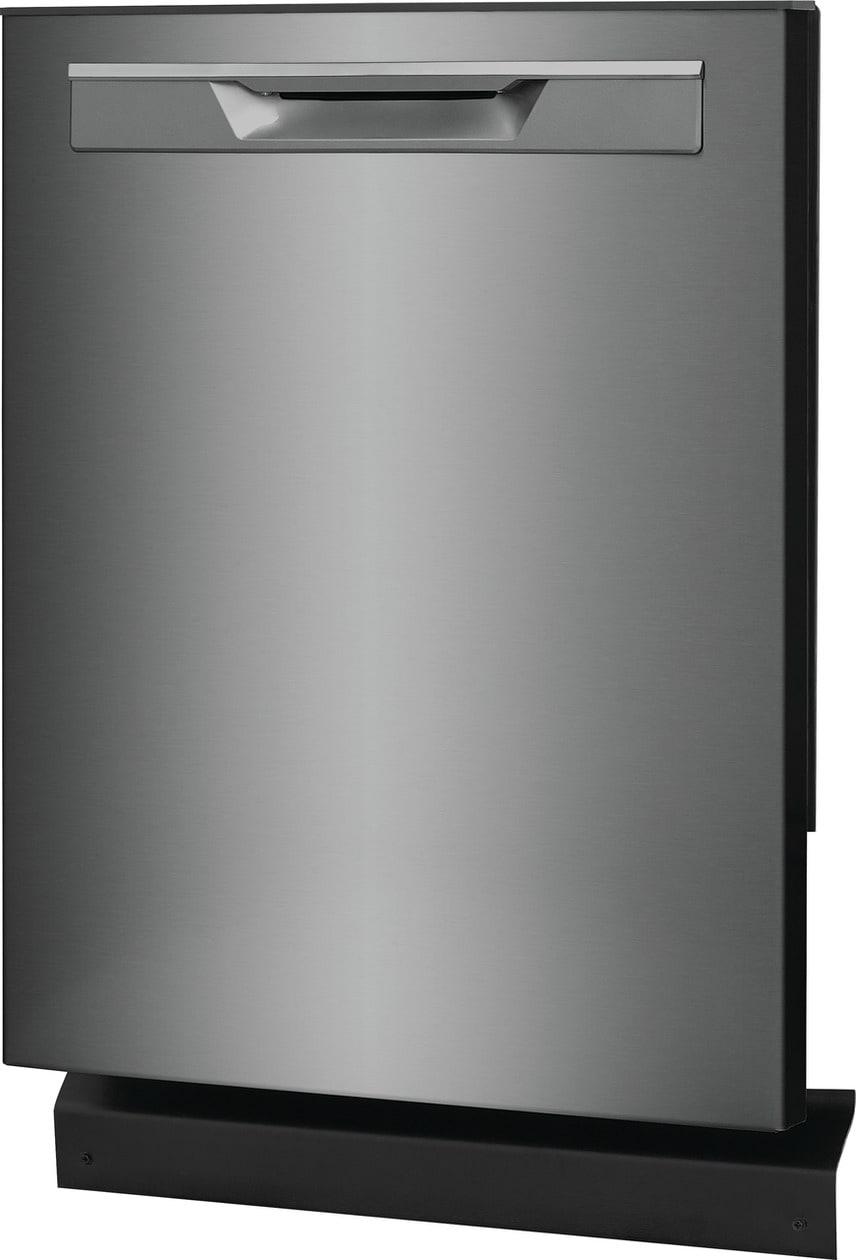

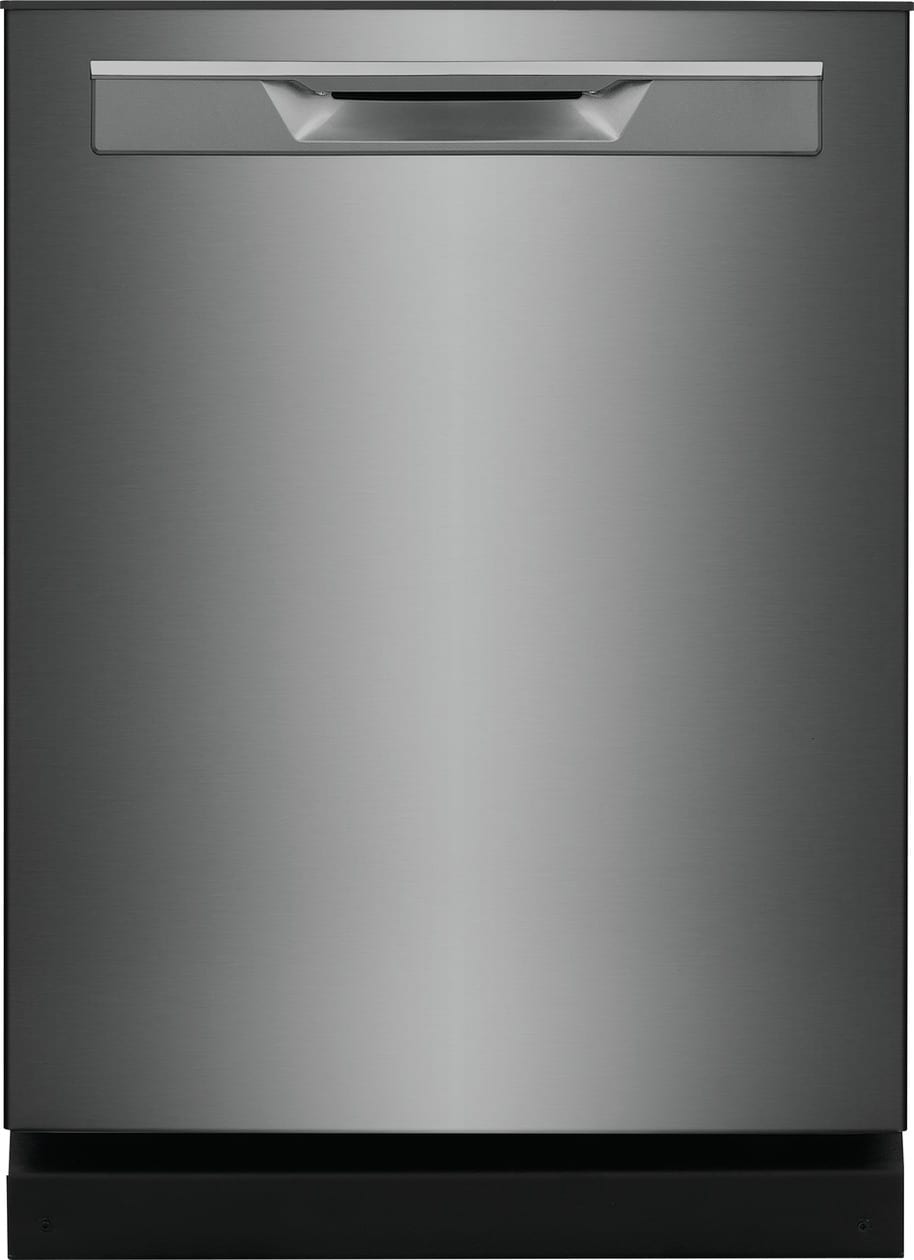

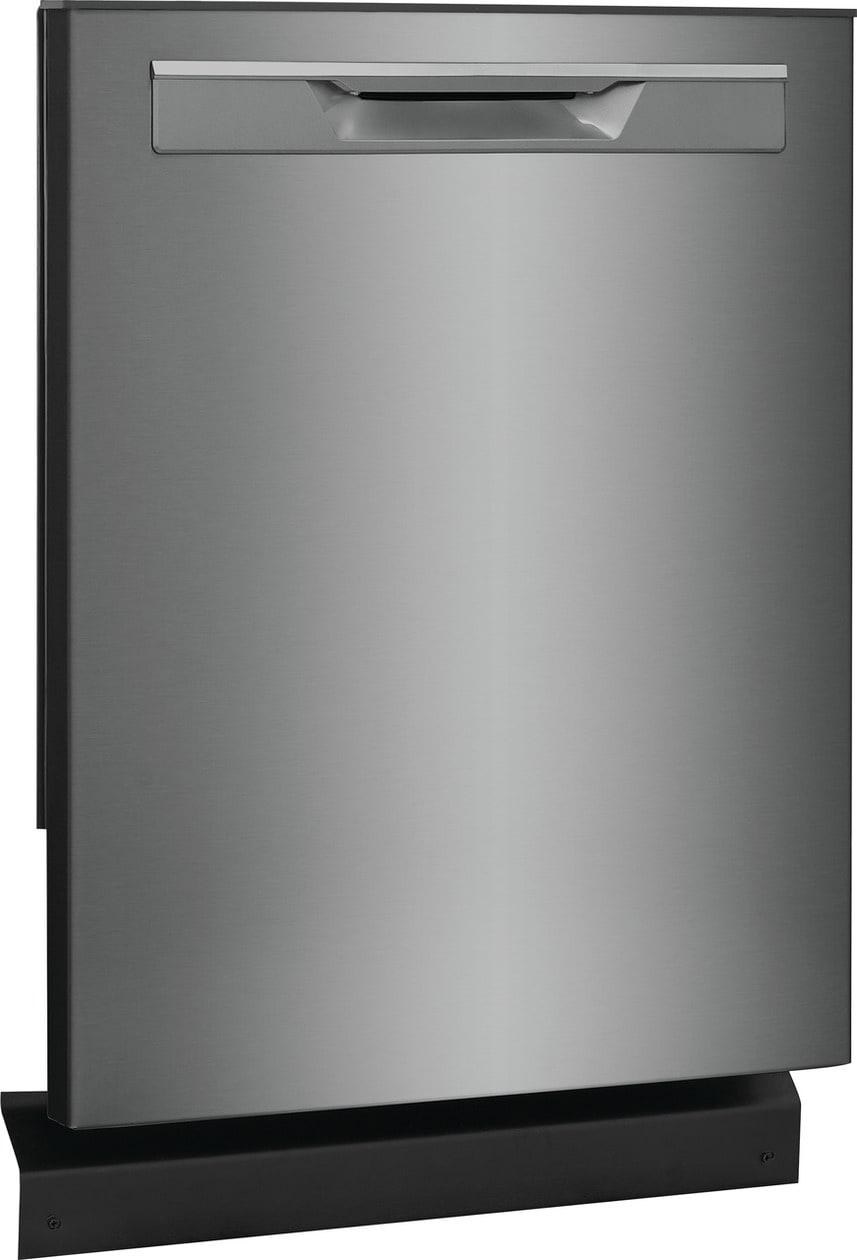

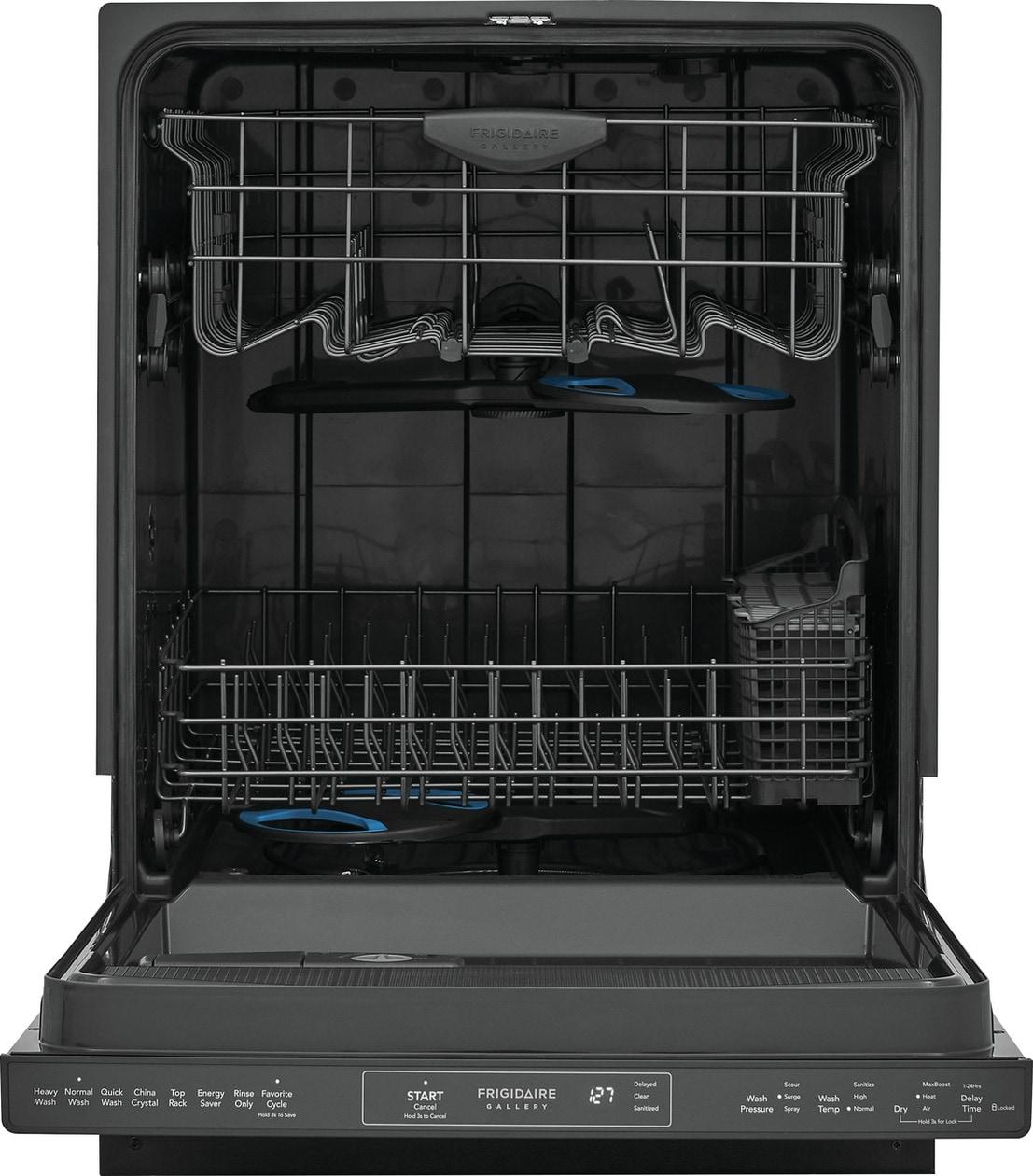

Frigidaire GDPP4517AD Frigidaire Gallery 24" Built-In Dish Dishwasher
Skip Pre-rinsing with DishSense® Sensor Technology
Get better cleaning results with our sensor technology that adjusts cleaning performance based on the soil level of your dishes.
Dual OrbitClean® wash system
The Dual OrbitClean® Wash System has two rotating wash arms with multi-directional spray patterns to remove tough, dried and baked on food.
Forget the hand towel with MaxBoost™ Dry
MaxBoost™ Dry technology uses heating and a fan to push out moist air and pull in fresh, dry air so you don't have to hand dry.
Sanitize Option
Remove 99.9% of common household bacteria with NSF-Certified Sanitize Option.
Energy Star® certified
This ENERGY STAR® Certified dishwasher uses about 1/4 of the amount of water vs. washing dishes by hand and saves both energy and money.
Keep your kitchen quiet with 52 dBA
Keep your kitchen quiet and the noise inside your dishwasher where it belongs with extra, quality insulation.
Height: 33.50"
Depth: 25"

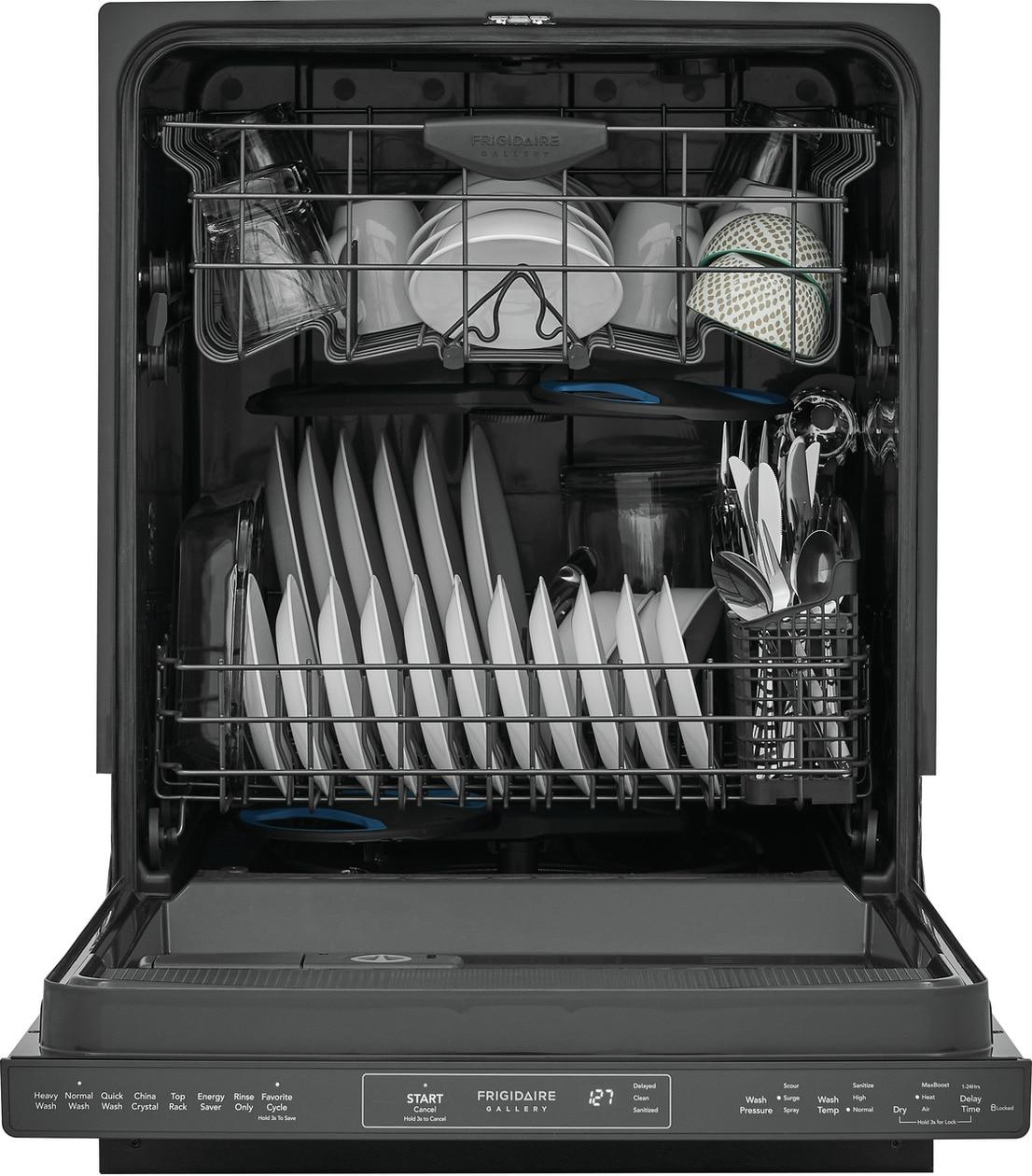

- 14 Place Settings
- Detergent Dispenser
- Hard Food Disposer or Filtration
- Rinse Aid Dispenser
- Smart Soil Sensor
- Status Indicator Floor Beam
- Tall Tub
- 5 Wash Levels
- 8 Cycles
- Air Dry
- Heated Dry
- Start/Cancel
Product Line | Dishwasher |
Power Type | Electric 120v |
Size | 24' |
Installation Type | Built-In |
Factory | Kinston |
Color | Black Stainless Steel |
Installation | |
Connection Location | Right Bottom |
Number of Leveling Legs | 4 |
Water Inlet Location | Left Bottom Front |
Dishwasher Options | |
Air Dry | Yes |
Drying System | MaxBoost |
Heated Dry | Yes |
High Temperature | Yes |
Start/Cancel | Yes |
Dishwasher | |
Detergent Dispenser | Yes |
Filter Material | Stainless Steel |
Filter Trap | Removable |
Filtered Water | 100 % |
Hard Food Disposer or Filtration | Yes |
Interior Light | No |
Motor Speeds | Multi-Speed |
Place Setting Capacity | 14 |
Rinse Aid Dispenser | Yes |
Smart Soil Sensor | Yes |
Spray Arm | Dual Orbit |
Status Indicator Floor Beam | Yes |
Tub Color | Midnight Ink |
Tub Design | Tall Tub |
Tub Material | Plastic |
Wash Levels | 5 |
Wash System | Direct Feed |
Water Pressure | 120 psi |
Dishwasher Cycles | |
China Crystal | Yes |
Energy Saver | Yes |
Favorite | Yes |
Heavy | Yes |
Normal | Yes |
Number of Cycles | 8 |
Quick | Yes |
Rinse Only | Yes |
Upper Rack | Yes |
General Specifications | |
Sound Level | 49 dBA |
Annual Energy | 268 kWh |
Product Weight | 56 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Upper Rack | |
Cup Shelf | Yes |
Fold-Down | Yes |
Minimum Height Clearance | 8' |
Rack Coating | Nylon |
Rack Handles | Yes |
Rack Type | Adjustable |
Stemware Holder | Yes |
Exterior | |
Door and Handle Design | Wide Pocket |
Door Latch | Pull |
Door Type | StayPut |
Exterior Finish | Smudge-Proof® Black Stainless Steel |
Electrical Specifications | |
Amps @ 120 Volts | 10 Amps |
Connected Load @ 120V | 1.2 kW |
Voltage Rating | 120 V |
Dimensions and Volume | |
Minimum Height | 33 1/2' |
Maximum Height | 35' |
Width | 24' |
Depth | 25' |
Depth With Door Open | 49 1/4' |
Safety Certifications and Approvals | |
UL Listed | Yes |
cUL Listed | Yes |
Meets ASSE 1006 Requirements | Yes |
NSF Certified | Yes |
Performance Certifications and Approvals | |
CEE Tier | Tier 1 |
ENERGY STAR Certified | Yes |

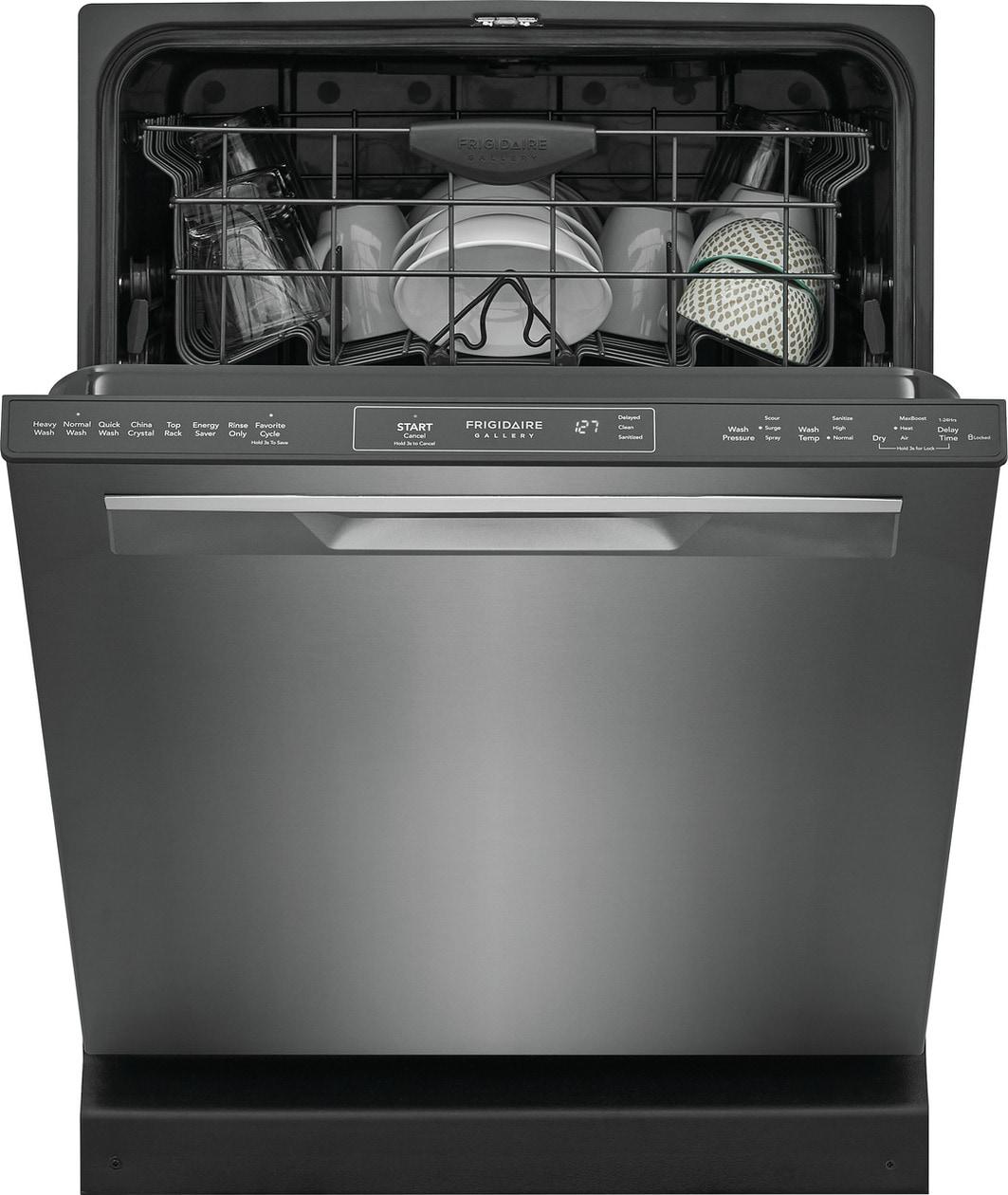

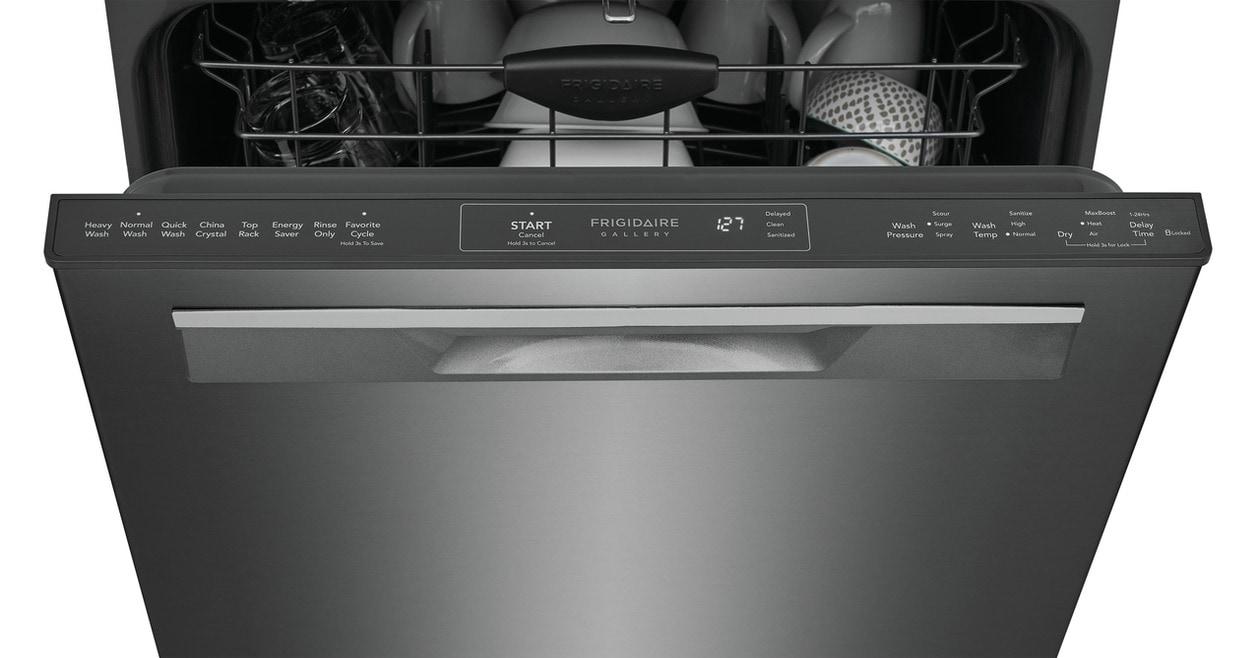

Controls | |
Control Color | Black |
Control Location | Top |
Delay Start Hours | 24 |
Digital Display | Yes |
Control Lock | Yes |
Rinse Aid Indicator | Yes |

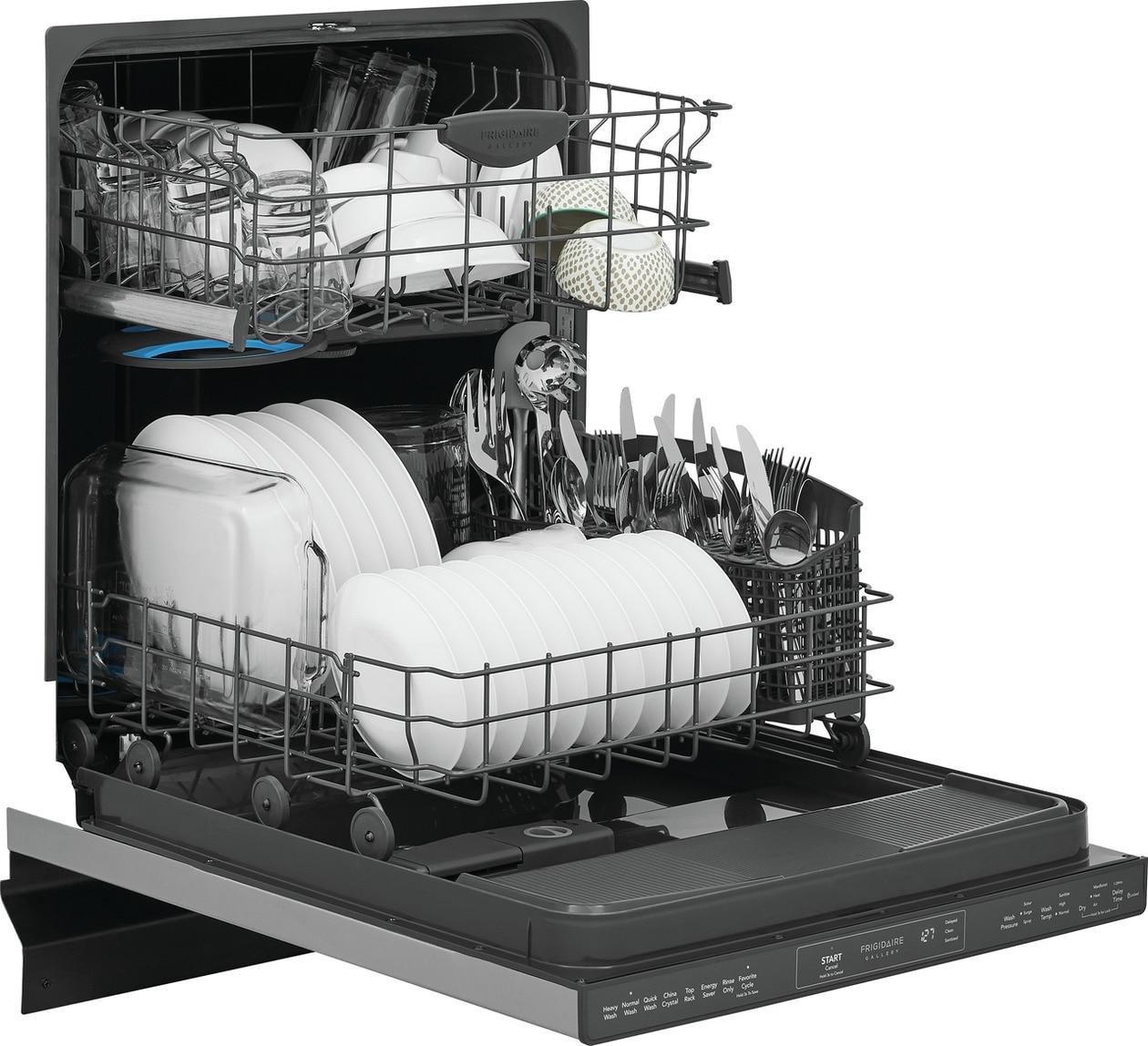

Lower Rack | |
Fold-Down | Yes |
Maximum Height Clearance | 13' |
Minimum Height Clearance | 11' |
Number of Silverware Basket | 1 |
Number of Silverware Basket Lids | 3 |
Rack Coating | Nylon |
Rack Type | Deluxe |
Dual OrbitClean®
MaxBoost™ Dry
