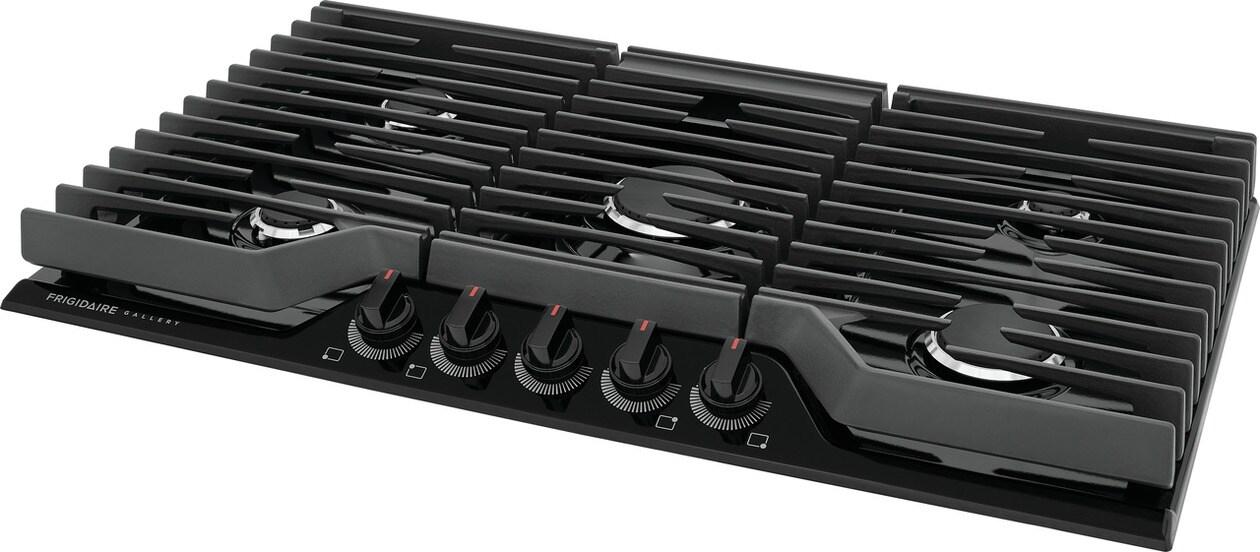

Frigidaire GCCG3648AB Frigidaire Gallery 36" Gas Cooktop
Rebates &
Promotions
Frigidaire And Electrolux Buy More Save More Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying Frigidaire And Electrolux appliances. Download Valid: 10/28/2024-12/09/2024
Low Simmer Burner
Low simmer burner delivers low, gentle heat allowing you to prepare delicate foods or sauces without burning or scorching the bottom.
Continuous Edge-to-Edge Grates
Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
Get to mealtime faster with the Quick Boil Burner
Experience faster boil times and more powerful cooking with the 18,000 BTU burner.
Bright, backlit LED Knobs
Backlit LED knobs light up when the cooktop is in use.
Flexible Five Burner Cooktop
This cooktop features five burners designed to fit all of your cooking needs, including a 5,000 BTU simmer burner perfect for delicate foods and our powerful 18,000 BTU Quick Boil Burner that gets meals on the table, faster.
Dishwasher Safe Burners Caps
Cleaning your cooktop is easier with removable, dishwasher safe burner caps.
Height: 2.31"
Depth: 21"
- Gas Cooking Surface
- 3 Grates
- Front Control
- Installed Over a Wall Oven
- LP Conversion Kit Included
- ADA Compliant
- CSA Listed
- UL Listed
Product Line | Gas Cooktop |
Size | 36' |
Installation Type | Built-In |
Factory | Rayong |
Color | Black |
Installation | |
Gas Supply Connection Location | Top Right |
Installed Over a Wall Oven | Yes |
LP Conversion Kit Included | Yes |
Power Cord Included | Yes |
Power Supply Connection Location | Right Center |
Electrical Specifications | |
Minimum Circuit Required | 5 Amps |
Voltage Rating | 120 V |
Certifications and Approvals | |
ADA Compliant | Yes |
Cooktop | |
Cooking Surface Type | Gas |
Grate Material | Cast Iron |
Grate Quantity | 3 |
Grate Style | Continuous |
Dimensions and Volume | |
Height | 2 7/16' |
Width | 36' |
Depth | 21' |
Cutout Height | 7 1/2' |
Minimum Cutout Width | 33 7/8' |
Minimum Cutout Depth | 19' |
Maximum Cutout Width | 35 5/8' |
Maximum Cutout Depth | 20' |
Safety Certifications and Approvals | |
CSA Listed | Yes |
UL Listed | Yes |
General Specifications | |
Frigidaire Fit Promise | Yes |
Product Weight | 51 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Exterior | |
Backlit Knobs | Yes |
Cooktop Performance | |
Right Front Element Burner | 12,000 BTU |
Right Rear Element Burner | 5,000 BTU |
Left Front Element Burner | 9,500 BTU |
Left Rear Element Burner | 9,500 BTU |
Center Front Element Burner | 18,000 BTU |
Display | |
Control Location | Front |
Guide d'utilisation complet
Installation Instructions
Approved Built-In Appliance Combinations
Product Specifications Sheet
Feuille de specifications du produit
