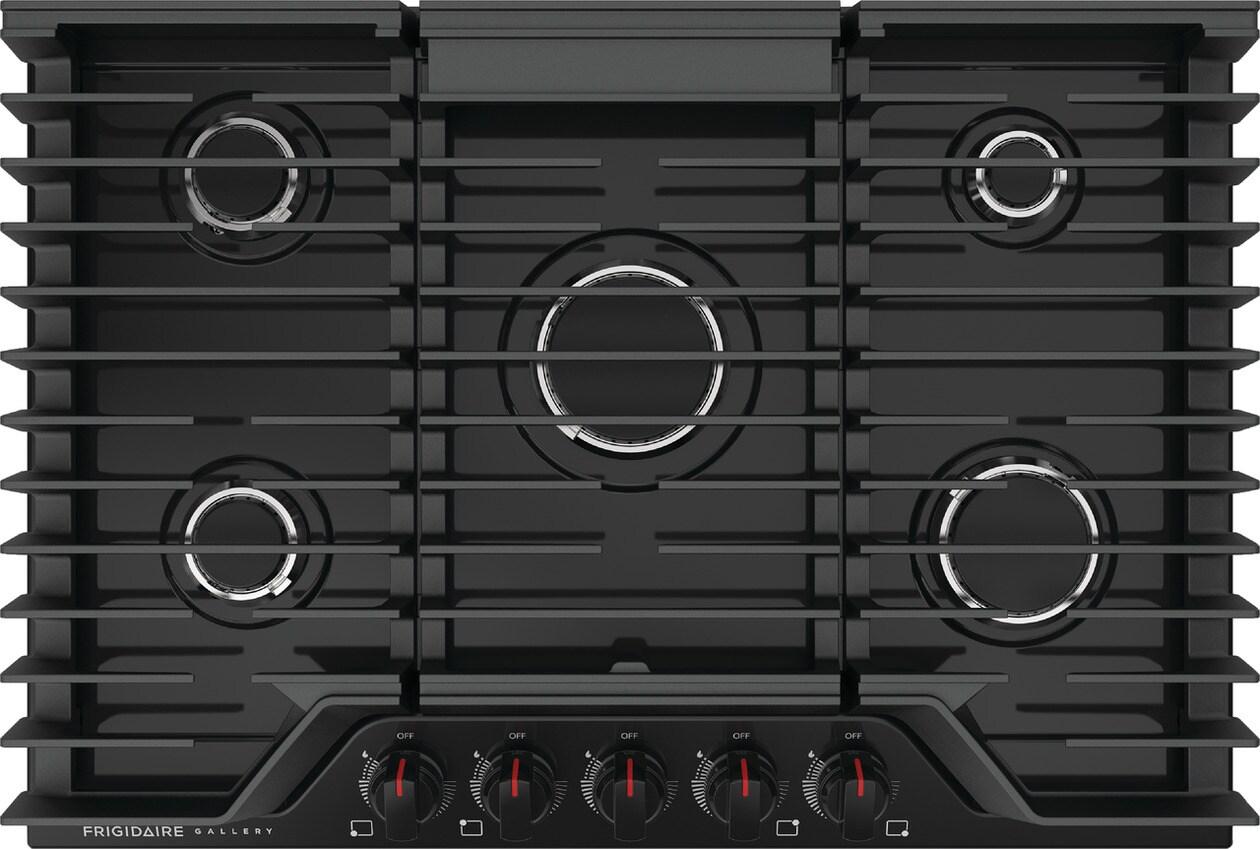

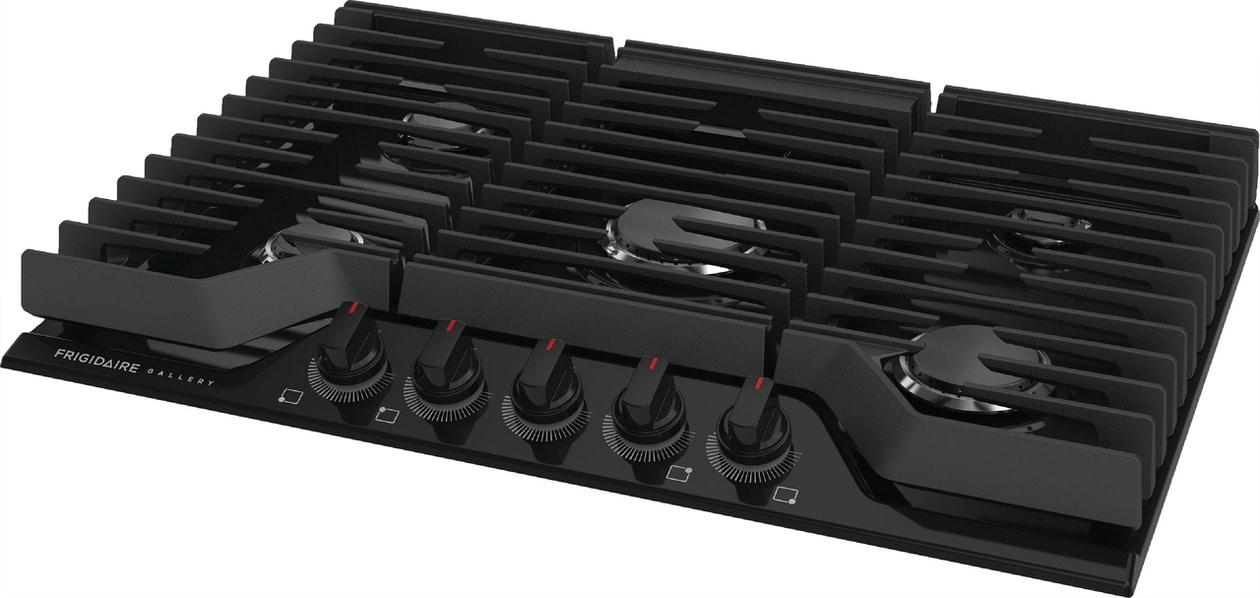

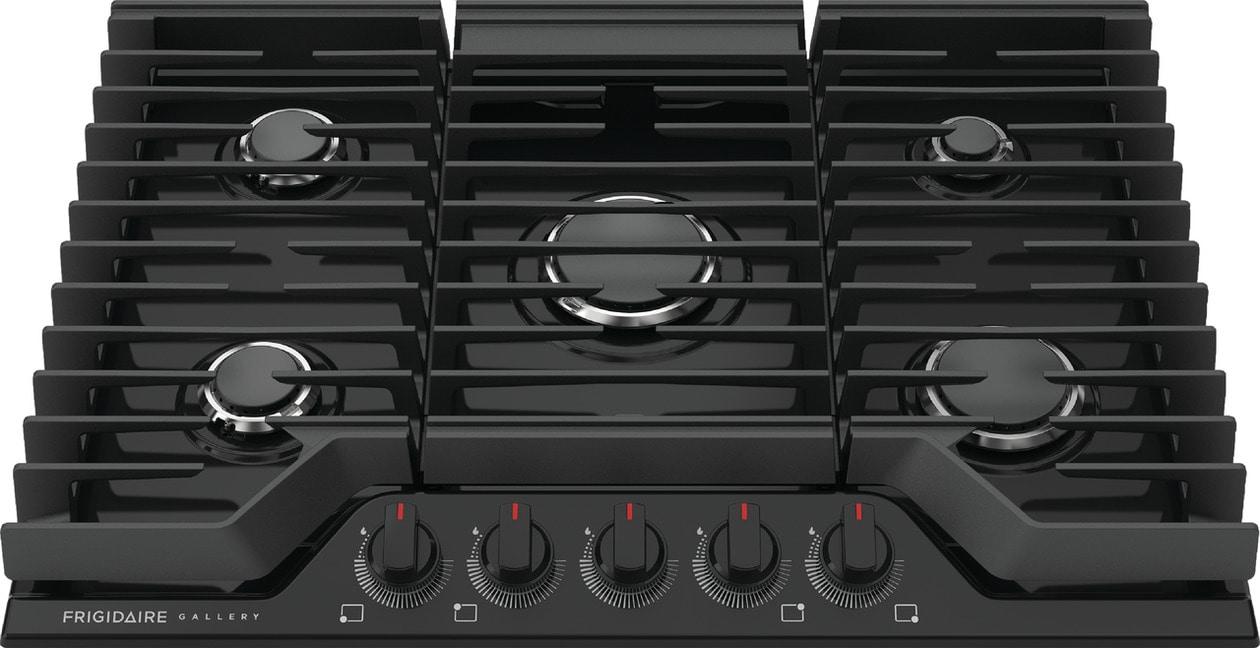

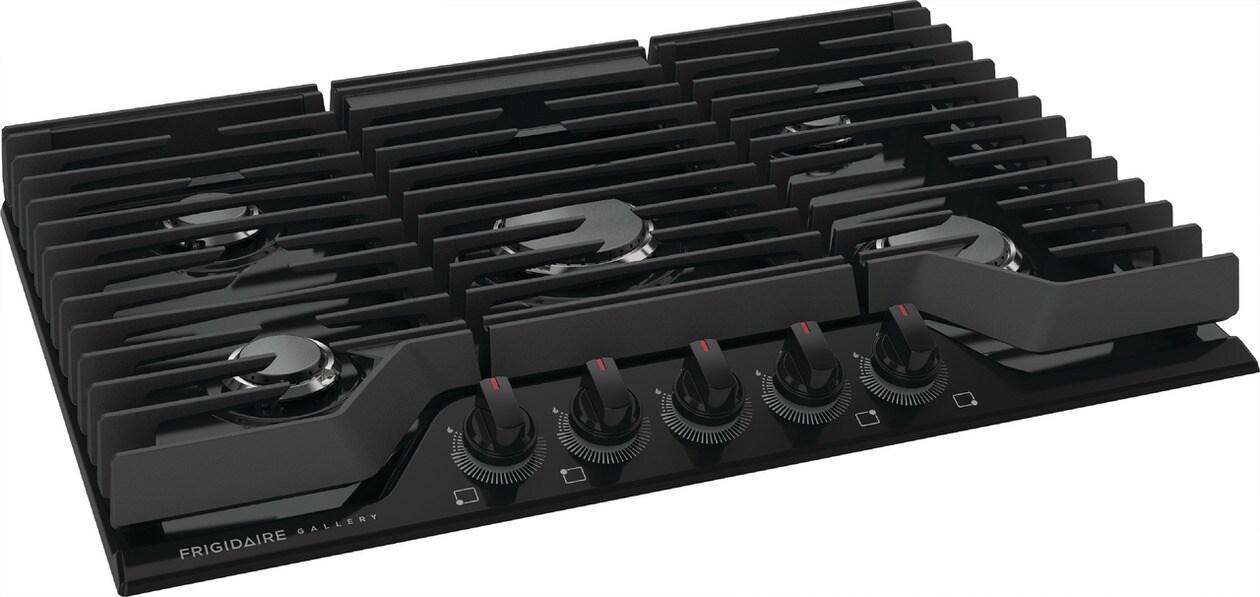

Frigidaire GCCG3048AB Frigidaire Gallery 30" Gas Cooktop
Rebates &
Promotions
Frigidaire And Electrolux Buy More Save More Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying Frigidaire And Electrolux appliances. Download Valid: 10/28/2024-12/09/2024
Get to mealtime faster with the Quick Boil Burner
Experience faster boil times and more powerful cooking with the 18,000 BTU burner.
Flexible Five Burner Cooktop
This cooktop features five burners designed to fit all of your cooking needs, including a 5,000 BTU simmer burner perfect for delicate foods and our powerful 18,000 BTU Quick Boil Burner that gets meals on the table, faster.

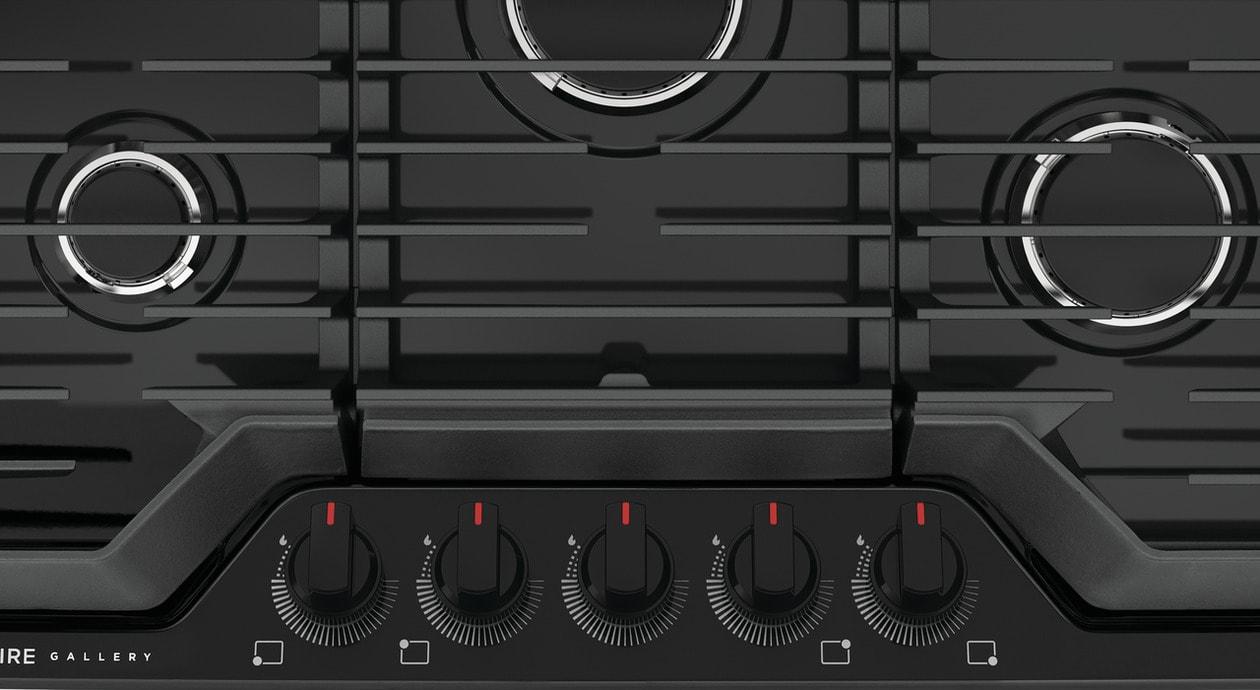

Bright, backlit LED Knobs
Backlit LED knobs light up when the cooktop is in use.
Low Simmer Burner
Low simmer burner delivers low, gentle heat allowing you to prepare delicate foods or sauces without burning or scorching the bottom.
Dishwasher Safe Burners Caps
Cleaning your cooktop is easier with removable, dishwasher safe burner caps.
Continuous Edge-to-Edge Grates
Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
- Get to mealtime faster with the Quick Boil Burner
- Flexible Five Burner Cooktop
- Bright, backlit LED Knobs
- Low Simmer Burner
- Dishwasher Safe Burners Caps
- Continuous Edge-to-Edge Grates
- Keep your cooktop looking beautiful with the Spill Safe® Cooktop
- Peace of Mind with the Frigidaire® Fit Promise
- Approved over Frigidaire® Electric Wall Ovens
Product Line | Gas Cooktop |
Power Type | LP, NG |
Size | 30' |
Installation Type | Built-In |
Factory | Rayong |
Color | Black |
Cooktop | |
Cooking Surface Type | Gas |
Grate Material | Cast Iron |
Grate Quantity | 3 |
Grate Style | Continuous |
Cooktop Performance | |
Right Front Element Burner | 12000 BTU |
Right Rear Element Burner | 5000 BTU |
Left Front Element Burner | 9500 BTU |
Left Rear Element Burner | 7500 BTU |
Center Front Element Burner | 18000 BTU |
Display | |
Control Location | Front |
Exterior | |
Backlit Knobs | Yes |
Dimensions and Volume | |
Height | 2 7/16' |
Width | 30' |
Depth | 21' |
Cutout Height | 7 1/2' |
Minimum Cutout Width | 27 1/4' |
Minimum Cutout Depth | 19' |
Maximum Cutout Width | 29 5/16' |
Maximum Cutout Depth | 20' |
Electrical Specifications | |
Minimum Circuit Required | 5 Amps |
Voltage Rating | 120 V |
Installation | |
Gas Supply Connection Location | Top Right |
Installed Over a Wall Oven | Yes |
LP Conversion Kit Included | Yes |
Power Cord Included | Yes |
Power Supply Connection Location | Top Right |
General Specifications | |
Frigidaire Fit Promise | Yes |
Product Weight | 43 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Certifications and Approvals | |
ADA Compliant | Yes |
CSA Listed | Yes |
UL Listed | Yes |
