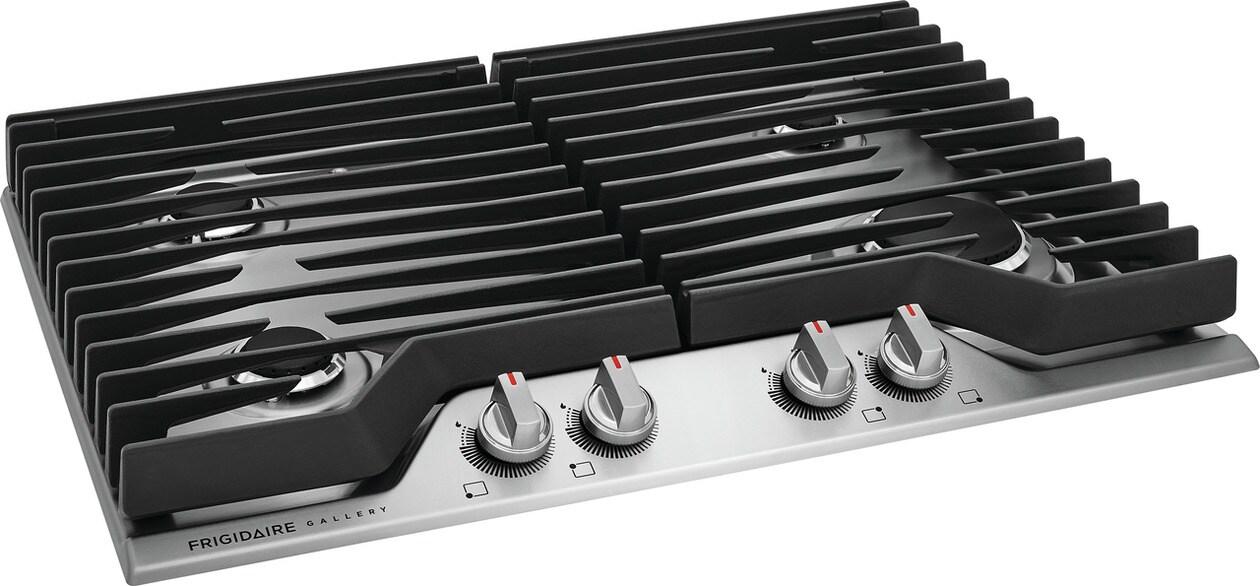

Frigidaire GCCG3046AS Frigidaire Gallery 30" Gas Cooktop
Rebates &
Promotions
Low Simmer Burner
Low simmer burner delivers low, gentle heat allowing you to prepare delicate foods or sauces without burning or scorching the bottom.
Continuous Edge-to-Edge Grates
Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
Get to mealtime faster with the Quick Boil Burner
Experience faster boil times and more powerful cooking with the 18,000 BTU burner.

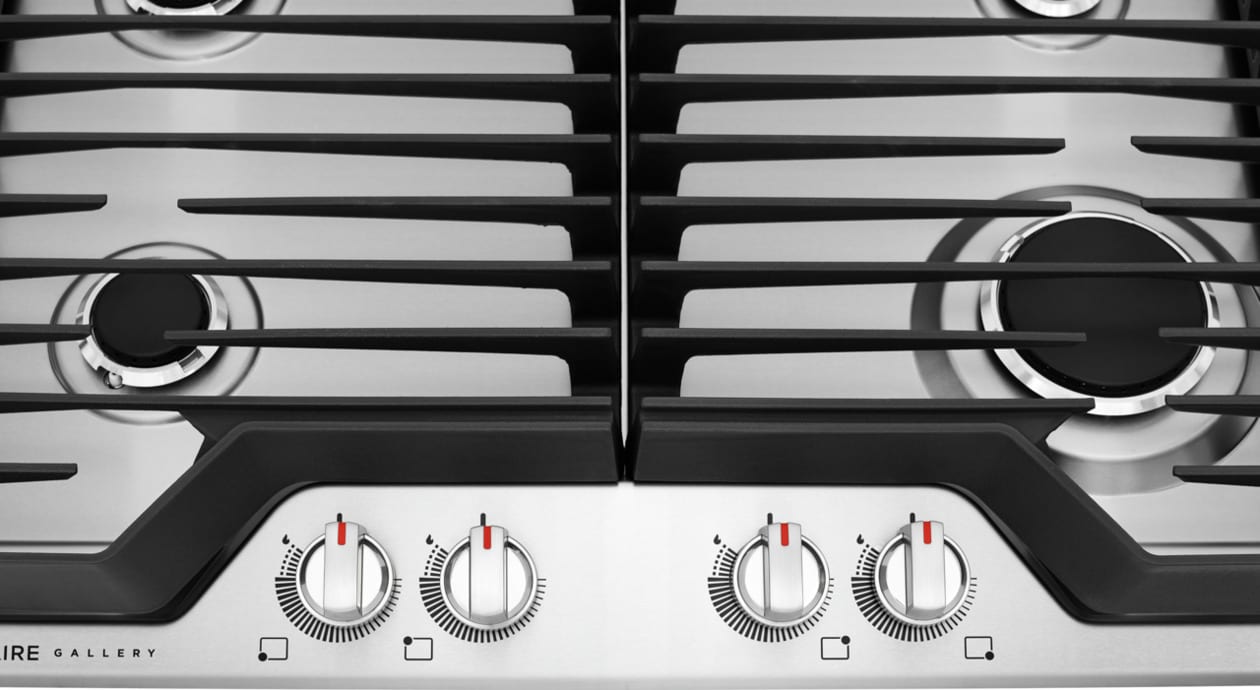

Bright, backlit LED Knobs
Backlit LED knobs light up when the cooktop is in use.
Spill Safe® Cooktop
Clean-up is less of a hassle with the recessed cooktop that contains spills and common cooking messes.
Dishwasher Safe Burners Caps
Cleaning your cooktop is easier with removable, dishwasher safe burner caps.
Height: 2.31"
Depth: 21"
- Gas Cooking Surface
- 2 Grates
- Front Control
- Installed Over a Wall Oven
- LP Conversion Kit Included
- ADA Compliant
- CSA Listed
- UL Listed
Product Line | Gas Cooktop |
Size | 30' |
Installation Type | Built-In |
Factory | Rayong |
Color | Stainless Steel |
Installation | |
Gas Supply Connection Location | Top Right |
Installed Over a Wall Oven | Yes |
LP Conversion Kit Included | Yes |
Power Cord Included | Yes |
Power Supply Connection Location | Top Right |
Electrical Specifications | |
Minimum Circuit Required | 5 Amps |
Voltage Rating | 120 V |
Certifications and Approvals | |
ADA Compliant | Yes |
Cooktop | |
Cooking Surface Type | Gas |
Grate Material | Cast Iron |
Grate Quantity | 2 |
Grate Style | Continuous |
Dimensions and Volume | |
Height | 2 7/16' |
Width | 30' |
Depth | 21' |
Cutout Height | 7 1/2' |
Minimum Cutout Width | 27 1/4' |
Minimum Cutout Depth | 19' |
Maximum Cutout Width | 29 5/16' |
Maximum Cutout Depth | 20' |
Safety Certifications and Approvals | |
CSA Listed | Yes |
UL Listed | Yes |
General Specifications | |
Frigidaire Fit Promise | Yes |
Product Weight | 40 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Exterior | |
Backlit Knobs | Yes |
Cooktop Performance | |
Right Front Element Burner | 18,000 BTU |
Right Rear Element Burner | 5,000 BTU |
Left Front Element Burner | 9,500 BTU |
Left Rear Element Burner | 9,500 BTU |
Display | |
Control Location | Front |
