The Frigidaire 18,000 BTU window air conditioner keeps your room cool and comfortable with optimum circulation thanks to multi-directional airflow and three fan speeds. Easily install this air conditioner; this unit distributes the weight into two pieces using a slide-out chassis. Capture dust from the air and keep your air conditioner working efficiently with our easy-to-clean washable filter. Easy Installation Easily install this air conditioner; this unit distributes the weight into two pieces using a slide-out chassis. ENERGY STAR® Certified Our air conditioners meet strict criteria to guarantee energy efficient performance, without sacrificing cool air. Multi-Direction Airflow Enables optimum circulation and cooling with 6-way directional airflow and three different fan speeds. Easy-to-Clean Washable Filter Capture dust from the air and keep your air conditioner working efficiently with our easy-to-clean washable filter. And forget having to keep track of filter changes; the Clean Filter Alert will notify you when it's time to clean your filter. Eco Mode Keep your room cool and comfortable; this unit turns on and off at different intervals to ensure that the room stays at the set temperature. Fresh Air Vent Unlike many air conditioners, draw in fresh outdoor air, preventing recirculation of stale air. Programmable Timer Customize times to fit your schedule for immediate comfort when you get home by presetting the unit to turn on and off in half hour increments. Sleep Mode Enjoy maximum comfort and quiet operation throughout the evening hours. With Sleep Mode, the temperature gradually increases a few degrees over the course of the evening. Automatic Restart Automatically resumes operating at its previous settings when power is restored to your unit. Dimensions & Capacity Width: 23.63"

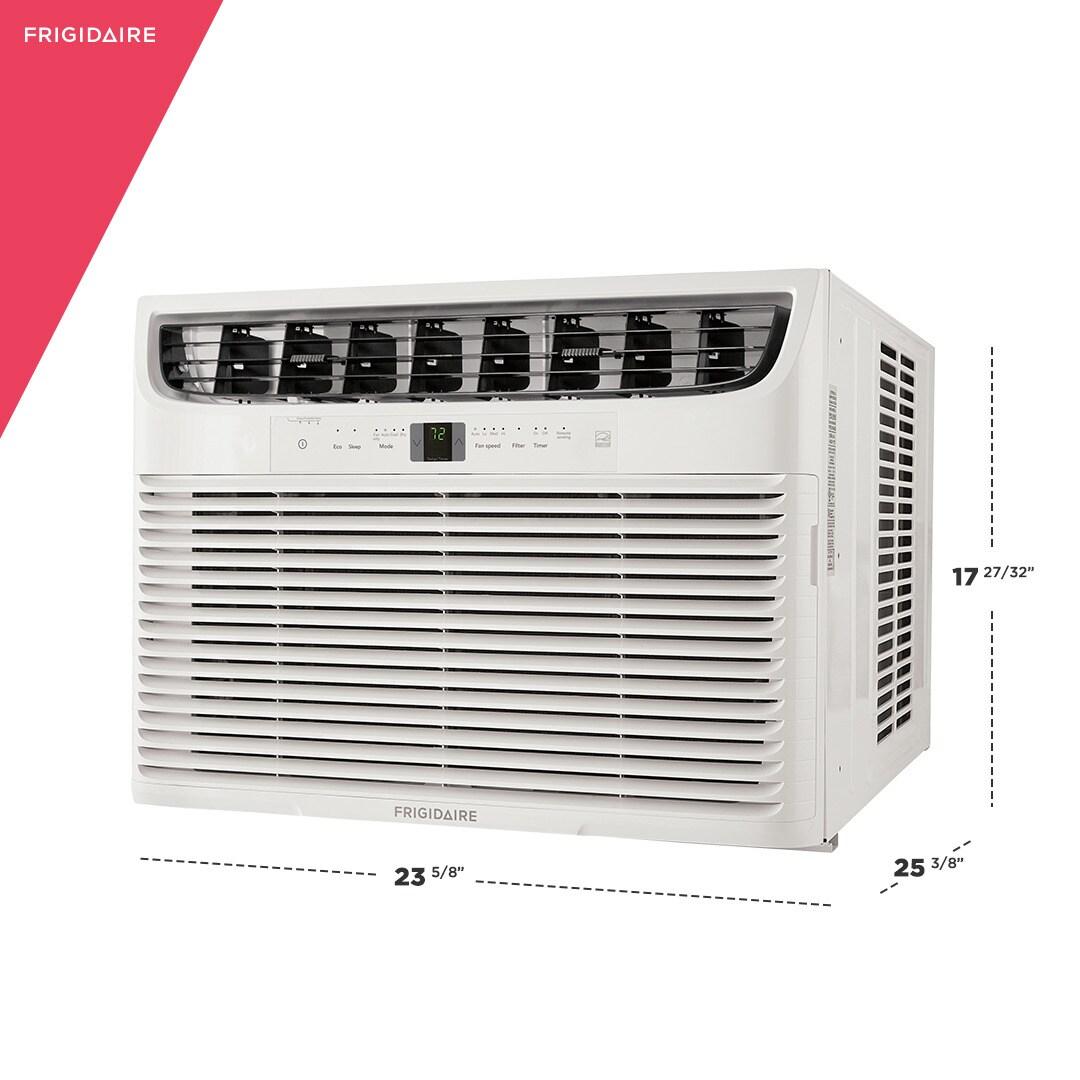

Height: 17.85"
Depth: 25.37"
Cooling Power: 18000 btu

• Easy Installation

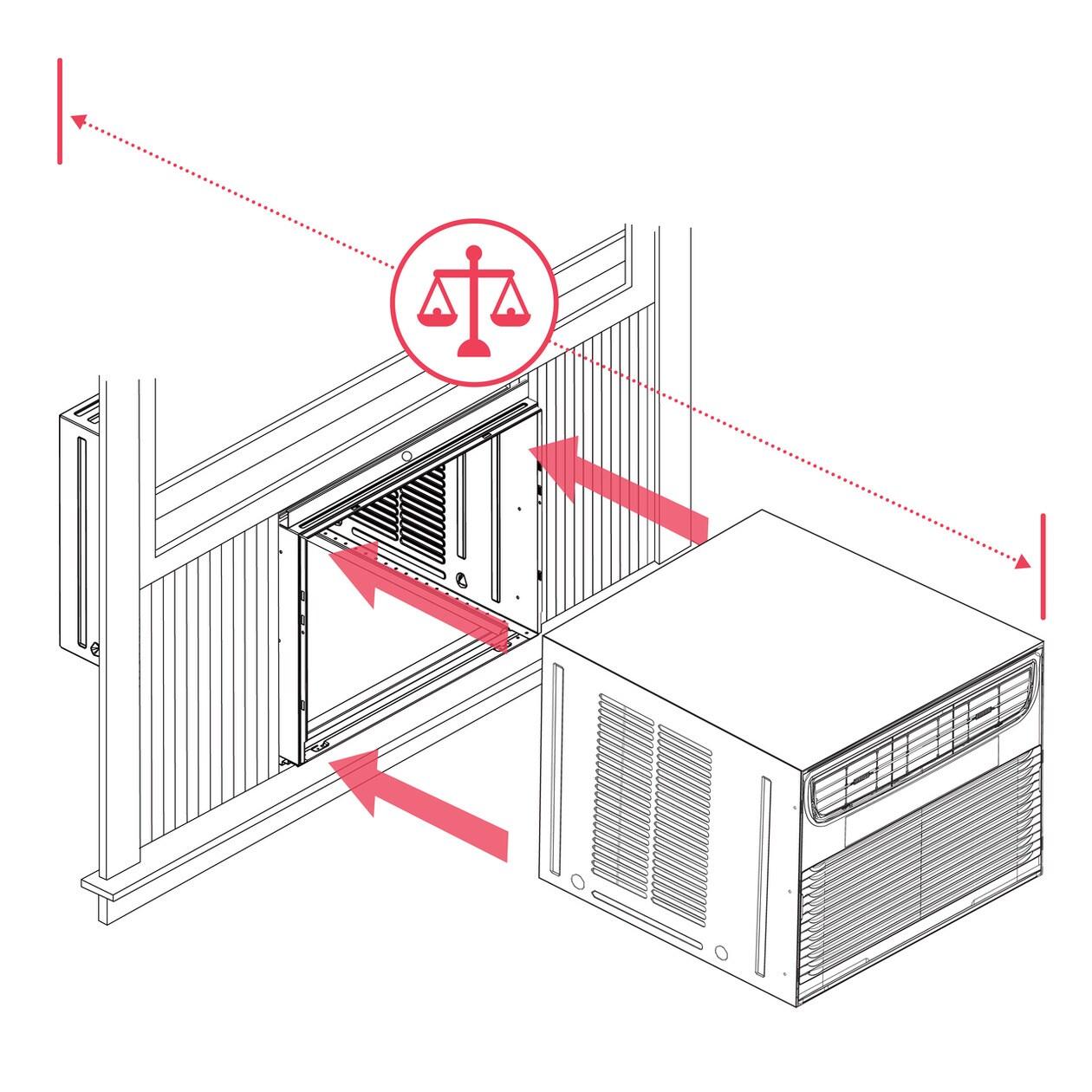

Easily install this air conditioner; this unit distributes the weight into two pieces using a slide-out chassis.

• ENERGY STAR® Certified

Our air conditioners meet strict criteria to guarantee energy efficient performance, without sacrificing cool air.

• Multi-Direction Airflow

Enables optimum circulation and cooling with 6-way directional airflow and three different fan speeds.

• Easy-to-Clean Washable Filter

Capture dust from the air and keep your air conditioner working efficiently with our easy-to-clean washable filter. And forget having to keep track of filter changes; the Clean Filter Alert will notify you when it's time to clean your filter.

• Eco Mode

Keep your room cool and comfortable; this unit turns on and off at different intervals to ensure that the room stays at the set temperature.

• Fresh Air Vent

Unlike many air conditioners, draw in fresh outdoor air, preventing recirculation of stale air.

• Programmable Timer

Customize times to fit your schedule for immediate comfort when you get home by presetting the unit to turn on and off in half hour increments.

• Sleep Mode

Enjoy maximum comfort and quiet operation throughout the evening hours. With Sleep Mode, the temperature gradually increases a few degrees over the course of the evening.

• Automatic Restart

Automatically resumes operating at its previous settings when power is restored to your unit.

Product Line	Window Air Conditioner
Size	18,000 BTU
Installation Type	Window Mounted
Factory	Sourced
Color	White
Accessories
Included Accessory	Pleated Quick Mount Window Kit and Support Hardware
AC
Air CFM (Low)	301 CFM
Air CFM (Med)	328 CFM
Air CFM (High)	363 CFM
Air Direction Control	Manual
Air Discharge	Top of Unit
Fan Speeds - Cool	3
Fan Speeds - Fan	3
Filter Type	Easy-to-Clean Washable Filter
Fresh Air	Yes
Motor RPM (Low)	890 RPM
Motor RPM (Med)	1,000 RPM
Motor RPM (High)	1,110 RPM
Noise Level dBA (Low)	54 dBA
Noise Level dBA (Med)	56 dBA
Noise Level dBA (High)	58 dBA
Cabinet Louvers	Yes
Exhaust Vent	Yes
Filter Access	Yes
Filter Check Indicator	Yes
Rear Grill	Yes
Slide-Out Chassis	Yes
Window Mounting Kit	Yes
Installation
Power Cord Length	60'
Electrical Specifications
Amps (Cool)	7.6 Amps
Plug Type	LCDI 6-15P
Voltage Rating	230 V
Watts (Cool)	1,510 Watts
Dimensions and Volume
Height	17 17/20'
Width	23 63/100'
Depth	25 37/100'
Window Width Minimum	28'
Window Width Maximum	40 1/2'
Window Height Minimum	18 1/2'
Max Wall Thickness	8'
Safety Certifications and Approvals
CSA Listed	Yes
Performance Certifications and Approvals
ENERGY STAR Certified	Yes
Controls

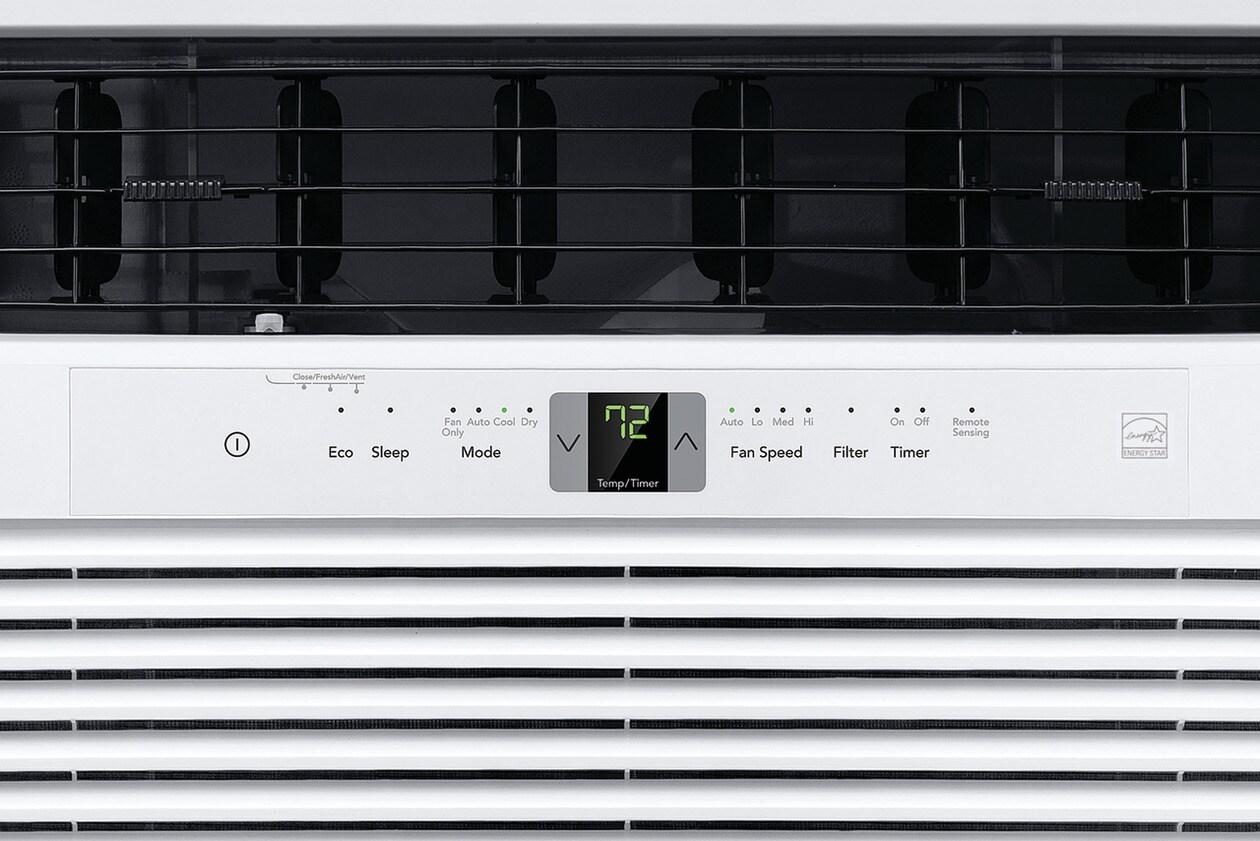

Control Type	Electronic
Remote Control	Yes
General Specifications
Product Weight	113 lbs
Prop 65 Label	Yes
Refrigerant Type	R-32
Warranty - Labor	1 Year
Warranty - Parts	1 Year
Functions
24-Hour On/Off Timer	Yes
Auto Fan	Yes
Auto Restart	Yes
Dry Mode	Yes
Low Voltage Start-up	Yes
Sleep Mode	Yes
Performance

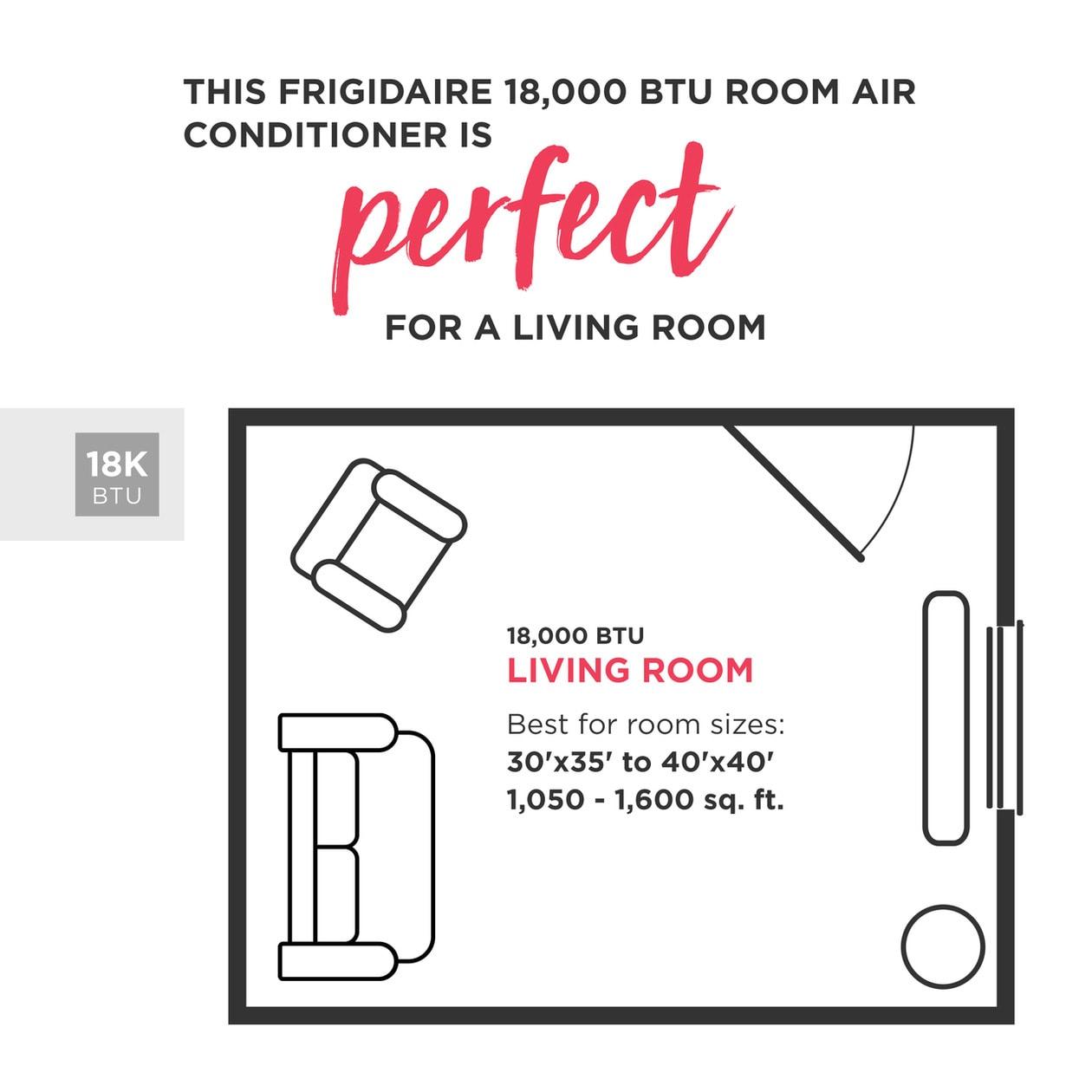

Cool Area	1,020 sq.
BTU (Cool)	18,000 BTU
Combined Energy Efficiency Ratio	11.8
Set Temperature Range	90 F
Dehumidification - Pints per Hour	5.2
