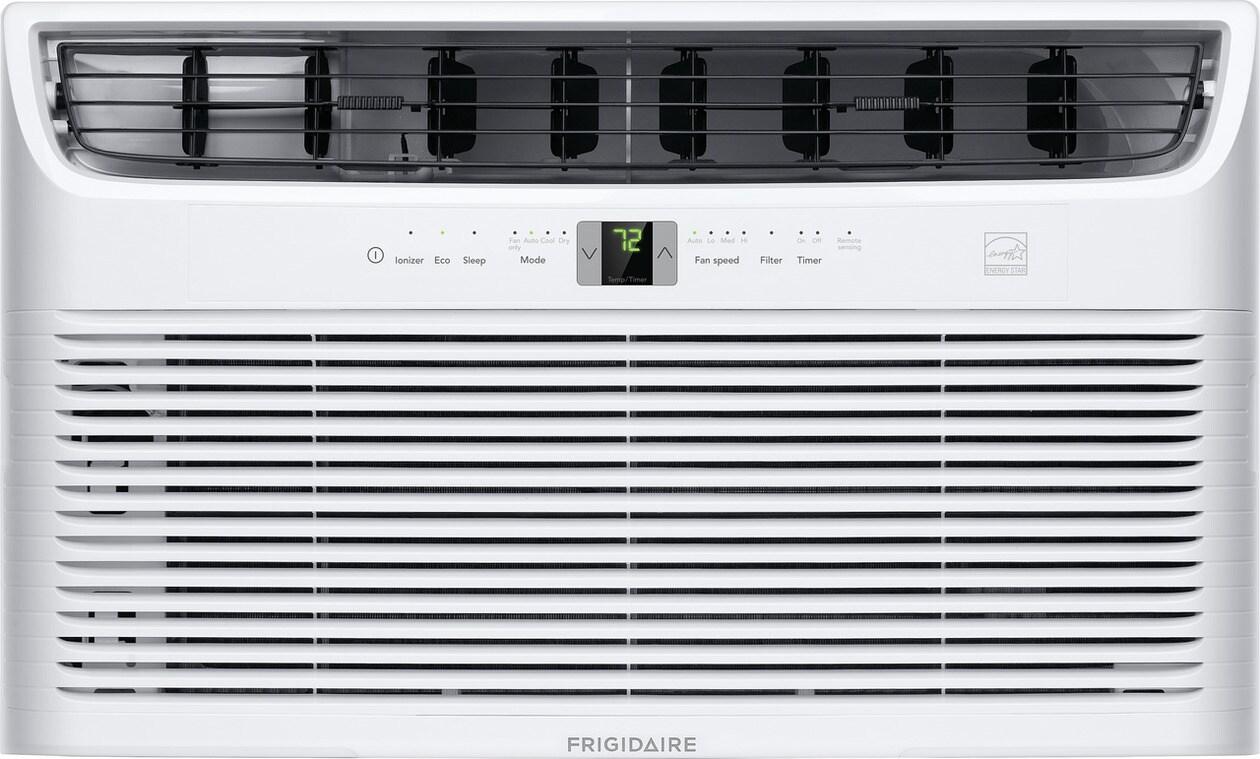

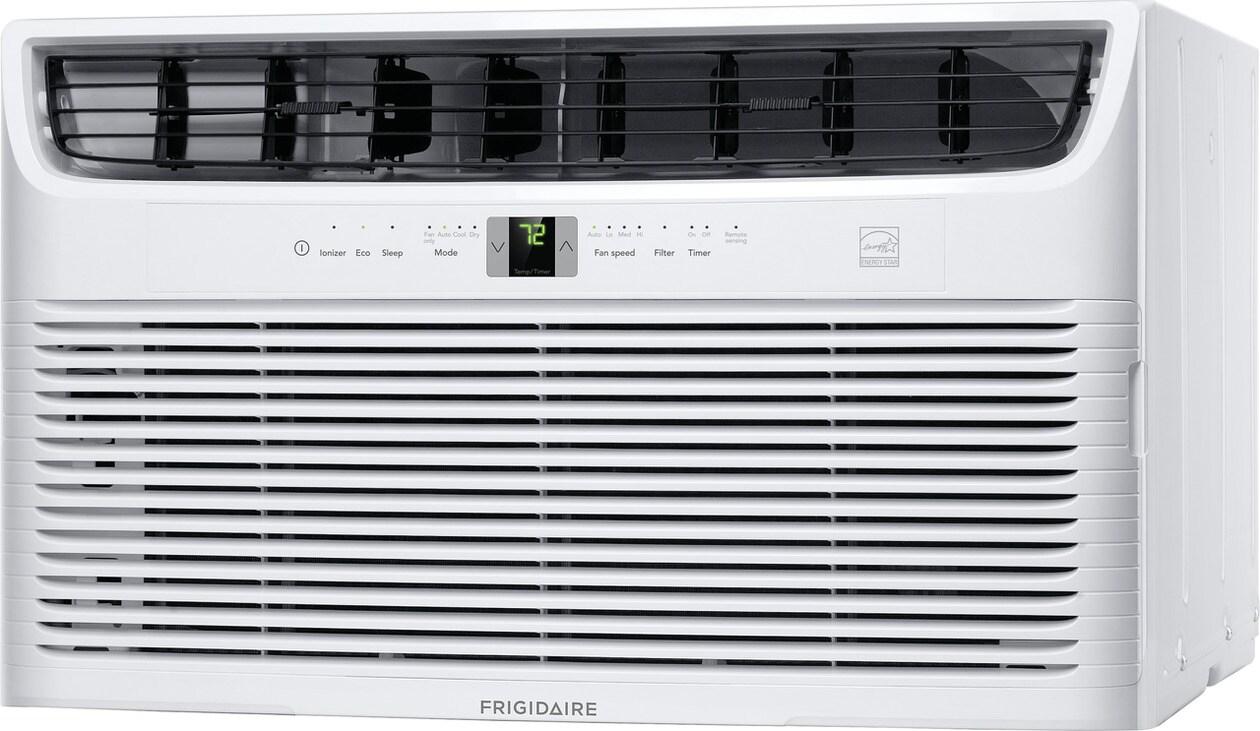

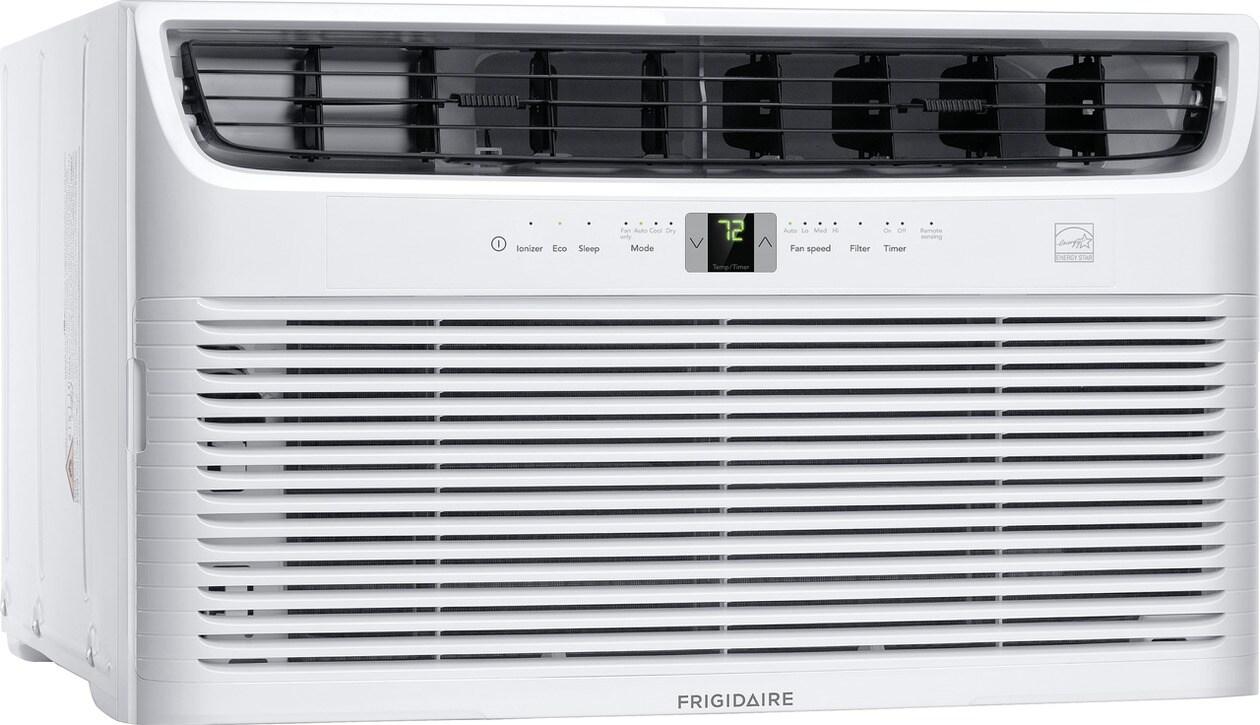

Frigidaire FHTC123WA2 Frigidaire 12,000 Btu Built-In Room Air Conditioner
The Frigidaire 12,000 BTU Built-In Room Air Conditioner allows you to enjoy more cooling flexibility with three different fan speeds. With the built in air ionizer you can reduce airborne particles and improve your comfort. Plus, the easy-to-clean washable filter captures dust from the air and keeps your air conditioner working efficiently.
Multi-Speed Fan
Enjoy more cooling flexibility with three different fan speeds.
Clean Air Ionizer
Reduce airborne particles to improve your comfort with a built-in air ionizer.
Easy-to-Clean Washable Dust Filter
Capture dust from the air and keep your air conditioner working efficiently with our easy-to-clean washable dust filter.
ENERGY STARĀ® Certified
Uses less energy than standard air conditioners reducing your energy usage and ultimately lowering your utility bills.
Automatic Remote Temperature Control
Remain comfortable at all times with a thermostat located on your air conditioner's remote control, which precisely maintains the preset room temperature.
Programmable Timer
Customize times to fit your schedule for immediate comfort when you get home and preset the unit to turn on and off in half hour increments.
Sleep Mode
Enjoy maximum comfort and quiet operation throughout the evening hours with the added benefit of energy savings. With Sleep Mode, the temperature gradually increases a few degrees over the evening keeping the fan in low speed.
Automatic Restart
Automatically resumes operating at its previous settings when power is restored to your unit.
Dimensions & Capacity
Width: 24"
Height: 14.50"
Depth: 19"
Cooling Power: 12000 btu
Height: 14.50"
Depth: 19"
Cooling Power: 12000 btu
- 24-Hour On/Off Timer
- Auto Fan
- Auto Restart
- Clean Air Ionizer
- Dry Mode
- Energy Saver
- Low Voltage Start-up
- Sleep Mode
Product Line | Built-In Air Conditioner |
Power Type | Electric 230v |
Installation Type | Wall Mounted |
Factory | Sourced |
Color | White |
Accessories | |
Accessories Sold Separately | Yes |
Included Accessory | Univ. Trim Kit |
AC | |
Air CFM (Low) | 237 CFM |
Air CFM (Med) | 260 CFM |
Air CFM (High) | 275 CFM |
Air Direction Control | Manual |
Air Discharge | Top of Unit |
Fan Speeds - Cool | 3 |
Fan Speeds - Fan | 3 |
Filter Type | Easy-to-Clean Washable Filter |
Motor RPM (Low) | 1,340 RPM |
Motor RPM (Med) | 1,440 RPM |
Motor RPM (High) | 1,500 RPM |
Noise Level dBA (Low) | 58 dBA |
Noise Level dBA (Med) | 59 dBA |
Noise Level dBA (High) | 61 dBA |
Filter Access | Yes |
Filter Check Indicator | Yes |
Fin Coating | Corrosion Guard |
Rear Grill | Yes |
Slide-Out Chassis | No |
Electrical Specifications | |
Amps (Cool) | 5.6 Amps |
Plug Type | LCDI 6-15P |
Voltage Rating | 230 V |
Watts (Cool) | 1,140 Watts |
Dimensions and Volume | |
Height | 14 1/2' |
Width | 24' |
Depth | 19' |

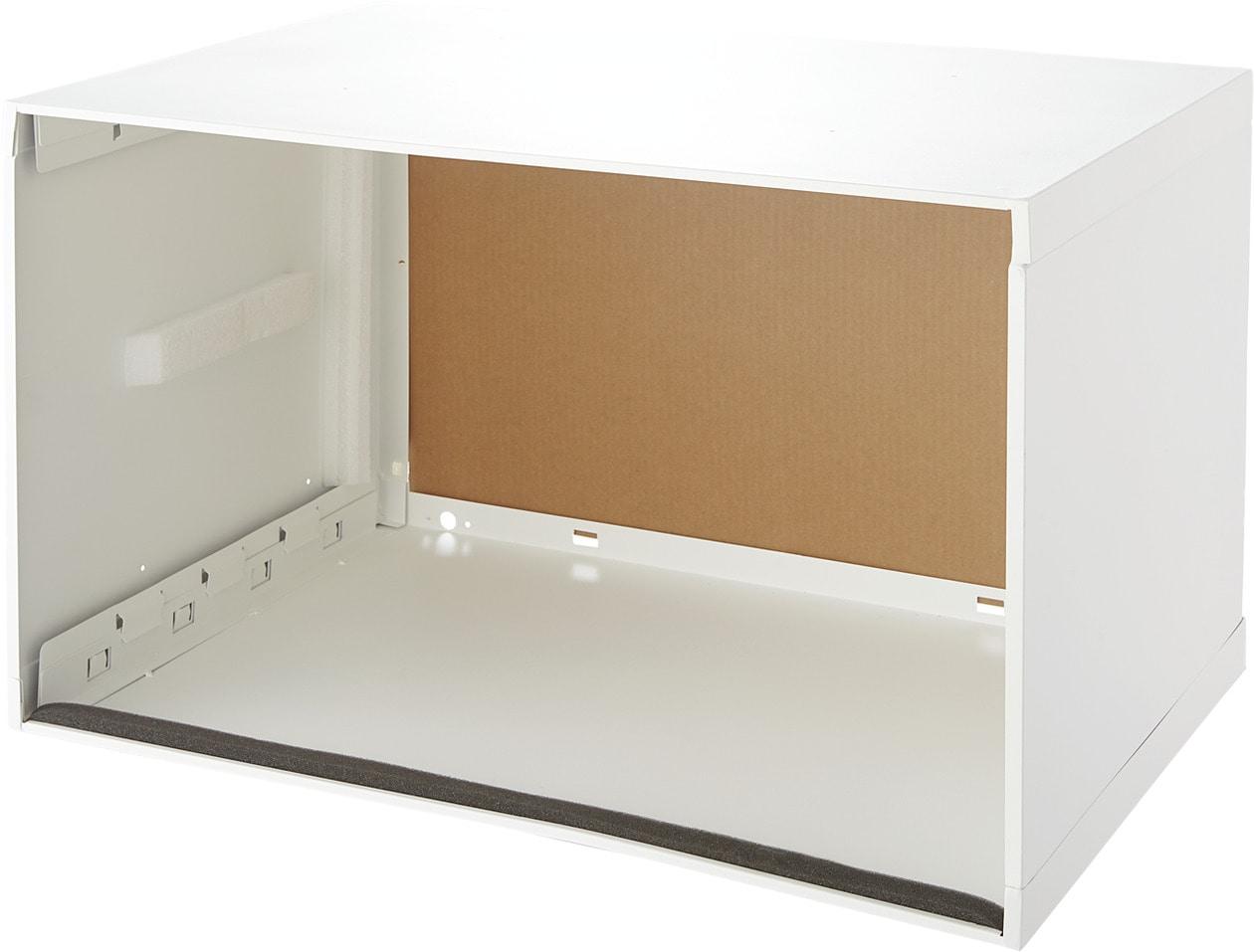

Sleeve Height | 15 5/8' |
Sleeve Width | 25 15/16' |
Sleeve Depth | 21 1/2' |
Max Wall Thickness | 18' |
Performance Certifications and Approvals | |
Energy Efficiency Verification (Canada) | Yes |
ENERGY STAR Certified | Yes |
Connectivity | |
Wi-Fi Enabled | No |
Controls | |
Control Type | Electronic |
Remote Control | Yes |
General Specifications | |
Product Weight | 78 lbs |
Prop 65 Label | Yes |
Refrigerant Type | R-32 |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Functions | |
24-Hour On/Off Timer | Yes |
Auto Fan | Yes |
Auto Restart | Yes |
Clean Air Ionizer | Yes |
Dry Mode | Yes |
Energy Saver | Yes |
Low Voltage Start-up | Yes |
Sleep Mode | Yes |
Performance | |

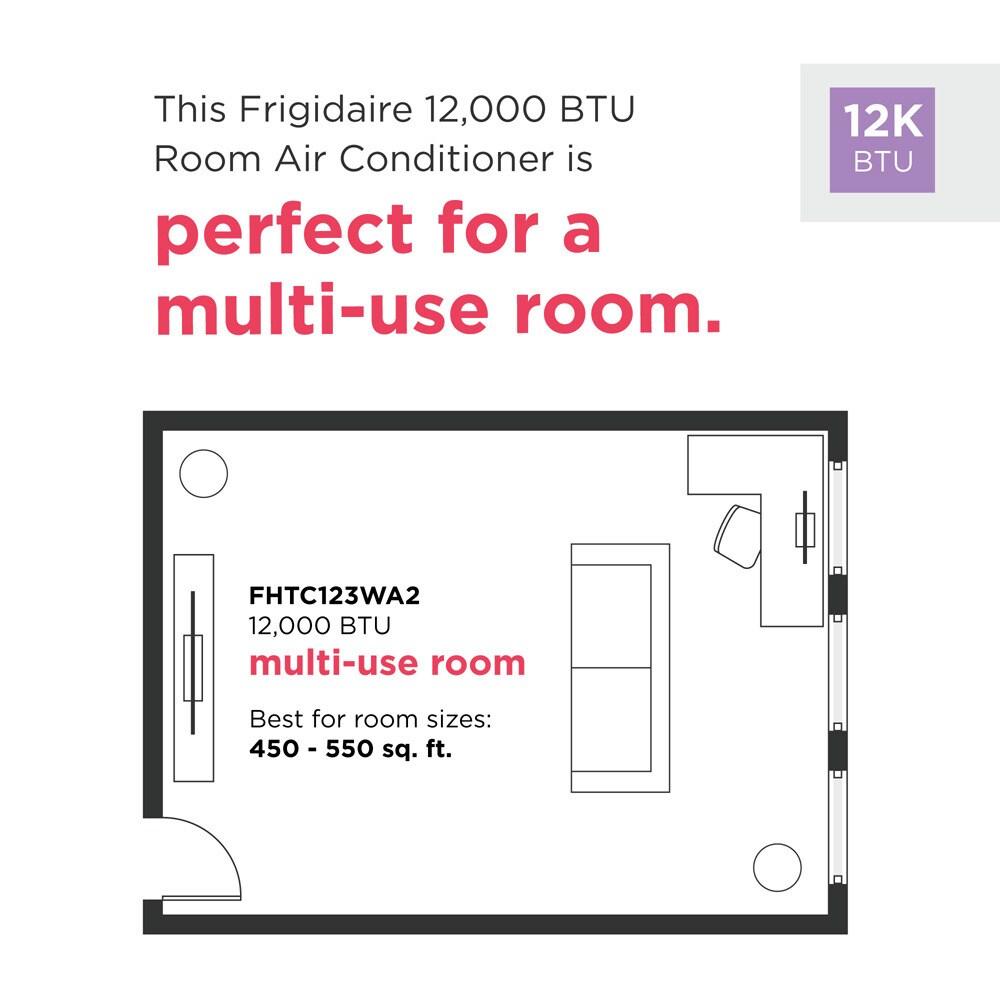

Cool Area | 550 sq. |
BTU (Cool) | 12,000 BTU |
Combined Energy Efficiency Ratio | 10.5 |
Dehumidification - Pints per Hour | 3.5 |
