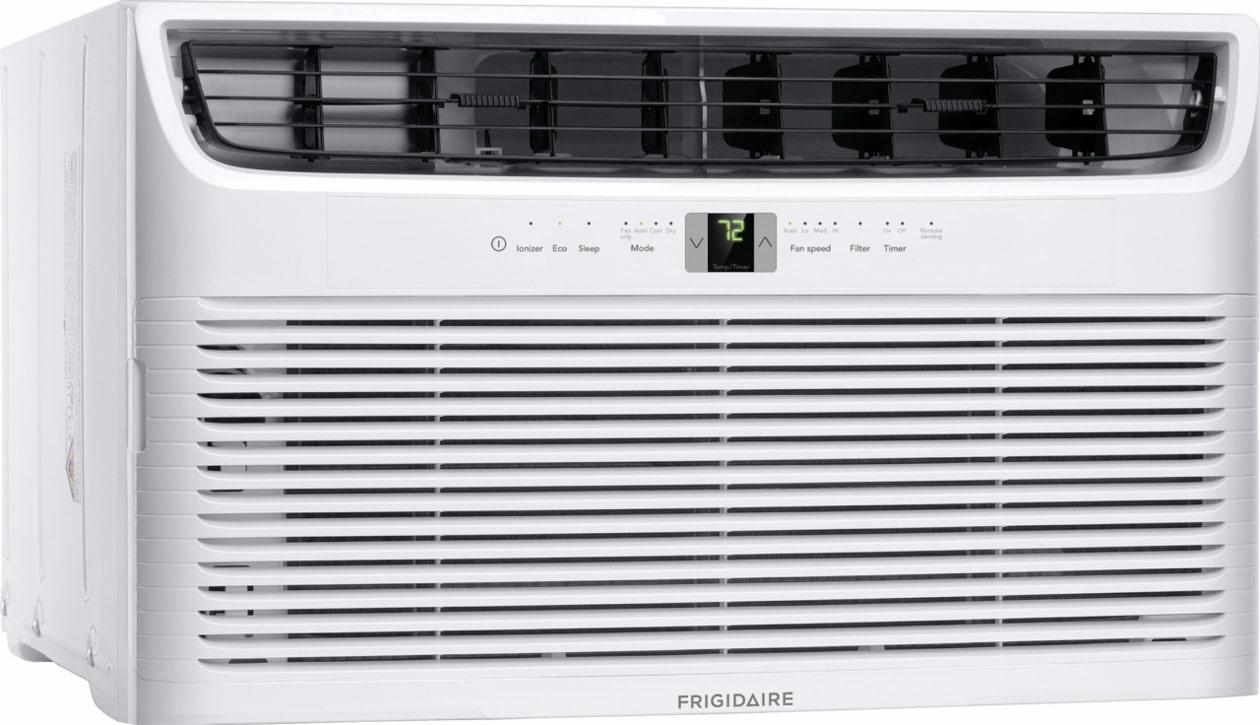

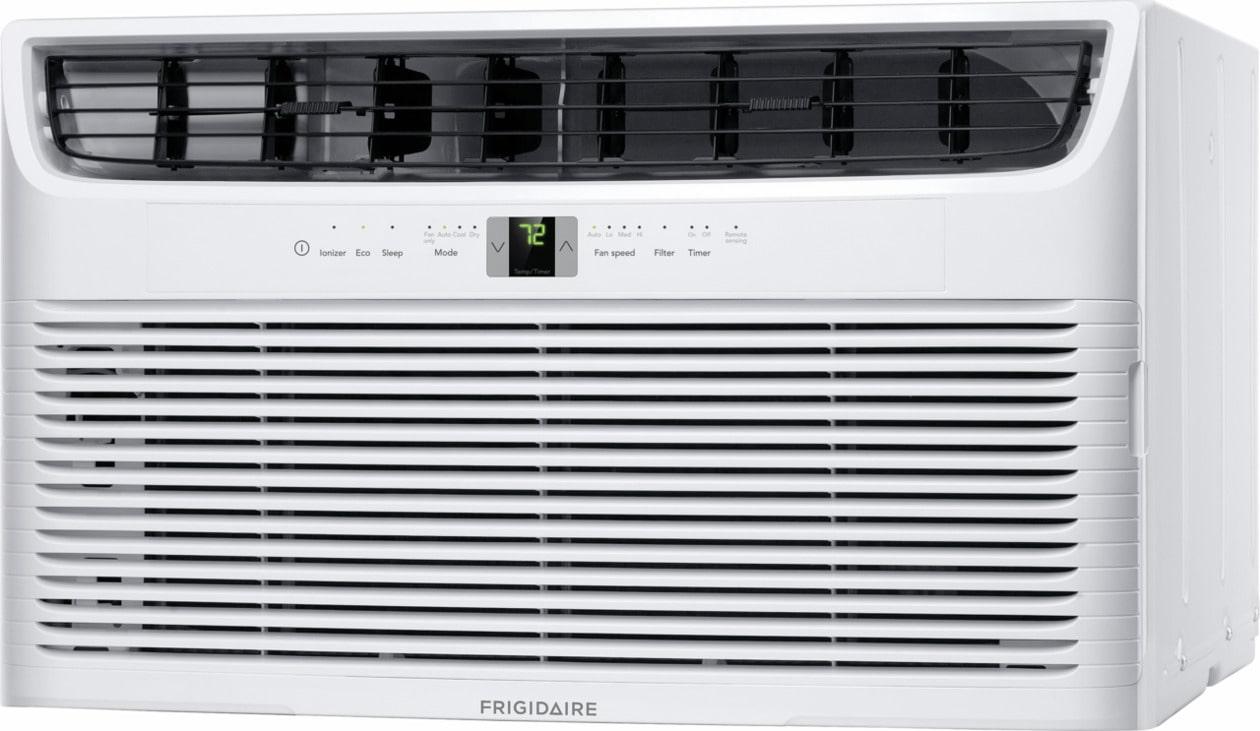

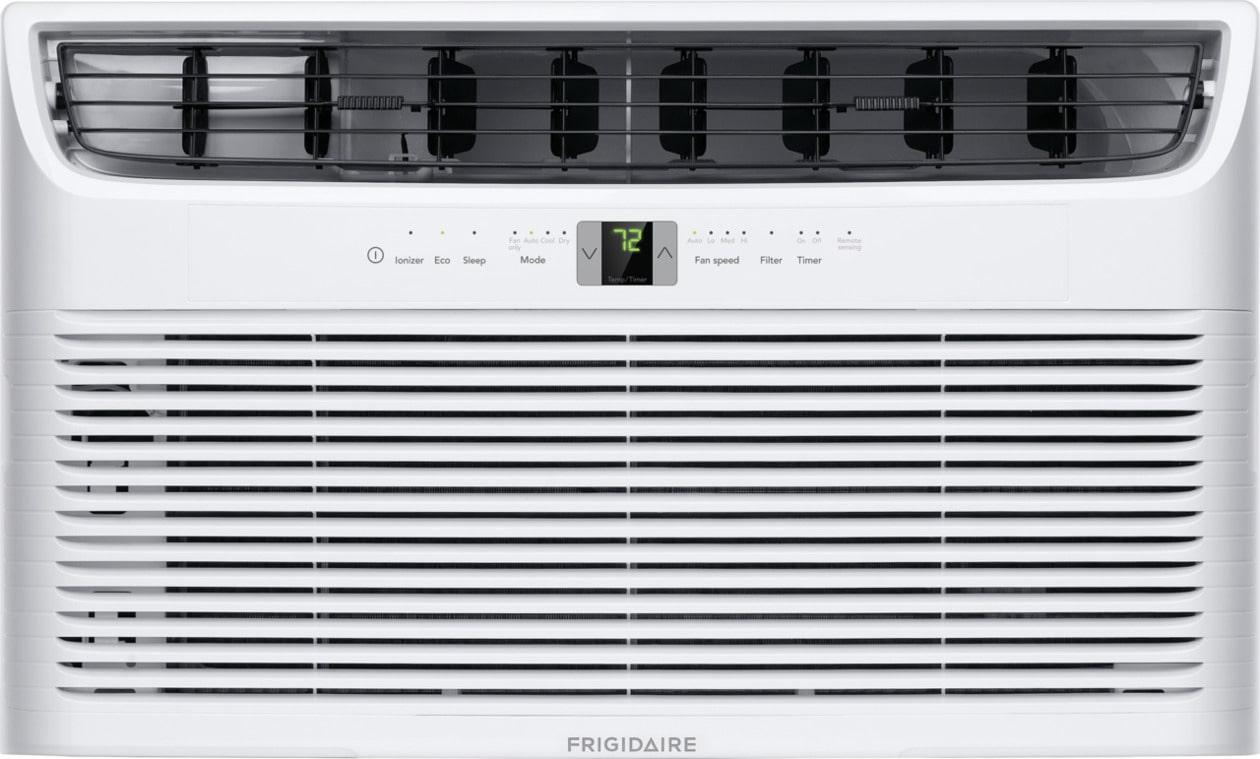

Frigidaire FHTC103WB2 10,000 Btu Through The Wall Room Air Conditioner 208/230 V
The Frigidaire 10,000 Btu Wall Room Air Conditioner (230/208V) Allows You To Enjoy More Cooling Flexibility With Three Different Fan Speeds. With The Built In Air Ionizer You Can Reduce Airborne Particles And Improve Your Comfort. Plus, The Easy-To-Clean Washable Filter Captures Dust From The Air And Keeps Your Air Conditioner Working Efficiently.
- Multi-Speed Fan
- Clean Air Ionizer
- Easy-to-Clean Washable Dust Filter
- Remote Control
- Programmable 24-Hour On/Off Timer
- Sleep Mode
- Automatic Restart
| Product Line | Wall Air Conditioner |
| Power Type | Electric 208/230v |
| Size | 10000 BTU |
| Installation Type | Wall Mounted |
| Factory | Sourced |
| Color | White |
| AC | |
| Air CFM (Low) | 250 CFM |
| Air CFM (Med) | 287 CFM |
| Air CFM (High) | 303 CFM |
| Air Direction Control | Manual |
| Air Discharge | Front of Unit |
| Fan Speeds - Cool | 3 |
| Fan Speeds - Fan | 3 |
| Motor RPM (Low) | 1280 RPM |
| Motor RPM (Med) | 1380 RPM |
| Motor RPM (High) | 1460 RPM |
| Noise Level dBA (Low) | 55.7 dBA |
| Noise Level dBA (Med) | 57.9 dBA |
| Noise Level dBA (High) | 59.5 dBA |
| Dust Air Filter | Yes |
| Filter Access Location | Front |
| Filter Check Indicator | Yes |
| Option for Advanced Filtration | Yes |
| Rear Grill | Yes |
| Supplemental Heat | No |
| Performance | |

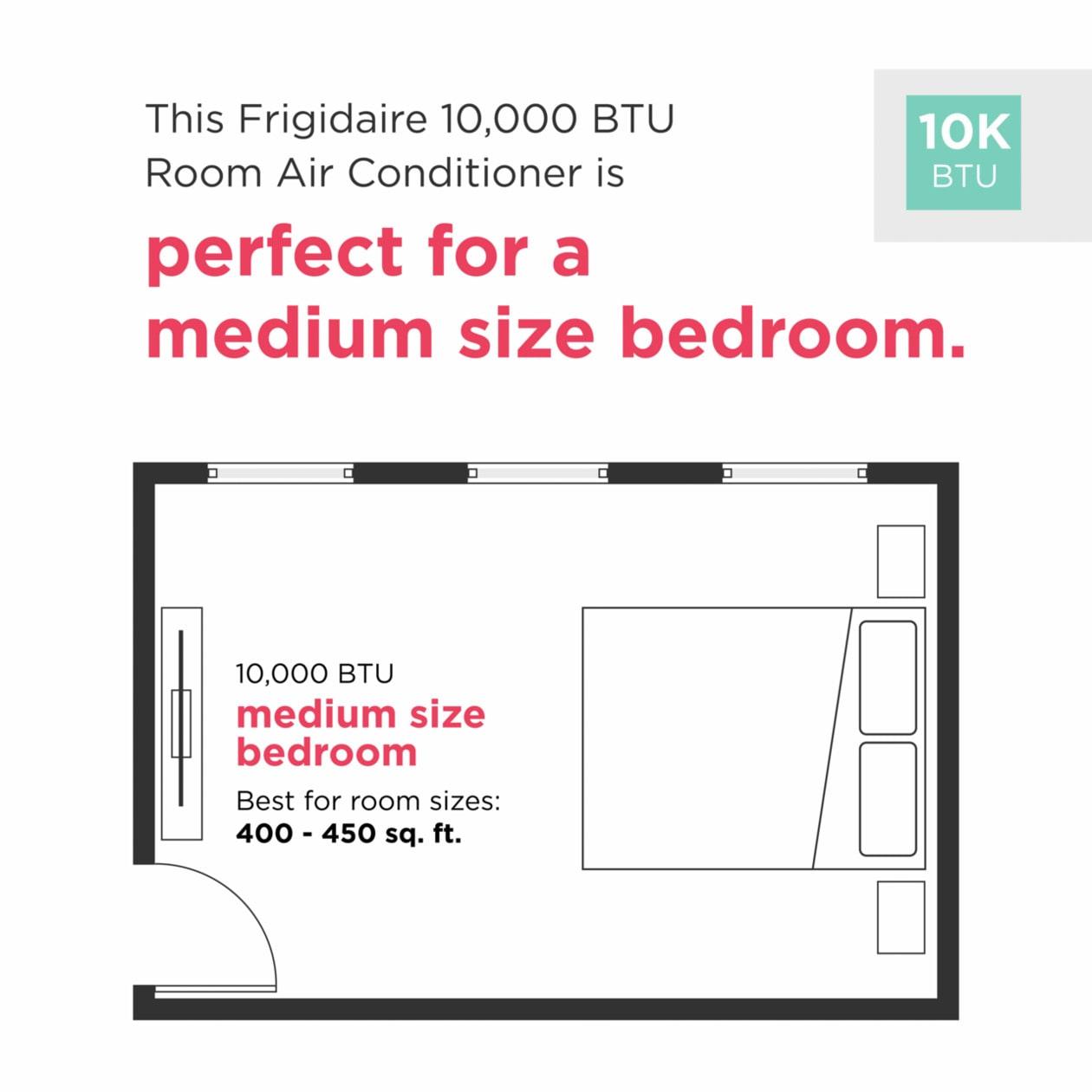

| Cool Area | 450 sq. |
| BTU (Cool) | 10000 BTU |
| Combined Energy Efficiency Ratio | 9.6 |
| Dehumidification - Pints per Hour | 2.8 |
| Functions | |
| 24-Hour On/Off Timer | Yes |
| Auto Fan | Yes |
| Auto Restart | Yes |
| Clean Air Ionizer | Yes |
| Dry Mode | Yes |
| Energy Saver | Yes |
| Low Voltage Start-up | Yes |
| Sleep Mode | Yes |
| Controls | |
| Control Type | Electronic |
| Remote Control | Yes |
| Connectivity | |
| Wi-Fi Enabled | No |
| Dimensions and Volume | |

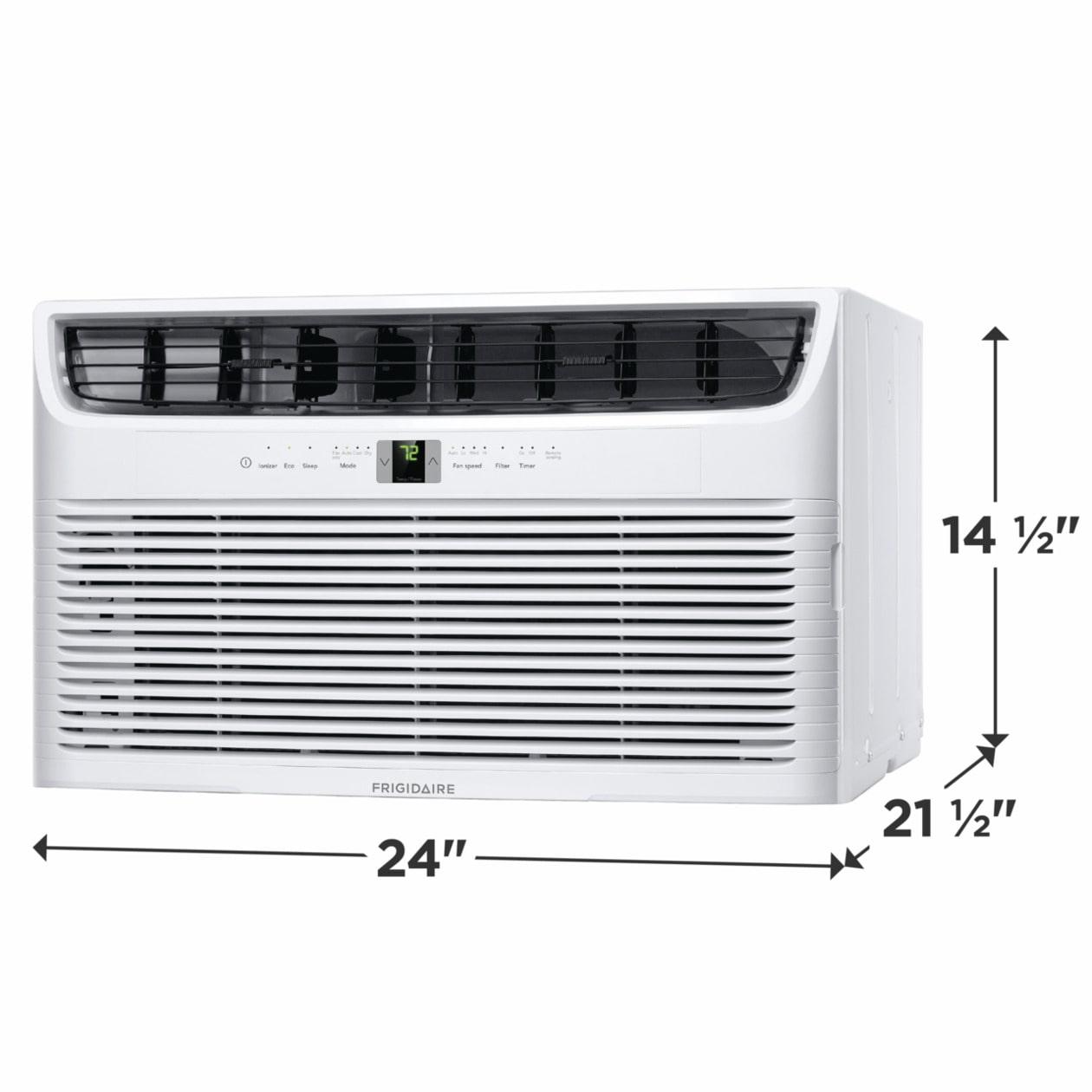

| Height | 14 1/2' |
| Width | 24' |
| Depth | 21 1/2' |
| Sleeve Height | 15 3/4' |
| Sleeve Width | 26' |
| Sleeve Depth | 21 1/2' |
| Max Wall Thickness | 18' |
| Electrical Specifications | |
| Amps (Cool) | 4.6 Amps |
| Plug Type | LCDI 6-15P |
| Voltage Rating | 208/230v |
| Watts (Cool) | 1010 Watts |
| Installation | |
| Power Cord Length | 72' |
| General Specifications | |
| Product Weight | 68 lbs |
| Prop 65 Label | Yes |
| Refrigerant Type | R-32 |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Safety Certifications and Approvals | |
| CSA Listed | Yes |
| cUL Listed | Yes |
| Energy Efficiency Verification (Canada) | Yes |
| ENERGY STAR Certified | No |
| UL Listed | Yes |
| Accessories Sold Separately | |
| PureAir Filter | Yes |
| Sleeve Part Number | 912001373 |
| Included Accessories | |
| Trim Kit | Yes |
