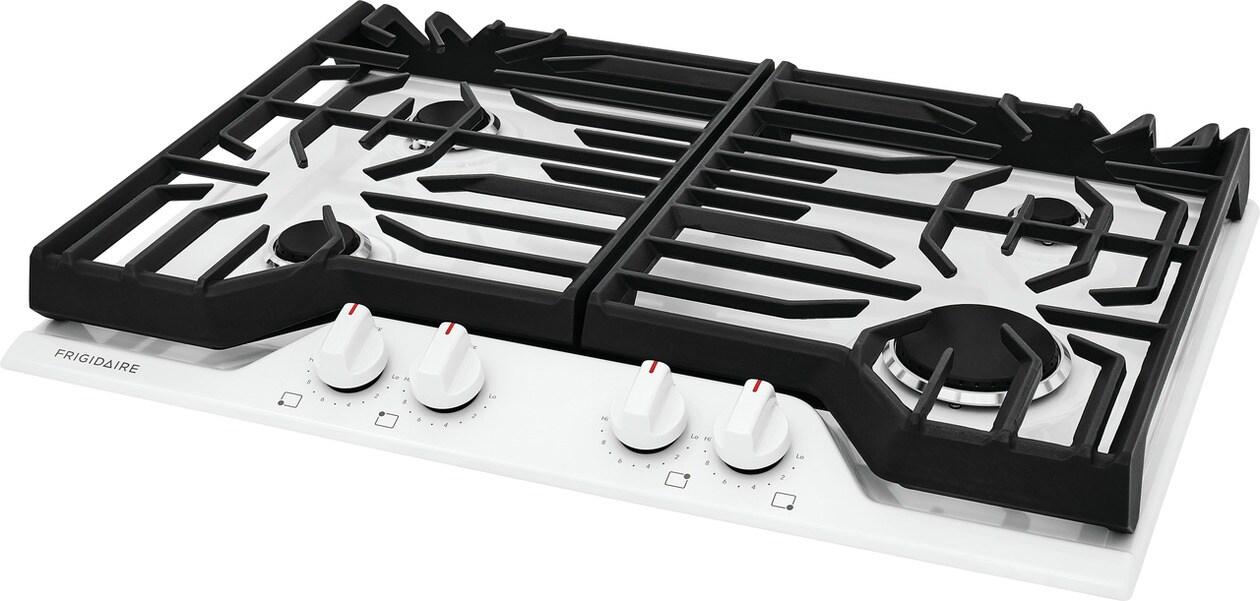

Frigidaire FCCG3027AW Frigidaire 30" Gas Cooktop
Rebates &
Promotions
Power Burner
Get meals on the table faster with the Power Burner. Boil water and prepare meals quickly with the 16,000 BTU burner.
Burners offer the versatility you need
From boil to simmer, get the job done right with the 16,000 BTU power burner and the 5,000 BTU burner, perfect for delicate sauces.
Continuous Edge-to-Edge Grates
Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
Dishwasher Safe Burner Caps
Cleaning your cooktop is easier with removable, dishwasher safe burner caps.
Peace of Mind with the Frigidaire® Fit Promise
We promise that your new 30" Frigidaire gas cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100. * Via mail-in rebate. See https://www.Frigidaire.com/FitPromise for additional information.
Simmer Burner delivers low, gentle heat
Simmer burner delivers a low heat that allows you to prepare delicate foods or sauces without burning or scorching the bottom.
Height: 2.31"
Depth: 21"
- Gas Cooking Surface
- Cast Iron Grate Material
- 2 Grates
- Sealed Burners
- Front Control
- ADA Compliant
- CSA Listed
- UL Listed
Product Line | Gas Cooktop |
Size | 30' |
Installation Type | Built-In |
Factory | Rayong |
Color | White |
Installation | |
Gas Supply Connection Location | Top Right |
Installed Over a Wall Oven | Yes |
LP Conversion Kit Included | Yes |
Power Cord Included | Yes |
Power Supply Connection Location | Top Right |
Electrical Specifications | |
Amps @ 120 Volts | 5 Amps |
Voltage Rating | 120 V |
Certifications and Approvals | |
ADA Compliant | Yes |
Cooktop | |
Cooking Surface Type | Gas |
Grate Material | Cast Iron |
Grate Quantity | 2 |
Grate Style | Continuous |
Sealed Burners | Yes |
Dimensions and Volume | |
Height | 2 7/16' |
Width | 30' |
Depth | 21' |
Cutout Height | 7 1/2' |
Minimum Cutout Width | 27 1/4' |
Minimum Cutout Depth | 19' |
Maximum Cutout Width | 29 5/16' |
Maximum Cutout Depth | 20' |
Safety Certifications and Approvals | |
CSA Listed | Yes |
UL Listed | Yes |
General Specifications | |
Frigidaire Fit Promise | Yes |
Product Weight | 37 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Cooktop Performance | |
Right Front Element Burner | 16,000 BTU |
Right Rear Element Burner | 5,000 BTU |
Left Front Element Burner | 9,500 BTU |
Left Rear Element Burner | 9,500 BTU |
Display | |
Control Location | Front |
Display Type | Mechanical |
