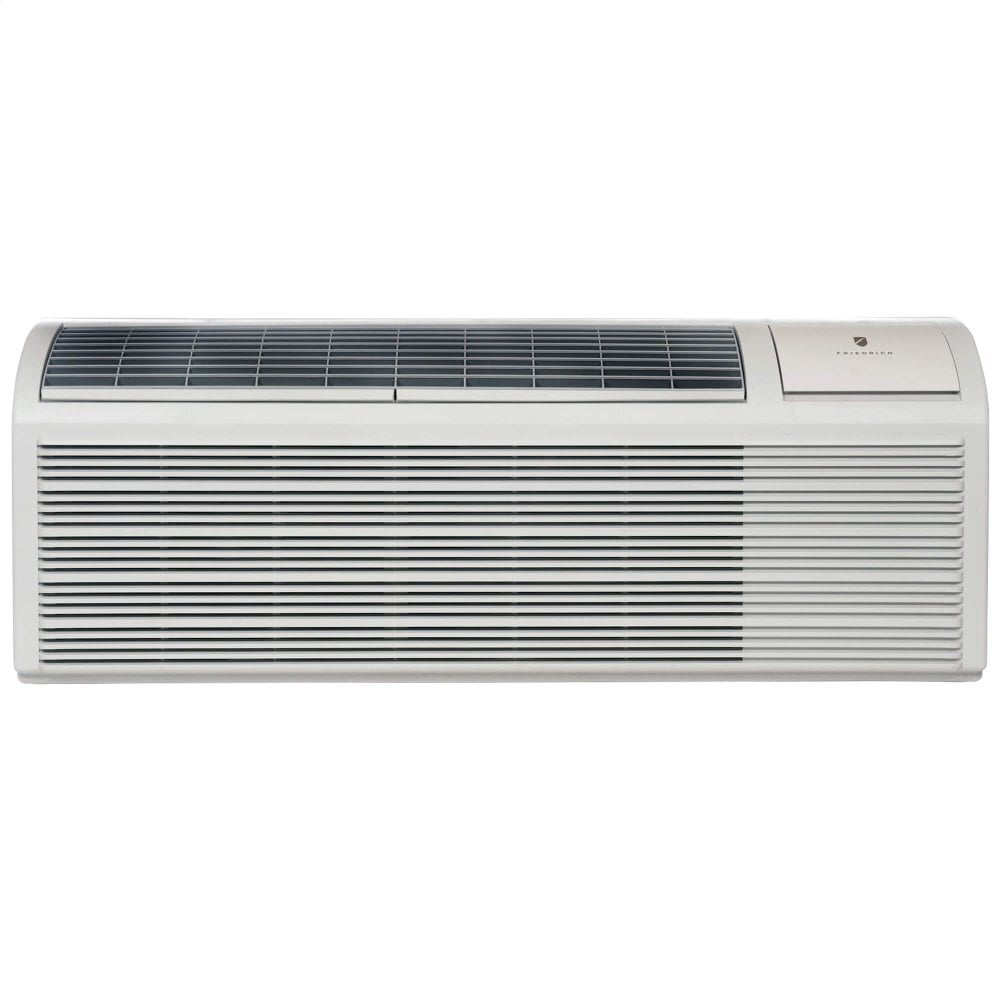

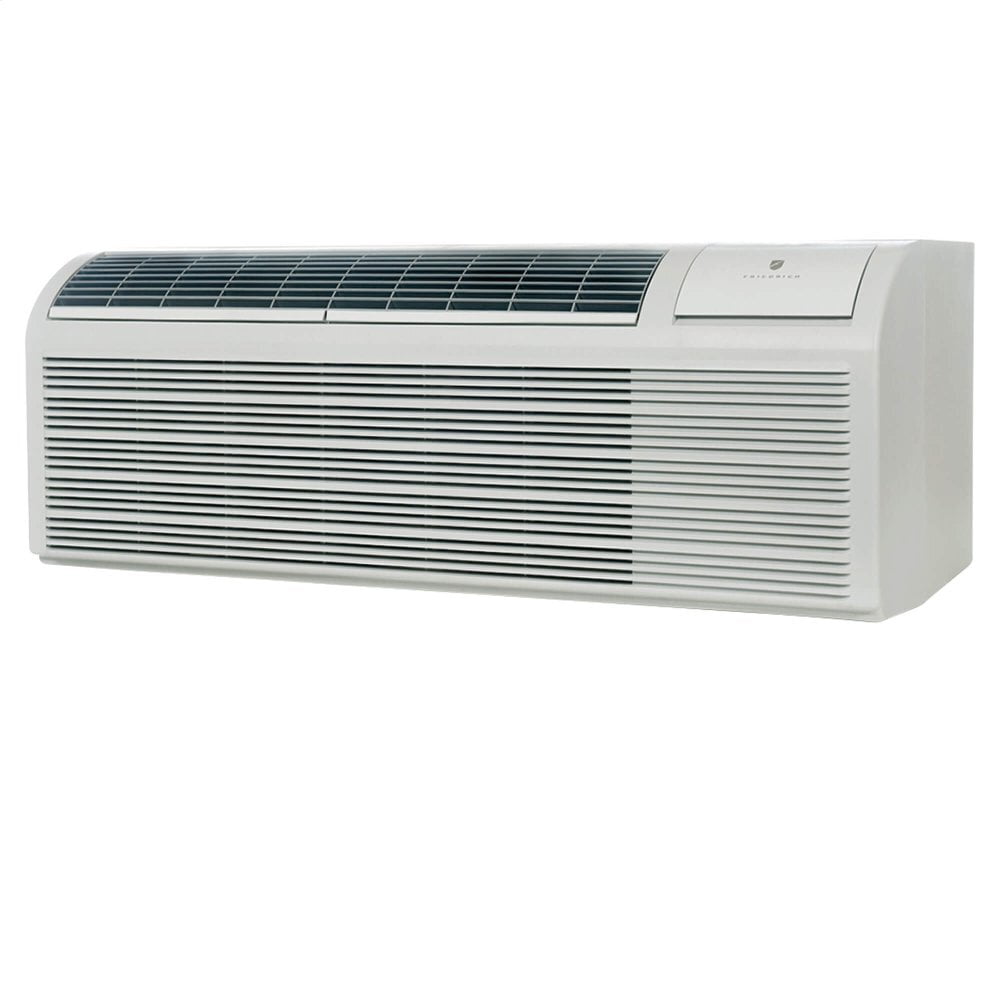

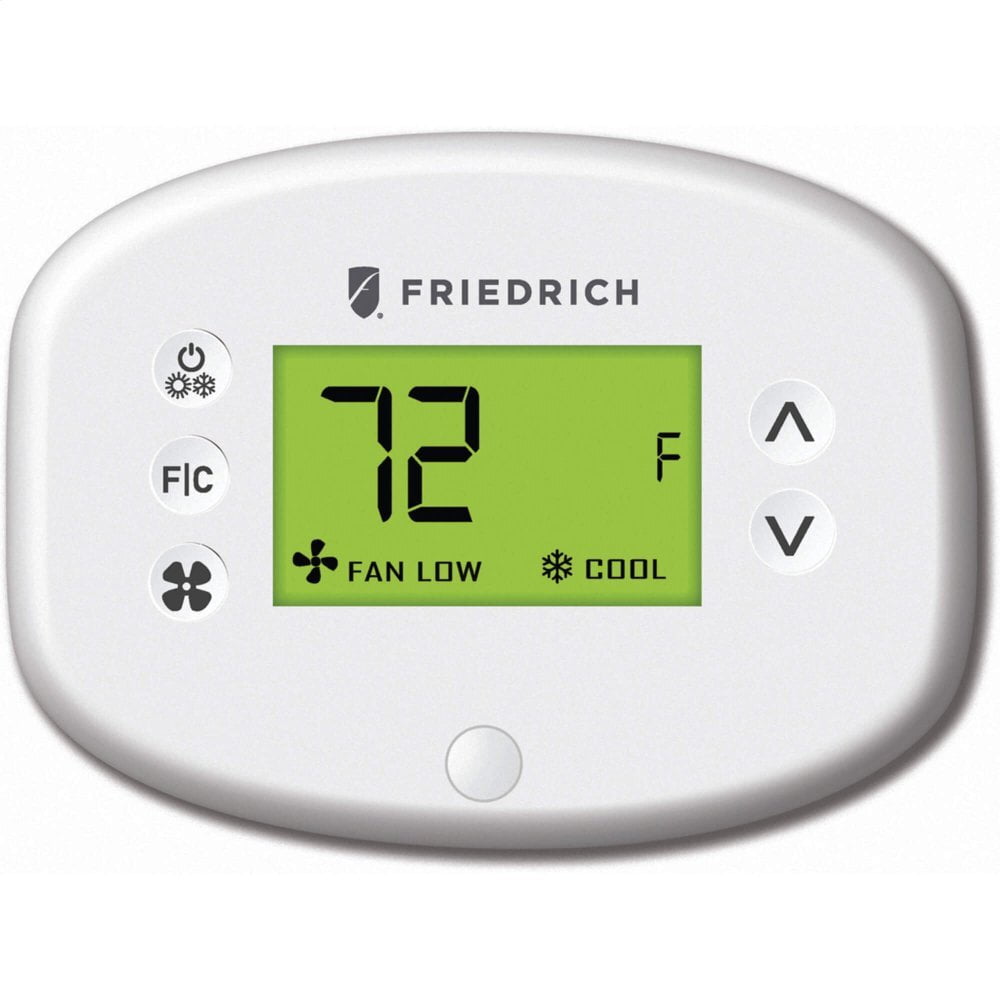

Our Most Efficient Standard Ptac With Exceptional Performance And Leading Warranty For The Lowest Cost Of Operation. Zoneaire Premier Ptac Is Available In Electric Heat And Heat Pump Options, Ranging From 7,000 To 15,000 Btu. Durable Construction Superior Materials And Design Reduce Sound Levels And Improve Overall Guest Satisfaction. Galvanized Zinc Coated Steel Wall Sleeve And Steel Base Pan Undergo An 11-Step Preparation Process, Are Powder Coated With A Polyester Finish And Are Oven-Cured At High Temperature For Exceptional Durability. Stainless Steel Endplates Reduce Corrosion Of The Outdoor Coil. Energy Efficiency Friedrich Ptacs Feature A Super-Efficient Refrigeration Design With Eers Up To 13.0 And Cop Up To 3.6. Energy Efficient Heat Pump Models Are Also Available In Our Complete Line. Comfort & Convenience Intuitive Unit Controls Are User Friendly With Easy-To-Read Led Display That Can Show Either Set Point Or Actual Room Temperature As Selected By Owner. Dehumidification Removes Moisture In Cool Mode To Improve Comfort And Reduce The Chance Of Mold And Mildew Growth. Sound Reduction Technology Friedrich Ptacs Come Standard With Two Permanently Lubricated Fan Motors For Added Durability And Reduced Sound Levels Indoors. Units Also Have A Quiet, Efficient Rotary Compressor Mounted With Vibration Isolators To Keep The Compressor Running Smoothly And Quietly. High-Density Insulation And Steel Inner Wall Block Outdoor Noise. Warranty & Support Friedrich'S Industry Leading Warranty Features 2-Year Full Warranty On Parts And Labor And 5-Year Limited Warranty. Our Nationwide Service Network And U.S.-Based Friedrich Expert Technical Team Ensures You Get Fast, Knowledgeable Service. Maintenance And Installation Modular Product Design Ensures Easy Access To Key Components For Cleaning And Repairs, Including Washable, Lift-Out Air Filters. Surehold Front Cover System Securely Attaches The Front Each Time. Unit May Be Installed Low To The Floor.

Model	PDE12K3SG
Operation	Cool/Elect. Heat
Cooling BTU	11800/11600
Reverse Heating BTU	-
Voltage	230/208
EER	11.6/11.6
COP @ 47°F	-
Cooling Area (Sq Ft.)	450-550

PTAC Brochure
PTAC Brochure
ZoneAire Premier PTAC Installation & Operation Manual (SG Series 2014 - 2020)
ZoneAire Select PTAC Installation & Operation Manual (ZoneAire Series 2016 - 2020)
PTAC & Vert-I-Pak Accessory RT6 Manual
PTAC & Vert-I-Pak Accessory EMOCT Manual
PTAC & Vert-I-Pak Accessory RT6P Manual
PTAC & Vert-I-Pak Accessory EMRT2 Manual
ZoneAire Premier PTAC Product Profile
ZoneAire Premier PTAC Product Profile
ZoneAire Premier PTAC Video
ZoneAire Premier PTAC Product Submittal
2020 ZoneAire Premier PTAC Product Submittal
ZoneAire Premier PTAC Warranty
Friedrich Training - SG PTAC Heating Test
PTAC & Vert-I-Pak Accessory RT7 Manual
