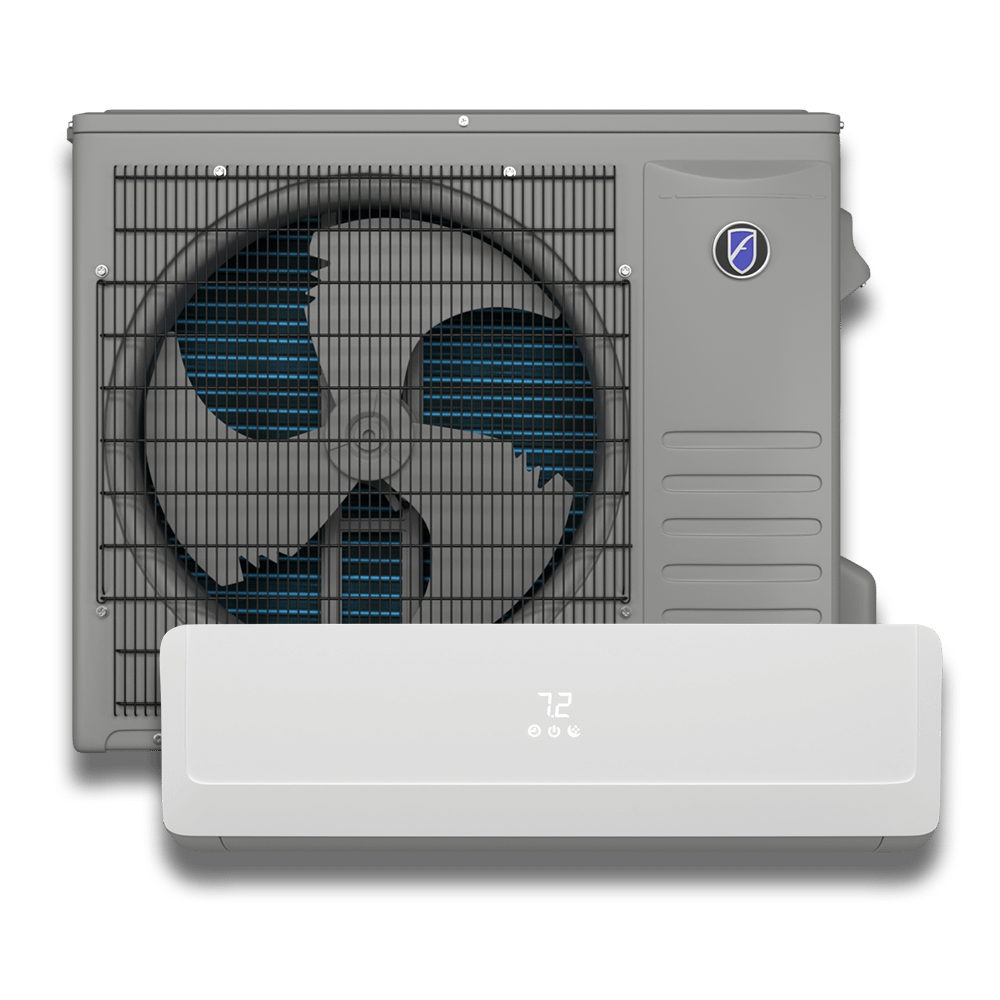

Friedrich FPHW183D Friedrich Floating Air Pro 18,000 Btu 230V Ductless Mini-Split Single-Zone Wall-Mounted System
18,000 BTU Single Zone Wall Mounted Indoor Unit
The Friedrich Floating Air Wall Units feature FastPro Technology making installation and maintenance a much easier, less time consuming task. FastPro gives your HVAC technician easy access to the entire indoor unit, including piping, wire terminal, the fan and fan components. The front panel of your wall unit can be propped open with sliding bolts to keep the cover up and out of the way. If more room is needed to work, there is a slide bar than can be pushed out for a wider space. This makes installation of the refrigerant lines and wiring a much more manageable, less time consuming task for your HVAC technician. Interior parts such as the return air filters and the entire blower wheel assembly are easily removed for cleaning or servicing (away from your room of installation) and re-installed quickly. Servicing should always be left for the HVAC Technicians. FastPro also gives the technician easy access to the coils for maintenance and cleaning.
The Friedrich Floating Air Wall Units feature FastPro Technology making installation and maintenance a much easier, less time consuming task. FastPro gives your HVAC technician easy access to the entire indoor unit, including piping, wire terminal, the fan and fan components. The front panel of your wall unit can be propped open with sliding bolts to keep the cover up and out of the way. If more room is needed to work, there is a slide bar than can be pushed out for a wider space. This makes installation of the refrigerant lines and wiring a much more manageable, less time consuming task for your HVAC technician. Interior parts such as the return air filters and the entire blower wheel assembly are easily removed for cleaning or servicing (away from your room of installation) and re-installed quickly. Servicing should always be left for the HVAC Technicians. FastPro also gives the technician easy access to the coils for maintenance and cleaning.
- Built-In Wi-Fi
- Fast Pro® Design
- Auto Clean Indoor Coil
- Multiple Operating Modes
- Surge Cool/Heat Function
- Sleep Mode
- Auto Restart
- 24-Hour On/Off Timer
| Category | Ductless Mini-Splits |
| Product Marketing Name | Friedrich Floating Air Pro Ductless Mini-split Single-zone Wall-mounted System |
| Energy Star Qualified | Yes |
| Operation | Cool / Heat Pump |
| Cooling Capacity (BTUh) | 18,000 |
| Heat Pump Capacity (BTUh) | 18,000 |
| Electric Heat Capacity (BTUh) | - |
| Voltage | 230V |
| EER(2) | 12.95 |
| CEER | - |
| Cooling Area (Sq Ft.) | up to 1,000 |
| SEER(2) | 21 |
| Unit W inches 1/8ths | - |
| Unit H inches 1/8ths | - |
| Unit D inches 1/8ths | - |
| Refrigerant | R-454B |
