THREE LEVELS OF FRESHNESS

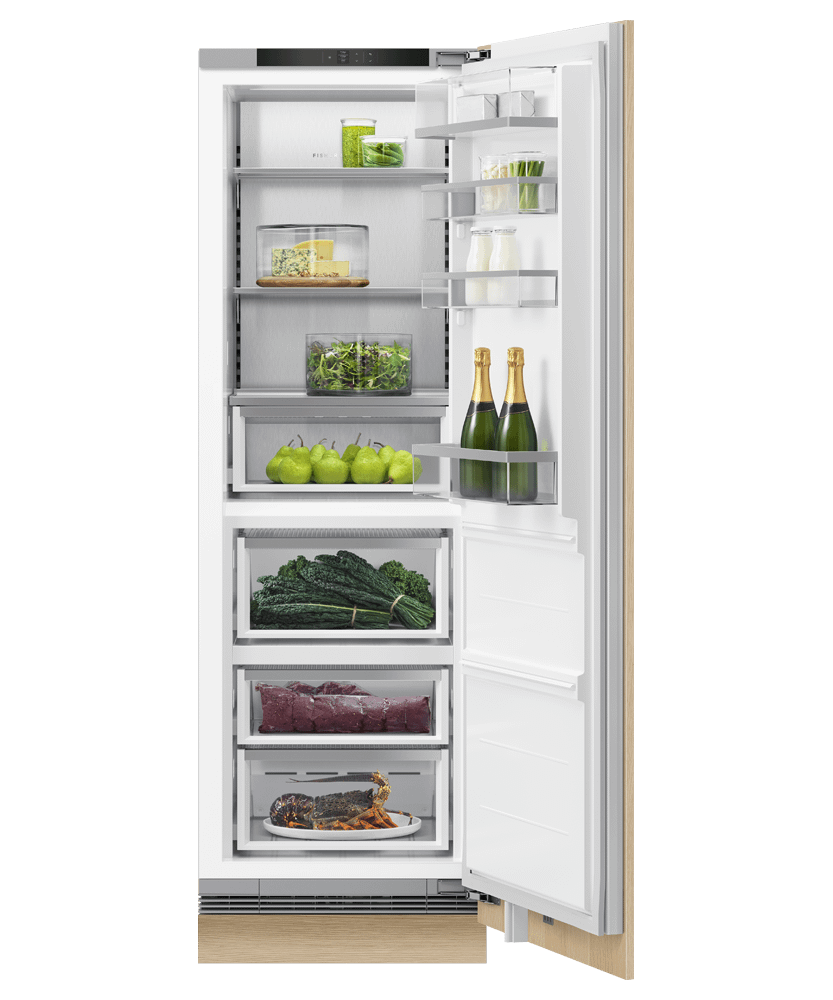

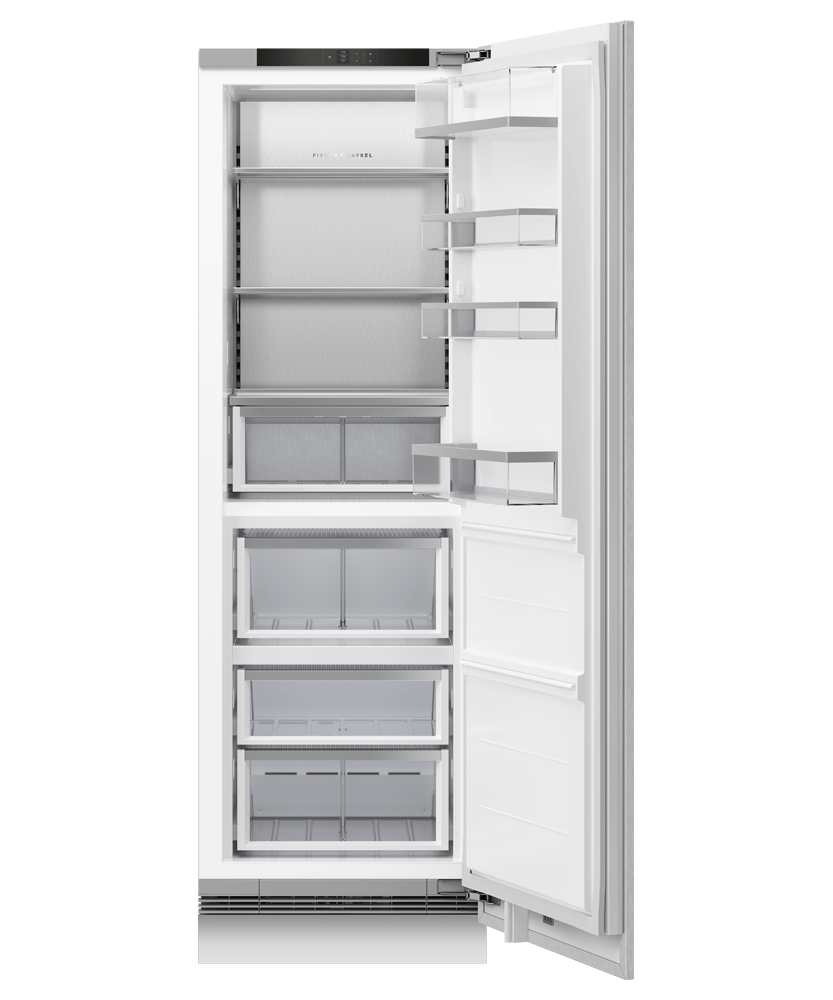

PERFECT RESULTS THREE LEVELS OF FRESHNESS When it comes to optimal food preservation, one temperature does not fit all. Three independent food zones give you full control over the way you care for food. The Fridge zone has adjustable temperature from 34 to 43(degree)F, while the bottom two compartments can be converted into a Fridge (34 to 43(degree)F), Pantry (52 to 55(degree)F) or Chill zone (29 to 32(degree)F), to best suit different types of food. Adjust temperature for everyday convenience, or to provide additional chilling capacity for special occasions.
MIX & MATCH

DESIGNED TO FIT MIX & MATCH These modular refrigerators and freezers can be mixed and matched, with different sizes and finishes. Installed side by side or individually throughout the kitchen, you can create a cooling solution to suit your lifestyle. Customize with your own kitchen cabinetry and handles, or purchase our stainless steel door panel and handle options.
PERFECT FIT

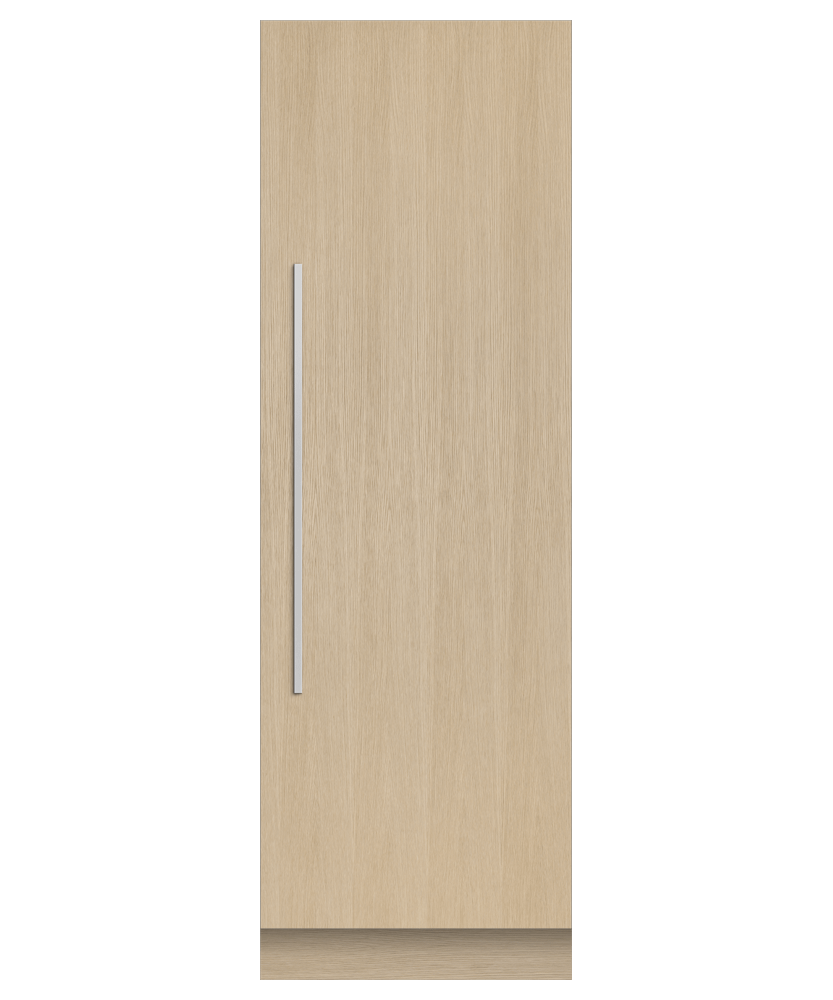

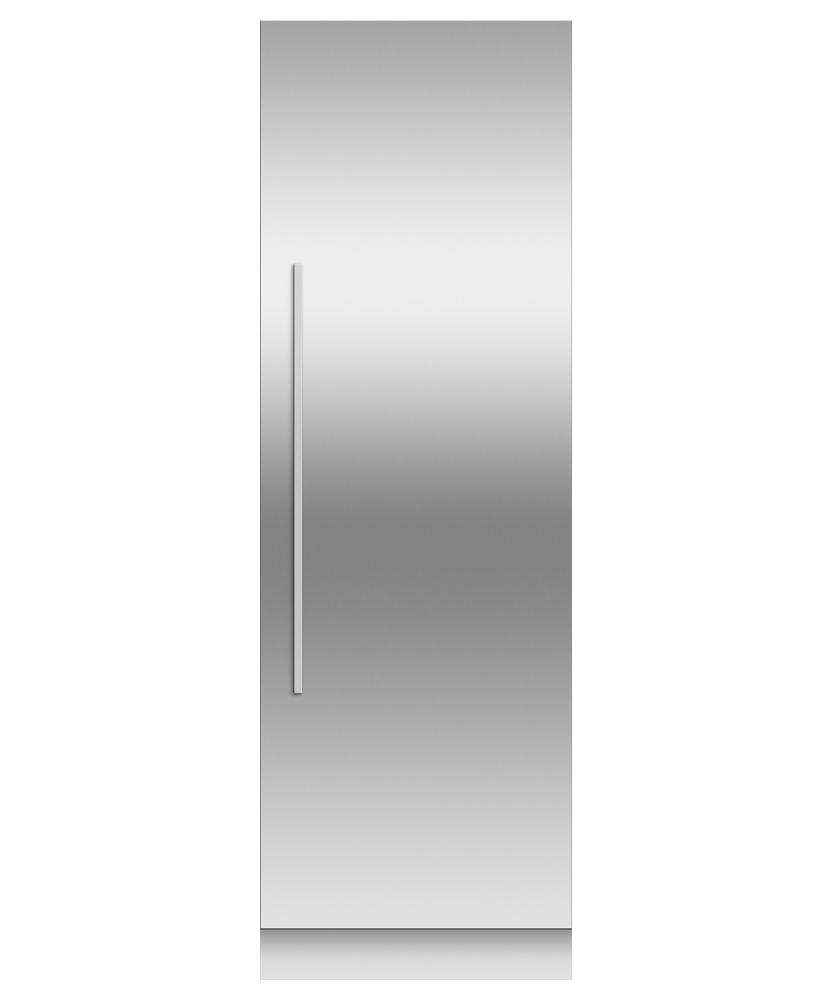

DESIGNED TO FIT PERFECT FIT These models fit flush, with only 3/16" gaps around them and no visible hinges or grilles. Our Integrated models can be seamlessly hidden behind your cabinetry, or you can purchase our stainless steel door panel.
SLIMLINE WATER DISPENSER

BEAUTIFUL TO USE SLIMLINE WATER DISPENSER The slimline water dispenser is located inside this Integrated model, leaving an uninterrupted exterior that blends in seamlessly with surrounding cabinetry. The flush fit design maximizes internal storage space, with a temperature-controlled flow and an angled water delivery to reduce drips and spills.
CLEVER ENERGY

RESPECT FOR THE PLANET CLEVER ENERGY ActiveSmart™ Foodcare learns how you live. It is technology that understands how you use your refrigerator and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
SIMPLE INSTALLATION

DESIGNED TO FIT SIMPLE INSTALLATION Our Integrated products are easy to install, whether you are renovating your kitchen or designing a new one. Adjustable front and rear feet allow for uneven floors alongside adjustable door panels that can be customized to match your kitchen. These models are designed to easily slide into place as separate units - a perfect fit for European design kitchens.
EASE OF USE

BEAUTIFUL TO USE EASE OF USE Using the intuitive touch-sensitive control panel, you can easily adjust the temperature to suit. Beautiful to use, the refrigerator door is family safe with a soft-close mechanism.
- Create your dream kitchen rebate offer
- Receive up to a $2,750 rebate when you purchase qualifying appliances from a participating retailer in a single transaction between May 1, 2023 and December 31, 2023. Claim by February 29, 2024. Rebate paid by Visa® Prepaid Card.
- THREE LEVELS OF FRESHNESS
- When it comes to optimal food preservation, one temperature does not fit all. Three independent food zones give you full control over the way you care for food. The Fridge zone has adjustable temperature from 34 to 43(degree)F, while the bottom two compartments can be converted into a Fridge (34 to 43(degree)F), Pantry (52 to 55(degree)F) or Chill zone (29 to 32(degree)F), to best suit different types of food. Adjust temperature for everyday convenience, or to provide additional chilling capacity for special occasions.
- MIX & MATCH
- These modular refrigerators and freezers can be mixed and matched, with different sizes and finishes. Installed side by side or individually throughout the kitchen, you can create a cooling solution to suit your lifestyle. Customize with your own kitchen cabinetry and handles, or purchase our stainless steel door panel and handle options.
- PERFECT FIT
- These models fit flush, with only 3/16" gaps around them and no visible hinges or grilles. Our Integrated models can be seamlessly hidden behind your cabinetry, or you can purchase our stainless steel door panel.
- SLIMLINE WATER DISPENSER
- The slimline water dispenser is located inside this Integrated model, leaving an uninterrupted exterior that blends in seamlessly with surrounding cabinetry. The flush fit design maximizes internal storage space, with a temperature-controlled flow and an angled water delivery to reduce drips and spills.
- CLEVER ENERGY
- ActiveSmart™ Foodcare learns how you live. It is technology that understands how you use your refrigerator and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
- SIMPLE INSTALLATION
- Our Integrated products are easy to install, whether you are renovating your kitchen or designing a new one. Adjustable front and rear feet allow for uneven floors alongside adjustable door panels that can be customized to match your kitchen. These models are designed to easily slide into place as separate units - a perfect fit for European design kitchens.
- EASE OF USE
- Using the intuitive touch-sensitive control panel, you can easily adjust the temperature to suit. Beautiful to use, the refrigerator door is family safe with a soft-close mechanism.
Accessories | |
Accessories (sold separately) | |
Door panel stainless steel | RD2474 (right & left hinge) |
Handle kit Contemporary square fine, aluminium | AHD5RDSF |
Handle kit Contemporary square fine, black | AHD5RDSFB |
Handle kit Professional round flush | AHP3RDSF |
Joiner kit | AJRS74LR |
Toe kick stainless steel 23' | AKRS2304 |
Toe kick stainless steel 47' | AKRS4704 |
Toe kick stainless steel 71' | AKRS7104 |
Water filter replacement | 847200 |
Capacity | |
Total gross capacity | 306cu ft |
Volume refrigerator | 10.8cu ft |
Features | |
Adjustable door shelves | 3 |
Covered door shelves | 1 |
Stackable bottle holders | 2 |
Water tank capacity | 30.7oz |
Installation Dimensions | |
Minimum inside width of cabinetry frame | 23 5 / 8 ' |
Minimum internal depth of cabinetry | 24 ' |
Minimum internal height of cabinetry | 74 ' |
Performance | |
Variable food modes | Pantry; Fridge; Chill |
Variable temperature zones | 3 |
Power requirements | |
Rated current | 10A |
Supply frequency | 60Hz |
Supply voltage | 115V |
Product dimensions | |
Depth | 22 11 / 16 ' |
Height | 73 5 / 8 ' |
Width | 23 5 / 16 ' |
Warranty | |
Parts and labor | 2 years |
Sealed system parts only | 5 years |
Overview
THREE LEVELS OF FRESHNESS

PERFECT RESULTS THREE LEVELS OF FRESHNESS When it comes to optimal food preservation, one temperature does not fit all. Three independent food zones give you full control over the way you care for food. The Fridge zone has adjustable temperature from 34 to 43(degree)F, while the bottom two compartments can be converted into a Fridge (34 to 43(degree)F), Pantry (52 to 55(degree)F) or Chill zone (29 to 32(degree)F), to best suit different types of food. Adjust temperature for everyday convenience, or to provide additional chilling capacity for special occasions.
MIX & MATCH

DESIGNED TO FIT MIX & MATCH These modular refrigerators and freezers can be mixed and matched, with different sizes and finishes. Installed side by side or individually throughout the kitchen, you can create a cooling solution to suit your lifestyle. Customize with your own kitchen cabinetry and handles, or purchase our stainless steel door panel and handle options.
PERFECT FIT

DESIGNED TO FIT PERFECT FIT These models fit flush, with only 3/16" gaps around them and no visible hinges or grilles. Our Integrated models can be seamlessly hidden behind your cabinetry, or you can purchase our stainless steel door panel.
SLIMLINE WATER DISPENSER

BEAUTIFUL TO USE SLIMLINE WATER DISPENSER The slimline water dispenser is located inside this Integrated model, leaving an uninterrupted exterior that blends in seamlessly with surrounding cabinetry. The flush fit design maximizes internal storage space, with a temperature-controlled flow and an angled water delivery to reduce drips and spills.
CLEVER ENERGY

RESPECT FOR THE PLANET CLEVER ENERGY ActiveSmart™ Foodcare learns how you live. It is technology that understands how you use your refrigerator and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
SIMPLE INSTALLATION

DESIGNED TO FIT SIMPLE INSTALLATION Our Integrated products are easy to install, whether you are renovating your kitchen or designing a new one. Adjustable front and rear feet allow for uneven floors alongside adjustable door panels that can be customized to match your kitchen. These models are designed to easily slide into place as separate units - a perfect fit for European design kitchens.
EASE OF USE

BEAUTIFUL TO USE EASE OF USE Using the intuitive touch-sensitive control panel, you can easily adjust the temperature to suit. Beautiful to use, the refrigerator door is family safe with a soft-close mechanism.
Description
Features
- Three independent food zones, each with adjustable temperature to store different foods
- Panel ready, flush fit design with 3/16? gaps and custom height installation
- Convenient access to fresh, chilled water with internal water dispenser
- Easy-to-use touch-control panel and Wi-Fi capability
Specifications
Accessories | |
Accessories (sold separately) | |
Door panel stainless steel | RD2474 (right & left hinge) |
Handle kit Contemporary square fine, aluminium | AHD5RDSF |
Handle kit Contemporary square fine, black | AHD5RDSFB |
Handle kit Professional round flush | AHP3RDSF |
Joiner kit | AJRS74LR |
Toe kick stainless steel 23' | AKRS2304 |
Toe kick stainless steel 47' | AKRS4704 |
Toe kick stainless steel 71' | AKRS7104 |
Water filter replacement | 847200 |
Capacity | |
Total gross capacity | 306cu ft |
Volume refrigerator | 10.8cu ft |
Features | |
Adjustable door shelves | 3 |
Covered door shelves | 1 |
Stackable bottle holders | 2 |
Water tank capacity | 30.7oz |
Installation Dimensions | |
Minimum inside width of cabinetry frame | 23 5 / 8 ' |
Minimum internal depth of cabinetry | 24 ' |
Minimum internal height of cabinetry | 74 ' |
Performance | |
Variable food modes | Pantry; Fridge; Chill |
Variable temperature zones | 3 |
Power requirements | |
Rated current | 10A |
Supply frequency | 60Hz |
Supply voltage | 115V |
Product dimensions | |
Depth | 22 11 / 16 ' |
Height | 73 5 / 8 ' |
Width | 23 5 / 16 ' |
Warranty | |
Parts and labor | 2 years |
Sealed system parts only | 5 years |
