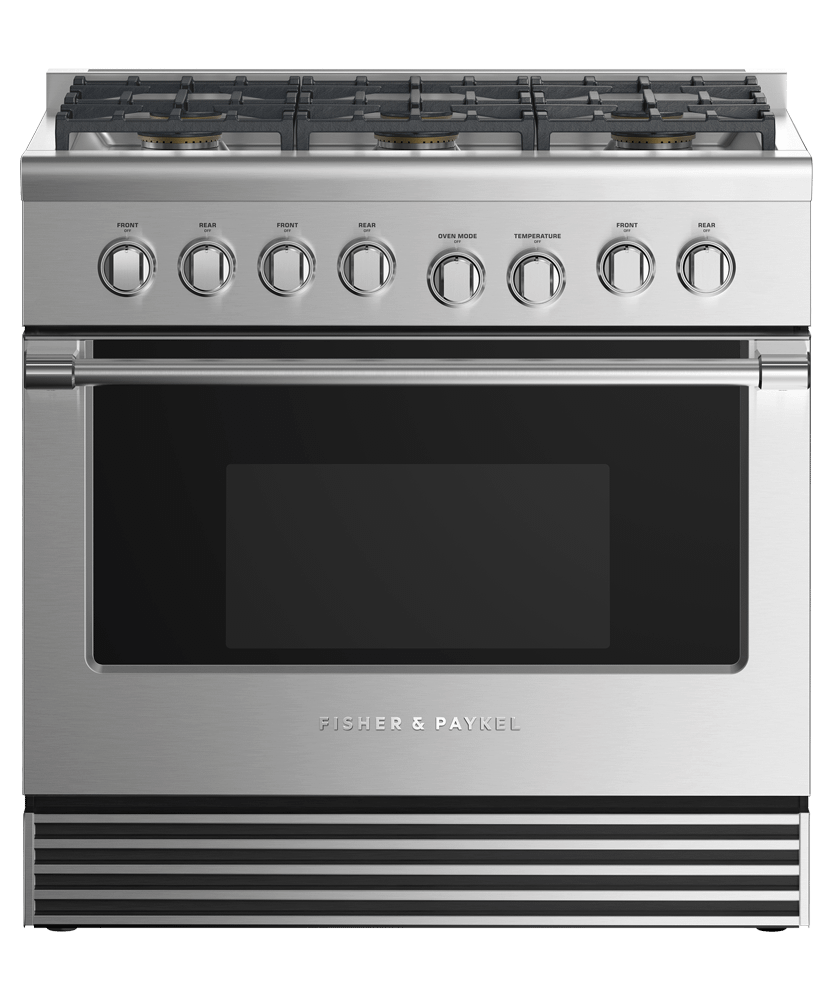

Fisher & Paykel RDV2366NN Dual Fuel Range, 36", 6 Burners
Rebates &
Promotions
Cooktop power
BEAUTIFUL TO USE Cooktop power Sealed Dual Flow Burners™ deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140 °F full surface simmer with the gentlest of flames.
Total control
Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.
COOKING FLEXIBILITY

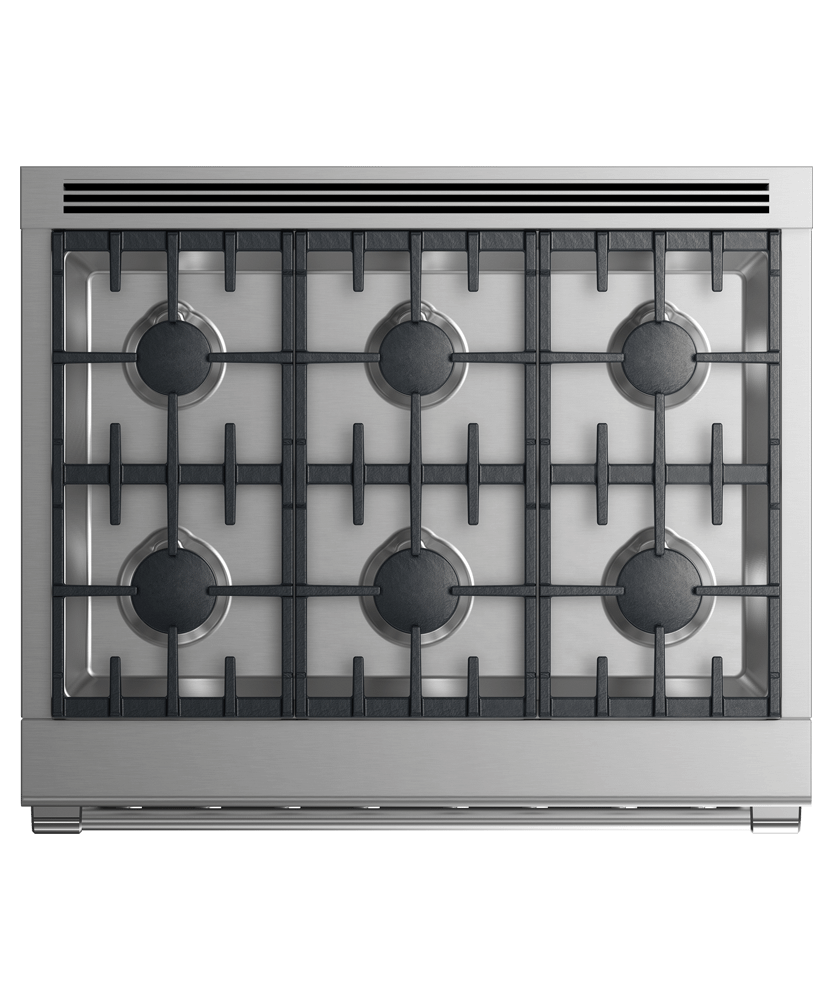

BEAUTIFUL TO USE COOKING FLEXIBILITY The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
Easy to clean
The Dual Fuel Range oven has a self-cleaning function and removable side racks. The cooktop has sealed burners and an encapsulated cooking surface with a commercial-style stainless steel finish.
Instant visibility
Control dials have halo-illumination glowing white - heating up; orange - temperature reached; red - self-cleaning mode. The oven is illuminated by two powerful incandescent lights.
Consistent broiling
The Dual Fuel Range broiler provides an even heat that covers a very large surface area - perfect for browning a fully loaded oven tray.
Finish Stainless Steel Fuel Type Natural gas
Dimensions & Capacity Width: 35 7/8"
Height: 35.75"
Depth: 29 1/8"
First Oven Size: 4.8 cu. ft.
- Top burner heat of 23,500 BTU, for seriously fast boiling
- Convection oven with 4.8 cu ft total capacity
- Non-tip full-extension shelves for safe removal of hot dishes
Accessories (sold separately) | |
Square handle option | AH-R36 |
Burner ratings | |
Maximum burner power | 23500 BTU |
Power back centre | 18500BTU |
Power back left | 18500BTU |
Power back right | 18500BTU |
Power front centre | 18500BTU |
Power front left | 23500BTU |
Power front right | 23500BTU |
Total cooktop power | 121000 BTU |
Capacity | |
Shelf positions | 5 |
Cleaning | |
Controls | |
Electric circuit | 4 wire |
Gas Requirements | |
Fitting and pipe | ' NPT, min. ? ' ? flex line |
Supply Pressure (natural gas) | 6 ' to 9' W.C |
Oven features | |
Oven functions | |
Number of functions | 6 |
Oven performance | |
Bake power | 4600 |
Main oven - True convection power | 2500W |
Power requirements | |
Rated current | 30A |
Supply frequency | 60Hz |
Product dimensions | |
Depth | 29 1 / 8 ' |
Height | 35 3 / 4 - 36 3 / 4 ' |
Width | 35 7 / 8 ' |
Rangetop features | |
Safety |
