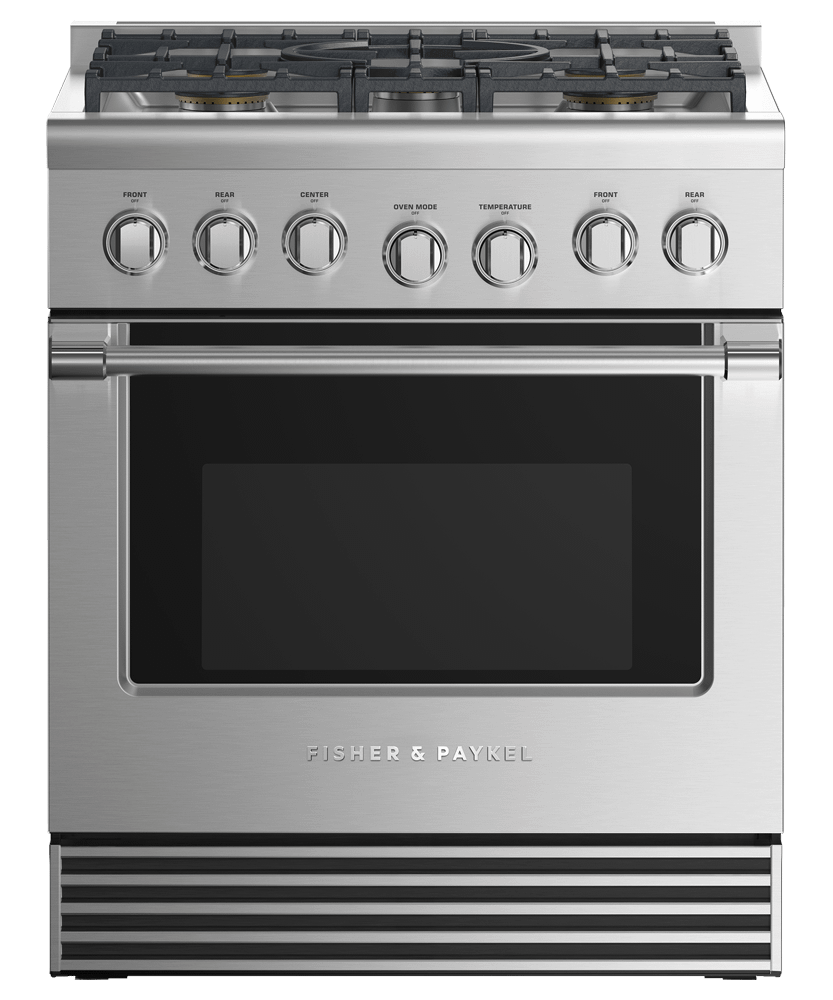

Fisher & Paykel RDV2305LN Dual Fuel Range, 30", 5 Burners
Make A Statement In Less Space, With This Powerful Gas Burner Range And Spacious Convection Oven.... Read more...
Colors:
Stainless SteelInstallation and Removal
Where will services be needed?
When Will I Get My Order?
COOKTOP POWER
BEAUTIFUL TO USE COOKTOP POWER Sealed Dual Flow Burners™ deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140(degree)F full surface simmer with the gentlest of flames.
TOTAL CONTROL
Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.
CONSISTENT BROILING
The Dual Fuel Range broiler provides an even heat that covers a very large surface area - perfect for browning a fully loaded oven tray.
EASY TO CLEAN
The Dual Fuel Range oven has a self-cleaning function and removable side racks. The cooktop has sealed burners and an encapsulated cooking surface with a commercial-style stainless steel finish.
INSTANT VISIBILITY
Control dials have halo-illumination glowing white - heating up; orange - temperature reached; red - self-cleaning mode. The oven is illuminated by two powerful incandescent lights.
COOKING FLEXIBILITY
The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across, while the oven cavity is large enough to allow you to cook multiple dishes at once.
- COOKTOP POWER
- Sealed Dual Flow Burners™ deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140(degree)F full surface simmer with the gentlest of flames.
- TOTAL CONTROL
- Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.
- CONSISTENT BROILING
- The Dual Fuel Range broiler provides an even heat that covers a very large surface area - perfect for browning a fully loaded oven tray.
- EASY TO CLEAN
- The Dual Fuel Range oven has a self-cleaning function and removable side racks. The cooktop has sealed burners and an encapsulated cooking surface with a commercial-style stainless steel finish.
- INSTANT VISIBILITY
- Control dials have halo-illumination glowing white - heating up; orange - temperature reached; red - self-cleaning mode. The oven is illuminated by two powerful incandescent lights.
- COOKING FLEXIBILITY
- The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across, while the oven cavity is large enough to allow you to cook multiple dishes at once.
| Accessories (sold separately) | |
| Square handle option | AH-R30 |
| Burner ratings | |
| Maximum burner power | 19000 BTU |
| Power back left | 11500BTU |
| Power back right | 11500BTU |
| Power centre | 19000BTU |
| Power front left | 15000BTU |
| Power front right | 15000BTU |
| Total cooktop power | 72000 BTU |
| Capacity | |
| Shelf positions | 5 |
| Shelf positions | 5 |
| Total capacity (main oven) | 4L |
| Cleaning | |
| Controls | |
| Electric circuit | 4 wire |
| Gas Requirements | |
| Fitting and pipe | ' NPT, min. ? ' ? flex line |
| Supply Pressure (LPG) | 11 ' to 14' W.C |
| Oven features | |
| Oven functions | |
| Number of functions | 6 |
| Oven performance | |
| Bake power | 3500W |
| Broil | 4000 BTU |
| Main oven - True convection power | 2500W |
| Power requirements | |
| Amperage | 30A |
| Rated current | 30A |
| Supply frequency | 60Hz |
| Product dimensions | |
| Depth | 29 1 / 8 ' |
| Height | 35 3 / 4 - 36 3 / 4 ' |
| Width | 29 7 / 8 ' |
| Rangetop features | |
| Recommended Back Guards Ventilation | |
| Combustible situation | BGRV2-3030H |
| Minimum CFM | 600 |
| Non combustible situation | BGRV2-3030 / BGRV2-1230 |
| Recommended hood | HCB30-6_N (Professional Range Hood) |
| Safety | |
Overview
COOKTOP POWER
BEAUTIFUL TO USE COOKTOP POWER Sealed Dual Flow Burners™ deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140(degree)F full surface simmer with the gentlest of flames.
TOTAL CONTROL
Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.
CONSISTENT BROILING
The Dual Fuel Range broiler provides an even heat that covers a very large surface area - perfect for browning a fully loaded oven tray.
EASY TO CLEAN
The Dual Fuel Range oven has a self-cleaning function and removable side racks. The cooktop has sealed burners and an encapsulated cooking surface with a commercial-style stainless steel finish.
INSTANT VISIBILITY
Control dials have halo-illumination glowing white - heating up; orange - temperature reached; red - self-cleaning mode. The oven is illuminated by two powerful incandescent lights.
COOKING FLEXIBILITY
The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across, while the oven cavity is large enough to allow you to cook multiple dishes at once.
Description
Features
- Top burner heat of 19,000 BTU, for seriously fast boiling
- Convection oven with 4 cu ft total capacity
- Non-tip full-extension shelves for safe removal of hot dishes
Specifications
| Accessories (sold separately) | |
| Square handle option | AH-R30 |
| Burner ratings | |
| Maximum burner power | 19000 BTU |
| Power back left | 11500BTU |
| Power back right | 11500BTU |
| Power centre | 19000BTU |
| Power front left | 15000BTU |
| Power front right | 15000BTU |
| Total cooktop power | 72000 BTU |
| Capacity | |
| Shelf positions | 5 |
| Shelf positions | 5 |
| Total capacity (main oven) | 4L |
| Cleaning | |
| Controls | |
| Electric circuit | 4 wire |
| Gas Requirements | |
| Fitting and pipe | ' NPT, min. ? ' ? flex line |
| Supply Pressure (LPG) | 11 ' to 14' W.C |
| Oven features | |
| Oven functions | |
| Number of functions | 6 |
| Oven performance | |
| Bake power | 3500W |
| Broil | 4000 BTU |
| Main oven - True convection power | 2500W |
| Power requirements | |
| Amperage | 30A |
| Rated current | 30A |
| Supply frequency | 60Hz |
| Product dimensions | |
| Depth | 29 1 / 8 ' |
| Height | 35 3 / 4 - 36 3 / 4 ' |
| Width | 29 7 / 8 ' |
| Rangetop features | |
| Recommended Back Guards Ventilation | |
| Combustible situation | BGRV2-3030H |
| Minimum CFM | 600 |
| Non combustible situation | BGRV2-3030 / BGRV2-1230 |
| Recommended hood | HCB30-6_N (Professional Range Hood) |
| Safety | |
