Fisher & Paykel OR36SDG4X1 Gas Range, 36", 5 Burners

Fisher & Paykel OR36SDG4X1 Gas Range, 36", 5 Burners

Make Your Range A Focal Point. With A Large Capacity Oven And Five Burners, This Is The Perfect W... Read more...


When Will I Get My Order?




3 year plan


5 year plan

Shipping calculated at checkout.

Availability : DISCONTINUED

View full details

When Will I Get My Order?


Fisher & Paykel OR36SDG4X1 Gas Range, 36
Fisher & Paykel OR36SDG4X1 Gas Range, 36", 5 Burners

Rebates &

Fisher and Paykel Create Kitchen Perfection Rebate - Receive up to a 15% rebate and a 5 Year Warranty with purchase of qualifying Fisher and Paykel Appliances. Download Valid: 03/01/2024-12/31/2024

Performance power

PERFECT RESULTS Performance power Precise cooktop controls let you sear or stir fry over instant, powerful heat. Use the high burner power or simmer a delicate sauce using the gentlest of heats.

Design quality

BUILT TO LAST Design quality This range has been carefully crafted in every detail from performance to durability using quality materials including the balanced soft-close door and rounded hob rail.

Large capacity

BEAUTIFUL TO USE Large capacity The large 4.9 cu ft capacity for this range gives you plenty of space to cook multiple dishes at the same time.

Easy cleaning

PERFECT RESULTS Easy cleaning With its durable surface, your cooktop simply needs a quick wipe after cooking to keep it looking good as new for years to come.

Make Your Range A Focal Point. With A Large Capacity Oven And Five Burners, This Is The Perfect Way To Cook For A Crowd. Finish: Stainless Steel

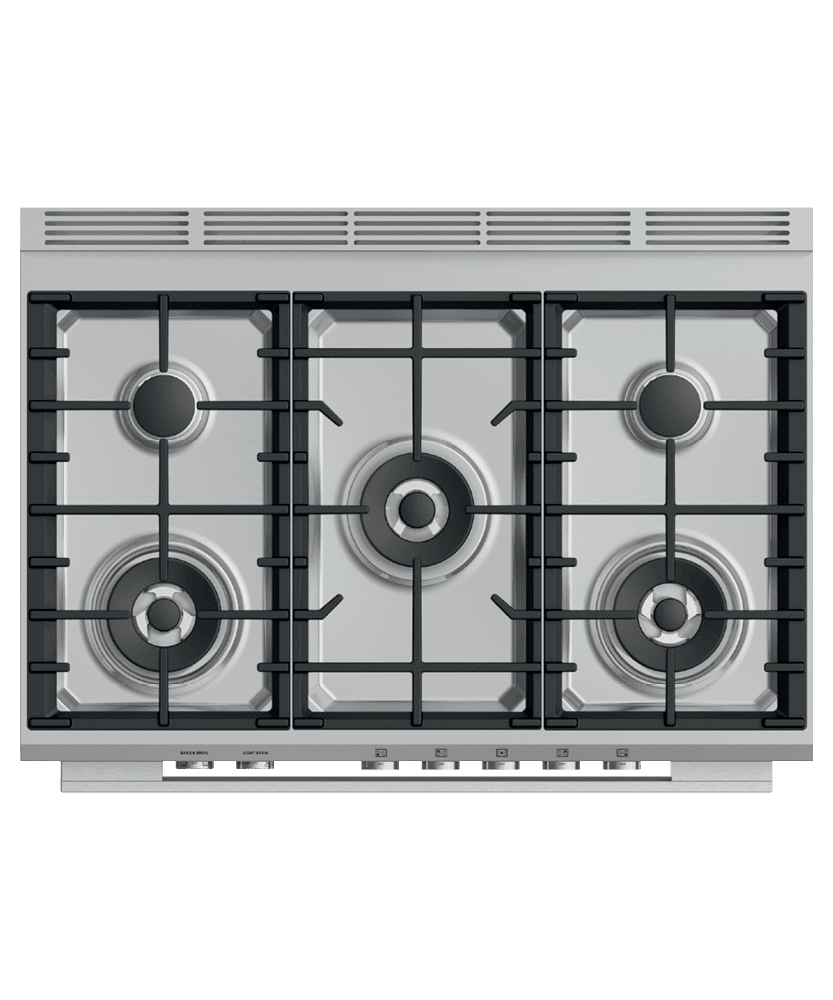

  • Five burner gas cooktop, including one dual ring and two triple ring wok burners
  • Gas oven with large 4.9 cu ft total capacity and three functions

2-pc grill system (Broil pan and Grill rack) Yes
Broil pan Yes
Broil rack Yes
Chromed shelf runners 1 set
Hob rear trim (optional) 3 1/8' (part 81654)
Kick strip, stainless steel (optional) Part 81659
Small pot support 1 (part 533981 cast)
Wok stand 1 (part 534678)
Shelf positions 7
Total capacity 4.9 cu ft
Acid resistant graphite enamel Yes
Dishwasher safe trivets Yes
Removable oven door Yes
Removable shelf runners Yes
Interior light Yes
Laser etched graphics Yes
Gas requirements
Supply Pressure (LPG) 11' W.C.P
Supply Pressure (natural gas) 4' W.C.P
Oven features
Concealed element Yes
Electronic ignition Yes
Full extension telescopic sliding shelves 2 sets (part 578744)
Internal light 4 x 25W halogen (2 side & 2 top)
Soft open/close door Yes
Storage drawer Yes
True convection Yes
Oven functions
Bake 17000BTU
Convection bake Yes
Maxi Broil Yes
Number of functions 3
Oven performance
CoolTouch door Quadruple glazed
Power requirements
Amperage 1A
Supply frequency 60Hz
Supply voltage 120V
Product dimensions
Depth 25 1 ⁄ 4 '
Height 35 3 ⁄ 4 - 37 1 ⁄ 4 '
Installation cutout dimensions (Depth) 25 1/4'
Installation cutout dimensions (Width) 36'
Width 35 7 ⁄ 8 '
Rangetop features
Dishwasher safe trivets Yes
Hob rear trim 0 7/8'
LPG/Natural gas compatible Yes
Sealed range top Yes
Rangetop Performance
Dual wok burner inner/outer (LPG) 1000 - 18000BTU
Dual wok burner inner/outer (natural gas) 1000 - 18000BTU
Max burner power 18000BTU
Number of burner elements 5
Number of burners 5
Semi-rapid burner (LPG) x2 1500 - 8000BTU
Semi-rapid burner (natural gas) x2 1500 - 8000BTU
Total cooktop power 62000BTU
Triple ring wok burner (LPG) x2 6100 - 14000BTU
Triple ring wok burner (natural gas) x2 6100 - 14000BTU
Advanced cooling system Yes
Anti-tilt bracket Yes
Balanced oven door Yes
Full extension telescopic sliding shelves Yes
Non-tip shelves Yes
Spill containment 5/8 gallon
Parts and labor 2 years
