Fisher & Paykel CPV3485GDN Gas Rangetop, 48", Griddle
This 48" Gas Rangetop from Fisher & Paykel offers 5 Sealed Dual Flow Burners and a g... Read more...
Colors:
Stainless Steel- Regular price
- Sale price
-
Our Price: $4,849.00
- Regular price
- Unit price
- per
Extended protection
5 year plan
$414.993 year plan
$236.99Extended Protection
Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.
This Protection Plan includes:
- Full parts and labor coverage during the whole period of the extension plan.
- Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
- Food loss protection (click here for details)
- 24/7 toll-free number for support (1-877-879-6395)
Installation and Removal
Where will services be needed?
When Will I Get My Order?
Rebates
Fisher and Paykel Create Your Dream Kitchen Rebate - Receive up to a $2750 rebate with purchase of qualifying Fisher and Paykel Appliances. Download Valid: 07/01/2023-12/31/2023

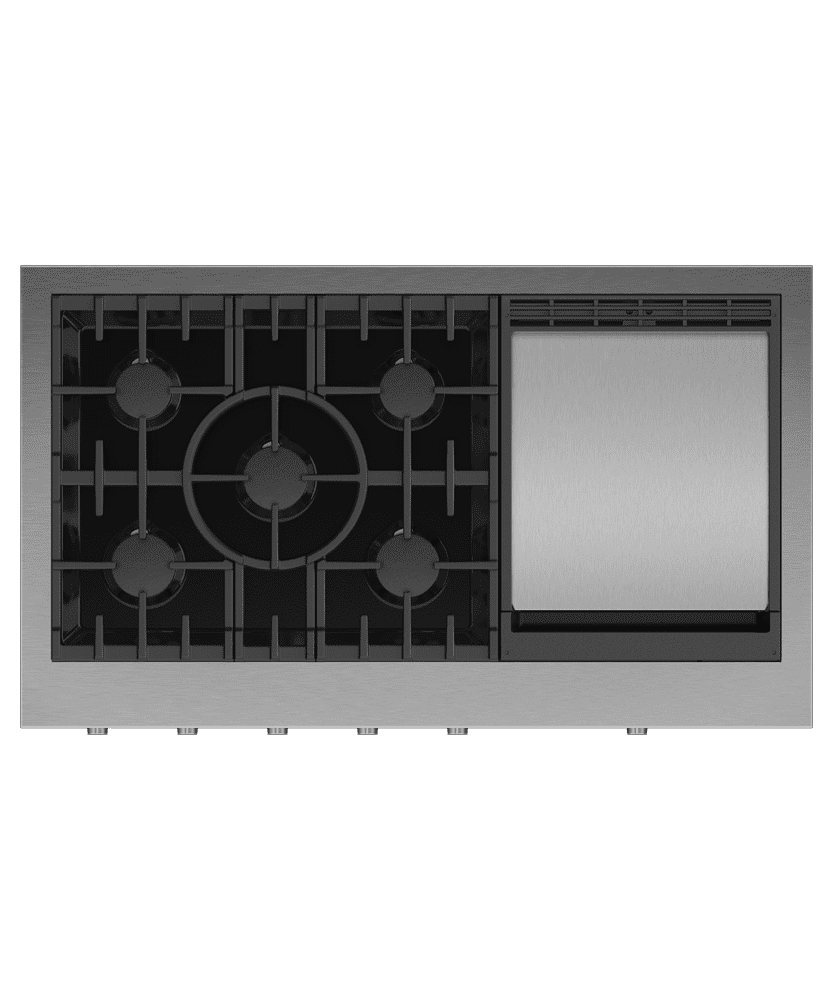

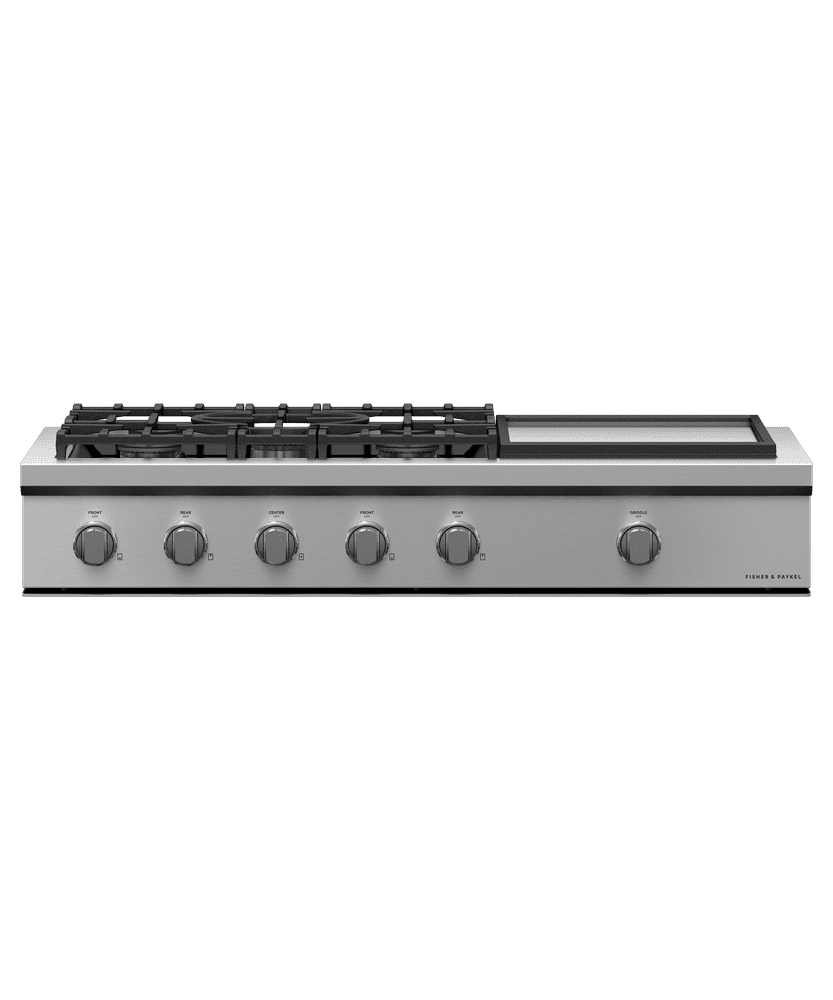

This 48" Gas Rangetop from Fisher & Paykel offers 5 Sealed Dual Flow Burners and a griddle.
The range top also features LED halo control dials, continuous surface grates, and a porcelain base pan. Available at AppliancesConnection.
- Cooktop Power: Sealed Dual Flow Burners deliver range top power up to 23,500 BTU for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
- Precise Control: From the highest to the lowest temperatures you get total control with halo-illuminated range top dials. A precise full surface simmer is delivered across all burners.
- Cooking Flexibility: The continuous surface grates are designed for pots and pans to move safely across the range top. The deep-platform style grates provide full coverage so heat goes directly onto the pot, for a faster boil.
- Easy to Clean: These range tops are easy to clean with sealed burners and a continuous, porcelain base pan.
- Information at a Glance: LED halo control dials provide information at a glance and assist in alerting you if any burners are accidentally left on.
- Design Quality: This range top is built to last with craftsmanship in every detail, featuring real stainless steel, cast-iron trivets, and titanium-coated dials.
Cooktop power
PERFECT RESULTS Cooktop power Sealed Dual Flow Burners%E2%84%A2 deliver rangetop power up to 23,500 BTU for seriously fast boiling right down to a precise 140 F full surface simmer with the gentlest of flames.
Precise control
PERFECT RESULTS Precise control From the highest to the lowest temperatures you get total control with halo-illuminated rangetop dials. A precise full surface simmer is delivered across all burners.
Cooking flexibility
BEAUTIFUL TO USE Cooking flexibility The continuous surface grates are designed for pots and pans to move safely across the rangetop. The deep-platform style grates provide full coverage so heat goes directly onto the pot, for a faster boil.
Easy to clean
BEAUTIFUL TO USE Easy to clean These rangetops are easy to clean with sealed burners and a continuous, porcelain basepan.
Information at a glance
BEAUTIFUL TO USE Information at a glance LED halo control dials provide information at a glance and assist in alerting you if any burners are accidentally left on.
Design quality
BUILT TO LAST Design quality This rangetop is built to last with craftsmanship in every detail, featuring real stainless steel, cast-iron trivets, and titanium coated dials.
- Cooktop power
- Sealed Dual Flow Burners%E2%84%A2 deliver rangetop power up to 23,500 BTU for seriously fast boiling right down to a precise 140 F full surface simmer with the gentlest of flames.
- Precise control
- From the highest to the lowest temperatures you get total control with halo-illuminated rangetop dials. A precise full surface simmer is delivered across all burners.
- Cooking flexibility
- The continuous surface grates are designed for pots and pans to move safely across the rangetop. The deep-platform style grates provide full coverage so heat goes directly onto the pot, for a faster boil.
- Easy to clean
- These rangetops are easy to clean with sealed burners and a continuous, porcelain basepan.
- Information at a glance
- LED halo control dials provide information at a glance and assist in alerting you if any burners are accidentally left on.
- Design quality
- This rangetop is built to last with craftsmanship in every detail, featuring real stainless steel, cast-iron trivets, and titanium coated dials.

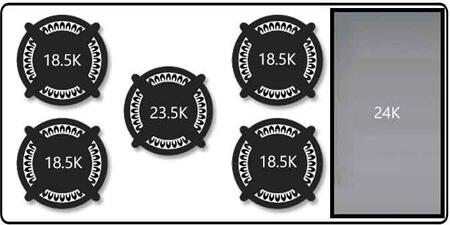

| Burner ratings | |
| Max burner power | 23,500 BTU |
| Power back left | 18,500 BTU |
| Power back right | 18,500 BTU |
| Power front centre | 23,500 BTU |
| Power front left | 18,500 BTU |
| Power front right | 18,500 BTU |
| Power griddle | 24,000 BTU |
| Total cooktop power | 121,500 BTU |
| Cleaning | |
| Easy clean porcelain basepan | Yes |
| Controls | |
| Metal illuminated dials | Yes |
| Star K Certification | Yes |
| Titanium coated, illuminated metal dials | Yes |
| Gas Requirements | |
| Fitting and pipe | NPT, min. ? ' ? flex line |
| Supply Pressure (natural gas) | 6 ' to 9' W.C |
| Performance | |
| Sealed Dual Flow Burners™ | 5 |
| Sealed cooking surface | Yes |
| Sealed range top | Yes |
| Simmer on all burners | 140 F |
| Power requirements | |
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120VV |
| Product dimensions | |
| Depth | 28 ' |
| Height | 8 5 / 16 ' |
| Width | 47 7 / 8 ' |
| Recommended Back Guards Ventilation | |
| Combustible situation | BGCV2-3048H |
| Non combustible situation | BGCV2-3048 / BGCV2-1248 |
| Pro hood | HCB48-12_N |
| Warranty | |
| Parts and labor | 2 years |
| Zone ratings | |
| Front right | 18500 BTU |
Overview
Cooktop power
PERFECT RESULTS Cooktop power Sealed Dual Flow Burners%E2%84%A2 deliver rangetop power up to 23,500 BTU for seriously fast boiling right down to a precise 140 F full surface simmer with the gentlest of flames.
Precise control
PERFECT RESULTS Precise control From the highest to the lowest temperatures you get total control with halo-illuminated rangetop dials. A precise full surface simmer is delivered across all burners.
Cooking flexibility
BEAUTIFUL TO USE Cooking flexibility The continuous surface grates are designed for pots and pans to move safely across the rangetop. The deep-platform style grates provide full coverage so heat goes directly onto the pot, for a faster boil.
Easy to clean
BEAUTIFUL TO USE Easy to clean These rangetops are easy to clean with sealed burners and a continuous, porcelain basepan.
Information at a glance
BEAUTIFUL TO USE Information at a glance LED halo control dials provide information at a glance and assist in alerting you if any burners are accidentally left on.
Design quality
BUILT TO LAST Design quality This rangetop is built to last with craftsmanship in every detail, featuring real stainless steel, cast-iron trivets, and titanium coated dials.
Description
This 48" Gas Rangetop from Fisher & Paykel offers 5 Sealed Dual Flow Burners and a griddle.
The range top also features LED halo control dials, continuous surface grates, and a porcelain base pan. Available at AppliancesConnection.
- Cooktop Power: Sealed Dual Flow Burners deliver range top power up to 23,500 BTU for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
- Precise Control: From the highest to the lowest temperatures you get total control with halo-illuminated range top dials. A precise full surface simmer is delivered across all burners.
- Cooking Flexibility: The continuous surface grates are designed for pots and pans to move safely across the range top. The deep-platform style grates provide full coverage so heat goes directly onto the pot, for a faster boil.
- Easy to Clean: These range tops are easy to clean with sealed burners and a continuous, porcelain base pan.
- Information at a Glance: LED halo control dials provide information at a glance and assist in alerting you if any burners are accidentally left on.
- Design Quality: This range top is built to last with craftsmanship in every detail, featuring real stainless steel, cast-iron trivets, and titanium-coated dials.
Specifications
| Burner ratings | |
| Max burner power | 23,500 BTU |
| Power back left | 18,500 BTU |
| Power back right | 18,500 BTU |
| Power front centre | 23,500 BTU |
| Power front left | 18,500 BTU |
| Power front right | 18,500 BTU |
| Power griddle | 24,000 BTU |
| Total cooktop power | 121,500 BTU |
| Cleaning | |
| Easy clean porcelain basepan | Yes |
| Controls | |
| Metal illuminated dials | Yes |
| Star K Certification | Yes |
| Titanium coated, illuminated metal dials | Yes |
| Gas Requirements | |
| Fitting and pipe | NPT, min. ? ' ? flex line |
| Supply Pressure (natural gas) | 6 ' to 9' W.C |
| Performance | |
| Sealed Dual Flow Burners™ | 5 |
| Sealed cooking surface | Yes |
| Sealed range top | Yes |
| Simmer on all burners | 140 F |
| Power requirements | |
| Amperage | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120VV |
| Product dimensions | |
| Depth | 28 ' |
| Height | 8 5 / 16 ' |
| Width | 47 7 / 8 ' |
| Recommended Back Guards Ventilation | |
| Combustible situation | BGCV2-3048H |
| Non combustible situation | BGCV2-3048 / BGCV2-1248 |
| Pro hood | HCB48-12_N |
| Warranty | |
| Parts and labor | 2 years |
| Zone ratings | |
| Front right | 18500 BTU |
