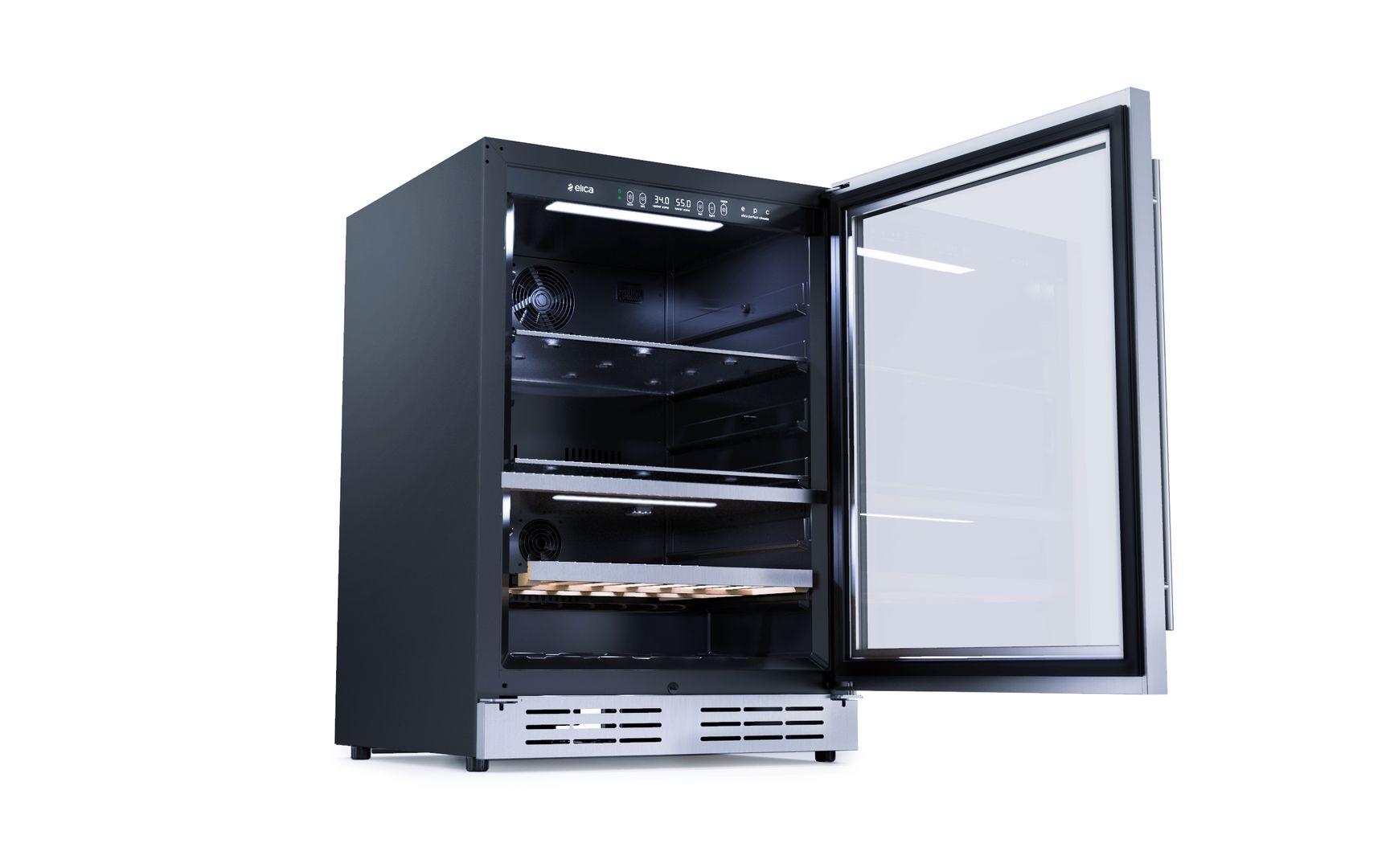

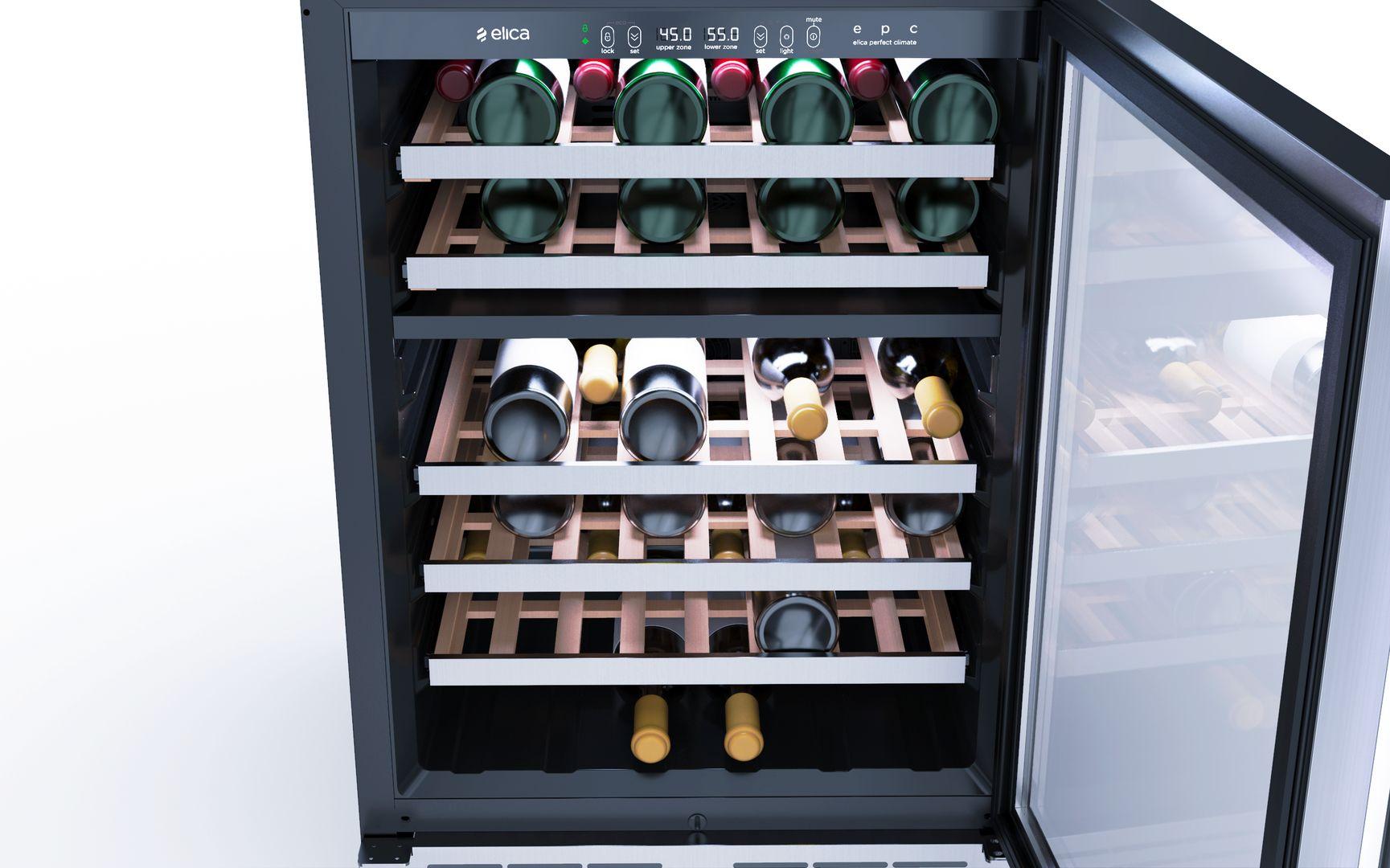

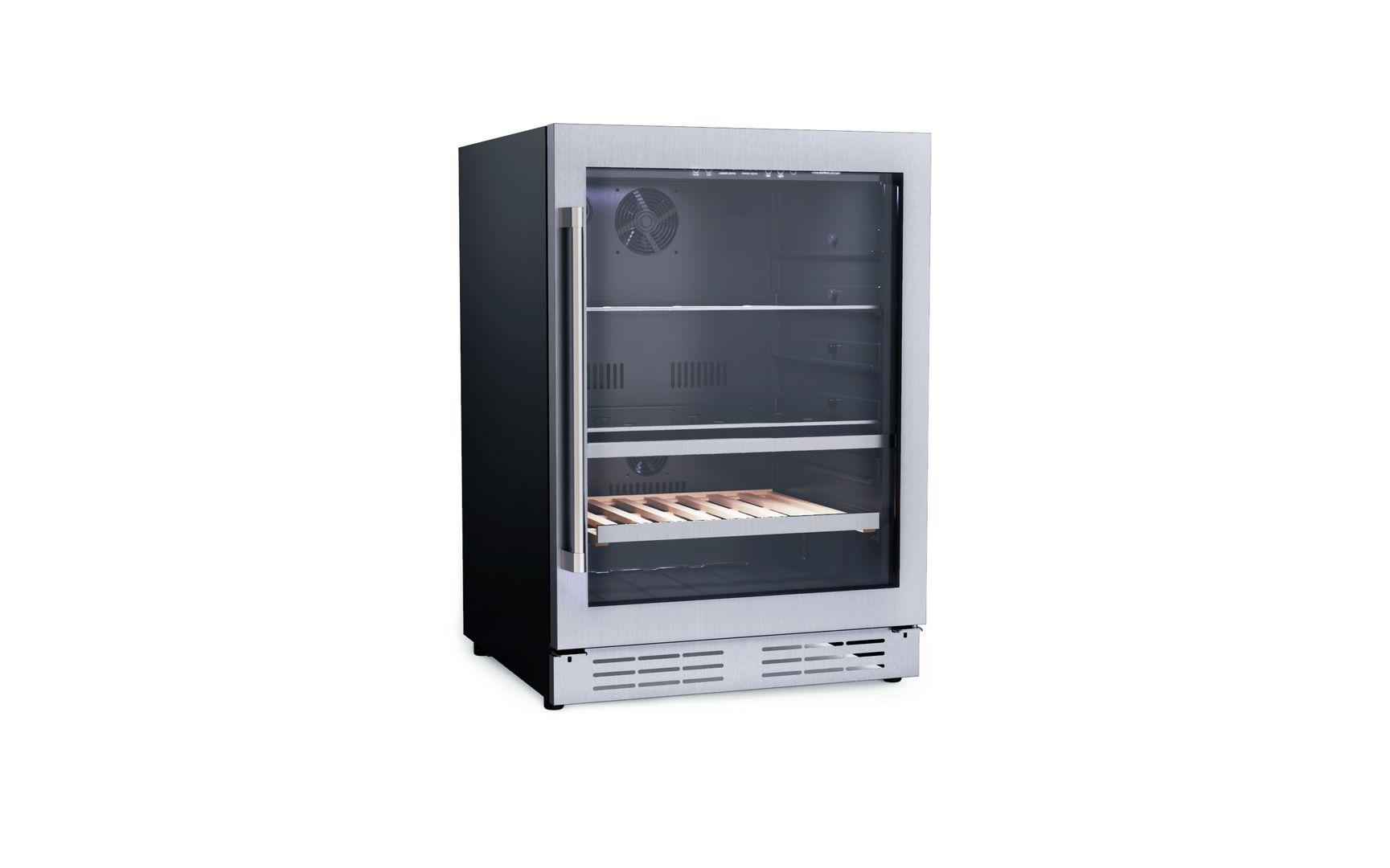

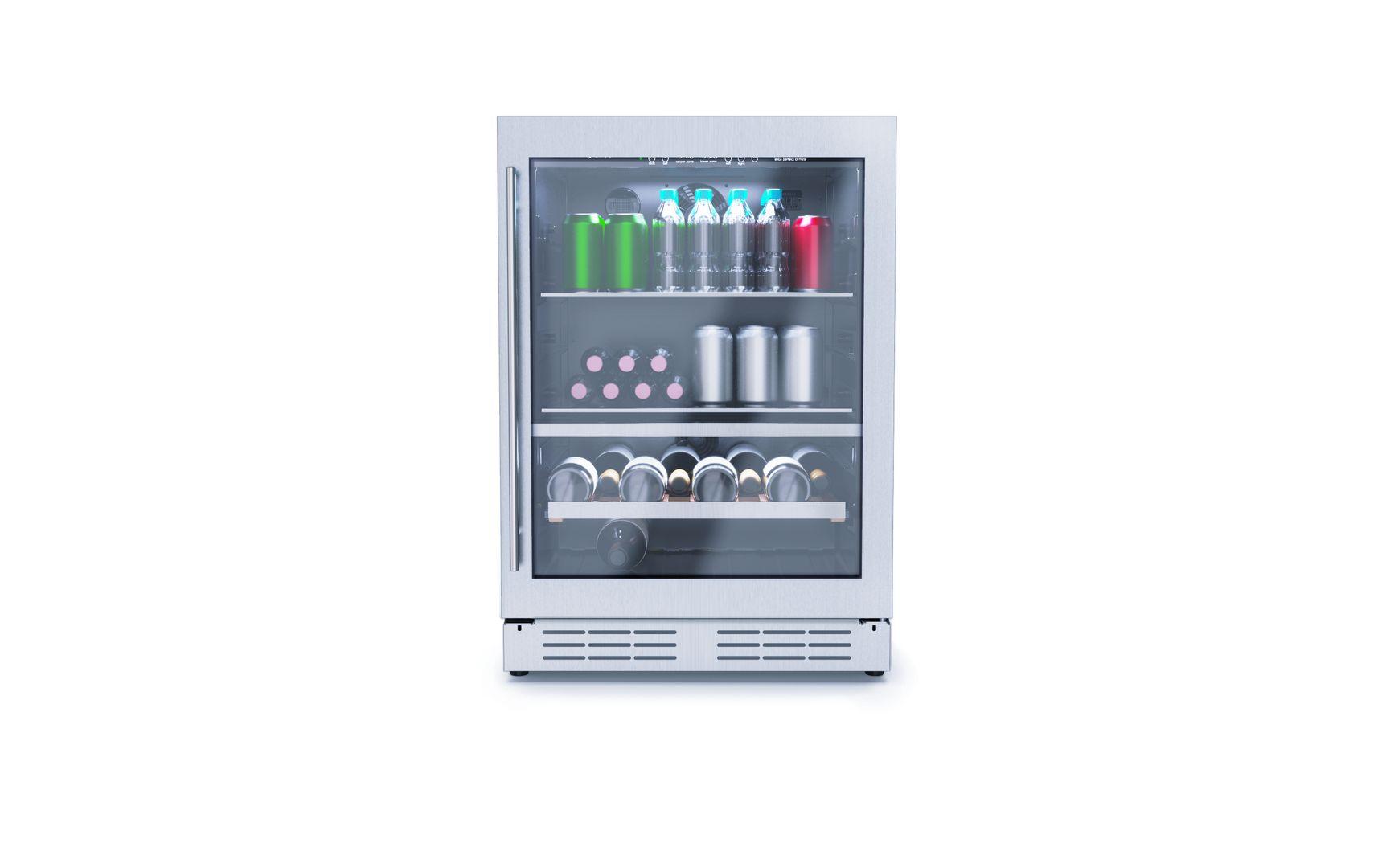

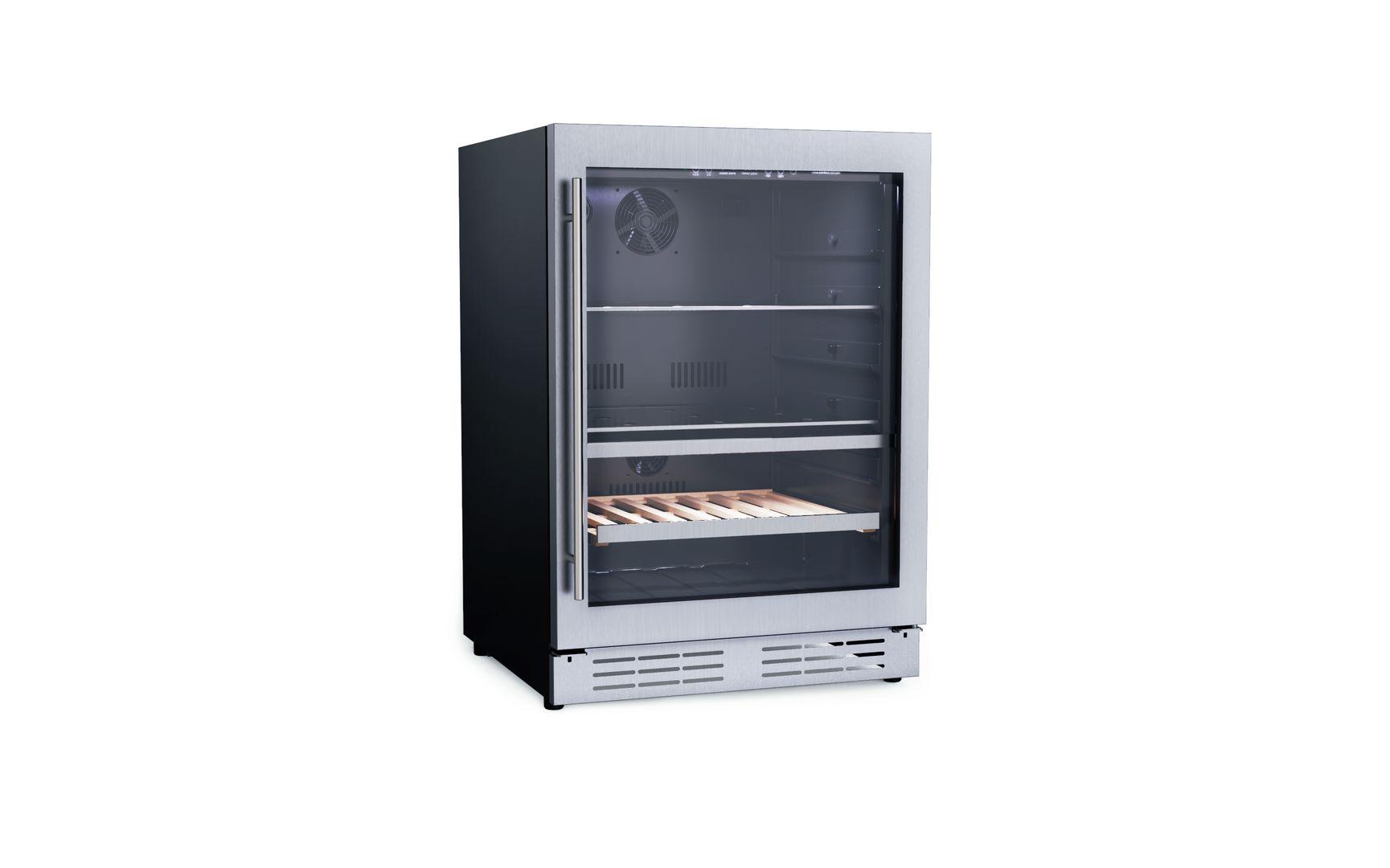

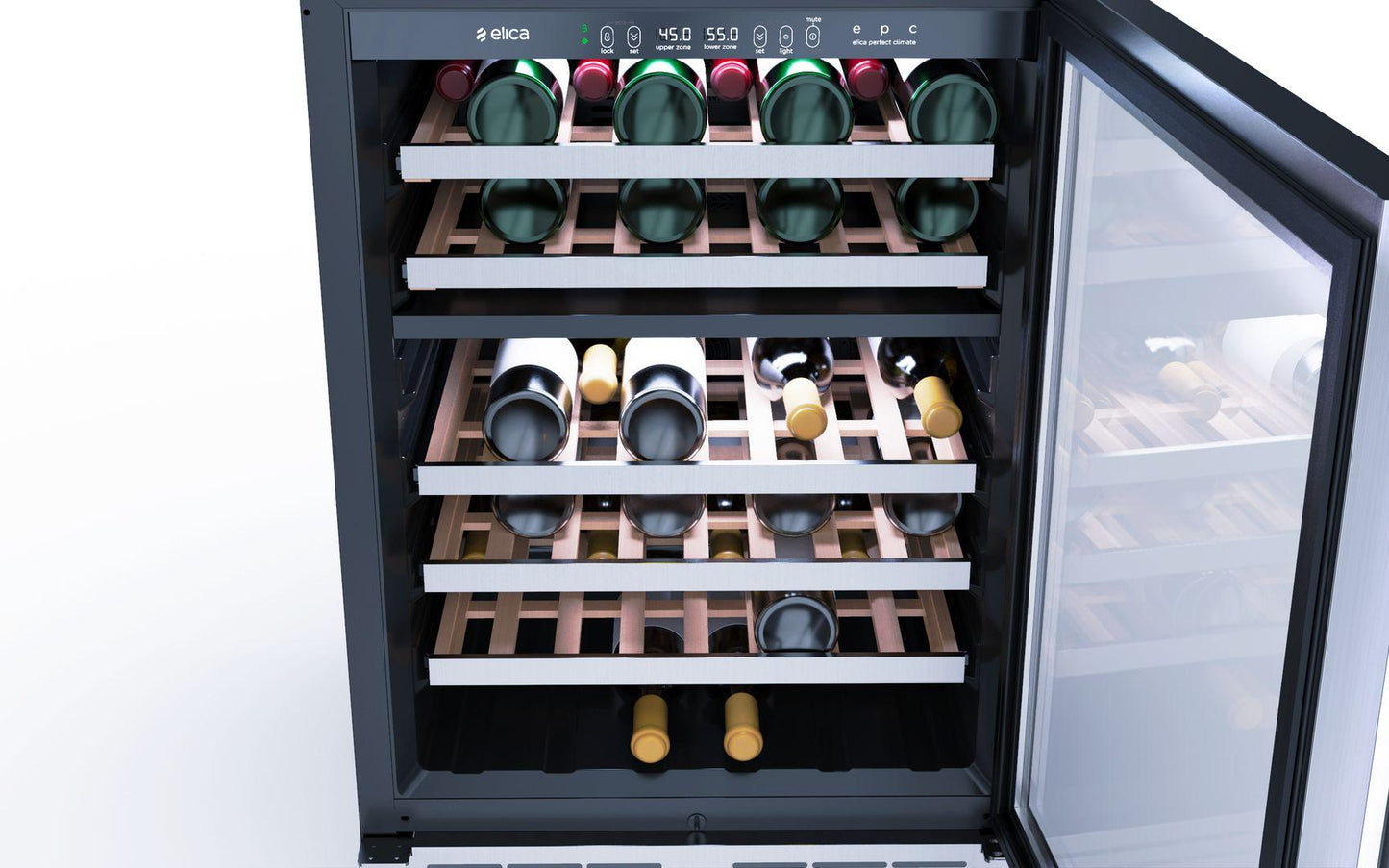

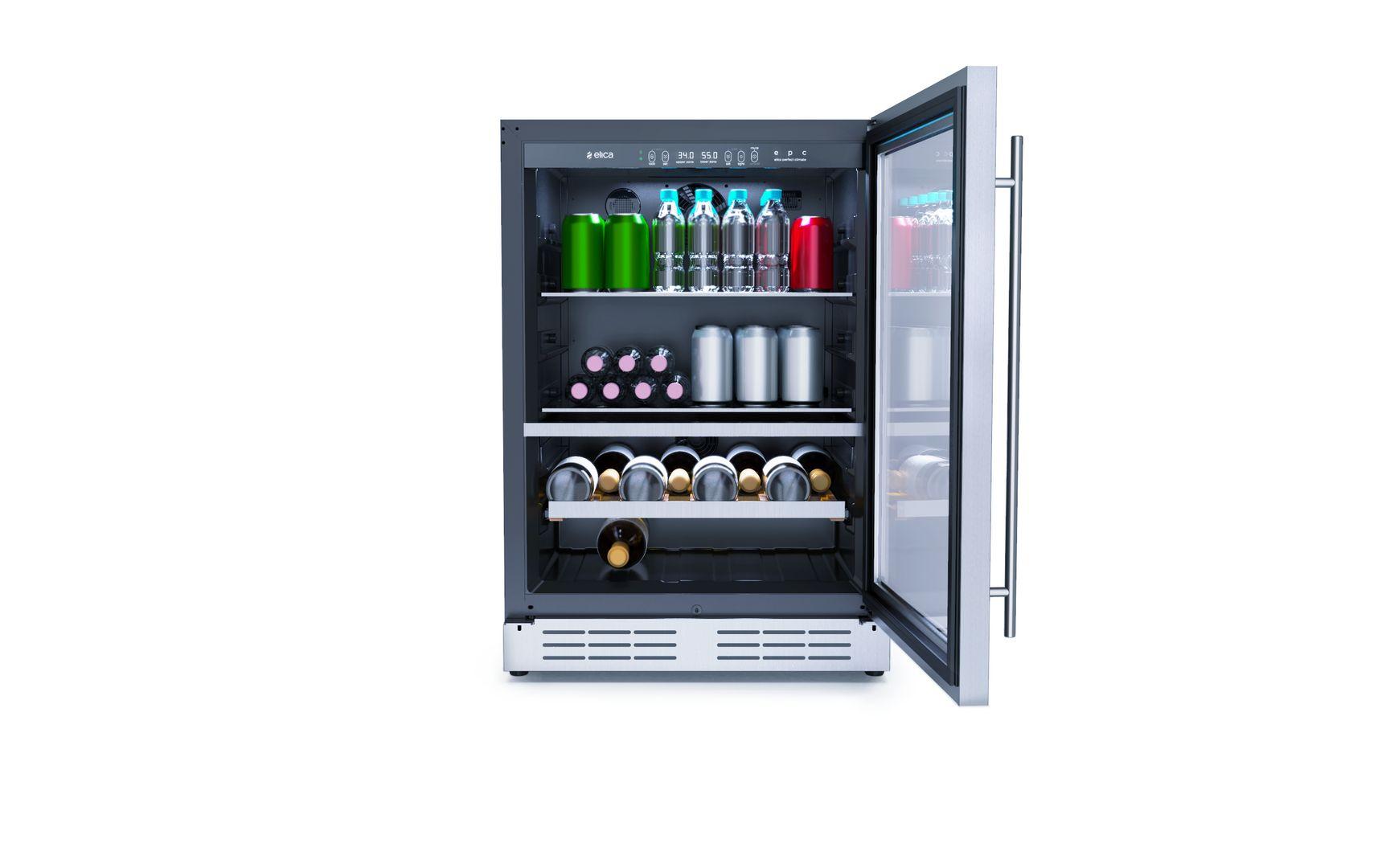

Elica EBS52SS1 Beverage & Wine Center
Single Door, Dual Zone A Brilliant Solution That Meet All Your Needs, Riserva - Ebs52Ss1 24", Features Two Different Cooling Zones, Adjustable To Different Temperatures To Preserve A Variety Of Beverages And Wines To Their Optimum Freshness. Its Uv Double Layered Resistant Glass Door Shields Bottles From Aging, While Elica S Perfect Climate Technology (Epc) Ensures A Consistent Air Flow Between Bottles For Optimum Preservation.
| Technical features | |
| Width | 24' |
| Dimensions | 23 13/32' W x 33 13/16' H x 23 5/8' |
| Weight | 128 lbs |

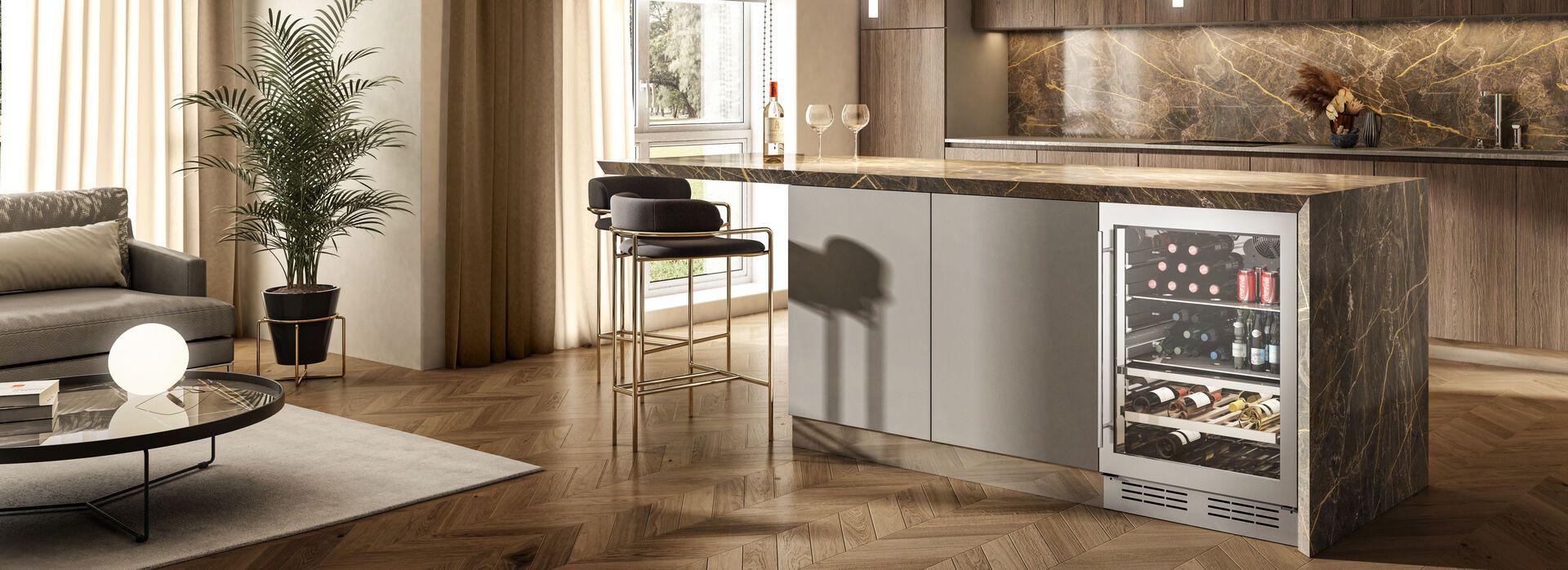

| Installation type | Built-in and Free Standing |
| Refrigerant type | R600a |
| Volume | 4.8 cu ft (135L) |
| Sound level | 39 dBA |
| Interior finish | Black |
| Cabinet finish | Black |
| Hinge design | Concealed |
| Lightning | 3 Level White LED |

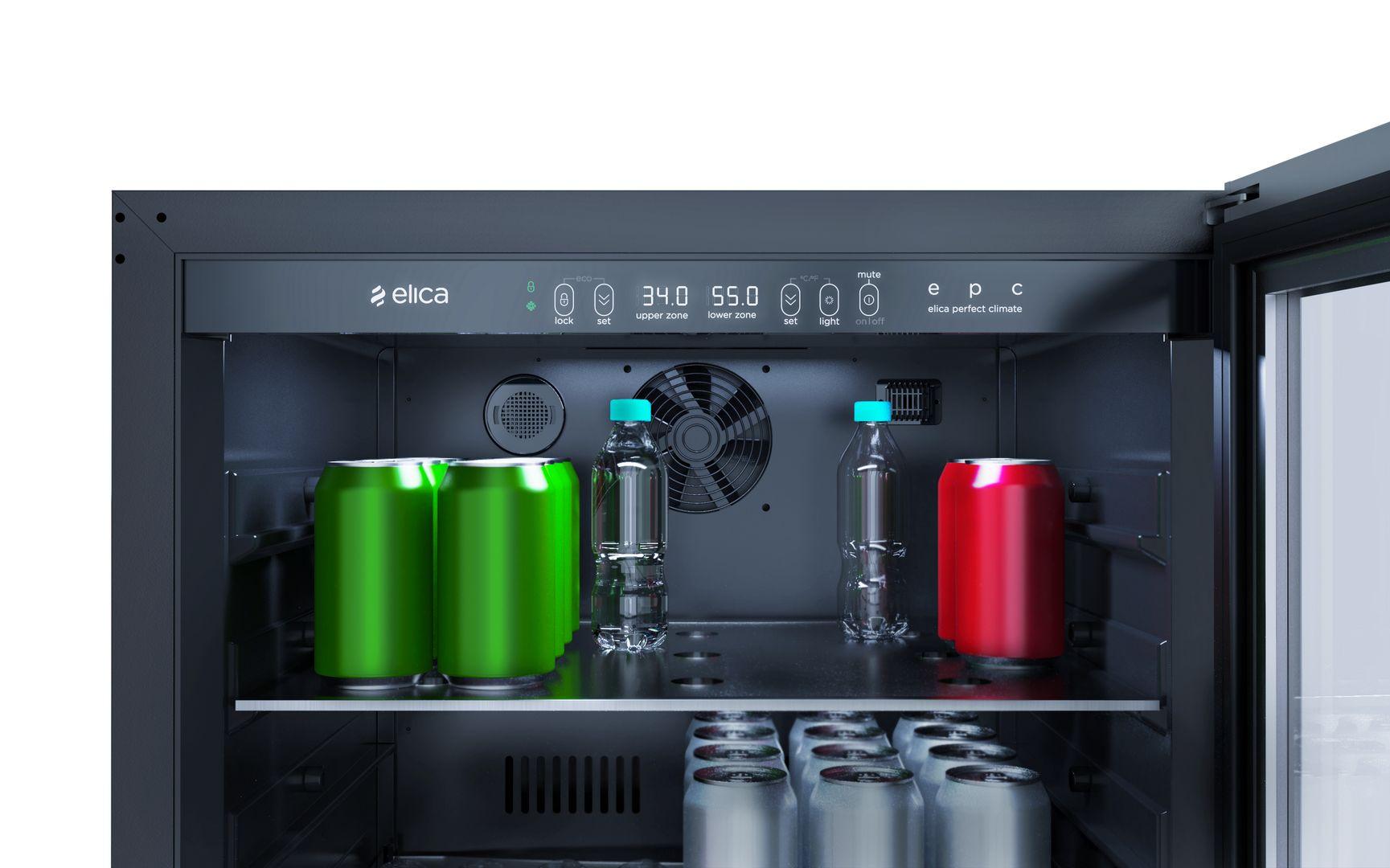

| Controls | Capacitive Touch Display with White Numbers |
| Cooling zone 1 | |
| Cooling zone 1 | Beverages |
| Total capacity | 72 cans (12 oz cans) |
| Temperature range | 34 to 50°F |
| Shelving | 3 Adjustable Slide Out Tempered Glass shelves with Wood and Metal front trim (without rollers) |
| Cooling zone 2 | |
| Cooling zone 2 | Wines |
| Total capacity | 14 Bottles of Wine (25 oz) |
| Temperature range | 40 to 64°F |

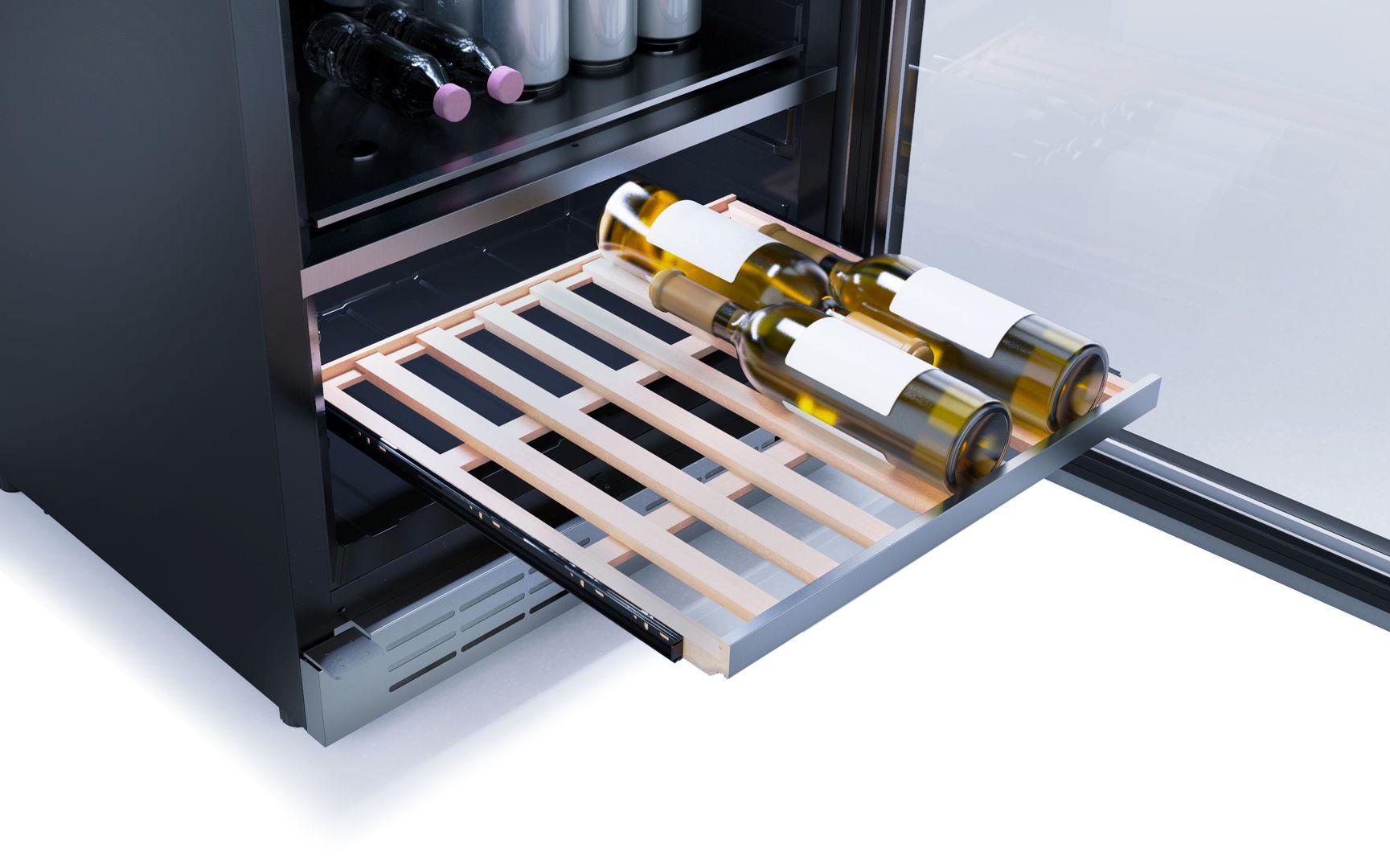

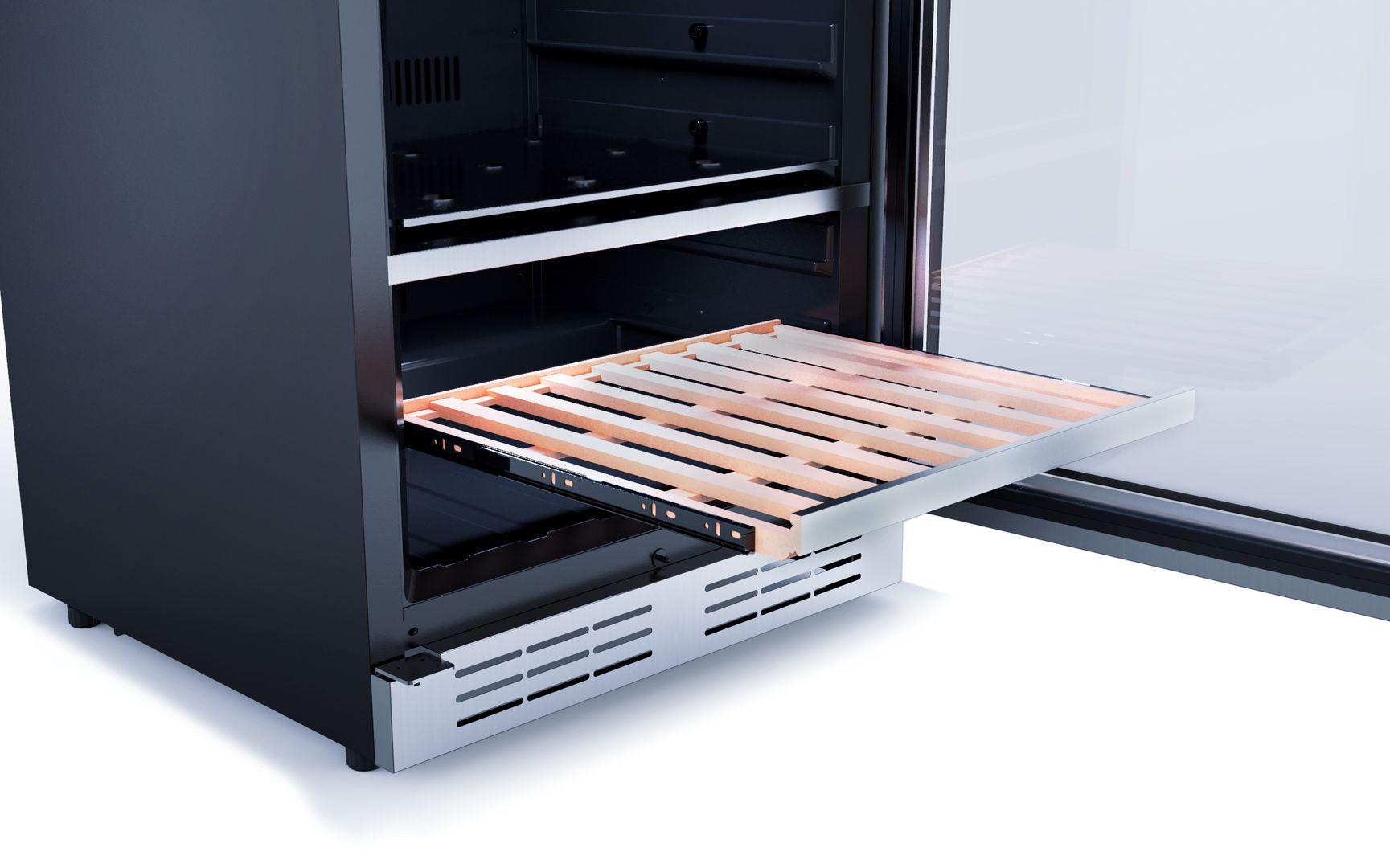

| Shelving | 1 Full Extension Rack of Wood with Metal Front Trim |
| Door | |
| Door finish | 304 Stainless Steel + Glass |
| Door handle | Tubular |
| Door glass | UV coated, dual panel, Low E Argon filled glass |
| Reversible door | Yes |
| Electrical specifications | |
| Compressor brand | Embraco |
| Minimum circuit required | 15A |
| AC power | 110-120V/60HZ |
| Amperage | 0.95A |
| Plug type | B |
