• Thorough cleaning with the LuxCare Plus Wash System

Our LuxCare Plus Wash System offers a thorough clean with even distribution of detergent and additives, improved wash actions, temperature control and smart load sensing.

• Pure Rinse™ option rinses cleaner

Remove detergent residues and fragrances that can irritate skin with Pure Rinse™ which rinses cleaner than our extra rinse option without using more water.

• 15-Minute Fast Wash

Quickly deep clean the items you need most.

• World's first Adaptive Dispenser™ designed to accept PODS

Get the ultimate clean no matter what type of detergent you prefer with the Adaptive Dispenser™.

• Perfect Steam™ removes tough stains

Our Perfect Steam™ rises from the bottom, gently lifting dirt and stains from fibers.

• Solid Soil level cleans caked on stains

The Solid Soil level gives you a deeper clean to get rid of the tough stains that get caked on, like mud or dirt.

• Remove bacteria with the Sanitize setting

Certified to kill and remove 99% of bacteria.

• Remove allergens with our Allergen option

Remove 95% of allergens from your clothing, towels and bedding with our NSF-certified Allergen option.

• StainTreat™ II option removes set-in stains

Optimizes the temperature, tumbling actions, and cycle time based on the stain you select.

• ENERGY STAR Certified

Electrolux washers meet strict criteria to guarantee high-quality energy efficient performance--without sacrificing clean.

• Activewear Cycle

Takes care of delicate and expensive activewear garments.

• 10-Year Motor Warranty plus Lifetime Tub Warranty

Rest easy knowing your washer is backed by a 10-year motor and lifetime tub warranty.

• Perfect Balance System & Second Floor Guarantee

Balances loads for smooth, quiet operation so you can run it whenever you want without disrupting your household.

• Fits more rooms with flexible installation

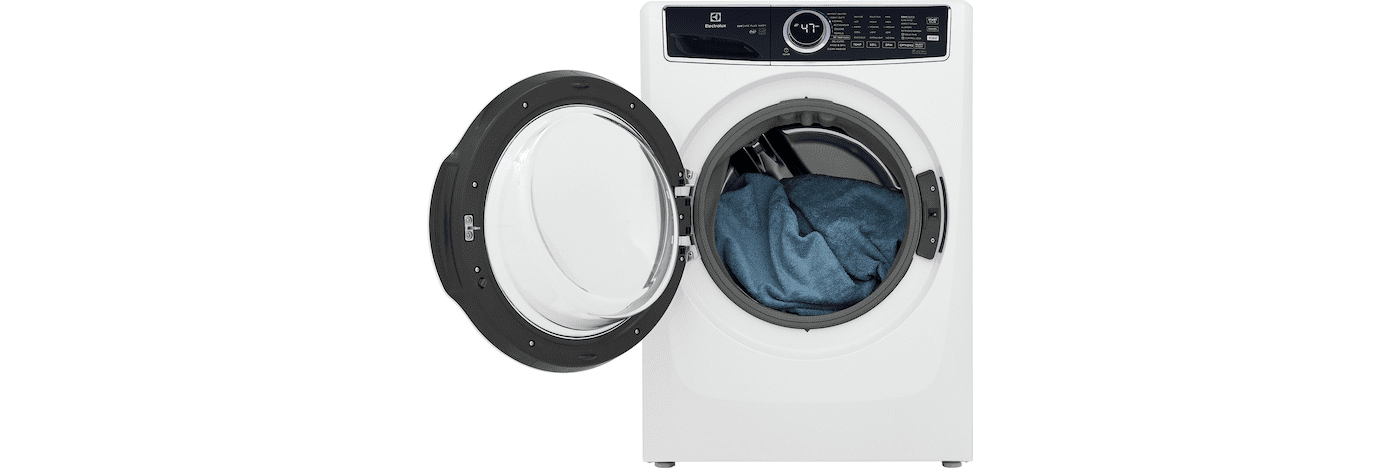

With reversible washer door, four-way recessed venting, and a standard 27" platform, our products are designed to fit just about anywhere you want to put them.

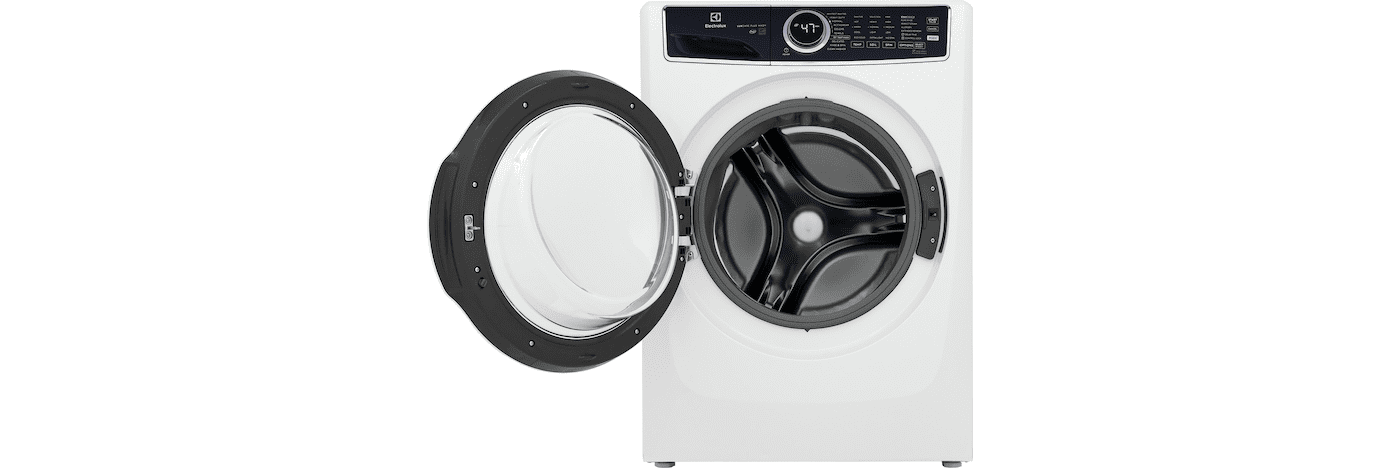

• Extra Large Capacity

Easily cleans a king-sized comforter with extra large 4.5 Cu. Ft. drum.

• Extended Refresh

Adds a rinse and spin after the wash cycle to keep garments fresh until you can switch them to the dryer.

• Automatic Water-Level Adjustment

Washer automatically modifies water levels to amount of clothes in unit.

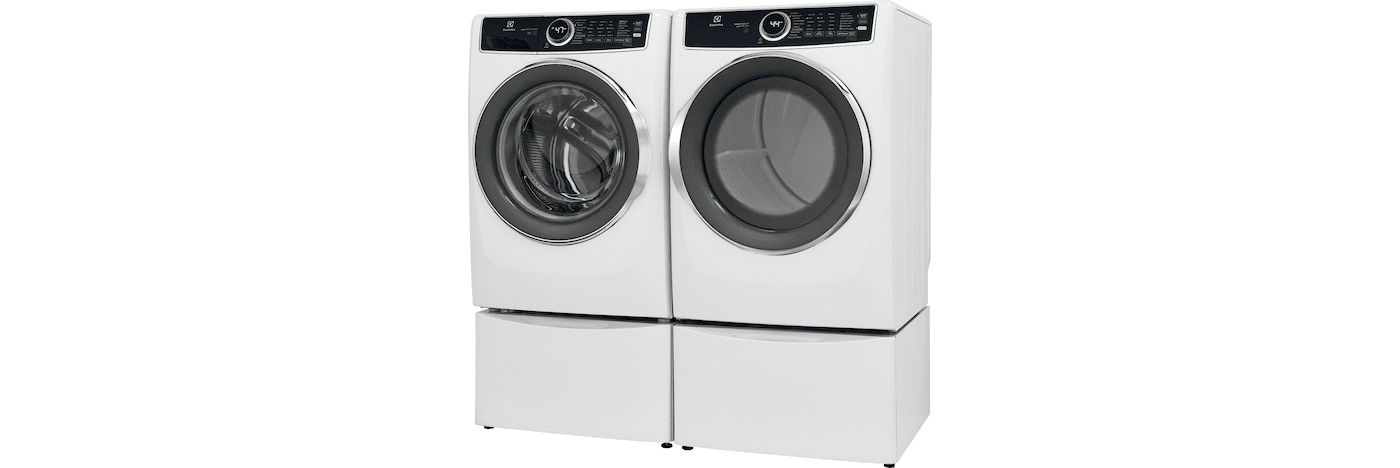

• More installation options

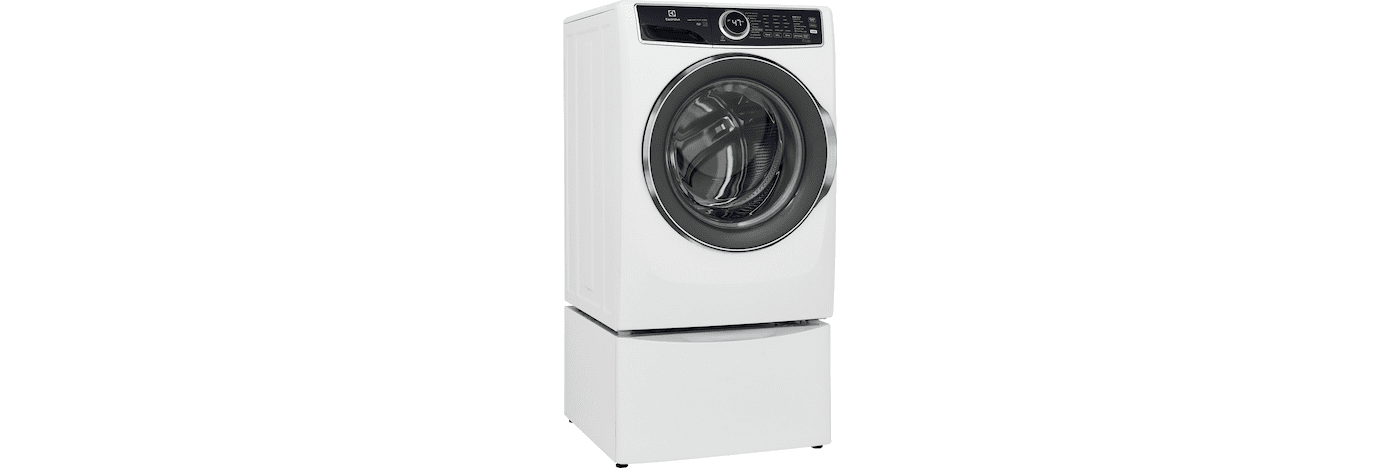

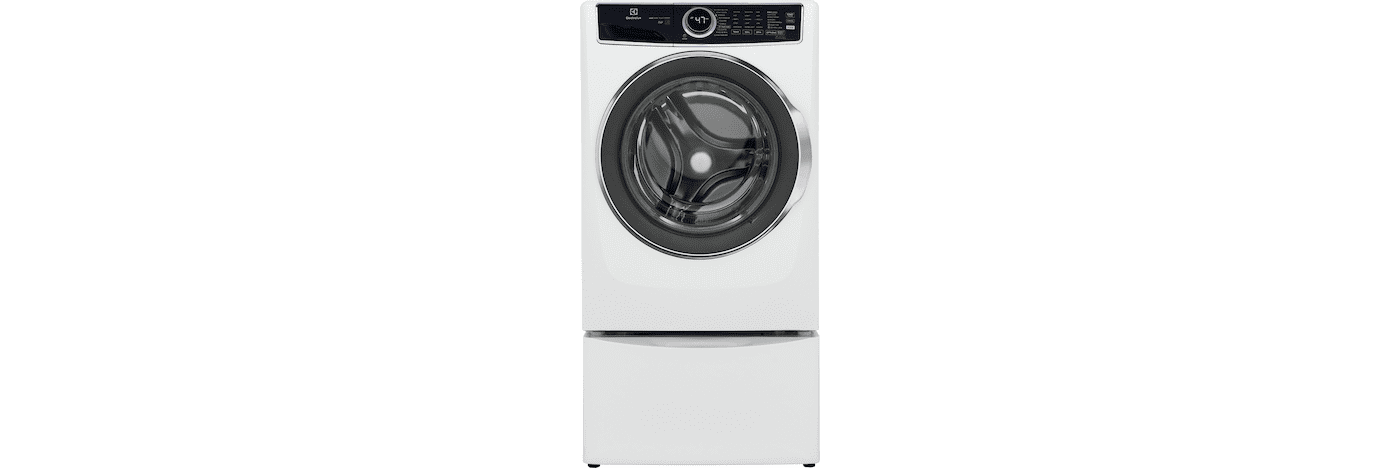

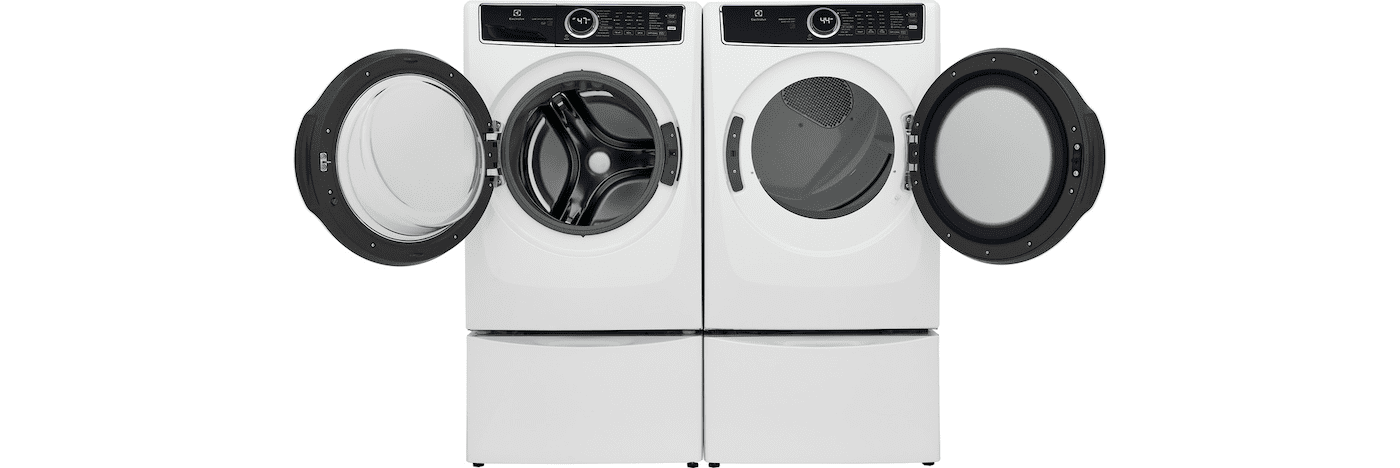

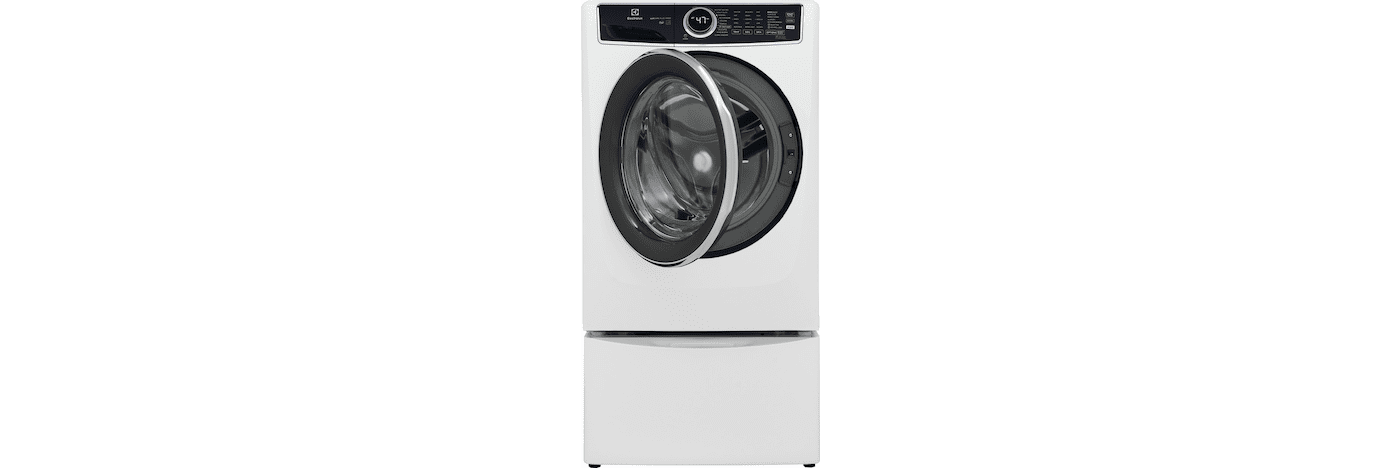

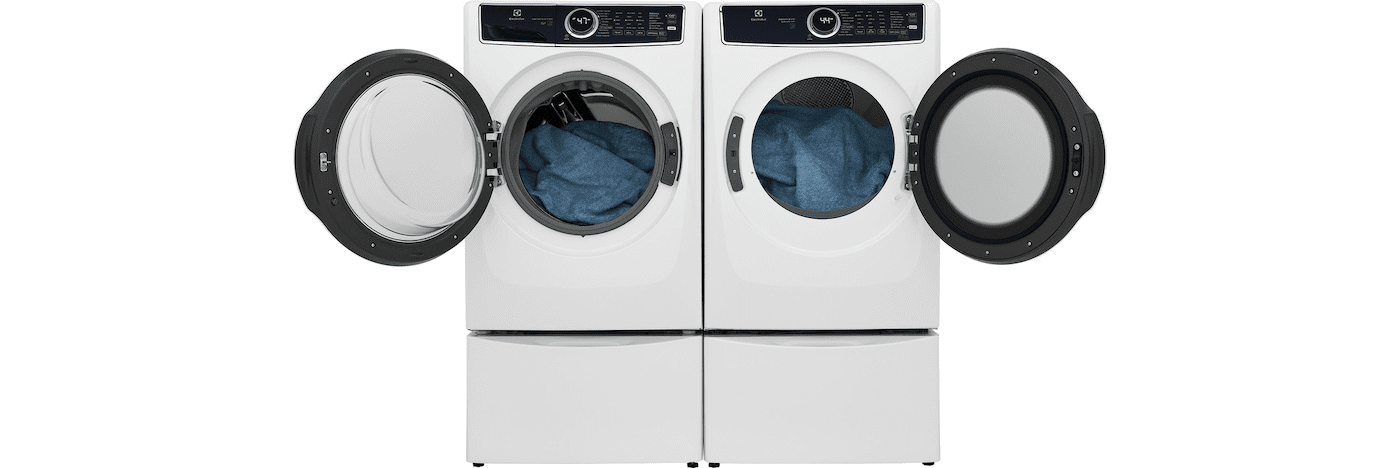

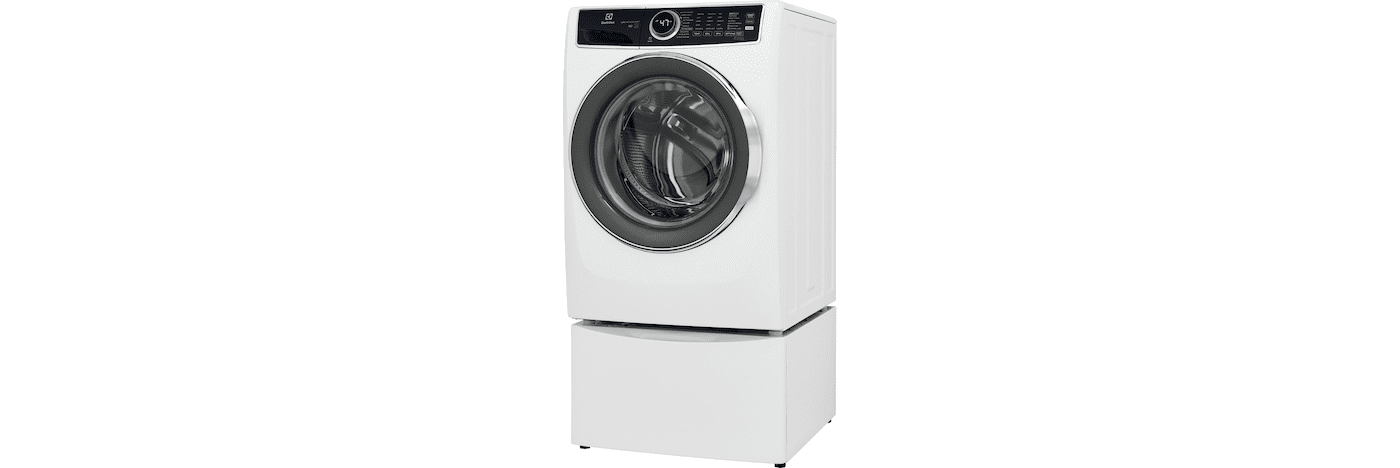

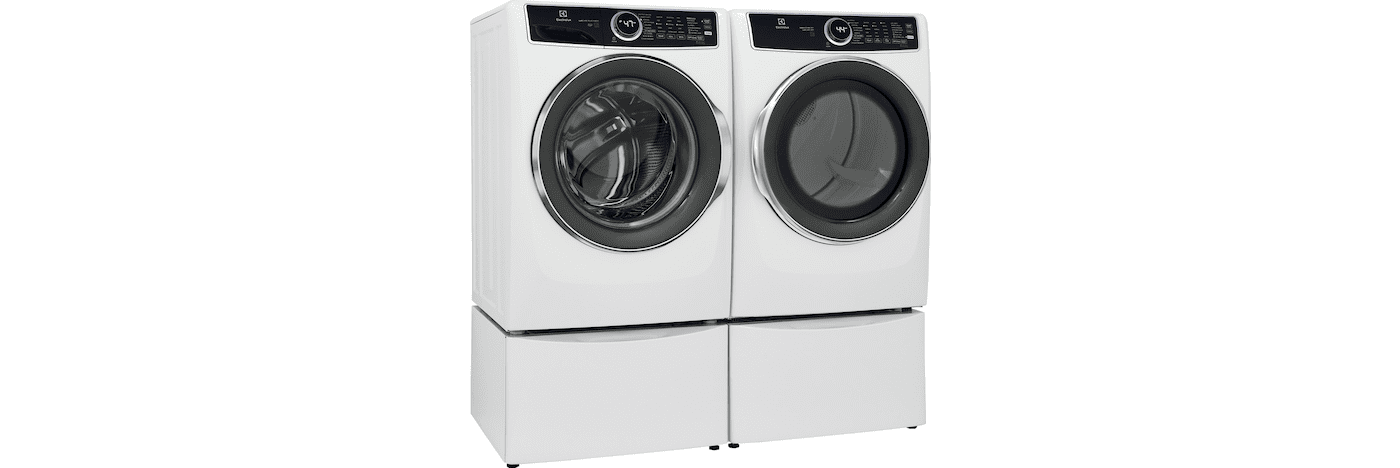

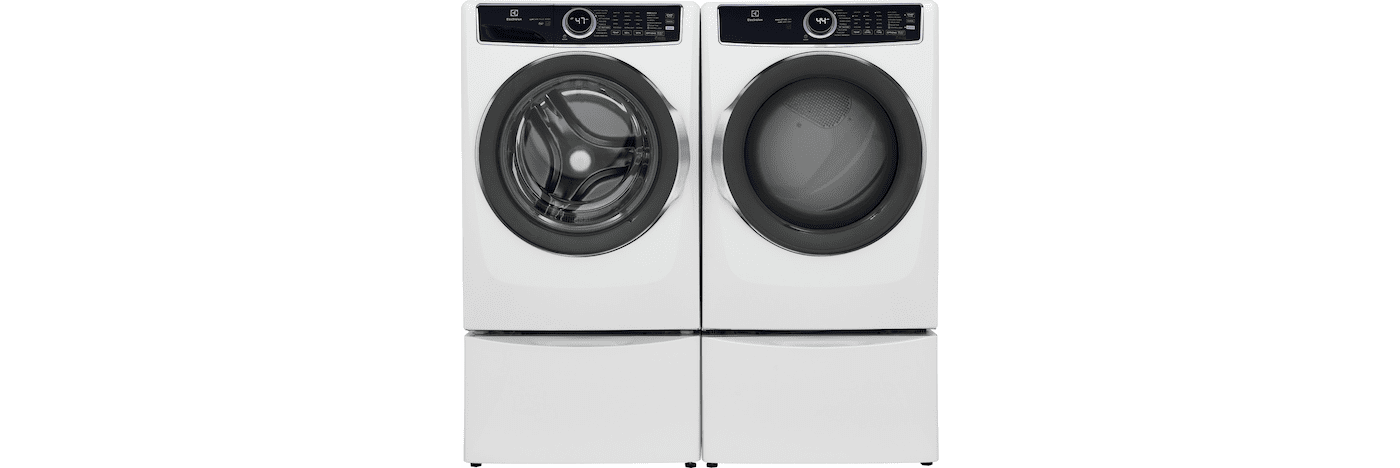

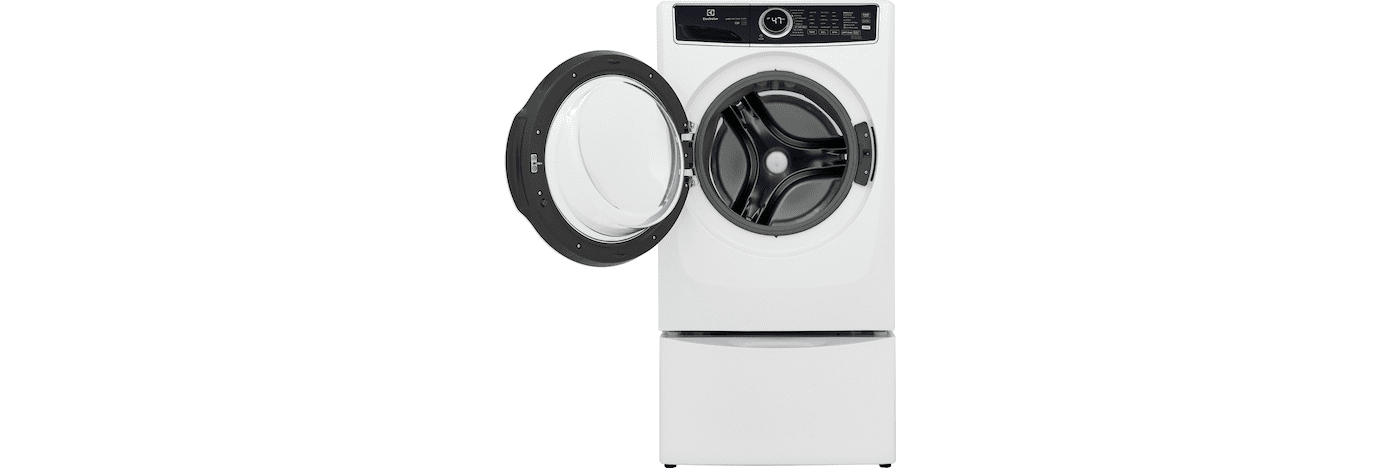

Raise your units with optional pedestal drawers that provide extra storage. Or use the optional stacking kit for convenient placement in a closet or small space.

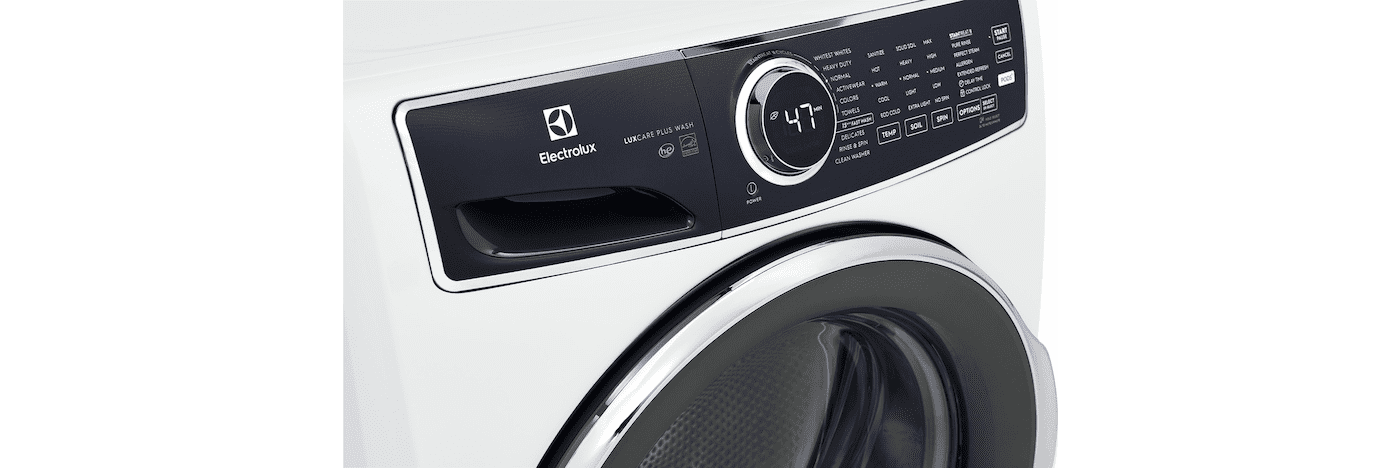

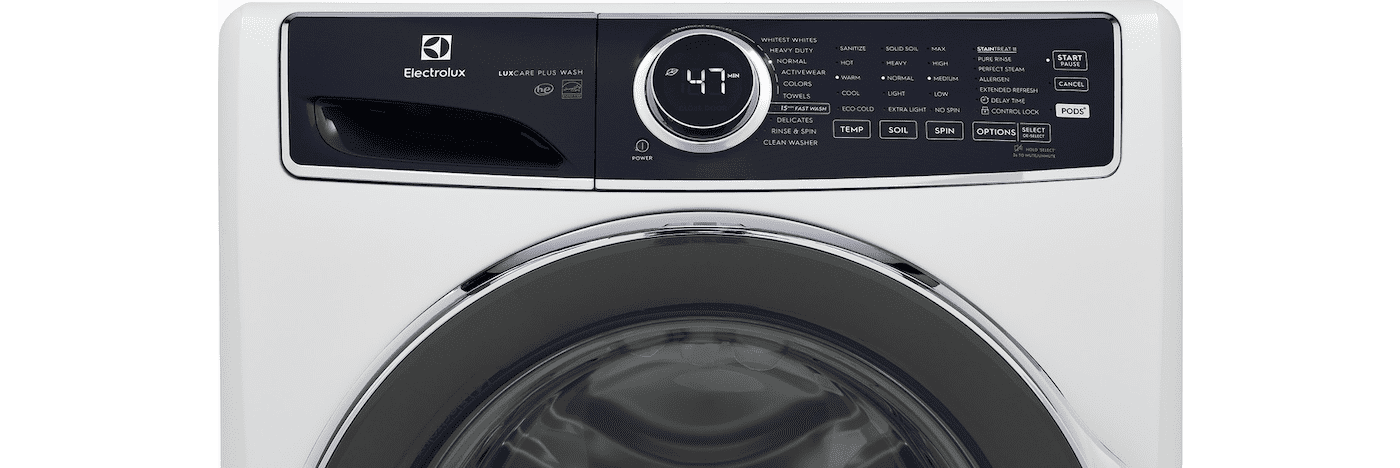

• Brilliant LED display shines in even the darkest laundry rooms

Our beautifully bright display illuminates information on cycles and lets you know how much time is left.

• Luxury-Design Lighting

Provides visibility inside your washer, so you can conveniently find any article of clothing.

• Platinum Star Limited Warranty

Our exclusive warranty offers peace of mind for registered owners with two years of coverage on replacement parts.

Dimensions and Volume
Height	38'
Width	27'
Depth	32'
Washer Drum Capacity	4.5 Cu. Ft.
General Specifications
Chime On / Chime Off	Yes
Leveling Legs	Yes
Product Weight	217 lbs
Prop 65 Label	No
Warranty - Labor	1 Year
Warranty - Parts	1 Year
Washer Spin Speeds
Spin Speed Selections	5
Max	Yes
High	Yes
Medium	Yes
Low	Yes
No Spin	Yes
Dispenser
Bleach Dispenser	Yes
Detergent Dispenser	Yes
Fabric Softener Dispenser	Yes
Prewash Detergent Dispenser	Yes
PODs Dispenser	Yes
Controls
Cancel	Yes
Cycle Status Lights	Yes
Delay Start	Yes
Control Lock	Yes
Pause Function	Yes
Power On/Off	Yes
Start	Yes
Electrical Specifications
Minimum Circuit Required	15 Amps
Voltage Rating	120 V
Temperature Settings
Eco Cold	Yes
Cool	Yes
Warm	Yes
Hot	Yes
Sanitize	Yes
Washer Options
Allergen	Yes
Delay Start Time	1-12 Hours
Extended Refresh	Yes
Extra Rinse	Yes
Perfect Steam	Yes
Pure Rinse	Yes
Stain Treat II	Yes
Steam	Yes
Installation
Optional Pedestal	Yes
Stackable	Yes
Washer Cycles
Cycle Count	10
Activewear	Yes
Clean Washer	Yes
Colors	Yes
Delicates	Yes
Fast Wash	Yes
Heavy Duty	Yes
Normal	Yes
Rinse and Spin	Yes
Towels	Yes
Whitest Whites	Yes
Exterior
Door Latch	Yes
Reversible Door	Yes
Soil Levels
Extra Light	Yes
Light	Yes
Normal	Yes
Heavy	Yes
Solid Soil	Yes
Washer
Drum Light	Yes
Drum Material	Stainless Steel
Maximum Spin Speed	1,300 RPM
Water Heater	Yes
Water Level Adjustment	Yes
Energy Data
Integrated Water Factor	3.2
kWh/cycle	0.29 kWh
kWh/year	85 kWh
Modified Energy Factor	2.92
Water Usage/Year	4,248 Gallons
Safety Certifications and Approvals
UL Listed	Yes
NSF Certified	Yes
Sanitization and Allergy Reduction	Yes
CEE Tier	Tier 2
ENERGY STAR Certified	Yes
ENERGY STAR Most Efficient	Yes
High Efficiency	Yes
