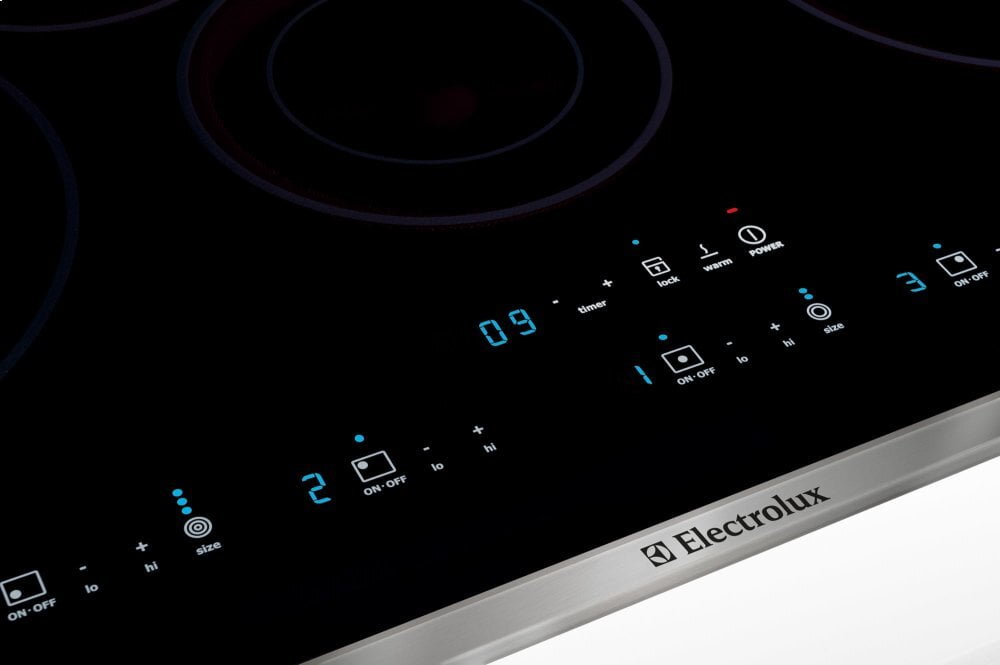

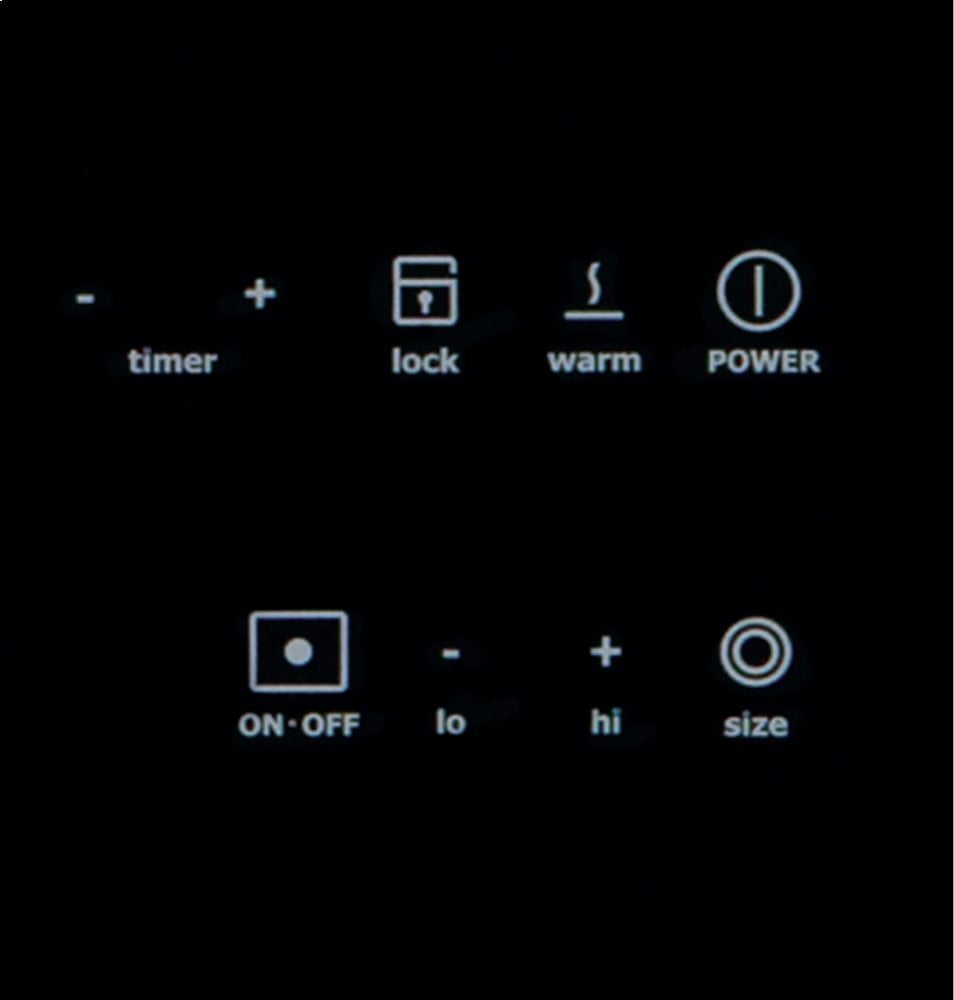

Glide-2-Set Control Panel

At the touch of a button adjust temperature so dishes come out perfectly.

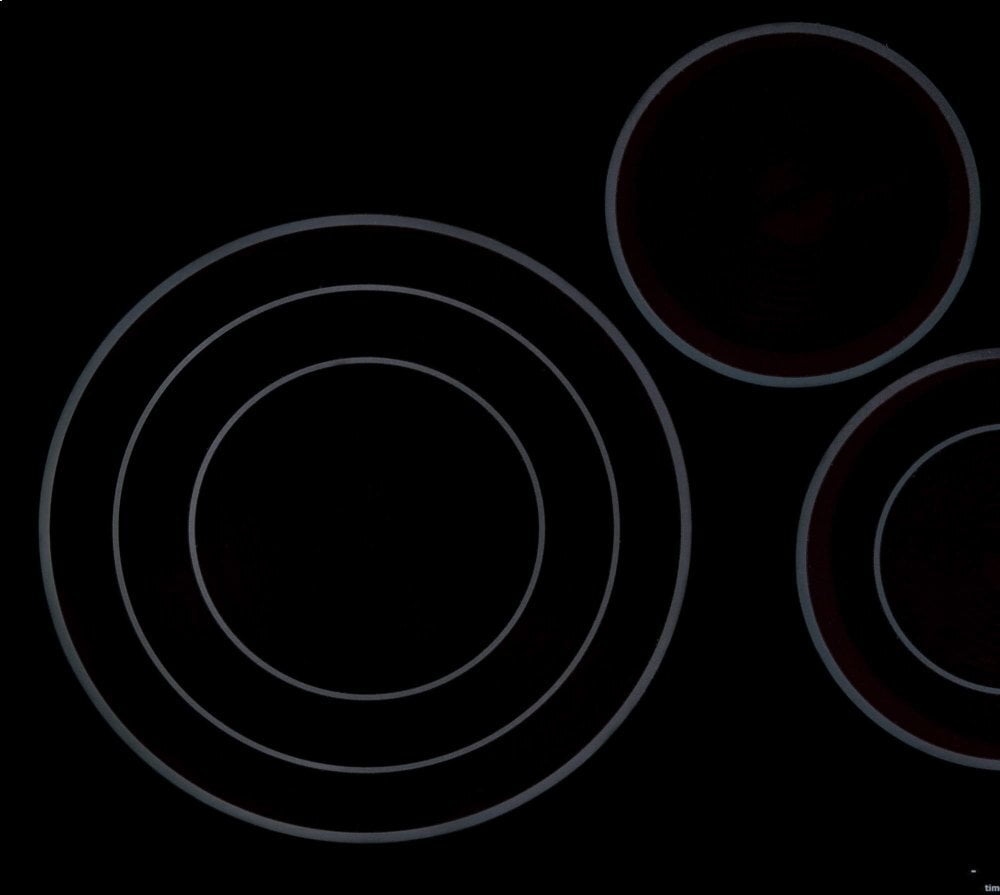

Flex-2-Fit Elements
Elements adjust up to three sizes, so the element fits the cookware, not the other way around.

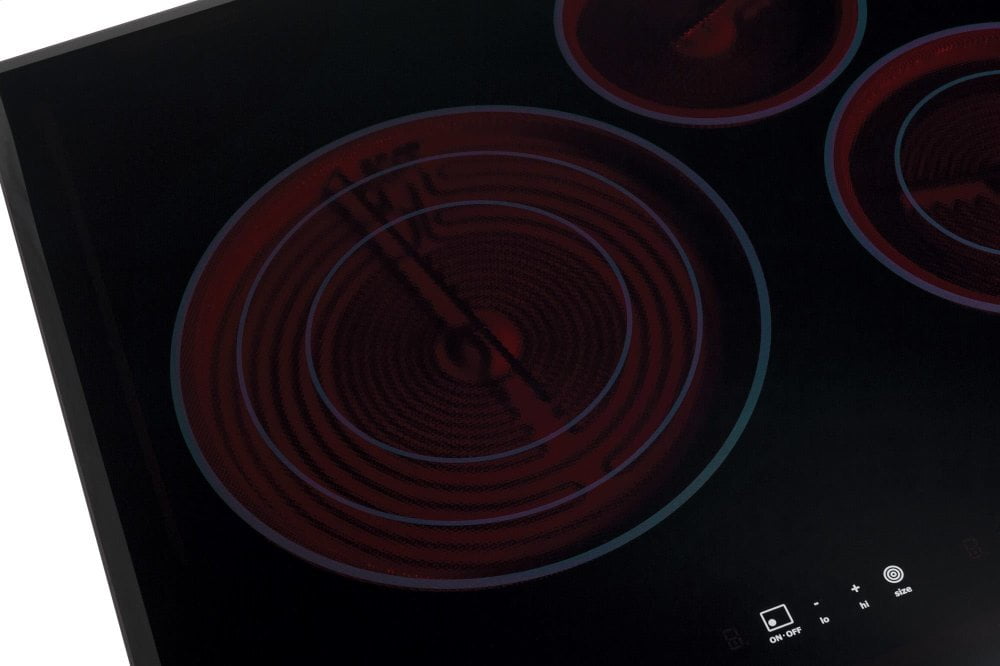

Triple Element

An element that offers the versatility of three element sizes for ultimate flexibility, so it fits your cookware.
Digital Preset Touch Settings

Up to 25 preset touch settings make adjusting heat up or down a snap.
- Glide-2-Set Control Panel
- At the touch of a button adjust temperature so dishes come out perfectly.
- Flex-2-Fit Elements
- Elements adjust up to three sizes, so the element fits the cookware, not the other way around.
- Triple Element
- An element that offers the versatility of three element sizes for ultimate flexibility, so it fits your cookware.
- Digital Preset Touch Settings
- Up to 25 preset touch settings make adjusting heat up or down a snap.

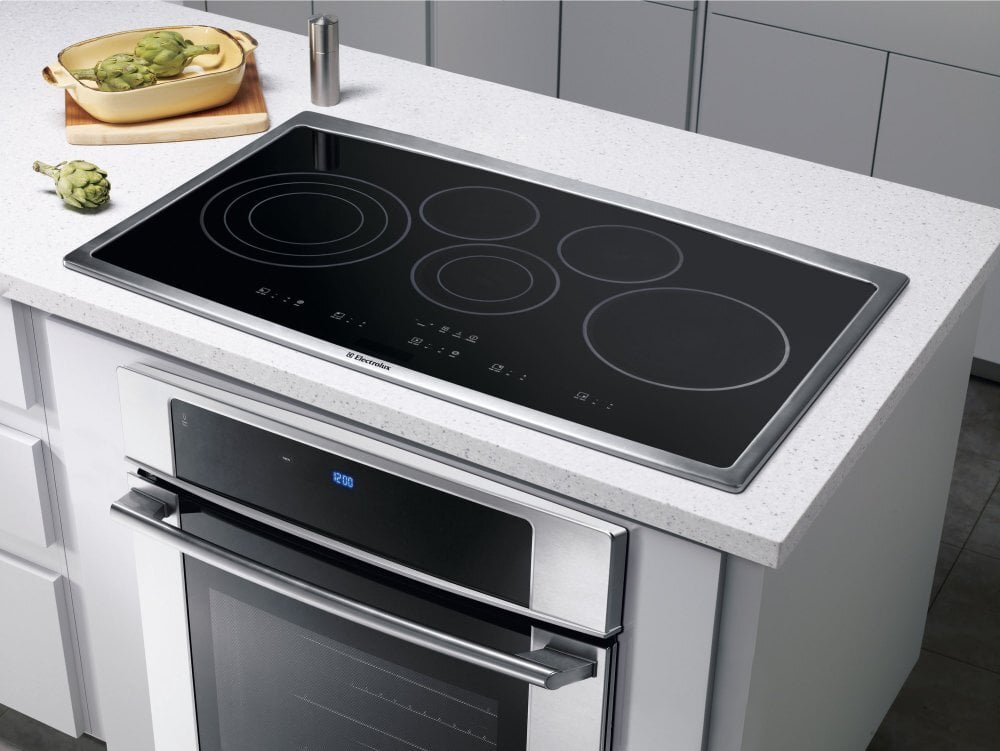

- Perfect Over A Wall Oven
- Mounts above a single wall oven for additional installation options.
- ADA Compliant
- Complies with the ADA requirements as specified in the Americans with Disabilities Act.
Dimensions and Volume | |
Height | 6 5/8' |
Width | 36 3/4' |
Depth | 21 3/4' |
Installation | |
Installed Over a Wall Oven | Yes |
Power Supply Connection Location | Right Center |
Cooktop | |
Hot-Surface Indicator Light | Yes |
Right Front Element Burner Size | 9' |
Right Rear Element Burner Size | 6' |
Left Rear Element Burner Size | 6' |
Right Front Element Burner | 3,200 Watts |
Right Rear Element Burner | 1,200 Watts |
Left Rear Element Burner | 1,200 Watts |
Center Element Burner (Large) | 1,800 Watts |
Left Front Element Burner Size (Small) | 6' |
Left Front Element Burner Size (Large) | 12' |
Left Front Element Burner (Small) | 1,200 Watts |
Left Front Element Burner (Large) | 3,000 Watts |
Center Element Burner Size (Small) | 750' |
Center Element Burner Size (Large) | 1800' |
Center Element Burner (Small) | 750 Watts |
Display | |
Display Interface Color | Blue |
Display Type | Capacitive Touch |
General Specifications | |
Product Weight | 62.7 lbs |
Prop 65 Label | No |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Controls | |
Sabbath Mode | Yes |
Control Location | Front |
Electrical Specifications | |
Amps @ 240 Volts | 43.3 Amps |
Connected Load @ 240V | 10.4 kW |
Minimum Circuit Required | 50 Amps |
Voltage Rating | 240 V |
Safety Certifications & Approvals | |
UL Listed | Yes |
ADA Compliant | Yes |
Cooktop Controls

Cooking Utensils

Heating Elements

Minute Timer

Overview
Glide-2-Set Control Panel

At the touch of a button adjust temperature so dishes come out perfectly.
Flex-2-Fit Elements
Elements adjust up to three sizes, so the element fits the cookware, not the other way around.

Triple Element

An element that offers the versatility of three element sizes for ultimate flexibility, so it fits your cookware.
Digital Preset Touch Settings

Up to 25 preset touch settings make adjusting heat up or down a snap.
Description
Features
- Glide-2-Set Control Panel
- Flex-2-Fit Elements
- Triple Element
- Digital Preset Touch Settings
- Perfect Over A Wall Oven
- ADA Compliant
Specifications
Dimensions and Volume | |
Height | 6 5/8' |
Width | 36 3/4' |
Depth | 21 3/4' |
Installation | |
Installed Over a Wall Oven | Yes |
Power Supply Connection Location | Right Center |
Cooktop | |
Hot-Surface Indicator Light | Yes |
Right Front Element Burner Size | 9' |
Right Rear Element Burner Size | 6' |
Left Rear Element Burner Size | 6' |
Right Front Element Burner | 3,200 Watts |
Right Rear Element Burner | 1,200 Watts |
Left Rear Element Burner | 1,200 Watts |
Center Element Burner (Large) | 1,800 Watts |
Left Front Element Burner Size (Small) | 6' |
Left Front Element Burner Size (Large) | 12' |
Left Front Element Burner (Small) | 1,200 Watts |
Left Front Element Burner (Large) | 3,000 Watts |
Center Element Burner Size (Small) | 750' |
Center Element Burner Size (Large) | 1800' |
Center Element Burner (Small) | 750 Watts |
Display | |
Display Interface Color | Blue |
Display Type | Capacitive Touch |
General Specifications | |
Product Weight | 62.7 lbs |
Prop 65 Label | No |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Controls | |
Sabbath Mode | Yes |
Control Location | Front |
Electrical Specifications | |
Amps @ 240 Volts | 43.3 Amps |
Connected Load @ 240V | 10.4 kW |
Minimum Circuit Required | 50 Amps |
Voltage Rating | 240 V |
Safety Certifications & Approvals | |
UL Listed | Yes |
ADA Compliant | Yes |
