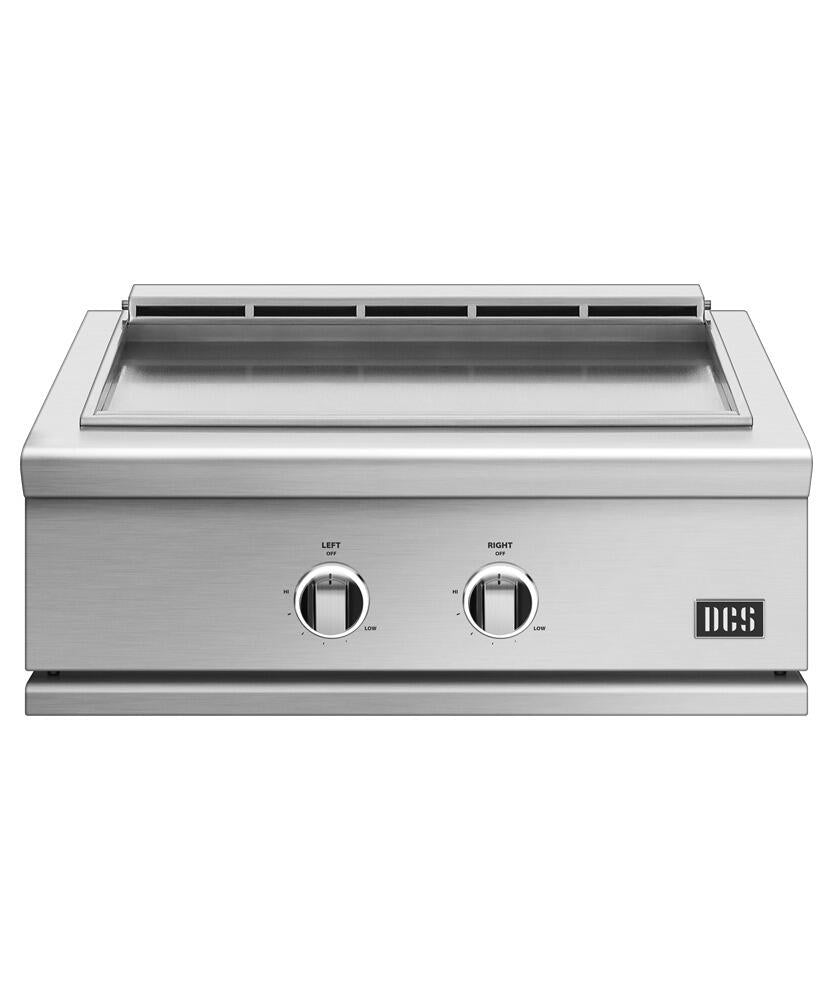

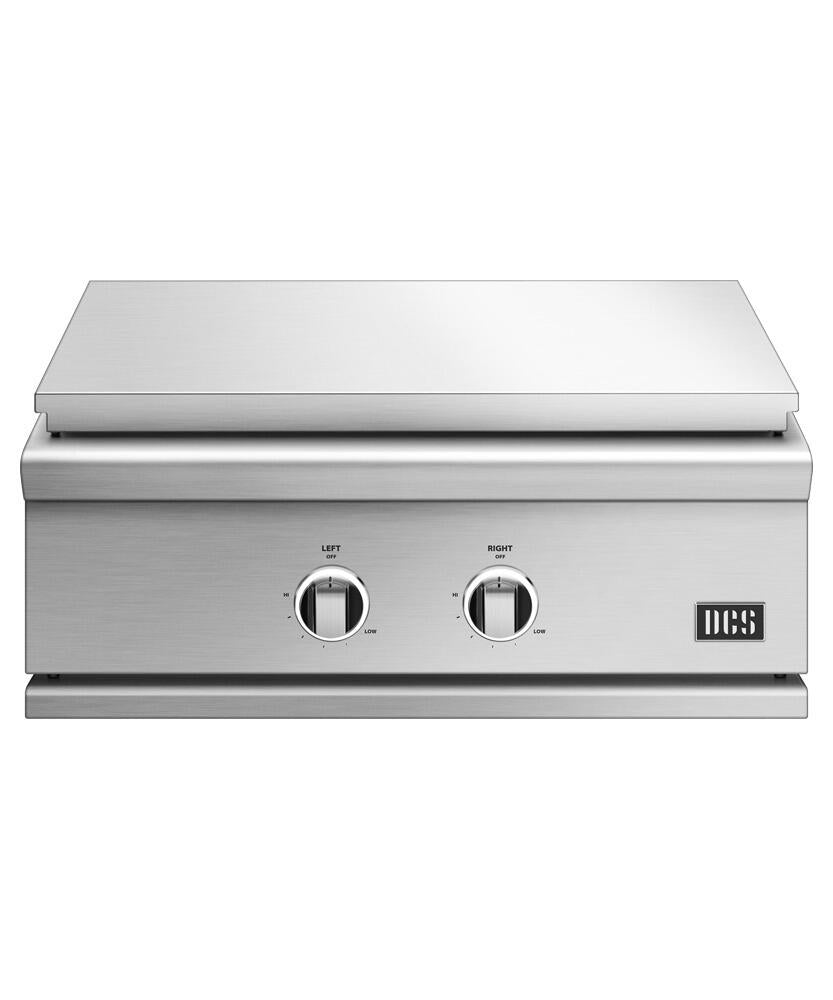

Expand Your Outdoor Kitchen Options With Quick Cooking On The Griddle. Designed With Flexibility In Mind, This 30" Griddle Can Either Be Built-In Or Mounted On A Freestanding Cart (Grill Cart Sold Separately - Cad1-30E).
- Large griddle surface with precise temperature control
- Separate temperature zones and even heat distribution
- Interconnected illuminated dials to match the suite of DCS Series 9 products
- Removable slide out drip tray
Accessories | |
Optional cart mount | CAD1-3E |
Burners | |
Number of U-burners | 2 |
Cooking Surface Area | |
Total cooking area | 500sq.in. |
Features | |
Ignition system | Surface |
Finish | |
Material | 304 grade stainless steel |
Weather resistant | |
Gas Requirements | |
1/2' NPT male with 3/8' in flare adapter | |
Gas type | LPG |
LP hose with regulator and Type 1 connector | |
Operational pressure | 11 ' W.C. |
Supply Pressure | 12 ' to 14' W.C. |
Installation Dimensions | |
Cutout depth (proud) | 22 3 4 ' |
Cutout height (proud) | 10 1 8 ' |
Cutout width (proud) | 28 1 2 ' |
Performance | |
Griddle power | 20000 BTU |
Power requirements | |
Supply frequency | 60Hz |
Supply voltage | 120V |
Product dimensions | |
Depth | 26 7 8 ' |
Height | 10 1 2 ' |
Width | 30 ' |
Warranty | |
Parts and labor | 2 years |
Description
Expand Your Outdoor Kitchen Options With Quick Cooking On The Griddle. Designed With Flexibility In Mind, This 30" Griddle Can Either Be Built-In Or Mounted On A Freestanding Cart (Grill Cart Sold Separately - Cad1-30E).
Features
- Large griddle surface with precise temperature control
- Separate temperature zones and even heat distribution
- Interconnected illuminated dials to match the suite of DCS Series 9 products
- Removable slide out drip tray
Specifications
Accessories | |
Optional cart mount | CAD1-3E |
Burners | |
Number of U-burners | 2 |
Cooking Surface Area | |
Total cooking area | 500sq.in. |
Features | |
Ignition system | Surface |
Finish | |
Material | 304 grade stainless steel |
Weather resistant | |
Gas Requirements | |
1/2' NPT male with 3/8' in flare adapter | |
Gas type | LPG |
LP hose with regulator and Type 1 connector | |
Operational pressure | 11 ' W.C. |
Supply Pressure | 12 ' to 14' W.C. |
Installation Dimensions | |
Cutout depth (proud) | 22 3 4 ' |
Cutout height (proud) | 10 1 8 ' |
Cutout width (proud) | 28 1 2 ' |
Performance | |
Griddle power | 20000 BTU |
Power requirements | |
Supply frequency | 60Hz |
Supply voltage | 120V |
Product dimensions | |
Depth | 26 7 8 ' |
Height | 10 1 2 ' |
Width | 30 ' |
Warranty | |
Parts and labor | 2 years |
