Dacor DTT48M976LS 48" Rangetop, Silver Stainless Steel, Natural Gas
Auto Connected Hood
Activate and adjust the hood with Bluetooth and ConnectOn auto-responsive technology. Turns on the ventilation in conjunction with the cooktop, and ramps up the speed as necessary, with the use of a temperature sensor.
Illumina Knobs
Warm, sophisticated and welcoming. The glowing Illumina knobs entice participation, inspire the imagination and accentuates the beauty of the product.
Bespoken Production
Graphite stainless steel features Dacor exclusive, Diamond Like Carbon coating (DLC), that provide exceptional scratch, heat and stain resistance. A process used in the luxury watch industry, DLC requires up to 24 hours of labor to effectively produce each component.

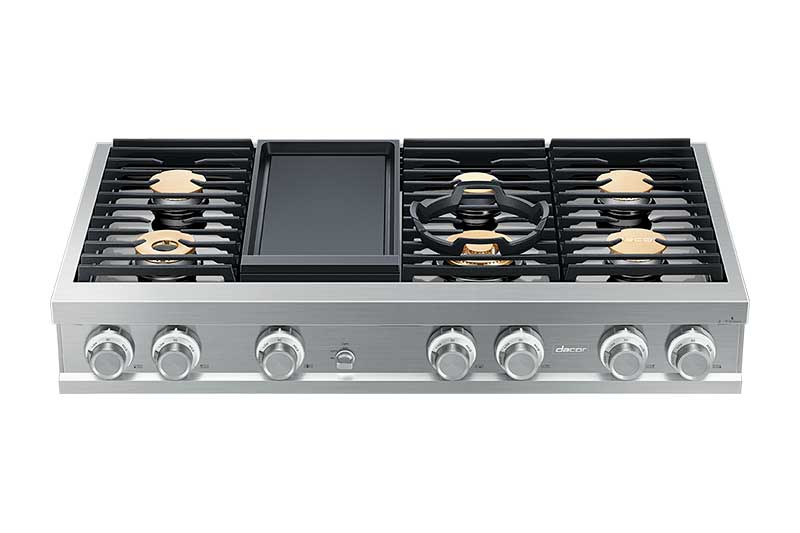

Dacor 48" range top. This Modernist range top combines beauty and function to help you create unforgettable meals.
It features an electric griddle and high-powered dual-stack sealed burners with a range of 22,000 BTU down to precision simmering and melting at low heat. Illumina knobs and ambient lighting set the stage for warmth and sophistication.
This range top with Diamond-Like-Carbon coating offers a heat-resistant, tough, yet beautifully finished, surface. With integrated Wi-Fi for remote monitoring and Bluetooth-enabled auto connectivity to the hood, you're in control of the kitchen, even while entertaining.
- 6 Sealed Burners: (3) 16,000 BTU stack dual (simmer), (1) 18,000 BTU dual (simmer), (1) 22,000 BTU dual (simmer), (1) 9,000 BTU stack dual (simmer)
- Continuous Grates: An optimum cooking surface with even heat distribution. Shifts pots and pans across the heating surface with ease.
- Auto Connected Hood: Activate and adjust the hood with Bluetooth and ConnectOn auto-responsive technology. Turns on the ventilation in conjunction with the cooktop, and ramps up the speed as necessary, with the use of a temperature sensor.
- SimmerSear Burners: Quickly boil water with 22K BTU of power or maintain a gentle simmer at 750 BTU with the all Brass, Dual Valve, Dual Ring Burner
- Permaflame Technology: Automatically reignites burners if they are accidentally extinguished.

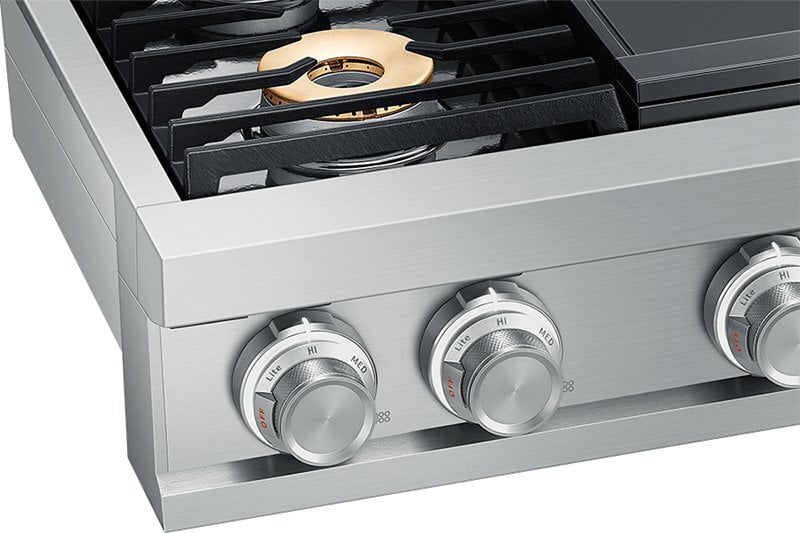

- Illumina Knobs: The glowing Illumina knobs entice participation, inspire imagination and accentuate the beauty of the product.
- Electric Griddle: Achieve Even Heat Distribution with 6 Pass, built-in 1400W Griddle. The scratch-resistant, cast-aluminum griddle is coated with a non-stick ceramic surface.

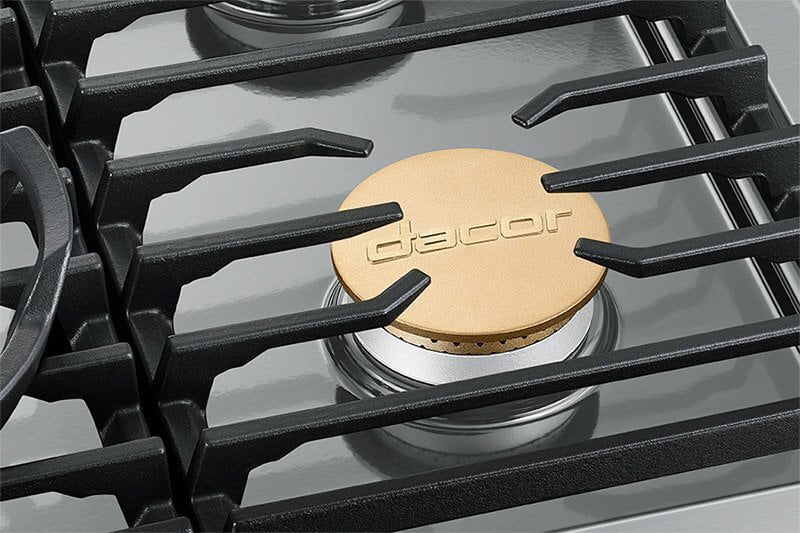

- Black and Brass Burner Caps: Comes with two finish options for a customized look.
| Complete Selection | DTT48M976LM - 48' Rangetop, Graphite, Natural Gas DTT48M976LS - 48' Rangetop, Silver Stainless Steel, Natural Gas DTT48M976PM - 48' Rangetop, Graphite, Liquid Propane DTT48M976PS - 48' Rangetop, Silver Stainless Steel, Liquid Propane DTT48M976HM - 48' Rangetop, Graphite, High Altitude Natural Gas DTT48M976HS - 48' Rangetop, Silver Stainless Steel, High Altitude Natural Gas DTT48M976AM - 48' Rangetop, Graphite, High Altitude Liquid Propane DTT48M976AS - 48' Rangetop, Silver Stainless Steel, High Altitude Liquid Propane |
| Overall Dimensions | Width: 47 7/8' Height: 7 3/4' Depth: 27 1/2' |

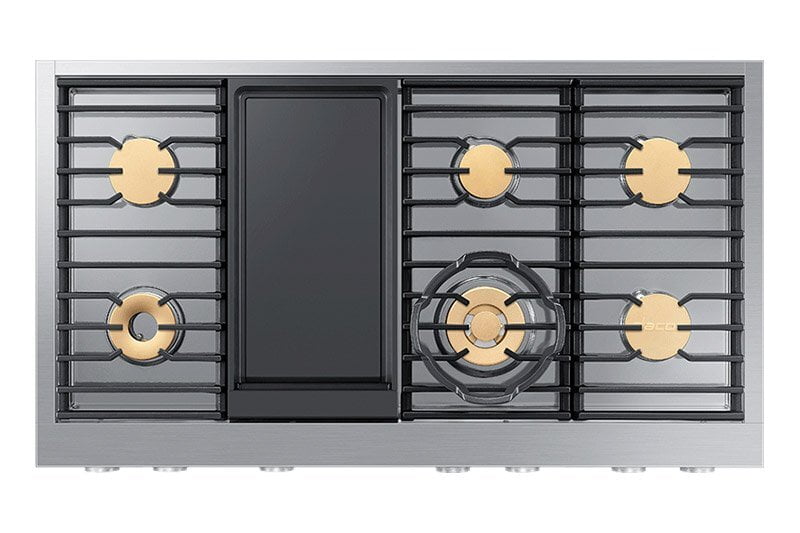

| Burner Configuration | Left Front: 18,000 BTU Left Rear: 16,000 BTU Center Front: 22,000 BTU Center Rear: 9,000 BTU Right Front: 16,000 BTU Right Rear: 16,000 BTU Griddle: 1,400W |
| Requirements | Electrical: 120V, 60Hz, 15A |
