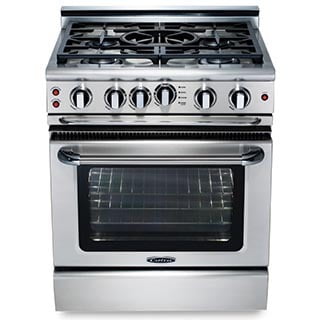

The Beautiful Design Of Precision Ranges Will Complete Your Dream Kitchen. Featuring The Categories Most Powerful Sealed Burners, An Integrated Rotisserie, And A Host Of Unique Features, All Built In The Usa With Hand Crafted Seamless Construction. Precision Self Clean Gas Ranges Assemble The Wish Lists Of Home Chefs Into A Single Product Model Number: Gscr304B Configuration: 4 Sealed Burners And 9" Bbq Grill Burner Size: 30" Burner Type: Sealed Range Fuel: Gas Oven Fuel: Gas Cleaning: Self Clean Oven Category: Self Clean Utility Type: All Gas Product Feautures (Ul)(Li)15,000 Btu Sealed Burners(/Li)(Li) Bbq Grill Burner(/Li)(Li) Bake(/Li)(Li) Broil(/Li)(Li) Convection Bake(/Li)(Li) Convection Broil(/Li)(Li) Self-Clean(/Li)(Li) Infrared Broiler Under Glass(/Li)(Li) Integrated Moto-Rotis Rotisserie System(/Li)(Li) 5 Rack Positions(/Li)(Li) Flex-Roll Oven Racks For Smooth Operation(/Li)(Li) Height Adjustable Front Levelers(/Li)(Li) Height Adjustable Rear Casters For Easy Installation(/Li)(Li) Removable Door With Heavy Duty Hinges(/Li)(Li) Front Located Gas Shut-Off Valve And Electrical Disconnect(/Li)(/Ul) Rangetop Features (Ul)(Li)Four (4) 19,000 Btu Power-Flo™ Sealed Burners Turn Down To Tru Simmer(/Li)(Li)One (1) 15,000 Btu Bbq Grill(/Li)(Li) Stay-Cool™L Die Cast, Chrome Plated Metal Knobs(/Li)(Li) Auto-Ignition/Re-Ignition On All Burners(/Li)(Li) Smooth-Top Continuous Cast Iron Grates With Easy To Clean Matte Porcelain Finish(/Li)(Li) Stainless Steel Spill Pan For Long Life(/Li)(Li) 3" Integrated Island Trim(/Li)(Li) Cabernet Red Trim Available As An Accessory(/Li)(/Ul) Primary Oven Features (Ul)(Li)Self-Cleaning Convection Oven(/Li)(Li) 4.1 Cu. Ft. Oven Cavity - 24" W X 14" H X 21" D(/Li)(Li) Bake(/Li)(Li) Convection Bake(/Li)(Li) Broil Convection Broil(/Li)(Li) Self-Clean(/Li)(Li) 30,000 Btu Oven Burner For Uniform Baking(/Li)(Li) 18,000 Btu Infrared Broil Burner Under Glass With Inconel Mesh Construction(/Li)(Li) Moto-Rotis Integrated Rotisserie System(/Li)(Li) Titanium Speck Porcelain Oven Interior(/Li)(Li) 5 Rack Positions W/ 3 Heavy Duty Racks Provided(/Li)(Li) Broil Pan Provided(/Li)(Li) 1-1/4" Diameter Professional-Style Handle(/Li)(Li) Heavy-Duty Oven Door Hinges(/Li)(Li) Extra Large Viewing Window(/Li)(Li) Bright 40W Oven Lights(/Li)(/Ul)

Electrical Rating	120 VAC, 60 Hz
Shipping Weight	420 lbs
Product Weight	380 lbs
Shipping Dimensions	34' W x 48' H x 34' D
Product Dimensions	29-7/8' W x 36' H x 28-3/8' D
Max Current	9.0 AMP
Circuit Breaker Size	10 AMP
Wiring Type	120 VAC, 3 Prong with dedicated ground
Gas Connections	1/2' NPT Male
Max. allowable input pressure	1/2 psi
Oven Dimensions	24' W x 14' H x 21'
Oven Volume	4.1 cubic feet
Oven Control Type	Dial
Cutout Dimension	30-1/8'W X 24'D (std)
