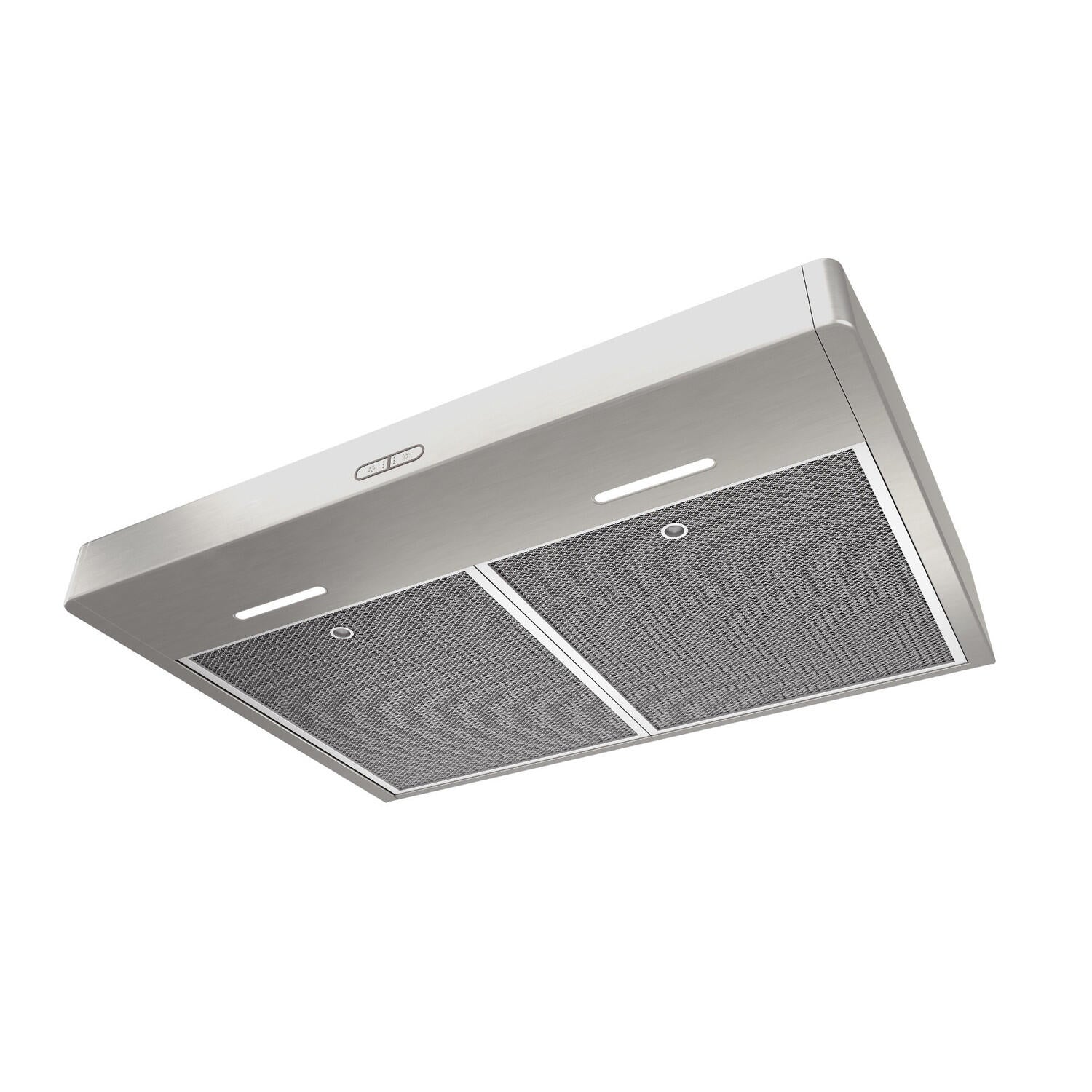

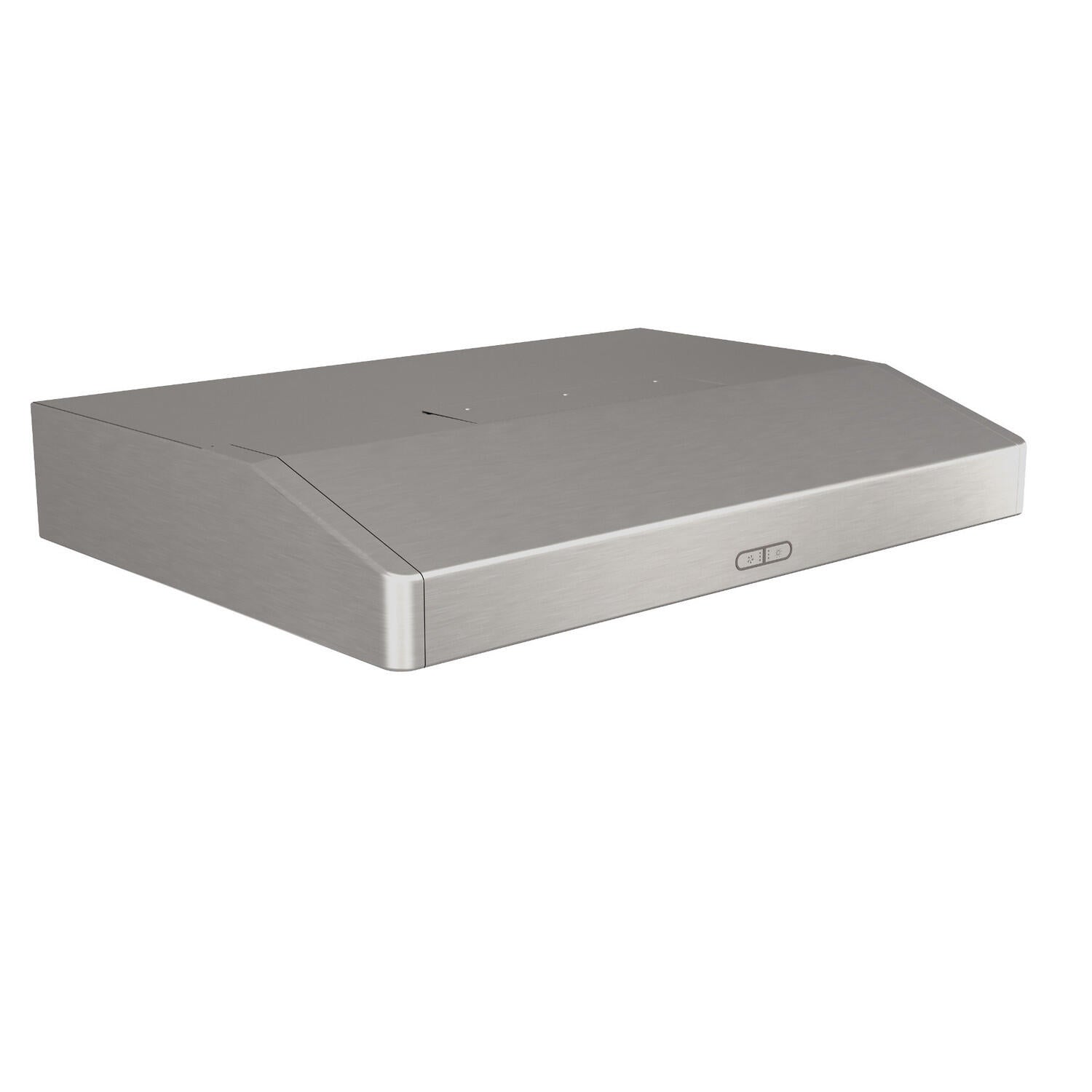

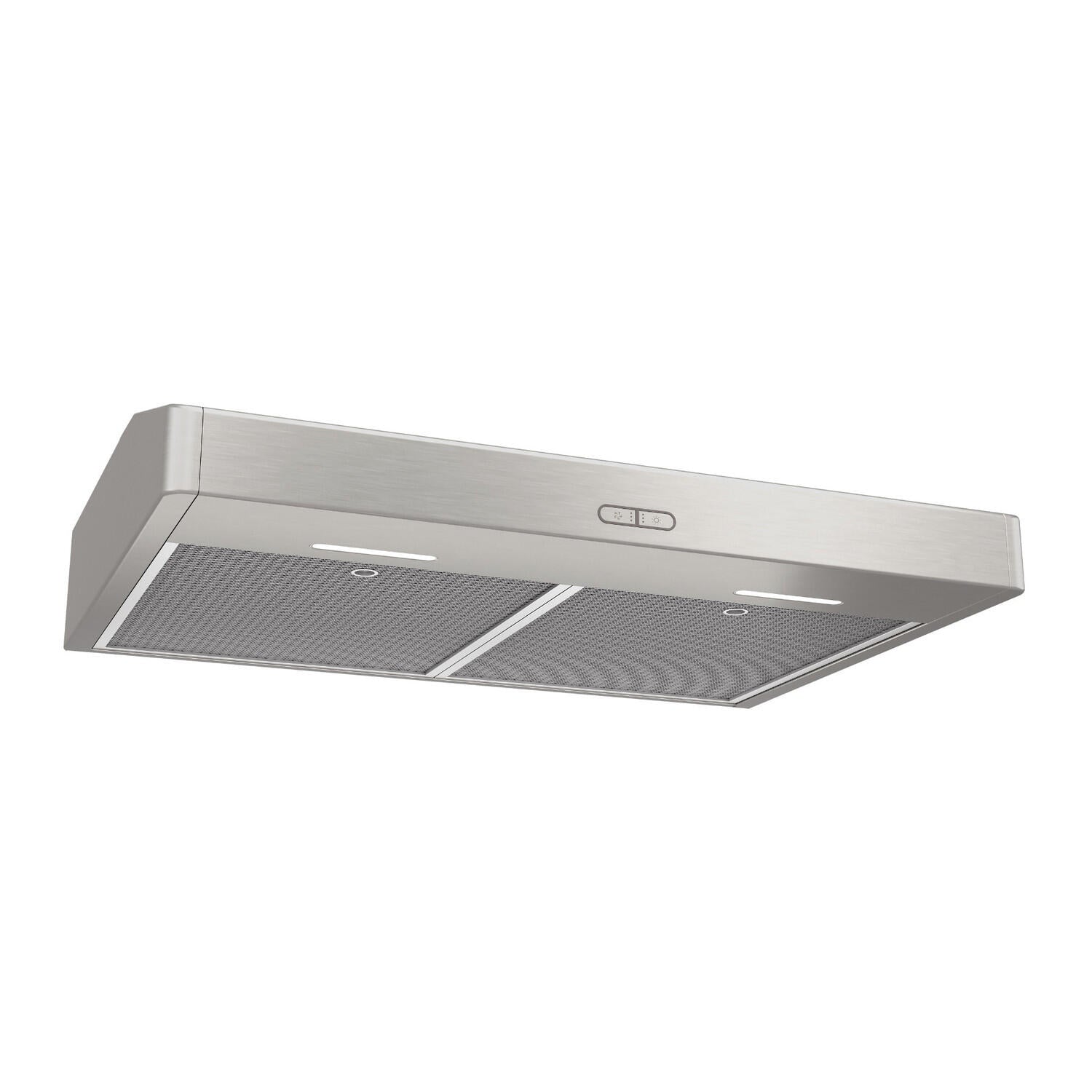

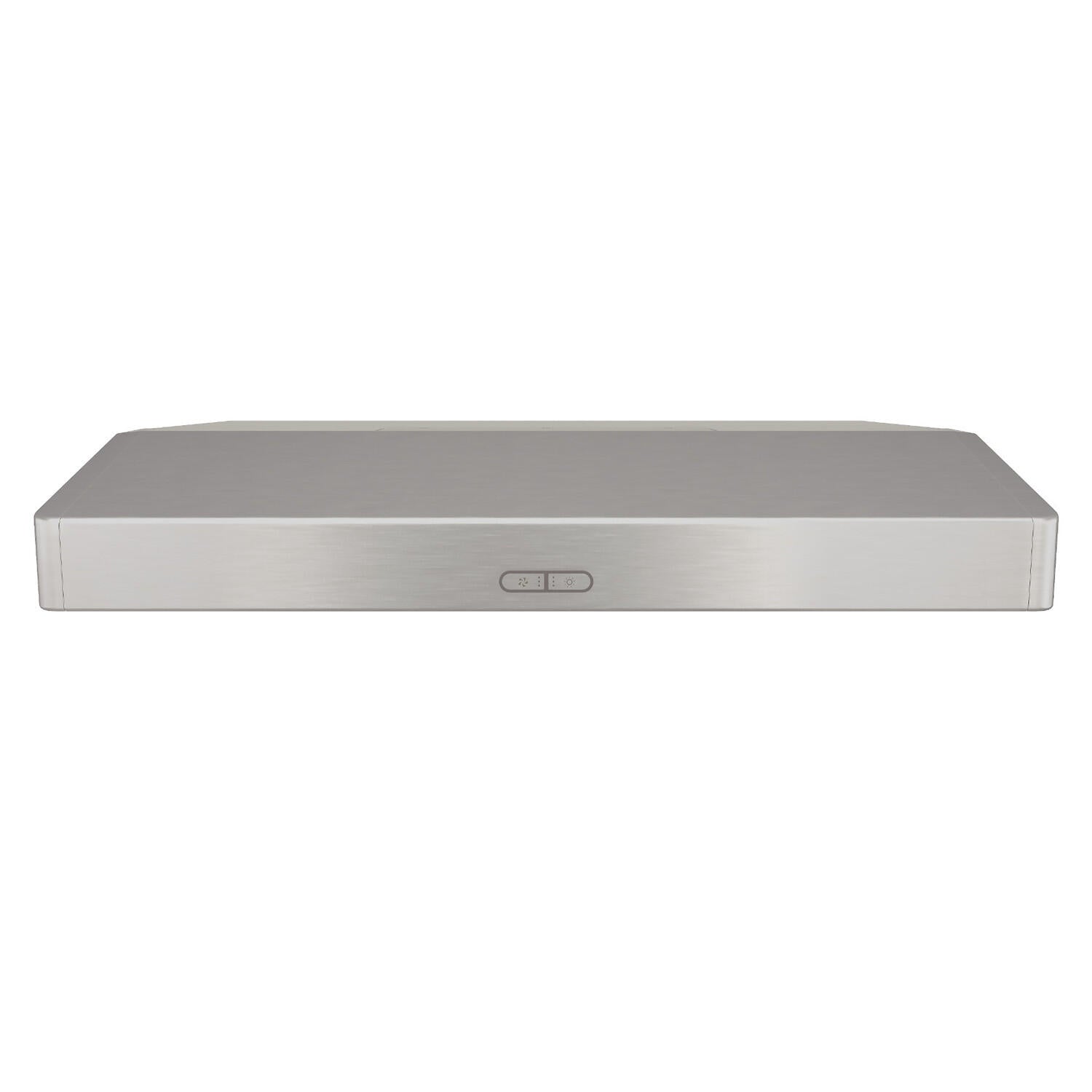

Broan TEN236SS Broan® Elite 36-Inch Convertible Under-Cabinet Range Hood, Stainless Steel
Broan® Elite 36-Inch Convertible Under-Cabinet Range Hood, Stainless Steel Tenaya Is A Slim, Tran... Read more...
SKU:TEN236SS
Colors:
Stainless Steel
White
Black
Broan® Elite 36-Inch Convertible Under-Cabinet Range Hood, Stainless Steel Tenaya Is A Slim, Transitional Design With Gentle Radius Features Which Makes It Perfect For Today's Contemporary Kitchens. This Beautiful Design Includes Features Like Led Lighting And Tap-Touch Capacitive Controls That Make It A Pleasure To Use And Easy To Maintain.
- Model replaced BNDF136SS
- The Captur™ system's advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Three-speed blower control exhausts at 300 CFM
- Smooth-flow blower wheel design and high flow filters ensure quiet, 1.5 sones operation at normal speed
- Bright, two-level LED modules - supported by a 3-year warranty - illuminate evenly and are tested in cooking environments to ensure long life without dimming. Color Temperature 3000 K
- Tap-touch, 3-speed capacitive control features a smooth, easy-to-clean surface
- Dishwasher-safe, micro-mesh filters provide efficient grease removal. The filter clean reminder ensures they will always maintain a high level of capture
- EZ1 brackets make it easy for single person installation in less than half the time of traditional methods
- ADA compliant, remote operation is possible using a standard UL approved wall switch.
- Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
- Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
| Filter Type | Micro Mesh |
| Heat Sentry™ | No |
| HVI Certified | Yes |
| Lighting Type | LED |
| Sound Level (Sones) | 1.5 |
| UL Listed | Yes |
| ADA Compliance | Yes |
| Damper Included | No |
| ENERGY STAR® certified | No |
| Light Bulb Wattage | 4.5 |
| Light Bulbs Included | Yes |
| Light Levels | 2 |
| Material | Steel |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | 3 |
| Switch Control Type | Capacitive Touch |
| Rated Voltage | 120 |
| Boost Mode | No |
| Country of Origin | Mexico |
| Color Finish | Stainless Steel |
| Rated Amps | 0.65 |
| Product Depth | 21.125 |
| Product Height | 5' |
| Product Width | 36' |
| Built-In Timer | No |
| Capture Efficiency | 98.1 |
| CFM | 300 |
| Diameter | 7' Round |
| Vent Type | Convertible Built-In |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | Integrated LED Module |
| Light Color Temp | 3000 |
| Manufacturer Warranty | 1 Year, 3 Year LED module |
| Wattage | 78 |
Description
Broan® Elite 36-Inch Convertible Under-Cabinet Range Hood, Stainless Steel Tenaya Is A Slim, Transitional Design With Gentle Radius Features Which Makes It Perfect For Today's Contemporary Kitchens. This Beautiful Design Includes Features Like Led Lighting And Tap-Touch Capacitive Controls That Make It A Pleasure To Use And Easy To Maintain.
Features
- Model replaced BNDF136SS
- The Captur™ system's advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Three-speed blower control exhausts at 300 CFM
- Smooth-flow blower wheel design and high flow filters ensure quiet, 1.5 sones operation at normal speed
- Bright, two-level LED modules - supported by a 3-year warranty - illuminate evenly and are tested in cooking environments to ensure long life without dimming. Color Temperature 3000 K
- Tap-touch, 3-speed capacitive control features a smooth, easy-to-clean surface
- Dishwasher-safe, micro-mesh filters provide efficient grease removal. The filter clean reminder ensures they will always maintain a high level of capture
- EZ1 brackets make it easy for single person installation in less than half the time of traditional methods
- ADA compliant, remote operation is possible using a standard UL approved wall switch.
- Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
- Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
Specifications
| Filter Type | Micro Mesh |
| Heat Sentry™ | No |
| HVI Certified | Yes |
| Lighting Type | LED |
| Sound Level (Sones) | 1.5 |
| UL Listed | Yes |
| ADA Compliance | Yes |
| Damper Included | No |
| ENERGY STAR® certified | No |
| Light Bulb Wattage | 4.5 |
| Light Bulbs Included | Yes |
| Light Levels | 2 |
| Material | Steel |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | 3 |
| Switch Control Type | Capacitive Touch |
| Rated Voltage | 120 |
| Boost Mode | No |
| Country of Origin | Mexico |
| Color Finish | Stainless Steel |
| Rated Amps | 0.65 |
| Product Depth | 21.125 |
| Product Height | 5' |
| Product Width | 36' |
| Built-In Timer | No |
| Capture Efficiency | 98.1 |
| CFM | 300 |
| Diameter | 7' Round |
| Vent Type | Convertible Built-In |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | Integrated LED Module |
| Light Color Temp | 3000 |
| Manufacturer Warranty | 1 Year, 3 Year LED module |
| Wattage | 78 |
