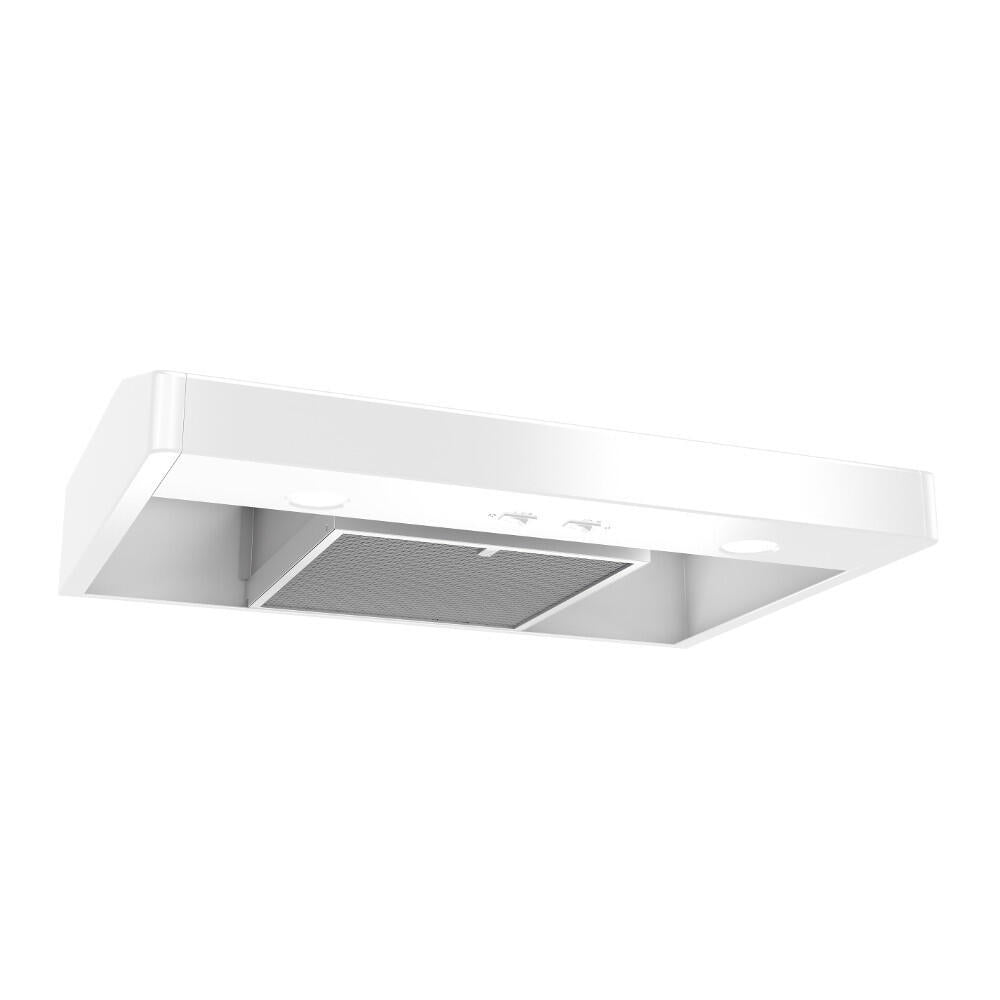

Broan TEN136WW Tenaya 1 36-Inch 250 Cfm White Under-Cabinet Range Hood With Light
Superior Capture Over the Competition
The Broan Captur exhaust ventilation system provides the fastest air flow management and filtration in its class for better performance, quieter operation and less energy use.
Bright Halogen Lighting
The warm glow of powerful, multi-level halogen lighting provides full illumination over and around cooktop areas.
Control. Just the Way You Want it.
Hidden on/off rocker switches control blower speeds and light levels.
Functional Filtration for Your Sense of Style
Dual dishwasher-safe, open-mesh filters provide efficient grease removal and can be installed without tools.
Tenaya 1 Series Slim Lines And Graceful Radiuses Combine To Make Tenaya The Perfect Companion To Today's Contemporary Kitchens. This Beautiful Design Includes Halogen Lighting To Light The Cooktop And Make Cooking A Pleasure. Features & Benefits The Captur System's Advanced Blower Design Features A Forward Positioned Centric Inlet To Remove Smoke And Odor Faster. Two-Speed Blower Control Exhausts At 250 Cfm Max High Smooth-Flow Blower Wheel Design And High Flow Filters Ensure Quiet, 1.5 Sones Operation At Normal Speed(/Li)(Li)Two-Level, Halogen Bulbs Flood The Cooktop And Surrounding Area With Generous Illumination. (50W Bulbs Sold Separately. Hidden On/Off Rocker Switches Controls Two Blower Speeds And Light Levels Large Dishwasher-Safe, Single Open Mesh Filter Provides Efficient Grease Removal Ada Compliant, Remote Operation Is Possible Using A Standard Ul Approved Wall Switch. See Additional Information Above Non-Duct Capable With Use Of Charcoal Filters, Sold Separately. Hidden Louvers On Top Of Hood Exhaust Away From Cabinetry
Color Finish | White |
CFM | 250 Max high - 110 Min normal |
Sones | 5.0 Max high - 1.5 Min normal |
Product Depth | 21-1/8' |
Product Height | 5' |
Product Width | 35-7/8' |
Light Number Of Levels | 2 |
Light Type | Halogen |
Nightlight Or Nightlight Setting | No |
Light Bulb Wattage | 50W |
Light Bulb Recommended Type | GU10 |
Light Bulbs Included | Yes |
Light Bulb Quantity | 2 |
Filter Quantity | 1 |
Boost Mode | No |
Heat Sentry® - Temperature Sensor | No |
Filter Type | Open Mesh |
Motor Number Of Speeds | 2 |
Built In Timer | No |
Remote Operation Capable | No |
ADA Compliance | Yes |
Damper Included | Yes |
Non-ducted Filter Included | No |
Amperage | 1.4 |
Rated Voltage | 120 |
Wattage | 168 |
Switch Control Type | Rocker |
Non-Ducted Recirculation Capable | Convertible built-in |
Warranty | 1 Year |
UL Listed | Yes |
Duct Connector Size | 3-1/4' x 10' or 7' Round |
Duct Direction | Horizontal/Vertical |
Duct Shape | Rectangular or Round |
Duct Diameter | 7' |
Duct Height Rectangular | 3-1/4' |
Duct Width Rectangular | 10' |
HVI Certified | Yes |
ENERGY STAR® certified product | No |
