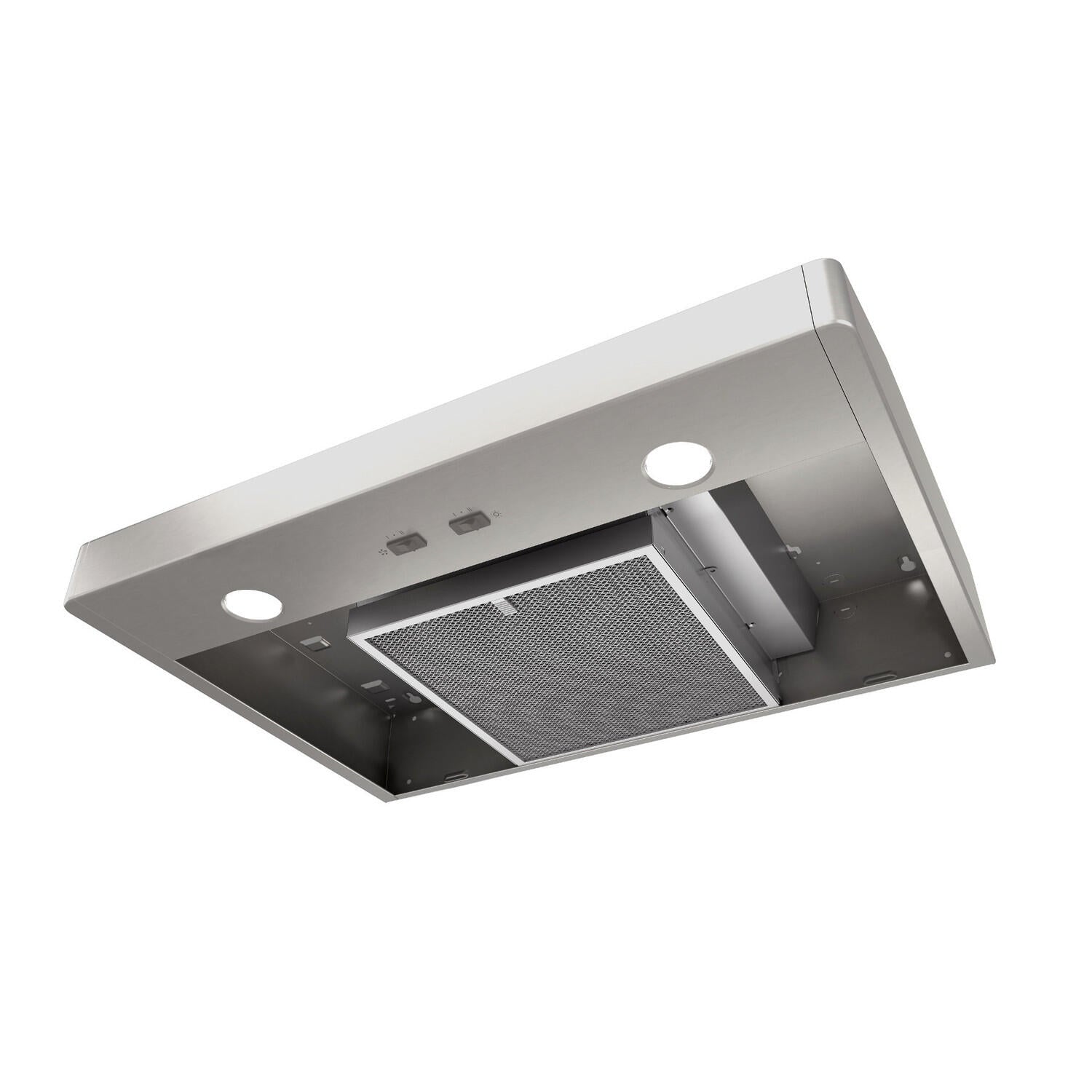

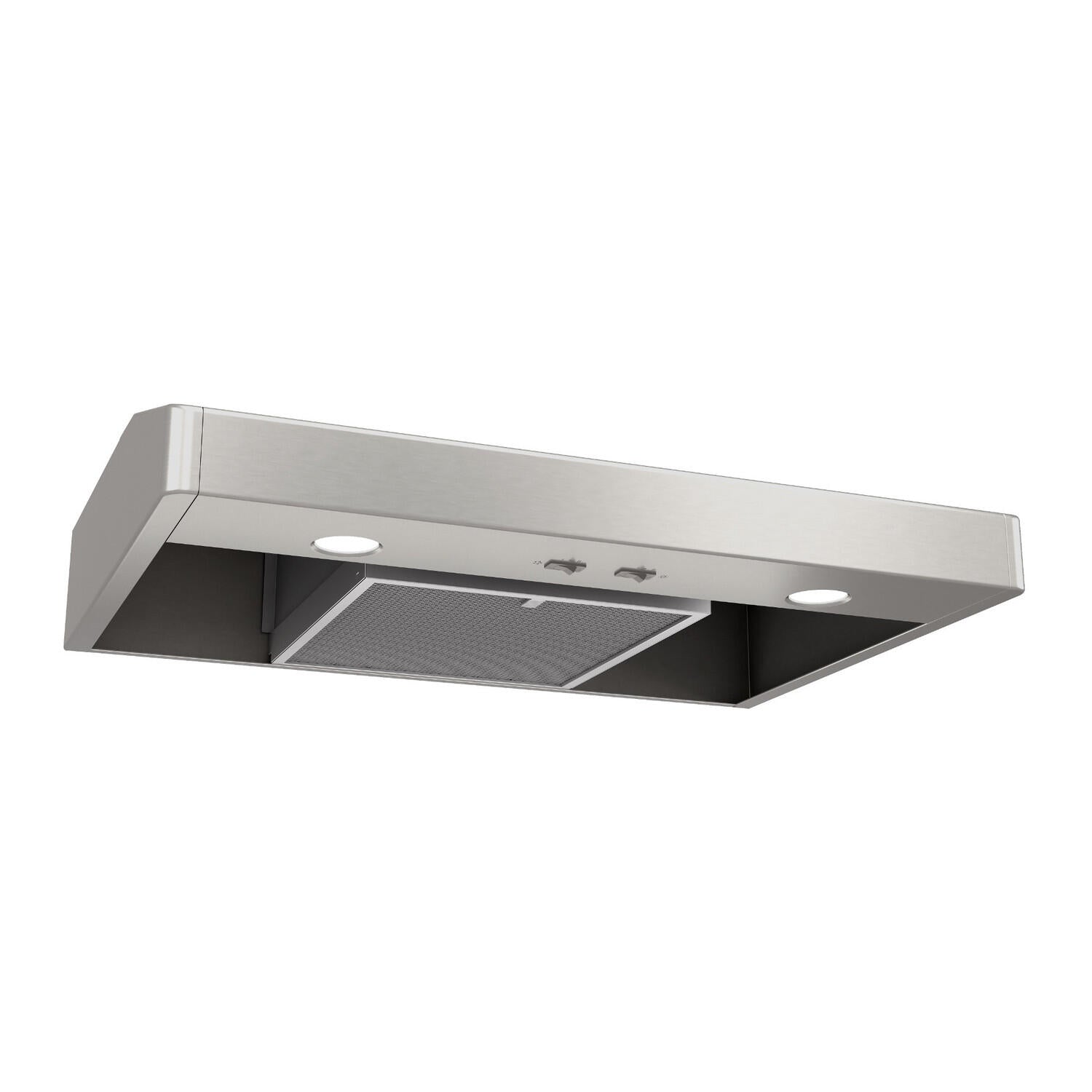

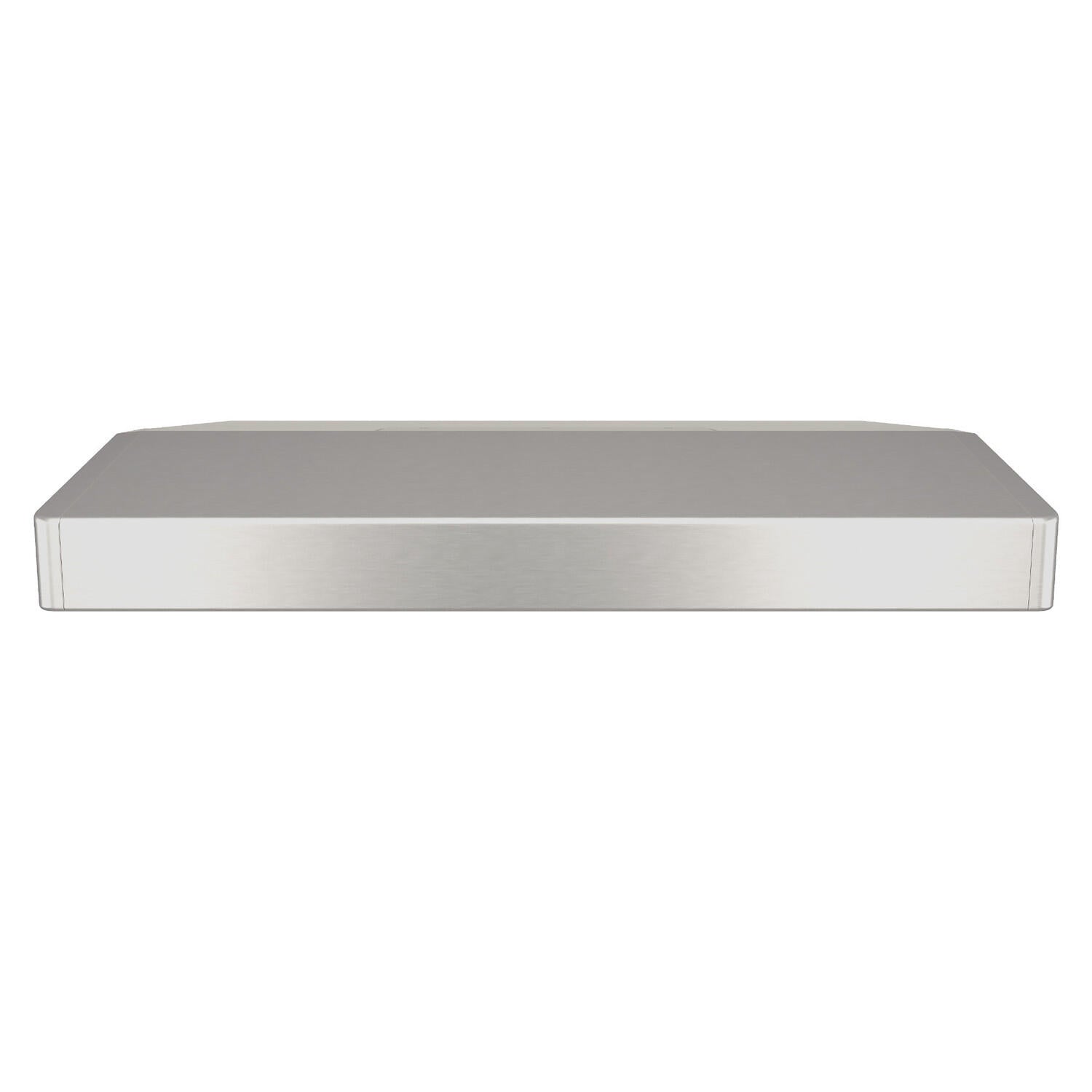

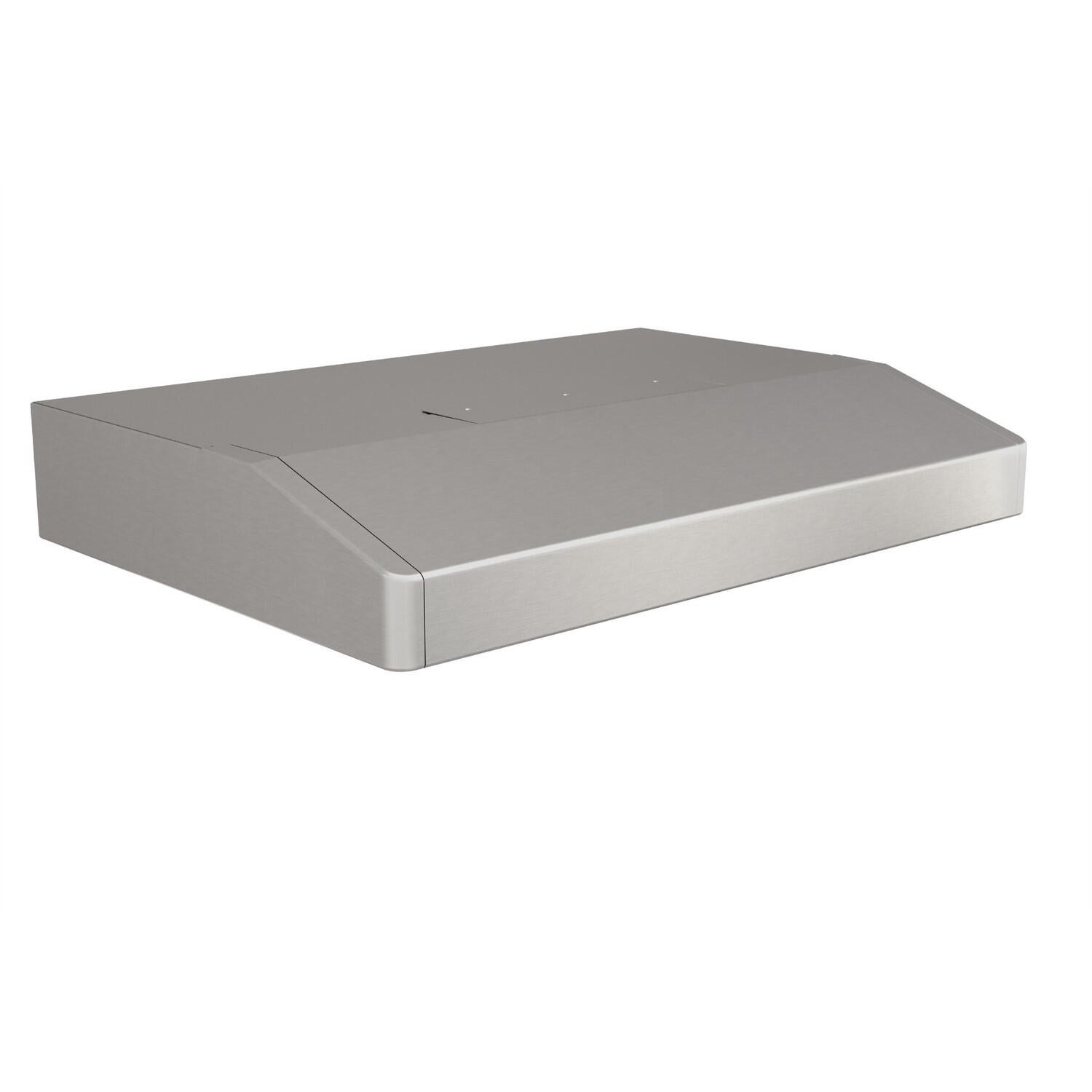

Broan TEN136SS Broan® Elite 36-Inch Convertible Under-Cabinet Range Hood, Stainless Steel
Broan® Elite 36-Inch Convertible Under-Cabinet Range Hood, Stainless Steel Slim Lines And Graceful Radiuses Combine To Make Tenaya The Perfect Companion To Today'S Contemporary Kitchens. This Beautiful Design Includes Halogen Lighting To Light The Cooktop And Make Cooking A Pleasure.
- Model replaced BNSC136SS
- The Captur™ system's advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Two-speed blower control exhausts at 250 CFM
- Smooth-flow blower wheel design and high flow filters ensure quiet, 1.5 sones operation at normal speed
- Two-level, halogen bulbs flood the cooktop and surrounding area with generous illumination. (50W bulbs sold separately.)
- Hidden on/off rocker switches controls two blower speeds and light levels
- Large dishwasher-safe, single open mesh filter provides efficient grease removal
- ADA compliant, remote operation is possible using a standard UL approved wall switch.
- Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
- Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
Filter Type | Open Mesh |
Heat Sentry™ | No |
HVI Certified | Yes |
Lighting Type | Halogen |
Sound Level (Sones) | 1.5 |
UL Listed | Yes |
ADA Compliance | Yes |
Damper Included | No |
ENERGY STAR® certified | No |
Light Bulbs Included | No |
Light Levels | 2 |
Material | Stainless Steel |
Nightlight Or Nighlight Setting | No |
Ductless Recirculation Capable | Yes |
Ductless Filter Or Kit Included | No |
Remote Operation Capable | No |
Speed Levels | 2 |
Switch Control Type | Rocker |
Rated Voltage | 120 |
Boost Mode | No |
Country of Origin | Mexico |
Color Finish | Stainless Steel |
Rated Amps | 1.4 |
Product Depth | 21.125 |
Product Height | 5' |
Product Width | 36' |
Built-In Timer | No |
Capture Efficiency | 97.4 |
CFM | 250 |
Diameter | 7' Round |
Vent Type | Convertible Built-In |
Duct Direction | Horizontal/Vertical |
Bulb (Recommended Type) | MR16 or PAR16 |
Manufacturer Warranty | 1 Year |
Wattage | 168 |
