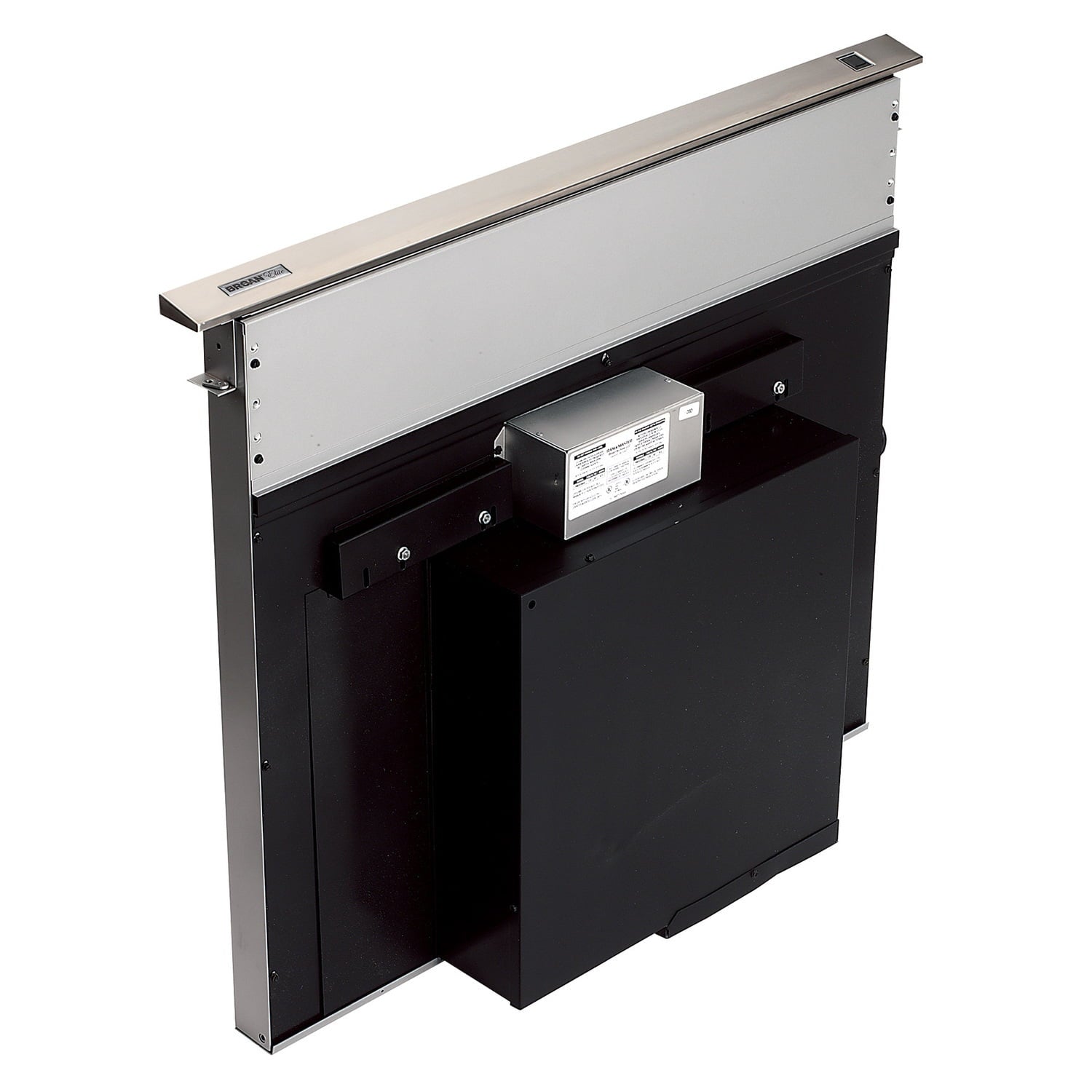

Broan RMDD3604 Broan® 36-Inch Telescopic Downdraft Range Hood System, Stainless Steel

Broan RMDD3604 Broan® 36-Inch Telescopic Downdraft Range Hood System, Stainless Steel

Designed Specifically To Be Compatible With Most Conventional And Commercial Style Cooktops, The... Read more...

When Will I Get My Order?

x

Shipping calculated at checkout.
View full details

When Will I Get My Order?

x

Broan RMDD3604 Broan® 36-Inch Telescopic Downdraft Range Hood System, Stainless Steel
Broan RMDD3604 Broan® 36-Inch Telescopic Downdraft Range Hood System, Stainless Steel
Designed Specifically To Be Compatible With Most Conventional And Commercial Style Cooktops, The Broan Elite Rmdd3604 Downdraft Combines A Sensational Appearance With High Performance Features. Stainless Steel Construction On All Exposed Surfaces Provides A Durable Finish And An Unforgettable Look. The Thin Profile Saves Precious Space Under The Cabinet, While The Chimney Rises Over 9-1/2 In. When Activated, Ideal For Large Pots And Pans.

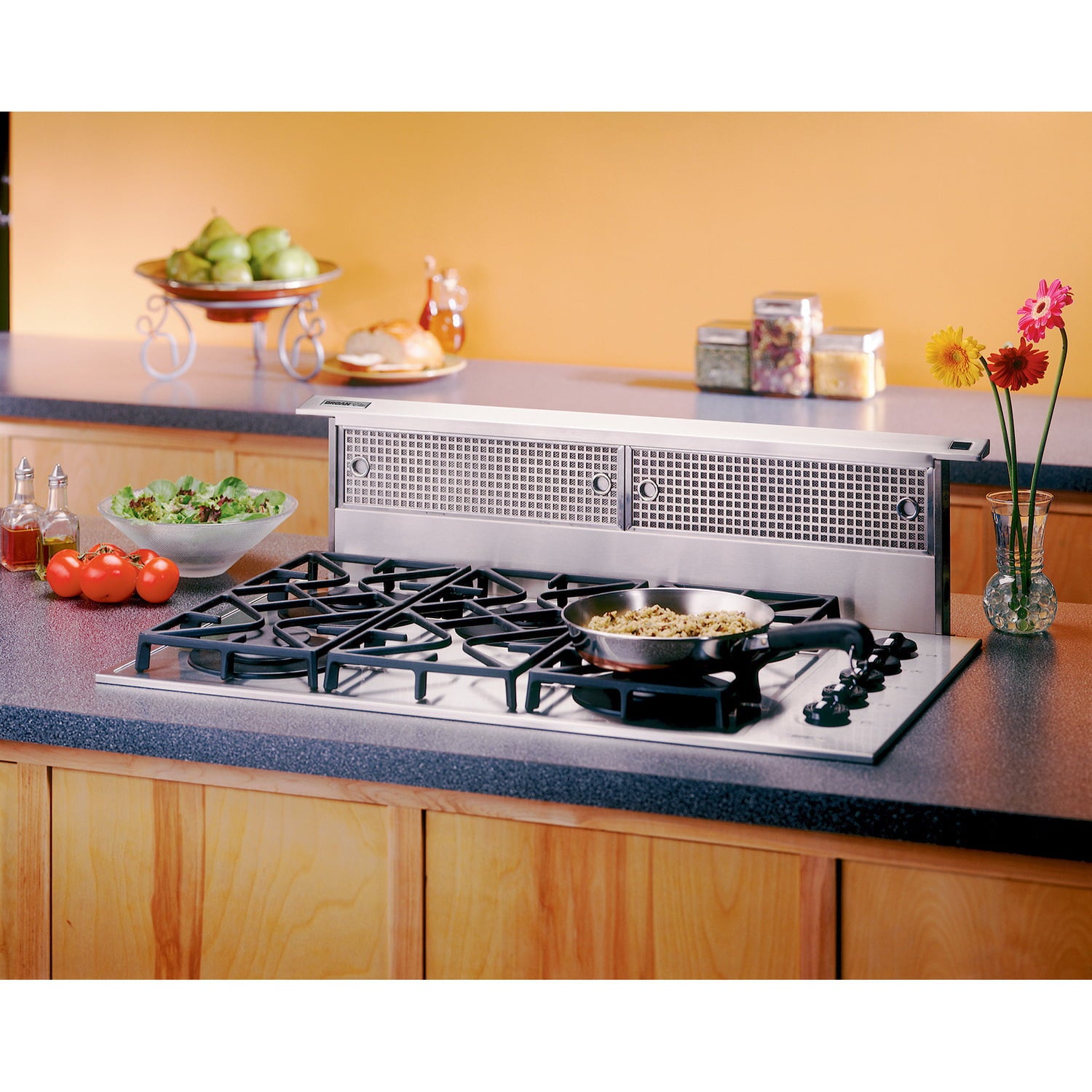

  • Retractable downdraft hood rises from behind the cooktop and retracts when not in use, offering a seamless design for your kitchen
  • Easy-to-use rotary control lets you adjust the fan speed
  • Variable fan speeds let you adjust the speed to fit your needs
  • 500 CFM blower to quickly pull smoke and cooking odors out of the air
  • Unique ducting capability allows the internal blower connection to be ducted to the left, right or downward (from left to right)
  • Grease filter is removable and dishwasher safe for easy cleaning and maintenance
  • Heat Sentry(R) adjusts speed of blower to high automatically in case of excess heat
  • Blower will connect directly to 3 in. x 10 in. rectangular duct
  • Compact design is installed directly behind the cooktop for an unobtrusive appearance
  • 1 year limited warranty

Filter Type Stainless Steel
Heat Sentry Yes
HVI Certified Yes
UL Listed Yes
ADA Compliance No
Damper Included No
ENERGY STAR® certified No
Light Bulbs Included No
Nightlight Or Nighlight Setting No
Ductless Recirculation Capable No
Ductless Filter Or Kit Included No
Remote Operation Capable No
Speed Levels Variable
Switch Control Type Rotary
Rated Voltage 120
Boost Mode No
Color Finish Stainless Steel
Rated Amps 4

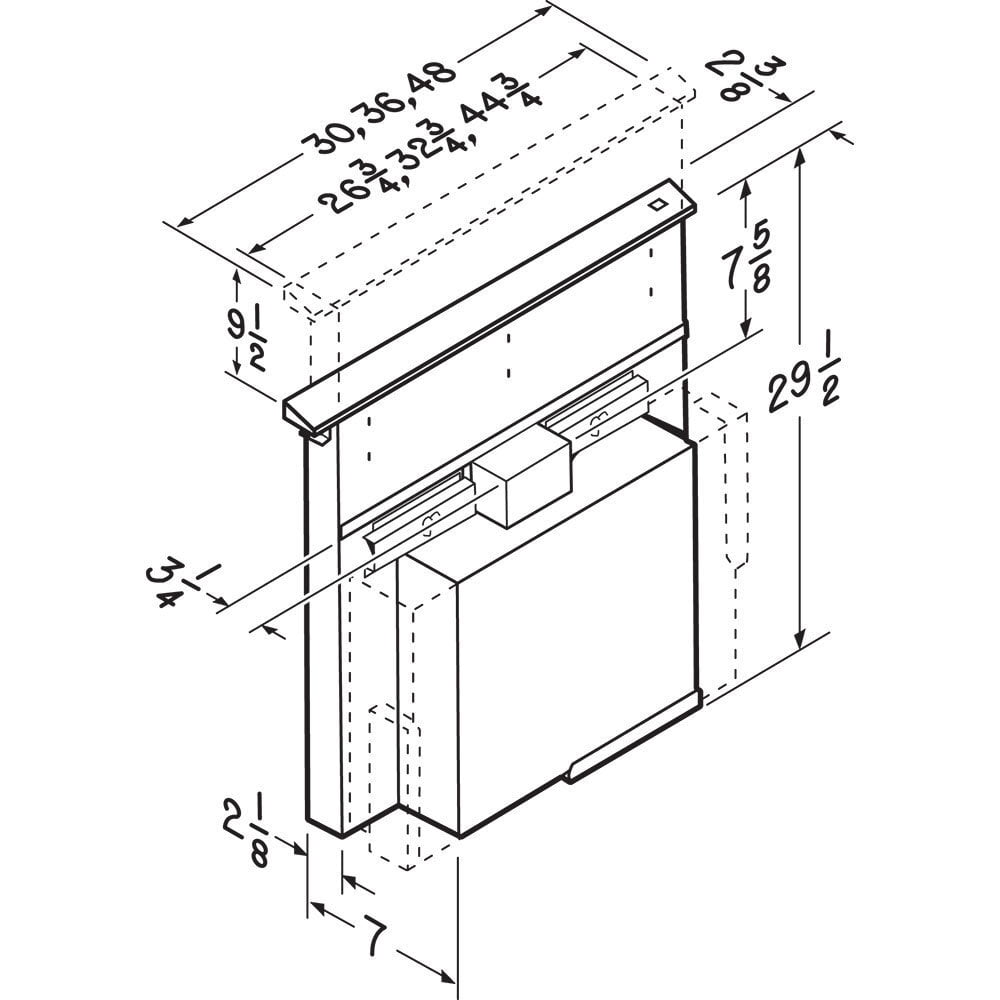

Product Depth 2.375
Product Height 29.5'
Product Width 36'
Built-In Timer No
CFM 500
Diameter 6' Round
Vent Type Ducted Only
Duct Direction Horizontal/Vertical
Manufacturer Warranty 1 Year
Wattage 480
