Broan Elite® 21-Inch Custom Range Hood Power Pack Insert, W/ Smartsense® Auto Operation & Voice Control, Stainless Steel From The Leader In Residential Indoor Air Quality This Broan Elite® Custom Range Hood Insert Features Smartsense®. Smartsense® Enables Automated Ventilation Using Infrared Sensing Which Will Automatically Sense When It Needs To Turn On/Off Or Adjust The Speed Based On The Heat Of The Range. While The Voice Control Capabilities Also Make It Easier Than Ever To Improve Air Quality In The Kitchen. Through The Wifi Connection With Alexa Or Google Assistant You Can Control The Range Hood With Voice Commands - "Turn My Range Hood Up To Fan Speed 3". The Kitchen Is The Most Polluted Room In The House Regardless Of Type Of Cooking Appliance; Everything From Smoke, Odors And Chemicals Are In The Air. The Range Hood Is Often Forgotten As The Primary And Most Effective Way To Get The Pollutants Out Of The Home And Improve The Air We Breathe. With Smartsense® You Don T Have To Think About Turning The Ventilation On, You Can Just Trust That Your Range Hood Will Do It For You. This Range Hood Is Hvi Certified - Guaranteed To Provide Powerful Ventilation With 650 Max Blower Cfm To Remove The Pollutants And Improve The Air You Breathe. While Ventilating The Kitchen Air This Range Hood Is Still Extremely Quiet At A Sound Level Of 0.5 Sones On Normal Speed, Which Is As Loud As Whispers. This Built-In Range Hood Insert Also Offers A Custom Appearance While Protecting Cabinetry With Stainless Steel Liners. Bright 2-Level, Heat Resistant Led Lighting Making Even The Worst Cook S Recipe Look Great. The 4-Speed Back-Lit Soft Touch Control Has An Easy To Clean Surface. The Ez1 Installation System Allows For 1-Person Installation, Making Installation Fast For Both The Professional And Diy Installers. At Broan-Nutone We Believe That Better Quality Of Air Means Better Quality Of Life.

• SmartSense® Auto Operation: adjusts the fan speed based on the heat coming from your range along with auto shut-off
• Voice Control via WiFi: The voice control feature allows for handsfree operation to effectively remove odor and pollutants while cooking by simply using Alexa or Google Assistant
• Powerful Ventilation: Quickly remove smoke, odors, and cooking pollutants with the 650 Max Blower CFM, which is powerful enough for use even with a gas range
• EZ1 Installation System: Easy single person installation in half the time for both professional and DiY installers
• Code Ready Technology (CRT): Makes the installer's job easier by automatically adjusting the CFM/fan speed to meet make-up air codes
• 4-Speed back-lit soft touch control features a smooth, easy-to-clean surface
• Bright 2-level, heat resistant LED modules enhance your cooking experience
• Dishwasher-safe hybrid baffle filter offers superior grease capture
• Works with optional stainless LB30SS and LB36SS liners
• Optional non-duct recirculation kit and filters available for indoor exhaust recirculation to suit your needs
• Works with optional universal make-up air dampers
• ADA compliant, remote operation is possible using a standard UL approved wall switch. Requires ADA adapter kit, HAWRK5 (sold separately)

Filter Type	Hybrid Baffle
Heat Sentry™	Yes
HVI Certified	Yes
Lighting Type	LED
Sound Level (Sones)	0.5
UL Listed	Yes
ADA Compliance	Yes
Damper Included	No
ENERGY STAR® certified	No
Light Bulbs Included	Yes
Light Levels	2
Material	Steel
Nightlight Or Nighlight Setting	No
Ductless Recirculation Capable	Yes
Ductless Filter Or Kit Included	No
Remote Operation Capable	No
Speed Levels	4
Switch Control Type	Tap Touch
Rated Voltage	120
Boost Mode	No
Color Finish	Stainless
Minimum Height Above Cook Top	24
Rated Amps	4

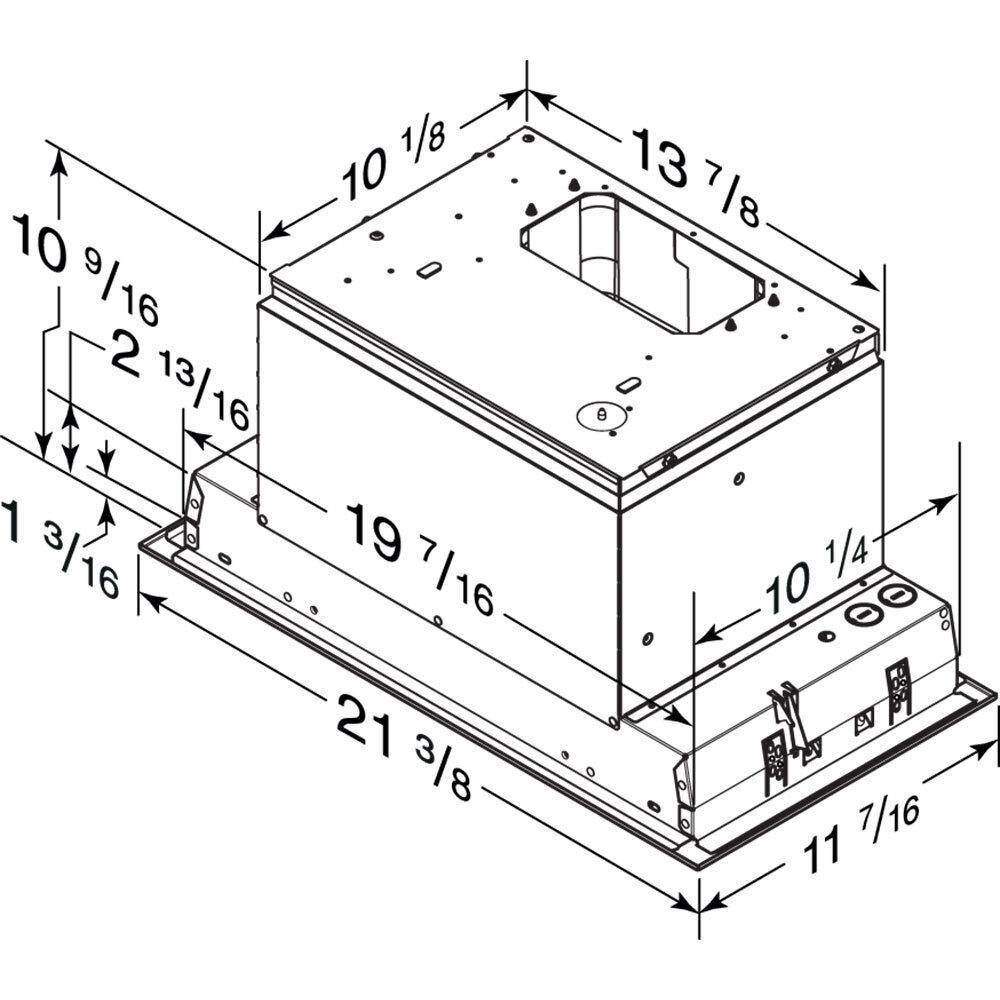

Product Depth	11.4375
Product Height	10.5625
Product Width	21.375
Built-In Timer	No
CFM	650
Diameter	3 1/4 in x 10 in (H-V) or 6 in round (V) or 8 in round (V)
Duct Direction	Horizontal/Vertical
Bulb (Recommended Type)	Integrated LED Module
Light Color Temp	3000
Manufacturer Warranty	1 year
