    High-Performance Ventilation Solutions. These Integrated Range Hood Insert Units Provide The Ven... Read more...

    Colors:

    Availability : DISCONTINUED

    - +
    Extended protection

    3 year plan

    $120.99

    5 year plan

    $228.99

    Extended Protection

    Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.

    This Protection Plan includes:

    - Full parts and labor coverage during the whole period of the extension plan.
    - Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
    - Food loss protection (click here for details)
    - 24/7 toll-free number for support (1-877-879-6395)

    When Will I Get My Order?
    High-Performance Ventilation Solutions. These Integrated Range Hood Insert Units Provide The Ventilation And Lighting You Need For Your Custom Application. Broan "T" And "B" Liners Provide An Elegant Way To Finish A Traditional Wood Hood And Protect Cabinetry. Smooth Surfaces Clean Easily And Quick-Release Filters Can Go In The Dishwasher.
    • Durable 430 Stainless Steel with brushed #4 finish is visible when installed (non-exposed housing is made of electro-galvanized steel)
    • HVI rated 500 CFM, operates at 9.0 sones
    • Three-speed pushbutton control provides the right ventilation choice
    • Brilliant halogen single level lighting from two lamps allow great cooktop visibility (JC 12V 20W G4 base included)
    • Dishwasher-safe grease filters, with quick-release latches, are made of aluminum mesh to capture airborne particulates and are easily removed for clean-up
    • 6" round duct connector for backdraft damper
    • Optional non-duct kit (model 359NDK) includes charcoal filters, reducer, duct boot and register grille for installations that require recirculation sold separately
    • Optional Universal Make-up Air Dampers help to balance air pressure in the home (MD6TU, MD8TU, MD10TU)
    • Fresh air inlets are required when using make-up dampers (641FA, 643FA, 610FA)
    Filter Type Aluminum
    Heat Sentry No
    HVI Certified Yes
    Lighting Type Halogen
    UL Listed Yes
    ADA Compliance No
    Damper Included Yes
    ENERGY STAR® certified No
    Light Bulb Wattage 20
    Light Bulbs Included Yes
    Light Levels 1
    Nightlight Or Nighlight Setting No
    Ductless Recirculation Capable Yes
    Ductless Filter Or Kit Included No
    Remote Operation Capable No
    Speed Levels 3
    Switch Control Type Push Button
    Rated Voltage 120
    Boost Mode No
    Color Finish Stainless Steel
    Rated Amps 2.8

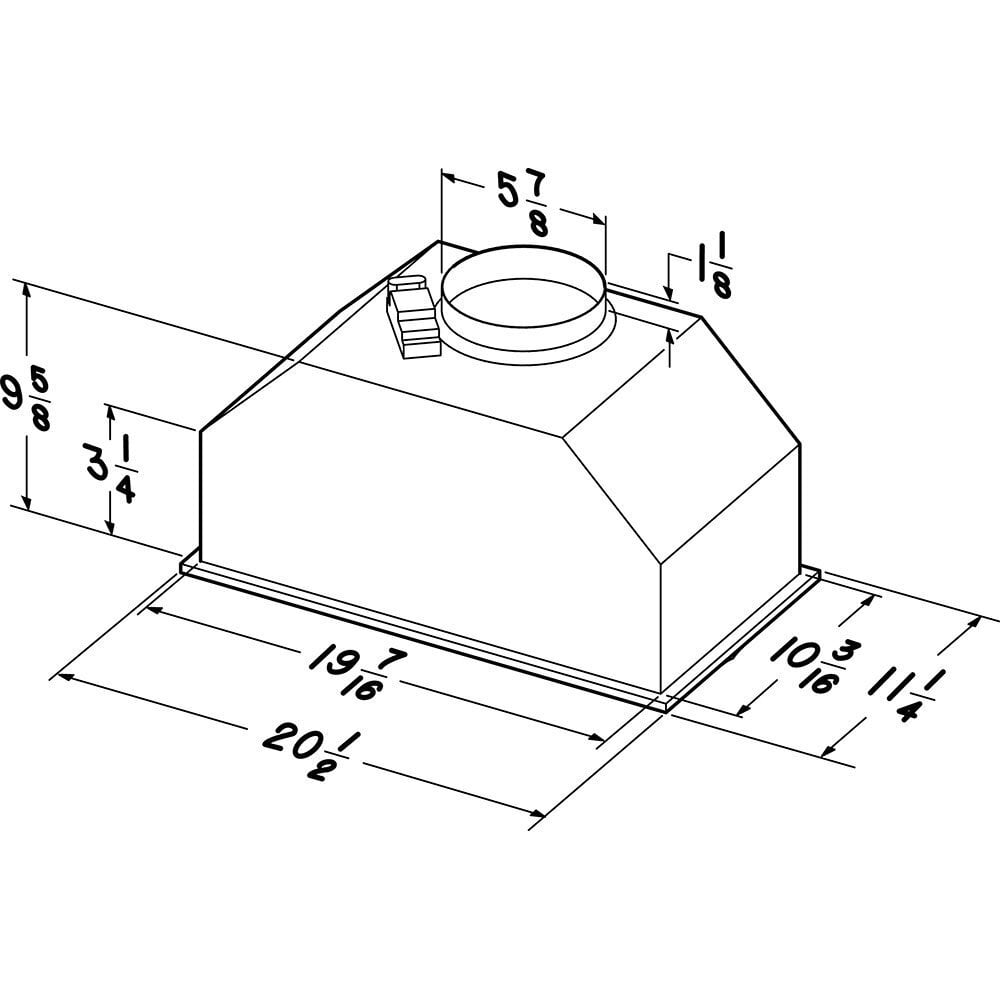

    Product Depth 11.25
    Product Height 9.625
    Product Width 20-1/2'
    Built-In Timer No
    CFM 500
    Diameter 6' Round
    Vent Type Ducted & Ductless
    Duct Direction Vertical
    Bulb (Recommended Type) JC G4
    Manufacturer Warranty 1 Year
    Wattage 336

    Broan-NuTone Range Hood & Ventilation Fans Tip - Check Terminations of Ventilation Ducts

    Broan Universal Make-Up Air Damper

    Can I install a range hood without venting it? - Danny Lipford

    Cleaning a Range Hood Filter

    Does an Over the Range microwave provide adequate Capture? - Danny Lipford

    Give Your Kitchen A 72 Hour Facelift

    How do I determine the size of the range hood I need? - Danny Lipford

    How To Ventilate The Whole House

    Importance of a Range Hood for Indoor Air Quality

    Island Range Hoods for Kitchen Upgrades - Danny Lipford

    Is there any regular maintenance needed on my range hood? - Danny Lipford

    Kitchen Renovation Includes Adding Range Hood with Danny Lipford

    Proper Use of a Range Hood

    Proper Ventilation Equals a Healthy Home

    What are CFMs? - Danny Lipford

    Description

    High-Performance Ventilation Solutions. These Integrated Range Hood Insert Units Provide The Ventilation And Lighting You Need For Your Custom Application. Broan "T" And "B" Liners Provide An Elegant Way To Finish A Traditional Wood Hood And Protect Cabinetry. Smooth Surfaces Clean Easily And Quick-Release Filters Can Go In The Dishwasher.

    Features

    • Durable 430 Stainless Steel with brushed #4 finish is visible when installed (non-exposed housing is made of electro-galvanized steel)
    • HVI rated 500 CFM, operates at 9.0 sones

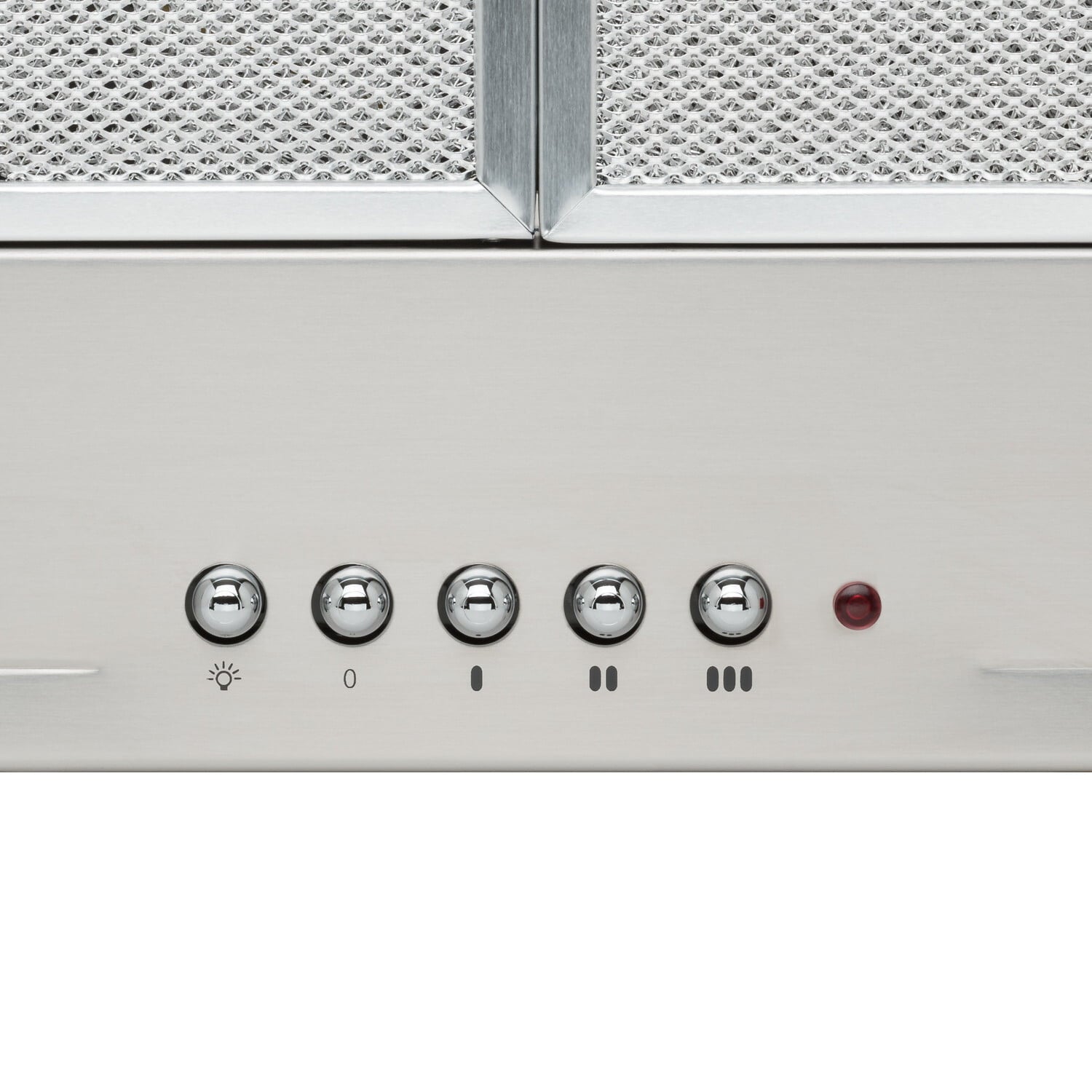

    • Three-speed pushbutton control provides the right ventilation choice
    • Brilliant halogen single level lighting from two lamps allow great cooktop visibility (JC 12V 20W G4 base included)
    • Dishwasher-safe grease filters, with quick-release latches, are made of aluminum mesh to capture airborne particulates and are easily removed for clean-up
    • 6" round duct connector for backdraft damper
    • Optional non-duct kit (model 359NDK) includes charcoal filters, reducer, duct boot and register grille for installations that require recirculation sold separately
    • Optional Universal Make-up Air Dampers help to balance air pressure in the home (MD6TU, MD8TU, MD10TU)
    • Fresh air inlets are required when using make-up dampers (641FA, 643FA, 610FA)

    Specifications

    Filter Type Aluminum
    Heat Sentry No
    HVI Certified Yes
    Lighting Type Halogen
    UL Listed Yes
    ADA Compliance No
    Damper Included Yes
    ENERGY STAR® certified No
    Light Bulb Wattage 20
    Light Bulbs Included Yes
    Light Levels 1
    Nightlight Or Nighlight Setting No
    Ductless Recirculation Capable Yes
    Ductless Filter Or Kit Included No
    Remote Operation Capable No
    Speed Levels 3
    Switch Control Type Push Button
    Rated Voltage 120
    Boost Mode No
    Color Finish Stainless Steel
    Rated Amps 2.8
    Product Depth 11.25
    Product Height 9.625
    Product Width 20-1/2'
    Built-In Timer No
    CFM 500
    Diameter 6' Round
    Vent Type Ducted & Ductless
    Duct Direction Vertical
    Bulb (Recommended Type) JC G4
    Manufacturer Warranty 1 Year
    Wattage 336
