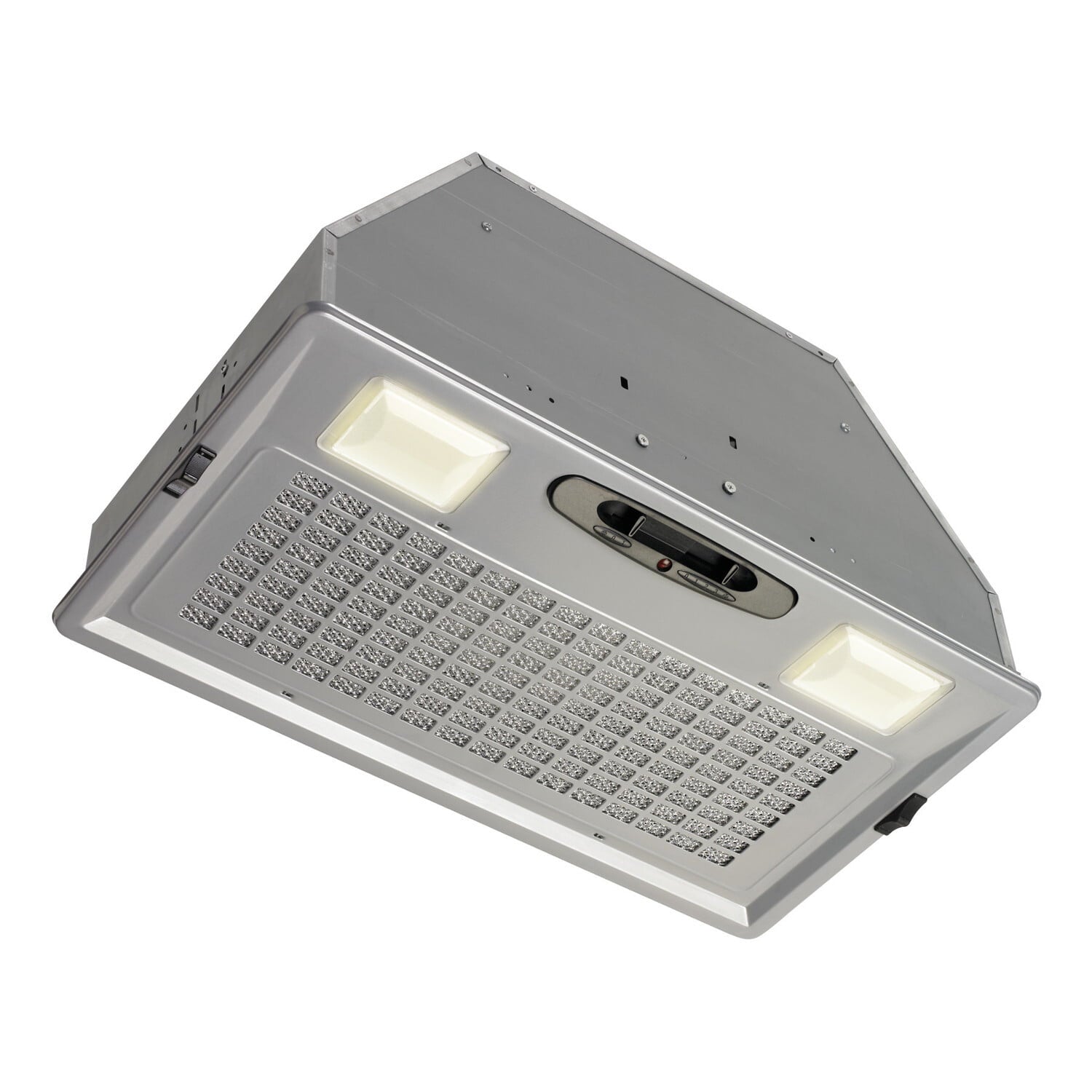

Broan PM390 Broan® 20-1/2-Inch Custom Range Hood Power Pack, Silver Finish, 390 Cfm
High-Performance Ventilation Solutions. These Integrated Range Hood Insert Units Provide The Ven... Read more...
SKU:PM390
UPC:026715172986
High-Performance Ventilation Solutions. These Integrated Range Hood Insert Units Provide The Ventilation And Lighting You Need For Your Custom Application. Broan "T" And "B" Liners Provide An Elegant Way To Finish A Traditional Wood Hood And Protect Cabinetry. Smooth Surfaces Clean Easily And Quick-Release Filters Can Go In The Dishwasher.
- Durable, powder coated silver finish and a fully enclosed bottom ensure this hood is easy to clean and will not discolor
- The enclosed lighting area is home to dual incandescent 40-watt candelabra bulbs (sold separately)
- One-piece, washable aluminum mesh filter means you can maintain optimum grease capture and keep the kitchen fresh
- Optional non-ducted filter kit model 357NDK for indoor exhaust recirculation (includes duct accessories & charcoal filter), sold separately. Replacement charcoal filter is B08999040.

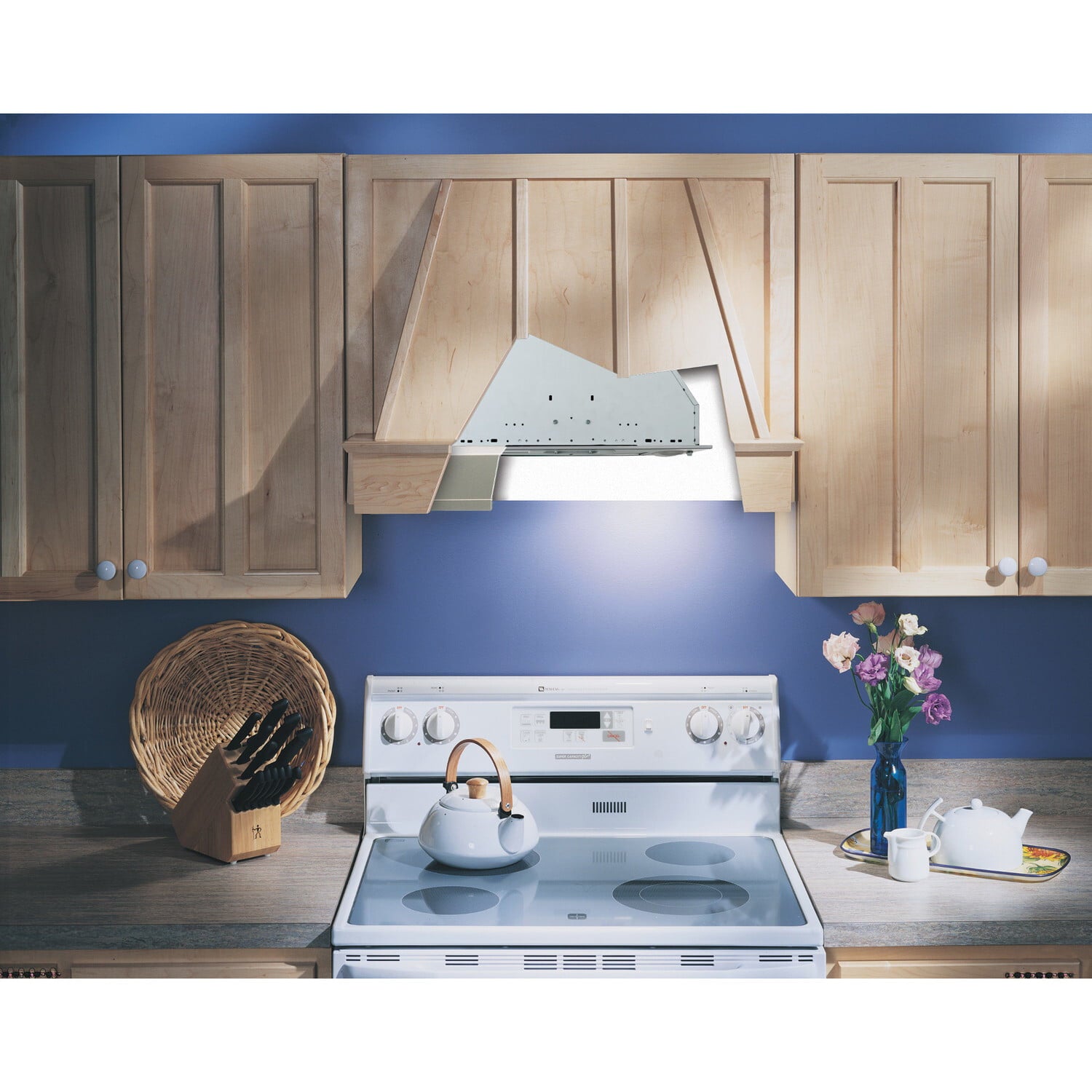

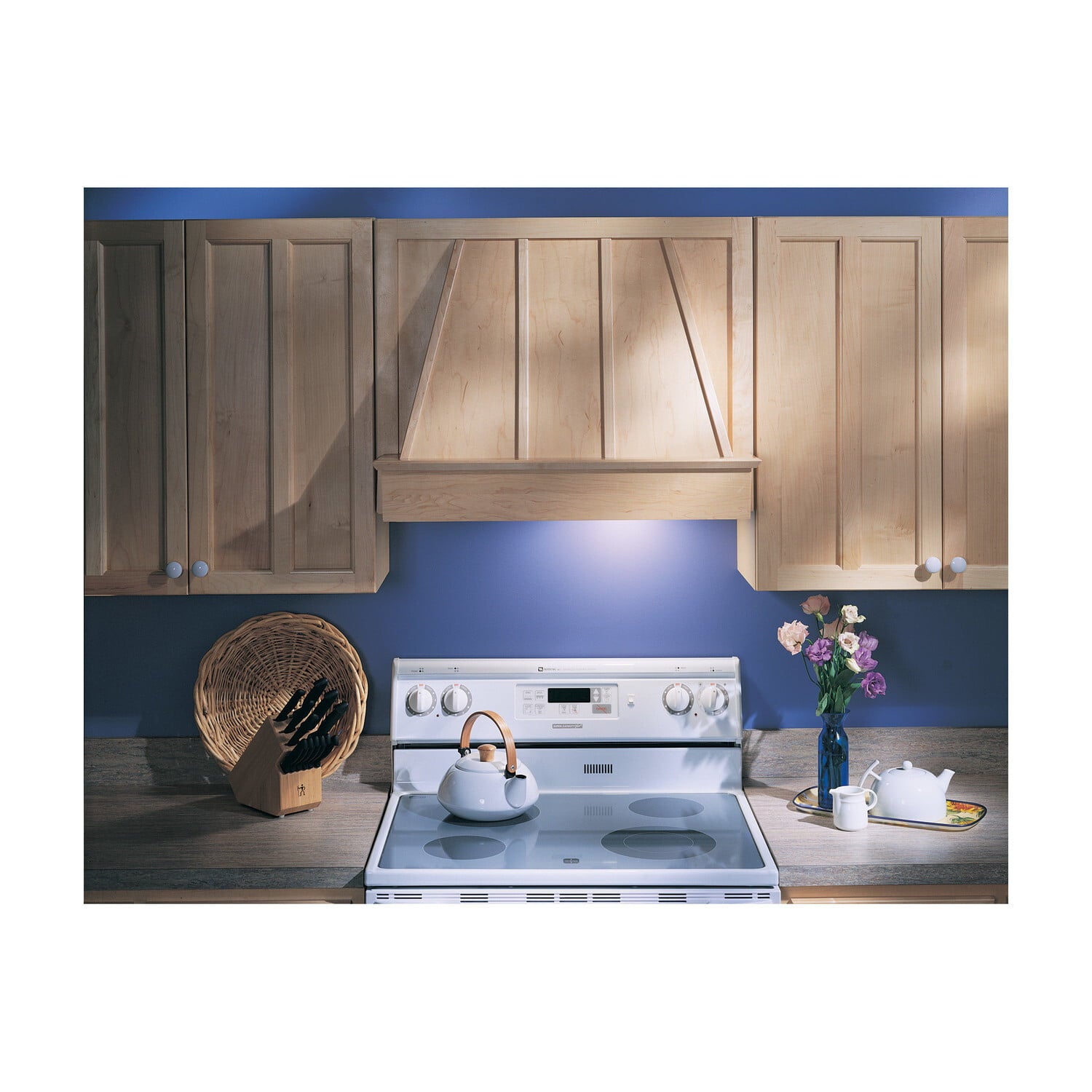

- Optional 30" and 36" liners (LB30, LB36, LT30 & LT36) allow you to create a custom enclosure and protect your cabinetry (sold separately)
- Can work in an ADA Compliant situation when wired to operate from a dedicated, standard 2-rocker or 3-rocker wall switch to turn the hood on or off.
- Three-speed slide controls provide 390 CFM of exhaust at 6.0 sones
- The choice of 6" round duct (includes damper and adapter) or non-ducted discharge allow you to make the right installation decision for your home
- Heat Sentry(R) detects excessive heat and adjusts blower to High speed automatically
- Comparable to NuTone Model NSPM390
| Filter Type | Aluminum |
| Heat Sentry | Yes |
| HVI Certified | Yes |
| Lighting Type | Incandescent |
| UL Listed | Yes |
| ADA Compliance | No |
| Damper Included | Yes |
| ENERGY STAR® certified | No |
| Light Bulb Wattage | 40 |
| Light Bulbs Included | No |
| Light Levels | 1 |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | 3 |
| Switch Control Type | Slide |
| Rated Voltage | 120 |
| Boost Mode | No |
| Color Finish | Silver |
| Rated Amps | 2.9 |

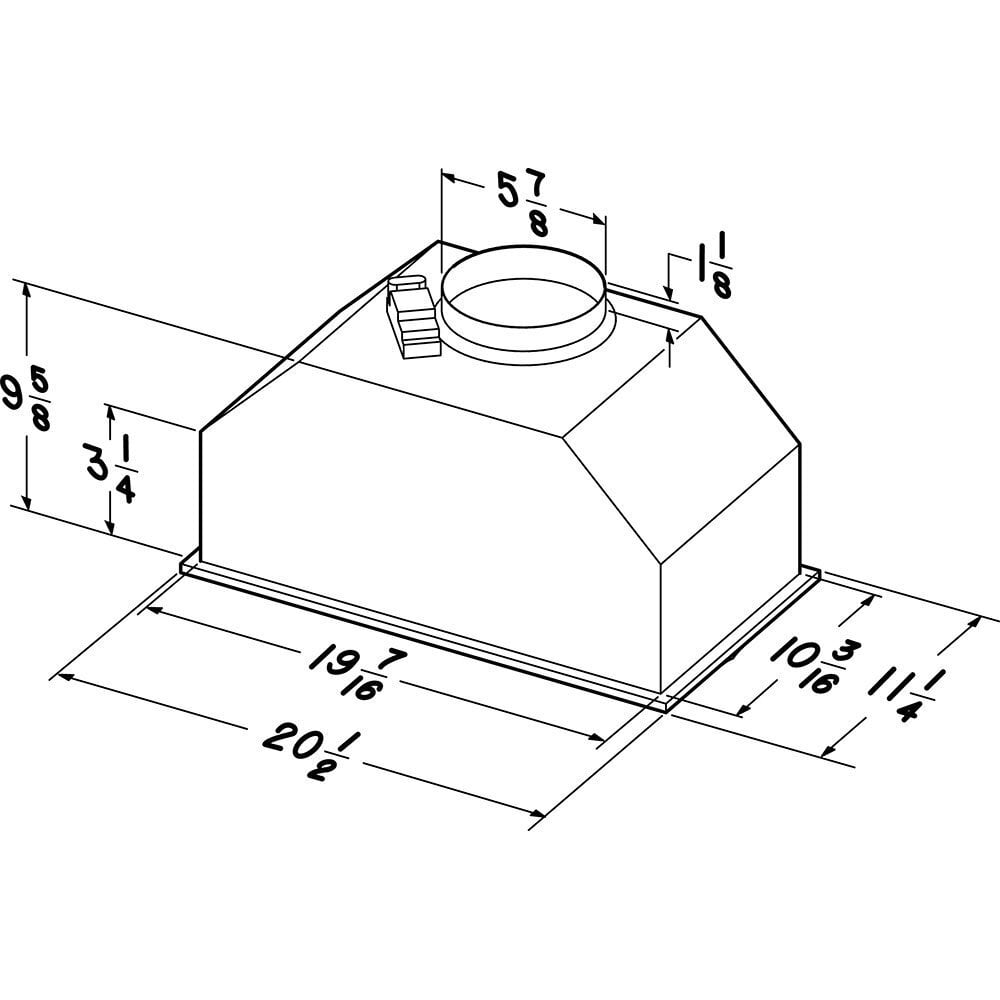

| Product Depth | 11.25 |
| Product Height | 9.625 |
| Product Width | 20-1/2' |
| Built-In Timer | No |
| CFM | 390 |
| Diameter | 6' Round |
| Vent Type | Ducted & Ductless |
| Duct Direction | Vertical |
| Bulb (Recommended Type) | E12 |
| Manufacturer Warranty | 1 Year |
| Wattage | 348 |
Broan-NuTone Range Hood & Ventilation Fans Tip - Check Terminations of Ventilation Ducts
Broan Universal Make-Up Air Damper
Can I install a range hood without venting it? - Danny Lipford
Cleaning a Range Hood Filter
Does an Over the Range microwave provide adequate Capture? - Danny Lipford
Give Your Kitchen A 72 Hour Facelift
How do I determine the size of the range hood I need? - Danny Lipford
How To Ventilate The Whole House
Importance of a Range Hood for Indoor Air Quality
Island Range Hoods for Kitchen Upgrades - Danny Lipford
Is there any regular maintenance needed on my range hood? - Danny Lipford
Kitchen Renovation Includes Adding Range Hood with Danny Lipford
Proper Use of a Range Hood
Proper Ventilation Equals a Healthy Home
What are CFMs? - Danny Lipford
Description
High-Performance Ventilation Solutions. These Integrated Range Hood Insert Units Provide The Ventilation And Lighting You Need For Your Custom Application. Broan "T" And "B" Liners Provide An Elegant Way To Finish A Traditional Wood Hood And Protect Cabinetry. Smooth Surfaces Clean Easily And Quick-Release Filters Can Go In The Dishwasher.
Features
- Durable, powder coated silver finish and a fully enclosed bottom ensure this hood is easy to clean and will not discolor
- The enclosed lighting area is home to dual incandescent 40-watt candelabra bulbs (sold separately)
- One-piece, washable aluminum mesh filter means you can maintain optimum grease capture and keep the kitchen fresh
- Optional non-ducted filter kit model 357NDK for indoor exhaust recirculation (includes duct accessories & charcoal filter), sold separately. Replacement charcoal filter is B08999040.
- Optional 30" and 36" liners (LB30, LB36, LT30 & LT36) allow you to create a custom enclosure and protect your cabinetry (sold separately)
- Can work in an ADA Compliant situation when wired to operate from a dedicated, standard 2-rocker or 3-rocker wall switch to turn the hood on or off.
- Three-speed slide controls provide 390 CFM of exhaust at 6.0 sones
- The choice of 6" round duct (includes damper and adapter) or non-ducted discharge allow you to make the right installation decision for your home
- Heat Sentry(R) detects excessive heat and adjusts blower to High speed automatically
- Comparable to NuTone Model NSPM390
Specifications
| Filter Type | Aluminum |
| Heat Sentry | Yes |
| HVI Certified | Yes |
| Lighting Type | Incandescent |
| UL Listed | Yes |
| ADA Compliance | No |
| Damper Included | Yes |
| ENERGY STAR® certified | No |
| Light Bulb Wattage | 40 |
| Light Bulbs Included | No |
| Light Levels | 1 |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | 3 |
| Switch Control Type | Slide |
| Rated Voltage | 120 |
| Boost Mode | No |
| Color Finish | Silver |
| Rated Amps | 2.9 |
| Product Depth | 11.25 |
| Product Height | 9.625 |
| Product Width | 20-1/2' |
| Built-In Timer | No |
| CFM | 390 |
| Diameter | 6' Round |
| Vent Type | Ducted & Ductless |
| Duct Direction | Vertical |
| Bulb (Recommended Type) | E12 |
| Manufacturer Warranty | 1 Year |
| Wattage | 348 |
