Broan LP50100DCF Broan-Nutone® Wall Vent Kit, 3" Or 4" Round Duct
Broan® Lo-Profile Series Finish Pack, 50-80-100 Selectable Cfm, Energy Star® Project Packs Are Id... Read more...
SKU:LP50100DCF
UPC:026715256921
- Regular price
- Sale price
-
List Price: $47.00
You save: $5.00 (10%)Our Price: $42.00
- Regular price
- Unit price
- per
Extended protection
3 year plan
$86.995 year plan
$168.99Extended Protection
Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.
This Protection Plan includes:
- Full parts and labor coverage during the whole period of the extension plan.
- Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
- Food loss protection (click here for details)
- 24/7 toll-free number for support (1-877-879-6395)
Installation and Removal
Where will services be needed?
When Will I Get My Order?

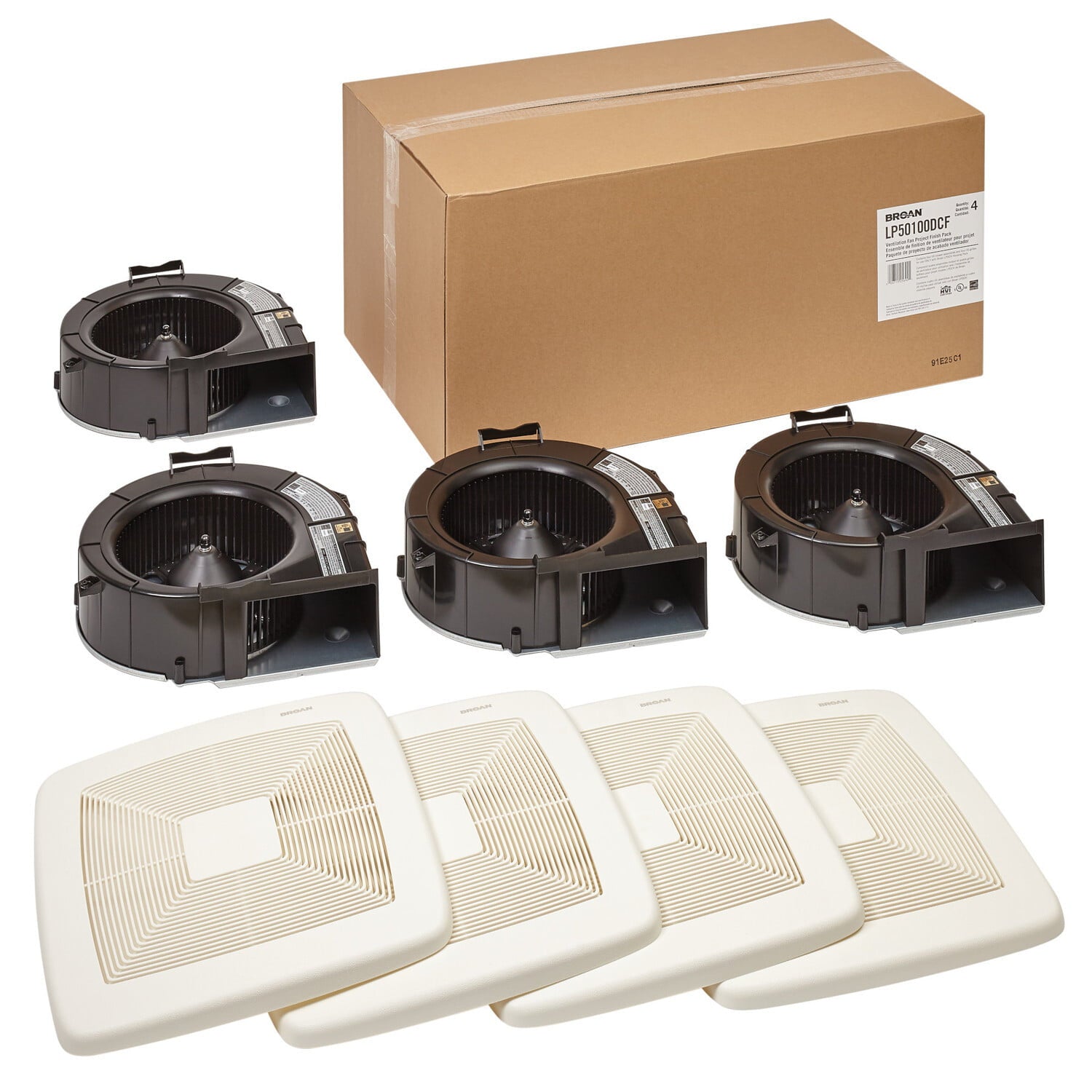

Broan® Lo-Profile Series Finish Pack, 50-80-100 Selectable Cfm, Energy Star® Project Packs Are Ideal For Contractors And Builders Who Have Yet To Pick Out The Final Product. With The Housing For The Fan Sold Separately From The Grille And Motor, Contractors Are Able To Continue With Construction And Not Have To Worry About Damaging, Losing Or Storing The Product. Once All Construction Is Complete, The Purchase Of A Finish Pack, 4 Grilles And 4 Motor/Blower Wheels, Can Be Made To Add The Finishing Touches To The Room. The Broan® Loprofile Dc (Lpdc) Fan Is Our Solution For Installations Where Conventional Ventilation Simply Won'T Fit. Where Multi-Family Applications Require It, The Lpdc Fan Is Narrow Enough To Be Installed In A Wall Between 2X4 Studs. It Also Features Selectable Cfm, Between 50, 80, And 100 Cfm.
- Selectable CFM with speeds of 50-80-100 for Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- <0.3-0.7-1.2 Sones for quiet performance, enough sound to know your fan is on
- Can be installed in either the ceiling or the wall
- Housing and finish packs sold separately
- ENERGY STAR® Certified
- UL listed for use over bathtubs and showers when connected to GFCI protected branch circuit
- Powerful enough for rooms up to 90 sq. ft.
- Compatible with RDF2 Radiation Damper
| CFM | 50-80-100 |
| Color Finish | White |
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 13 |
| Grille Width | 14 |

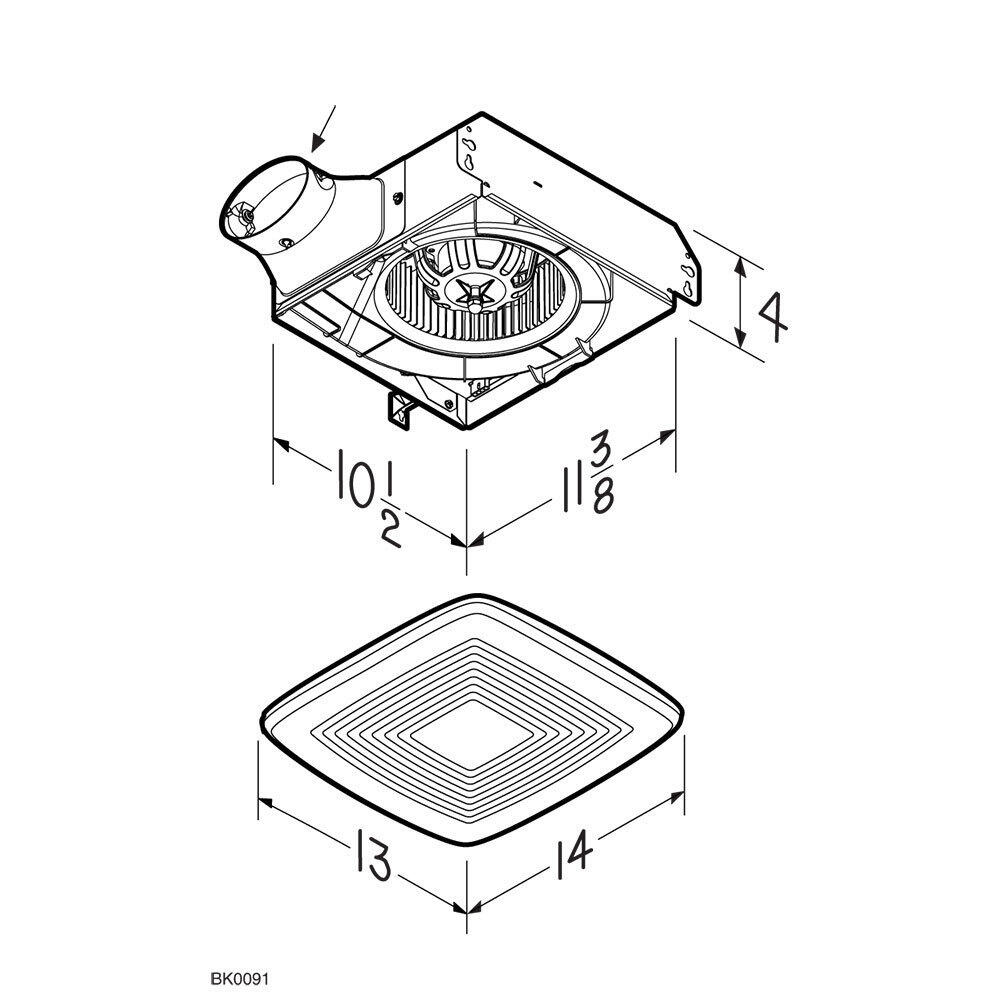

| Housing Dimensions | 10-1/2' x 11-3/8' x 4' |
| Sound Level (Sones) | 1.2 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Rated Amps | 0.4 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | Yes |
| Minimum Construction Space Required | 2' x 4' |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
Cleaning a Bath Exhaust Fan
How long can the venting for my bath vent be? Can I use flexible duct? - Danny Lipford
Humidity Sensing Wall Control with Sensaire® Technology How-To Set Up Video
Humidity Sensing Wall Control with Sensaire® Technology Features & Benefits Video
Selecting Proper Ventilation Fan Size is Easy
What are CFMs? - Danny Lipford
Description
Broan® Lo-Profile Series Finish Pack, 50-80-100 Selectable Cfm, Energy Star® Project Packs Are Ideal For Contractors And Builders Who Have Yet To Pick Out The Final Product. With The Housing For The Fan Sold Separately From The Grille And Motor, Contractors Are Able To Continue With Construction And Not Have To Worry About Damaging, Losing Or Storing The Product. Once All Construction Is Complete, The Purchase Of A Finish Pack, 4 Grilles And 4 Motor/Blower Wheels, Can Be Made To Add The Finishing Touches To The Room. The Broan® Loprofile Dc (Lpdc) Fan Is Our Solution For Installations Where Conventional Ventilation Simply Won'T Fit. Where Multi-Family Applications Require It, The Lpdc Fan Is Narrow Enough To Be Installed In A Wall Between 2X4 Studs. It Also Features Selectable Cfm, Between 50, 80, And 100 Cfm.
Features
- Selectable CFM with speeds of 50-80-100 for Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- <0.3-0.7-1.2 Sones for quiet performance, enough sound to know your fan is on
- Can be installed in either the ceiling or the wall
- Housing and finish packs sold separately
- ENERGY STAR® Certified
- UL listed for use over bathtubs and showers when connected to GFCI protected branch circuit
- Powerful enough for rooms up to 90 sq. ft.
- Compatible with RDF2 Radiation Damper
Specifications
| CFM | 50-80-100 |
| Color Finish | White |
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 13 |
| Grille Width | 14 |
| Housing Dimensions | 10-1/2' x 11-3/8' x 4' |
| Sound Level (Sones) | 1.2 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Rated Amps | 0.4 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | Yes |
| Minimum Construction Space Required | 2' x 4' |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
