Broan LP50100DC Broan-Nutone® Wall Vent Kit, 3" Or 4" Round Duct
Broan® 50-80-100 Selectable Cfm Ventilation Fan, Energy Star® The Broan® Loprofile Dc (Lpdc) Fan ... Read more...
SKU:LP50100DC
UPC:026715256914
- Regular price
- Sale price
-
List Price: $102.00
You save: $11.00 (10%)Our Price: $91.00
- Regular price
- Unit price
- per
Extended protection
3 year plan
$86.995 year plan
$168.99Extended Protection
Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.
This Protection Plan includes:
- Full parts and labor coverage during the whole period of the extension plan.
- Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
- Food loss protection (click here for details)
- 24/7 toll-free number for support (1-877-879-6395)
Installation and Removal
Where will services be needed?
When Will I Get My Order?
Broan® 50-80-100 Selectable Cfm Ventilation Fan, Energy Star® The Broan® Loprofile Dc (Lpdc) Fan Is Our Solution For Installations Where Conventional Ventilation Simply Won'T Fit. Where Multi-Family Applications Require It, The Lpdc Fan Is Narrow Enough To Be Installed In A Wall Between 2X4 Studs. It Also Features Selectable Cfm, Between 50, 80, And 100 Cfm.
- Selectable CFM with speeds of 50-80-100 for Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- <0.3-0.7-1.2 Sones for quiet performance, enough sound to know your fan is on
- 4" oval duct connection for installation flexibility, allows for ceiling or wall mounting
- ENERGY STAR® Certified efficient operation for lower utility bills
- UL listed for use over bathtubs and showers when connected to GFCI protected branch circuit
- Powerful enough for rooms up to 90 sq. ft.
- Brighter white grilles blend in to match most common ceiling paint
- Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
- Compatible with RDF2 Radiation Damper
| CFM | 50-80-100 |
| Color Finish | White |
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 13 |
| Grille Width | 14 |

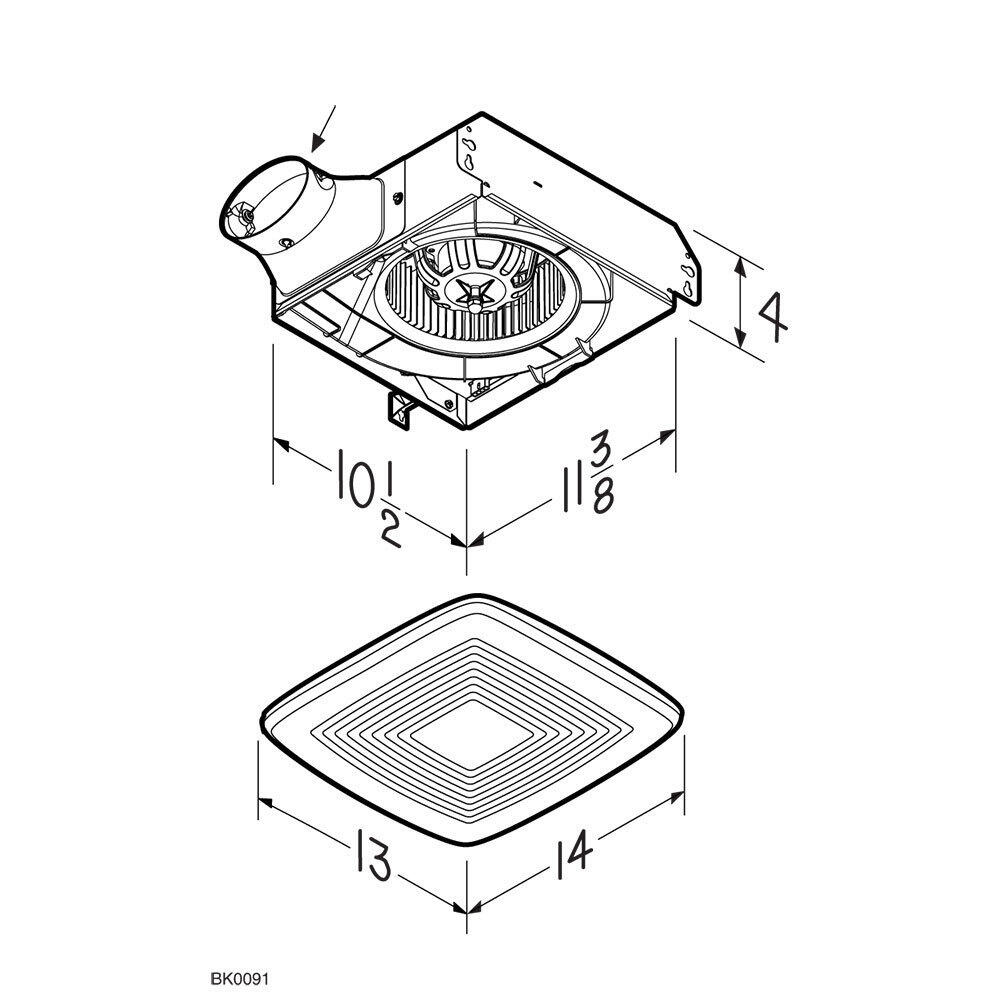

| Housing Dimensions | 10-1/2' x 11-3/8' x 4' |
| Sound Level (Sones) | 1.2 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Rated Amps | 0.4 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | Yes |
| Minimum Construction Space Required | 2' x 4' |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
Cleaning a Bath Exhaust Fan
How long can the venting for my bath vent be? Can I use flexible duct? - Danny Lipford
Humidity Sensing Wall Control with Sensaire® Technology How-To Set Up Video
Humidity Sensing Wall Control with Sensaire® Technology Features & Benefits Video
Selecting Proper Ventilation Fan Size is Easy
What are CFMs? - Danny Lipford
Description
Broan® 50-80-100 Selectable Cfm Ventilation Fan, Energy Star® The Broan® Loprofile Dc (Lpdc) Fan Is Our Solution For Installations Where Conventional Ventilation Simply Won'T Fit. Where Multi-Family Applications Require It, The Lpdc Fan Is Narrow Enough To Be Installed In A Wall Between 2X4 Studs. It Also Features Selectable Cfm, Between 50, 80, And 100 Cfm.
Features
- Selectable CFM with speeds of 50-80-100 for Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- <0.3-0.7-1.2 Sones for quiet performance, enough sound to know your fan is on
- 4" oval duct connection for installation flexibility, allows for ceiling or wall mounting
- ENERGY STAR® Certified efficient operation for lower utility bills
- UL listed for use over bathtubs and showers when connected to GFCI protected branch circuit
- Powerful enough for rooms up to 90 sq. ft.
- Brighter white grilles blend in to match most common ceiling paint
- Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
- Compatible with RDF2 Radiation Damper
Specifications
| CFM | 50-80-100 |
| Color Finish | White |
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 13 |
| Grille Width | 14 |
| Housing Dimensions | 10-1/2' x 11-3/8' x 4' |
| Sound Level (Sones) | 1.2 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Rated Amps | 0.4 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | Yes |
| Minimum Construction Space Required | 2' x 4' |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
Videos
Cleaning a Bath Exhaust Fan
How long can the venting for my bath vent be? Can I use flexible duct? - Danny Lipford
Humidity Sensing Wall Control with Sensaire® Technology How-To Set Up Video
Humidity Sensing Wall Control with Sensaire® Technology Features & Benefits Video
Selecting Proper Ventilation Fan Size is Easy
What are CFMs? - Danny Lipford
Manuals / Guides
Reviews
