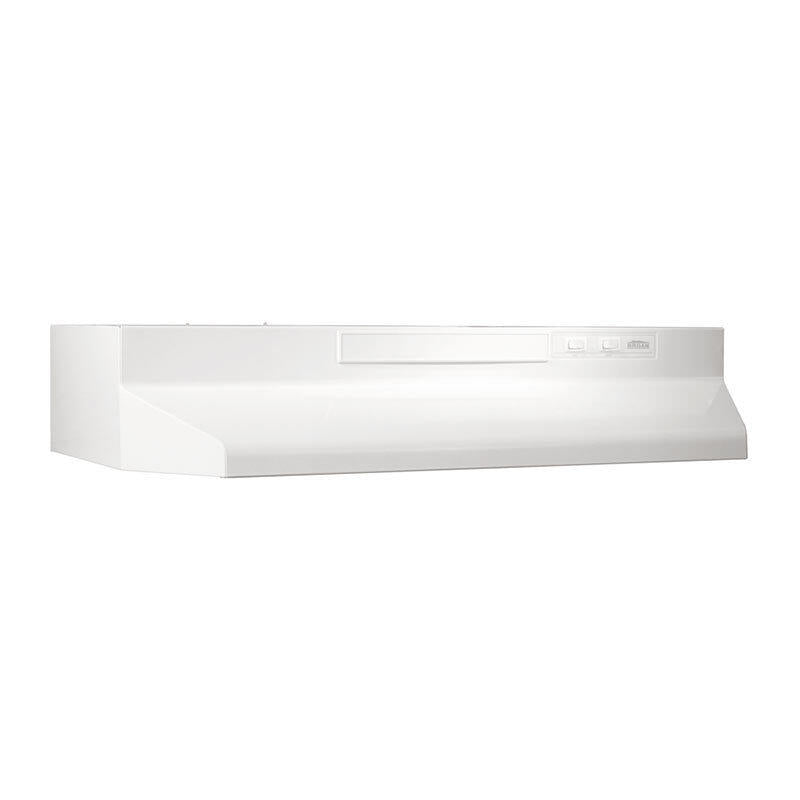

Broan F403011 30" Convertible Range Hood, White-On-White
Broan F40000 Series The F40000 Series Provides Installation Flexibility With 4-Way Convertibility... Read more...
SKU:F403011
UPC:026715144624
- Regular price
- Sale price
-
List Price: $99.00
You save: $10.00 (10%)Our Price: $89.00
- Regular price
- Unit price
- per
Extended protection
3 year plan
$86.995 year plan
$168.99Extended Protection
Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.
This Protection Plan includes:
- Full parts and labor coverage during the whole period of the extension plan.
- Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
- Food loss protection (click here for details)
- 24/7 toll-free number for support (1-877-879-6395)
Installation and Removal
Where will services be needed?
When Will I Get My Order?
Broan F40000 Series The F40000 Series Provides Installation Flexibility With 4-Way Convertibility To Fit Virtually All Applications. The Hood Is Designed For Under Cabinet Use And Installs As 3-1/4 In. X 10 In. Ducted Opening With Vertical Or Horizontal Ducting; Or 7 In. Round Vertical Ducting Or As Non-Ducted With Air Recirculation. The Hood Features A Fan Designed For Years Of Trouble Free Service, An Easy To Clean Grease Filter, A Protective Lamp Lens That Distributes Light Evenly Over The Cook-Top And Control Switches For Fan Speed And Light Activation. Features & Benefits (Ul)(Li)Four-Way Convertible; Installs Ducted 3-1/4" X 10" (Vertical And Horizontal), 7" Round (Vertical) And Non-Ducted. Non-Ducted Filter Sold Separately.(/Li)(Li)160 Cfm, 6.5 Sone (3-1/4" X 10" Discharge) Or 190 Cfm (7" Round Discharge) Performance - Hvi 2100 Certified(/Li)(Li)Dishwasher-Safe Aluminum Grease Filter (Model Bp29)(/Li)(Li)A Protective Lamp Lens Distributes Light Evenly Over The Cook-Top And Accepts Up To 75W Bulb (Bulb Not Included)(/Li)(Li)Includes 3-1/4" X 10" Damper/Adapter And 7" Round Adapter(/Li)(Li)Bp87 Dampers Sold Separately(/Li)(Li)This Range Hood Can Work In An Ada-Compliant Application(/Li)(/Ul)
- 160 CFM, 6.5 Sone (3-1/4" x 10" discharge) or 190 CFM (7" round discharge) performance - HVI 2100 Certified.
- Dishwasher-safe aluminum grease filter.
- Includes 3-1/4" x 10" damper/adapter and 7" round adapter.
| Color Finish | White-on-White |
| CFM | 160 |
| Sones | 6.5 |
| Product Depth | 17-1/2' |
| Product Height | 6' |
| Product Width | 30' |
| Light Number Of Levels | 1 |
| Light Type | Incandescent |
| Nightlight Or Nightlight Setting | No |
| Light Bulb Wattage | 75W |
| Light Bulb Recommended Type | A19 |
| Light Bulbs Included | No |
| Light Bulb Quantity | 1 |
| Filter Quantity | 1 |
| Boost Mode | No |
| Heat Sentry® - Temperature Sensor | No |
| Filter Type | Aluminum |
| Motor Number Of Speeds | 2 |
| Built In Timer | No |
| Remote Operation Capable | No |
| ADA Compliance | Yes |
| Damper Included | Yes |
| Non-ducted Filter Included | No |
| Amperage | 2.5 |
| Rated Voltage | 120 |
| Wattage | 300 |
| Switch Control Type | Rocker |
| Non-Ducted Recirculation Capable | Convertible built-in |
| Warranty | 1 Year |
| UL Listed | Yes |
| Duct Connector Size | 3-1/4' x 10' or 7' Round |
| Duct Direction | Horizontal/Vertical |
| Duct Shape | Rectangular or Round |
| Duct Diameter | 7' |
| Duct Height Rectangular | 3-1/4' |
| Duct Width Rectangular | 10' |
| HVI Certified | Yes |
| ENERGY STAR® certified product | No |
Broan-NuTone Range Hood & Ventilation Fans Tip - Check Terminations of Ventilation Ducts
Can I install a range hood without venting it? - Danny Lipford
Cleaning a Range Hood Filter
Does an Over the Range microwave provide adequate Capture? - Danny Lipford
Give Your Kitchen A 72 Hour Facelift
How do I determine the size of the range hood I need? - Danny Lipford
How To Ventilate The Whole House
Importance of a Range Hood for Indoor Air Quality
Island Range Hoods for Kitchen Upgrades - Danny Lipford
Is there any regular maintenance needed on my range hood? - Danny Lipford
Kitchen Renovation Includes Adding Range Hood with Danny Lipford
Proper Use of a Range Hood
Proper Ventilation Equals a Healthy Home
What are CFMs? - Danny Lipford
Description
Broan F40000 Series The F40000 Series Provides Installation Flexibility With 4-Way Convertibility To Fit Virtually All Applications. The Hood Is Designed For Under Cabinet Use And Installs As 3-1/4 In. X 10 In. Ducted Opening With Vertical Or Horizontal Ducting; Or 7 In. Round Vertical Ducting Or As Non-Ducted With Air Recirculation. The Hood Features A Fan Designed For Years Of Trouble Free Service, An Easy To Clean Grease Filter, A Protective Lamp Lens That Distributes Light Evenly Over The Cook-Top And Control Switches For Fan Speed And Light Activation. Features & Benefits (Ul)(Li)Four-Way Convertible; Installs Ducted 3-1/4" X 10" (Vertical And Horizontal), 7" Round (Vertical) And Non-Ducted. Non-Ducted Filter Sold Separately.(/Li)(Li)160 Cfm, 6.5 Sone (3-1/4" X 10" Discharge) Or 190 Cfm (7" Round Discharge) Performance - Hvi 2100 Certified(/Li)(Li)Dishwasher-Safe Aluminum Grease Filter (Model Bp29)(/Li)(Li)A Protective Lamp Lens Distributes Light Evenly Over The Cook-Top And Accepts Up To 75W Bulb (Bulb Not Included)(/Li)(Li)Includes 3-1/4" X 10" Damper/Adapter And 7" Round Adapter(/Li)(Li)Bp87 Dampers Sold Separately(/Li)(Li)This Range Hood Can Work In An Ada-Compliant Application(/Li)(/Ul)
Features
- 160 CFM, 6.5 Sone (3-1/4" x 10" discharge) or 190 CFM (7" round discharge) performance - HVI 2100 Certified.
- Dishwasher-safe aluminum grease filter.
- Includes 3-1/4" x 10" damper/adapter and 7" round adapter.
Specifications
| Color Finish | White-on-White |
| CFM | 160 |
| Sones | 6.5 |
| Product Depth | 17-1/2' |
| Product Height | 6' |
| Product Width | 30' |
| Light Number Of Levels | 1 |
| Light Type | Incandescent |
| Nightlight Or Nightlight Setting | No |
| Light Bulb Wattage | 75W |
| Light Bulb Recommended Type | A19 |
| Light Bulbs Included | No |
| Light Bulb Quantity | 1 |
| Filter Quantity | 1 |
| Boost Mode | No |
| Heat Sentry® - Temperature Sensor | No |
| Filter Type | Aluminum |
| Motor Number Of Speeds | 2 |
| Built In Timer | No |
| Remote Operation Capable | No |
| ADA Compliance | Yes |
| Damper Included | Yes |
| Non-ducted Filter Included | No |
| Amperage | 2.5 |
| Rated Voltage | 120 |
| Wattage | 300 |
| Switch Control Type | Rocker |
| Non-Ducted Recirculation Capable | Convertible built-in |
| Warranty | 1 Year |
| UL Listed | Yes |
| Duct Connector Size | 3-1/4' x 10' or 7' Round |
| Duct Direction | Horizontal/Vertical |
| Duct Shape | Rectangular or Round |
| Duct Diameter | 7' |
| Duct Height Rectangular | 3-1/4' |
| Duct Width Rectangular | 10' |
| HVI Certified | Yes |
| ENERGY STAR® certified product | No |
