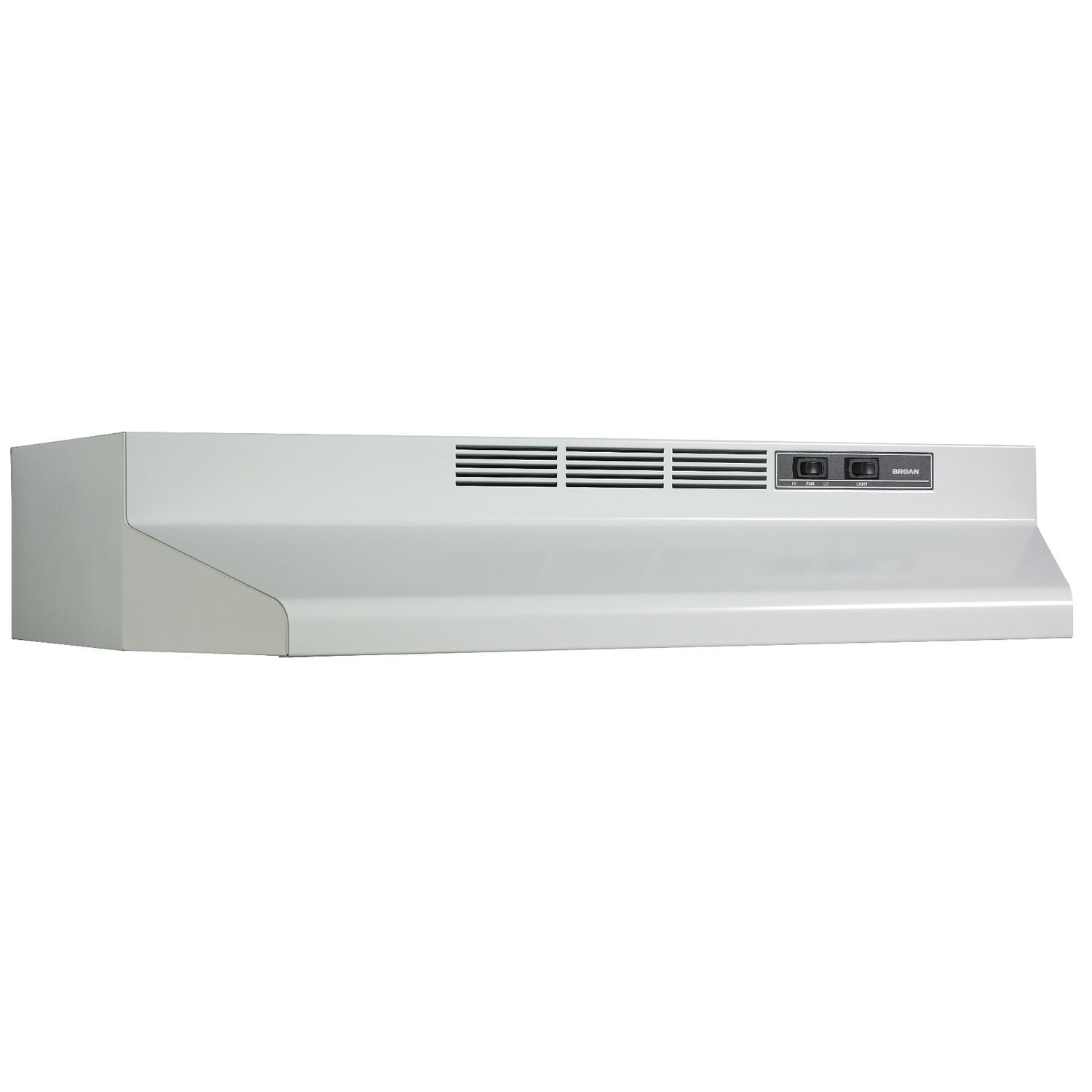

Broan F403001 Broan® 30-Inch Convertible Under-Cabinet Range Hood, 160 Cfm, White
Broan F403001 Broan® 30-Inch Convertible Under-Cabinet Range Hood, 160 Cfm, White
SKU: F403001
UPC: 026715142972
The F40000 Series Provides Installation Flexibility With 4-Way Convertibility To Fit Virtually A... Read more...
When Will I Get My Order?
x
EXTENDED PROTECTION
3 year plan
$86.995 year plan
$168.99Shipping calculated at checkout.
Couldn't load pickup availability
When Will I Get My Order?
x
Broan F403001 Broan® 30-Inch Convertible Under-Cabinet Range Hood, 160 Cfm, White
The F40000 Series Provides Installation Flexibility With 4-Way Convertibility To Fit Virtually All Applications. The Hood Is Designed For Under Cabinet Use And Installs As 3-1/4 In. X 10 In. Ducted Opening With Vertical Or Horizontal Ducting; Or 7 In. Round Vertical Ducting Or As Non-Ducted With Air Recirculation. The Hood Features A Fan Designed For Years Of Trouble Free Service, An Easy To Clean Grease Filter, A Protective Lamp Lens That Distributes Light Evenly Over The Cook-Top And Control Switches For Fan Speed And Light Activation.
- Provides installation flexibility with 4-way convertibility to fit virtually all applications
- Simple to use rocker switches let you adjust the fan speed and the light setting separately
- Two fan speeds help you tackle a variety of venting jobs
- 160 - 190 CFM blower helps quickly remove smoke and other cooking odors from the air
- Vertical and horizontal exhaust option lets you connect the ductwork to the top or rear of the range hood
- Removable, reusable, dishwasher-safe aluminum mesh filter for easy cleaning and maintenance; supports ductless filtration via non-ducted filter (purchase separately)
- Uses up to a 75-Watt in incandescent light to brightly illuminate the cooking area (bulb sold separately)
- Includes a 3-1/4 in. x 10 in. damper/adapter and a 7 in. round adapter for easy installation (7 in. damper sold separately)
- Enclosed light and fan/filter assemblies, mitered corners and hemmed edges for good looks and easy cleaning
- One year limited warranty
- UL listed and HVI 2100 certified
| Filter Type | Aluminum |
| Heat Sentry | No |
| HVI Certified | Yes |
| Lighting Type | Incandescent |
| UL Listed | Yes |
| ADA Compliance | Yes |
| Damper Included | No |
| ENERGY STAR® certified | No |
| Light Bulb Wattage | 75 |
| Light Bulbs Included | No |
| Light Levels | 1 |
| Material | Steel |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | 2 |
| Switch Control Type | Rocker |
| Rated Voltage | 120 |
| Boost Mode | No |
| Country of Origin | United States |
| Color Finish | White |
| Rated Amps | 2.5 |
| Product Depth | 17.5' |
| Product Height | 6' |
| Product Width | 30' |
| Built-In Timer | No |
| CFM | 160 |
| Diameter | 7' Round |
| Vent Type | Convertible Built-In |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | A19 |
| Manufacturer Warranty | 1 Year |
| Wattage | 300 |
