  • Broan F402401 Broan® 24-Inch Convertible Under-Cabinet Range Hood, 160 Cfm, White

    The F40000 Series Provides Installation Flexibility With 4-Way Convertibility To Fit Virtually A... Read moreRead more...

    Click to Call

    To order or learn more please call us at: 800-288-1647

    Extended protection

    3 year plan

    $76.99 $96.99

    5 year plan

    $158.99 $198.99

    Extended Protection

    Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.

    This Protection Plan includes:

    - Full parts and labor coverage during the whole period of the extension plan.
    - Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
    - Food loss protection (click here for details)
    - 24/7 toll-free number for support (1-877-879-6395)

    Additional Services
  • Where will services be needed?

    When Will I Get My Order?
    The F40000 Series Provides Installation Flexibility With 4-Way Convertibility To Fit Virtually All Applications. The Hood Is Designed For Under Cabinet Use And Installs As 3-1/4 In. X 10 In. Ducted Opening With Vertical Or Horizontal Ducting; Or 7 In. Round Vertical Ducting Or As Non-Ducted With Air Recirculation. The Hood Features A Fan Designed For Years Of Trouble Free Service, An Easy To Clean Grease Filter, A Protective Lamp Lens That Distributes Light Evenly Over The Cook-Top And Control Switches For Fan Speed And Light Activation.
    • Provides installation flexibility with 4-way convertibility to fit virtually all applications
    • Simple to use rocker switches let you adjust the fan speed and the light setting separately
    • Two fan speeds help you tackle a variety of venting jobs
    • 160 - 190 CFM blower helps quickly remove smoke and other cooking odors from the air
    • Vertical and horizontal exhaust option lets you connect the ductwork to the top or rear of the range hood
    • Removable, reusable, dishwasher-safe aluminum mesh filter for easy cleaning and maintenance; supports ductless filtration via non-ducted filter (purchase separately)
    • Uses up to a 75-Watt in incandescent light to brightly illuminate the cooking area (bulb sold separately)
    • Includes a 3-1/4 in. x 10 in. damper/adapter and a 7 in. round adapter for easy installation (7 in. damper sold separately)
    • Enclosed light and fan/filter assemblies, mitered corners and hemmed edges for good looks and easy cleaning
    • One year limited warranty
    • UL listed and HVI 2100 certified

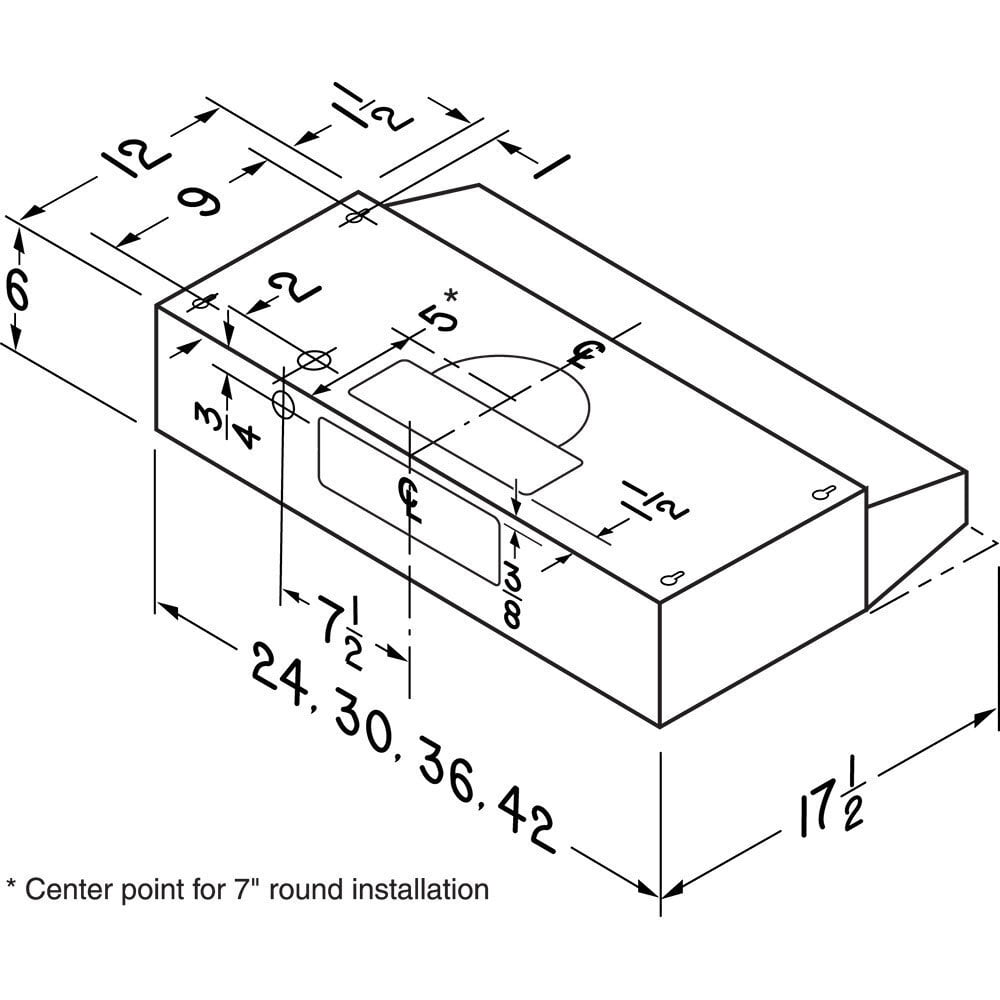

    Dimensions

    width

    24"

    height

    6"

    depth

    17.5"
    Filter Type Aluminum
    Heat Sentry No
    HVI Certified Yes
    Lighting Type Incandescent
    UL Listed Yes
    ADA Compliance Yes
    Damper Included No
    ENERGY STAR® certified No
    Light Bulb Wattage 75
    Light Bulbs Included No
    Light Levels 1
    Material Steel
    Nightlight Or Nighlight Setting No
    Ductless Recirculation Capable Yes
    Ductless Filter Or Kit Included No
    Remote Operation Capable No
    Speed Levels 2
    Switch Control Type Rocker
    Rated Voltage 120
    Boost Mode No
    Country of Origin United States
    Color Finish White
    Rated Amps 2.5
    Product Depth 17.5'
    Product Height 6'
    Product Width 24'
    Built-In Timer No
    CFM 160
    Diameter 7' Round
    Vent Type Convertible Built-In
    Duct Direction Horizontal/Vertical
    Bulb (Recommended Type) A19
    Manufacturer Warranty 1 Year
    Wattage 300

    Broan-NuTone Range Hood & Ventilation Fans Tip - Check Terminations of Ventilation Ducts

    Can I install a range hood without venting it? - Danny Lipford

    Cleaning a Range Hood Filter

    Does an Over the Range microwave provide adequate Capture? - Danny Lipford

    Give Your Kitchen A 72 Hour Facelift

    How do I determine the size of the range hood I need? - Danny Lipford

    How To Ventilate The Whole House

    Importance of a Range Hood for Indoor Air Quality

    Island Range Hoods for Kitchen Upgrades - Danny Lipford

    Is there any regular maintenance needed on my range hood? - Danny Lipford

    Kitchen Renovation Includes Adding Range Hood with Danny Lipford

    Proper Use of a Range Hood

    Proper Ventilation Equals a Healthy Home

    What are CFMs? - Danny Lipford

    Customer Reviews

    No reviews yet
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)

    Description

    The F40000 Series Provides Installation Flexibility With 4-Way Convertibility To Fit Virtually All Applications. The Hood Is Designed For Under Cabinet Use And Installs As 3-1/4 In. X 10 In. Ducted Opening With Vertical Or Horizontal Ducting; Or 7 In. Round Vertical Ducting Or As Non-Ducted With Air Recirculation. The Hood Features A Fan Designed For Years Of Trouble Free Service, An Easy To Clean Grease Filter, A Protective Lamp Lens That Distributes Light Evenly Over The Cook-Top And Control Switches For Fan Speed And Light Activation.

    Features

    • Provides installation flexibility with 4-way convertibility to fit virtually all applications
    • Simple to use rocker switches let you adjust the fan speed and the light setting separately
    • Two fan speeds help you tackle a variety of venting jobs
    • 160 - 190 CFM blower helps quickly remove smoke and other cooking odors from the air
    • Vertical and horizontal exhaust option lets you connect the ductwork to the top or rear of the range hood
    • Removable, reusable, dishwasher-safe aluminum mesh filter for easy cleaning and maintenance; supports ductless filtration via non-ducted filter (purchase separately)
    • Uses up to a 75-Watt in incandescent light to brightly illuminate the cooking area (bulb sold separately)
    • Includes a 3-1/4 in. x 10 in. damper/adapter and a 7 in. round adapter for easy installation (7 in. damper sold separately)
    • Enclosed light and fan/filter assemblies, mitered corners and hemmed edges for good looks and easy cleaning
    • One year limited warranty
    • UL listed and HVI 2100 certified

    Specifications

    Filter Type Aluminum
    Heat Sentry No
    HVI Certified Yes
    Lighting Type Incandescent
    UL Listed Yes
    ADA Compliance Yes
    Damper Included No
    ENERGY STAR® certified No
    Light Bulb Wattage 75
    Light Bulbs Included No
    Light Levels 1
    Material Steel
    Nightlight Or Nighlight Setting No
    Ductless Recirculation Capable Yes
    Ductless Filter Or Kit Included No
    Remote Operation Capable No
    Speed Levels 2
    Switch Control Type Rocker
    Rated Voltage 120
    Boost Mode No
    Country of Origin United States
    Color Finish White
    Rated Amps 2.5
    Product Depth 17.5'
    Product Height 6'
    Product Width 24'
    Built-In Timer No
    CFM 160
    Diameter 7' Round
    Vent Type Convertible Built-In
    Duct Direction Horizontal/Vertical
    Bulb (Recommended Type) A19
    Manufacturer Warranty 1 Year
    Wattage 300
