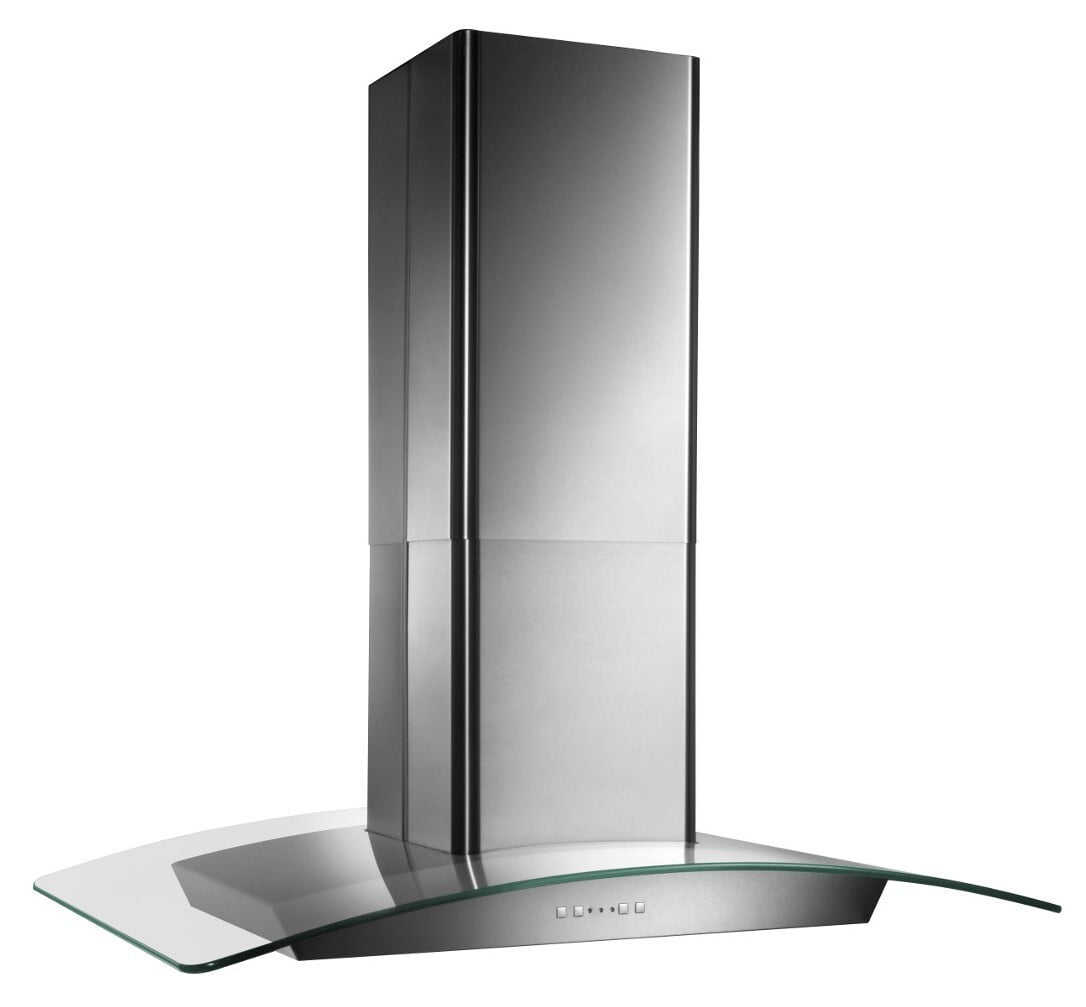

Broan EI5936SS Broan® 35-3/8-Inch X 25-5/8-Inch Convertible Curved Glass Canopy Island Range Hood, 500 Cfm, Stainle
Beautiful Contemporary European Glass Island Design. The Curved Glass Canopy Provides A Stunning... Read more...
SKU:EI5936SS
UPC:026715194919
Colors:
Stainless Steel
Beautiful Contemporary European Glass Island Design. The Curved Glass Canopy Provides A Stunning Focal Point Without Blocking The View Of Your Surroundings.
- Powerful 500 CFM internal blower
- Bright Quad Halogen Lighting (bulbs included); 3 intensities
- 3-speed electronic push control with blue speed selection indicator
- Control features Delay-off and Filter clean reminder
- Optional remote control operation - BCR1 (sold separately)
- Quick-release aluminum filters
- Designed to work with Broan Automatic Make-up Air Dampers
- Heat Sentry(R) detects excessive heat and adjusts blower to High speed automatically
- Telescopic flue accommodates ceiling heights 8' to 9'; optional flue extension for either ducted or non-ducted 9' to 10' ceilings can be purchased separately
| Filter Type | Aluminum |
| Heat Sentry | No |
| HVI Certified | Yes |
| Lighting Type | Halogen |
| UL Listed | Yes |
| ADA Compliance | No |
| Damper Included | Yes |
| ENERGY STAR® certified | No |
| Light Bulbs Included | Yes |
| Light Levels | 3 |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | 3 |
| Switch Control Type | Electronic |
| Rated Voltage | 120 |
| Boost Mode | No |
| Color Finish | Stainless Steel |
| Rated Amps | 3.55 |
| Product Depth | 25.625 |
| Product Height | 30.5' |
| Product Width | 36' |
| Built-In Timer | No |
| CFM | 500 |
| Diameter | 6' Round |
| Vent Type | Convertible with Kit |
| Duct Direction | Vertical |
| Bulb (Recommended Type) | 35W, Type MR16 GU10 |
| Manufacturer Warranty | 1 Year |
| Wattage | 426 |
Broan-NuTone Range Hood & Ventilation Fans Tip - Check Terminations of Ventilation Ducts
Broan Universal Make-Up Air Damper
Can I install a range hood without venting it? - Danny Lipford
Cleaning a Range Hood Filter
Does an Over the Range microwave provide adequate Capture? - Danny Lipford
Give Your Kitchen A 72 Hour Facelift
How do I determine the size of the range hood I need? - Danny Lipford
How To Ventilate The Whole House
Importance of a Range Hood for Indoor Air Quality
Island Range Hoods for Kitchen Upgrades - Danny Lipford
Is there any regular maintenance needed on my range hood? - Danny Lipford
Kitchen Renovation Includes Adding Range Hood with Danny Lipford
Proper Use of a Range Hood
Proper Ventilation Equals a Healthy Home
What are CFMs? - Danny Lipford
Description
Beautiful Contemporary European Glass Island Design. The Curved Glass Canopy Provides A Stunning Focal Point Without Blocking The View Of Your Surroundings.
Features
- Powerful 500 CFM internal blower
- Bright Quad Halogen Lighting (bulbs included); 3 intensities
- 3-speed electronic push control with blue speed selection indicator
- Control features Delay-off and Filter clean reminder
- Optional remote control operation - BCR1 (sold separately)
- Quick-release aluminum filters
- Designed to work with Broan Automatic Make-up Air Dampers
- Heat Sentry(R) detects excessive heat and adjusts blower to High speed automatically
- Telescopic flue accommodates ceiling heights 8' to 9'; optional flue extension for either ducted or non-ducted 9' to 10' ceilings can be purchased separately
Specifications
| Filter Type | Aluminum |
| Heat Sentry | No |
| HVI Certified | Yes |
| Lighting Type | Halogen |
| UL Listed | Yes |
| ADA Compliance | No |
| Damper Included | Yes |
| ENERGY STAR® certified | No |
| Light Bulbs Included | Yes |
| Light Levels | 3 |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | 3 |
| Switch Control Type | Electronic |
| Rated Voltage | 120 |
| Boost Mode | No |
| Color Finish | Stainless Steel |
| Rated Amps | 3.55 |
| Product Depth | 25.625 |
| Product Height | 30.5' |
| Product Width | 36' |
| Built-In Timer | No |
| CFM | 500 |
| Diameter | 6' Round |
| Vent Type | Convertible with Kit |
| Duct Direction | Vertical |
| Bulb (Recommended Type) | 35W, Type MR16 GU10 |
| Manufacturer Warranty | 1 Year |
| Wattage | 426 |
