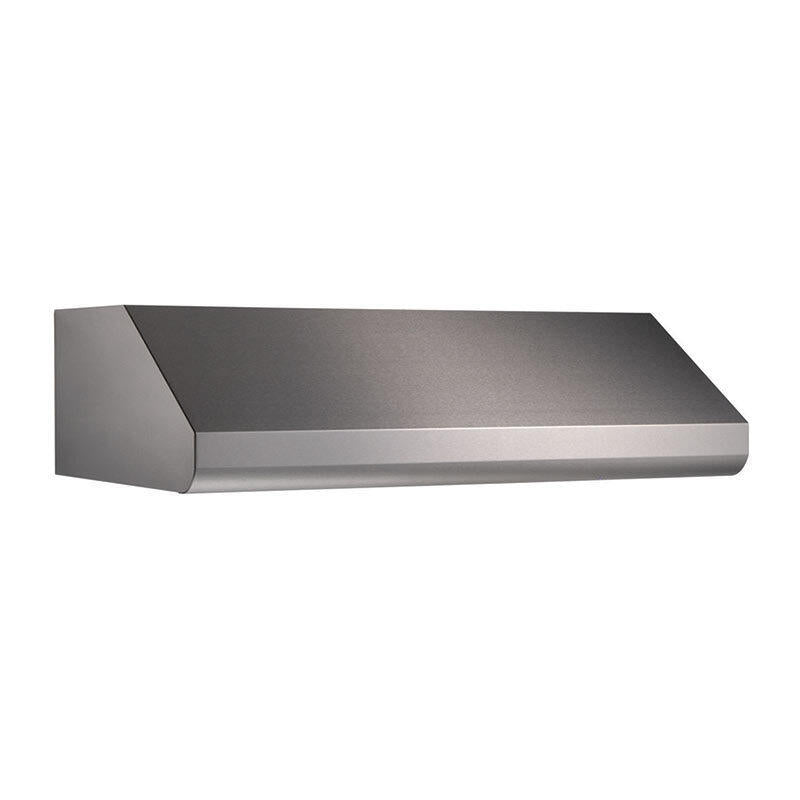

Broan Elite E64000 Series Professional Style That Fits Under Any Cabinet. True Professional Style And Performance Has Never Been Easier To Bring Home With The E64000 Range Hoods, In 10" Under-Cabinet Versions. Styling Is Fresh And Modern, Yet Designed To Easily Complement Popular Pro-Style Cooking Products. These Models Come With Integrated Internal Blowers Or Dedicated External Blower Capability. Both Embody Professional Features Such As Powerful Blowers, Baffle Filters, Brilliant Halogen Lighting And Variable Speed Controls. And While You Won'T See This Feature It Is Hard To Miss The Quiet Operation-Two Sones Or Less At Normal Speed. To Carry The Professional Theme Even Further, Select The Optional Stainless Steel Backsplash With Adjustable Shelving. When You Want Professional Style And Performance, Trust Broan To Cover Every Detail. Features & Benefits (Ul)(Li)10" Under-Cabinet Design(/Li)(Li)Brushed Stainless Steel Finish(/Li)(Li)600 Cfm Internal Blower Is Included On Models (E6430Ss, E6436Ss, E6442Ss, E6448Ss)(/Li)(Li)1200 Cfm Internal Blower Is Included On Model (E6448Tss)(/Li)(Li)Dedicated Models (E64E30Ss, E64E36Ss, E64E42Ss, E64E48Ss) For Use With External Blower Options-Choice Of Eight, From 280-1500 Cfm. (Blowers Sold Separately.)(/Li)(Li)Bright Halogen Lighting; Two 50-Watt Bulbs, Sold Separately(/Li)(Li)Pro-Style, Dishwasher-Safe Baffle Filters With Removable Grease Drip Rail(/Li)(Li)Variable Speed Control Remembers Last Setting-Blue Power-On Indicator Light: Heat Sentry Detects Excessive Heat And Adjusts Blower Speed Automatically(/Li)(Li)Designed To Work With Broan Automatic Make-Up Air Dampers(/Li)(Li)Designed To Duct Out Of The Hood Shell In Either Horizontal Or Vertical Direction With Internal Blowers. External Blowers Duct Vertically(/Li)(Li)Non-Duct Kit Option Available(/Li)(/Ul)

• 10" under-cabinet design
• 1200 CFM internal blower is included on "T" models
• Bright halogen lighting; Three 50-watt bulbs (purchase bulbs separately)
• Pro-style, dishwasher-safe baffle filters with removable grease drip rail
• Variable speed control remembers last setting blue power-on indicator light: Heat Sentry™ detects excessive heat and adjusts blower speed automatically.
• Designed to duct out of the hood shell in either horizontal or vertical direction with internal blowers. External blowers duct vertically

Color Finish	Stainless Steel
CFM	1200
Sones	14.5
Product Depth	22'
Product Height	10'
Product Width	48'
Light Number Of Levels	2
Light Type	Halogen
Nightlight Or Nightlight Setting	No
Light Bulb Wattage	50W
Light Bulb Recommended Type	GU10
Light Bulbs Included	No
Light Bulb Quantity	3
Filter Quantity	4
Boost Mode	No
Heat Sentry® - Temperature Sensor	Yes
Filter Type	Stainless Steel Baffle
Motor Number Of Speeds	Variable
Built In Timer	No
Remote Operation Capable	No
ADA Compliance	No
Damper Included	No
Non-ducted Filter Included	No
Amperage	9
Rated Voltage	120
Wattage	1080
Switch Control Type	Rotary Dial
Non-Ducted Recirculation Capable	Yes
Warranty	1 Year
UL Listed	Yes
Duct Connector Size	4-1/2' x 18-1/2'
Duct Direction	Horizontal/Vertical
Duct Shape	Rectangular
Duct Diameter	4-1/2' x 18-1/2'
Duct Height Rectangular	4-1/2'
Duct Width Rectangular	18-1/2'
HVI Certified	Yes
ENERGY STAR® certified product	No

Spec Sheet E64
Broan Range Hood Catalog - Standard offering
Installation Guide E64000
