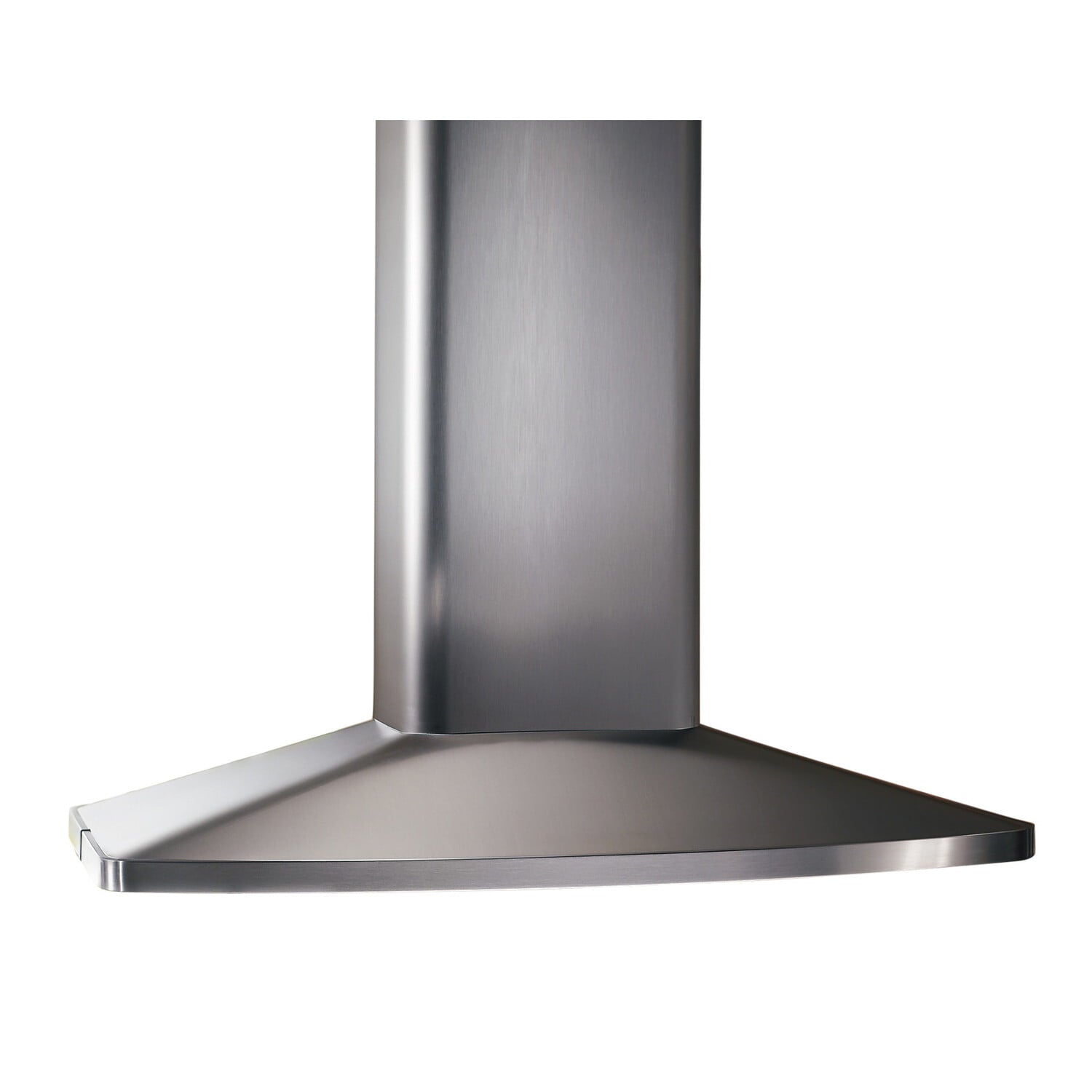

Broan E5490SS Broan® 35-7/16-Inch X 27-9/16-Inch Convertible Island Chimney Range Hood, 480 Cfm, Stainless Steel
Elegant Symmetry From Every Angle. Graceful Curves And A Low-Profile Design Make This Island Hoo... Read more...
SKU:E5490SS
UPC:026715174386
Colors:
Stainless Steel

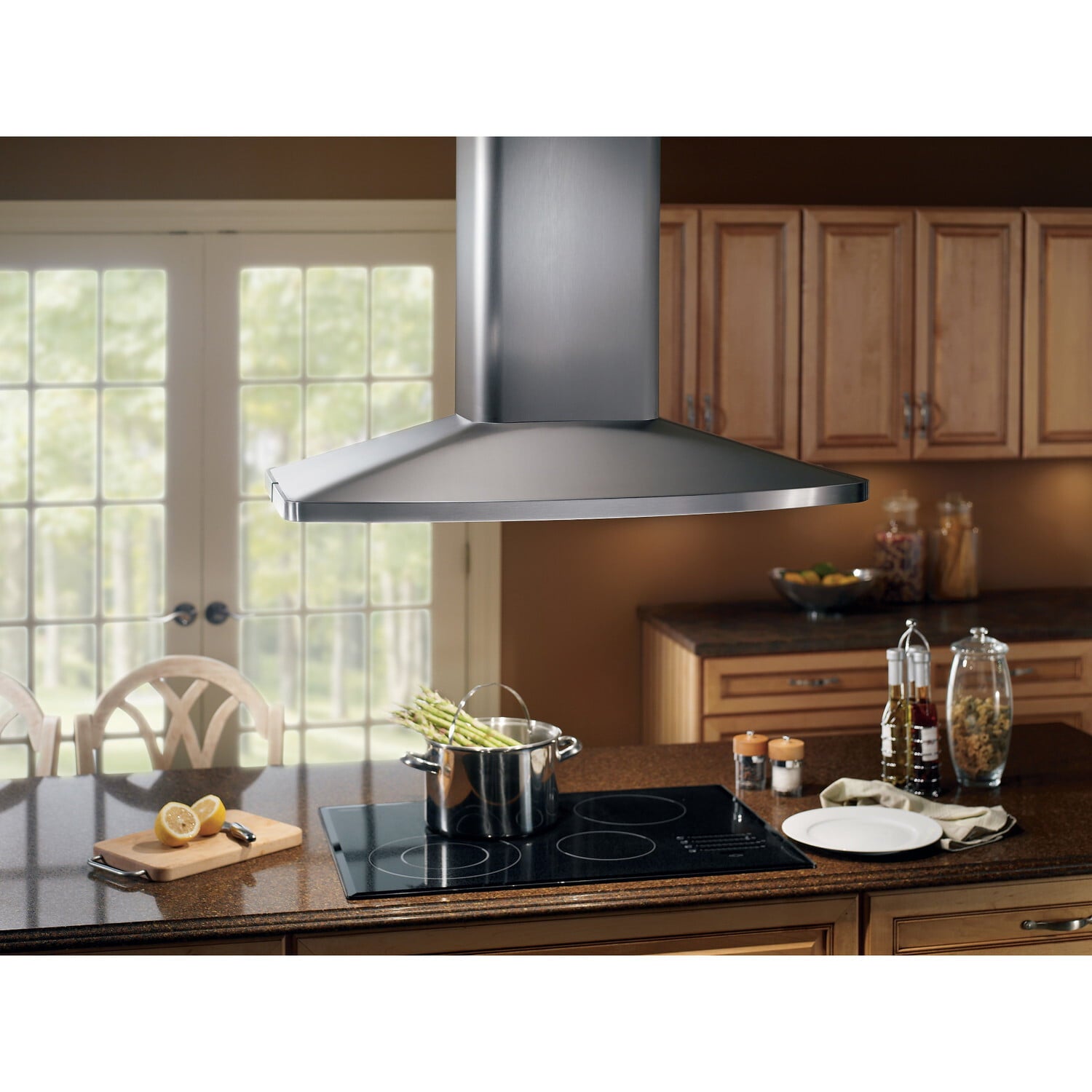

Elegant Symmetry From Every Angle. Graceful Curves And A Low-Profile Design Make This Island Hood At Home In Any DéCor.
- Multi-speed slide control allows you to choose the perfect speed to keep up with whatever you are cooking
- Four 20 watt halogen lights (included) provide unparalleled lighting over and around the cooktop
- Telescopic flue accommodates 8' to 9' ceilings -- optional flue extension available for ducted and non-ducted applications
- Internal blower delivers 480 CFM (less than 300 CFM when using reducer)
- Non-ducted kit for indoor recirculation (sold separately); order replacement filter to keep the kitchen fresh
- Heat Sentry(R) detects excessive heat and adjusts blower speed to High automatically to prolong product life
| Filter Type | Aluminum |
| Heat Sentry | No |
| HVI Certified | Yes |
| Lighting Type | Halogen |
| UL Listed | Yes |
| ADA Compliance | No |
| Damper Included | Yes |
| ENERGY STAR® certified | No |
| Light Bulb Wattage | 20 |
| Light Bulbs Included | Yes |
| Light Levels | 1 |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | 3 |
| Switch Control Type | Slide |
| Rated Voltage | 120 |
| Boost Mode | No |
| Color Finish | Stainless Steel |
| Rated Amps | 3.56 |

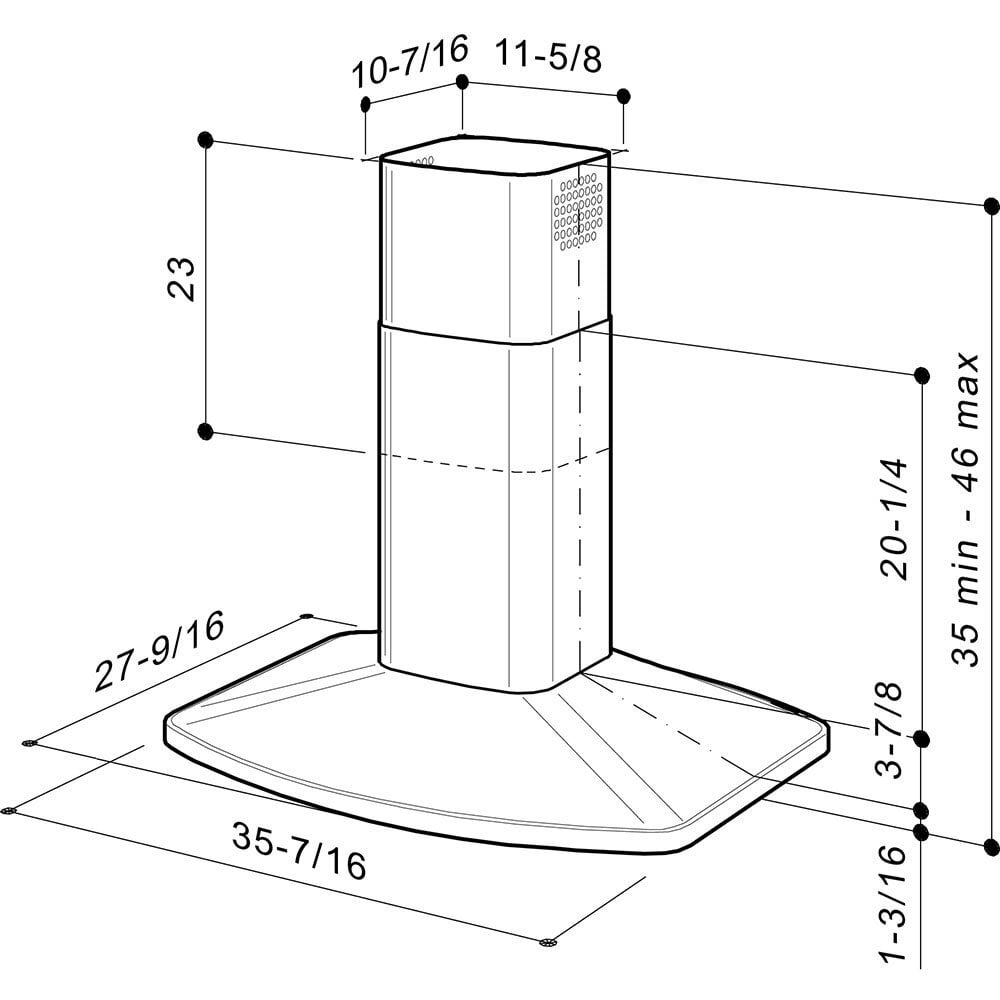

| Product Depth | 27.56 |
| Product Height | 35' |
| Product Width | 36' |
| Built-In Timer | No |
| CFM | 480 |
| Diameter | 6' Round |
| Vent Type | Convertible with Kit |
| Duct Direction | Vertical |
| Bulb (Recommended Type) | JC G4 |
| Manufacturer Warranty | 1 Year |
| Wattage | 427 |
