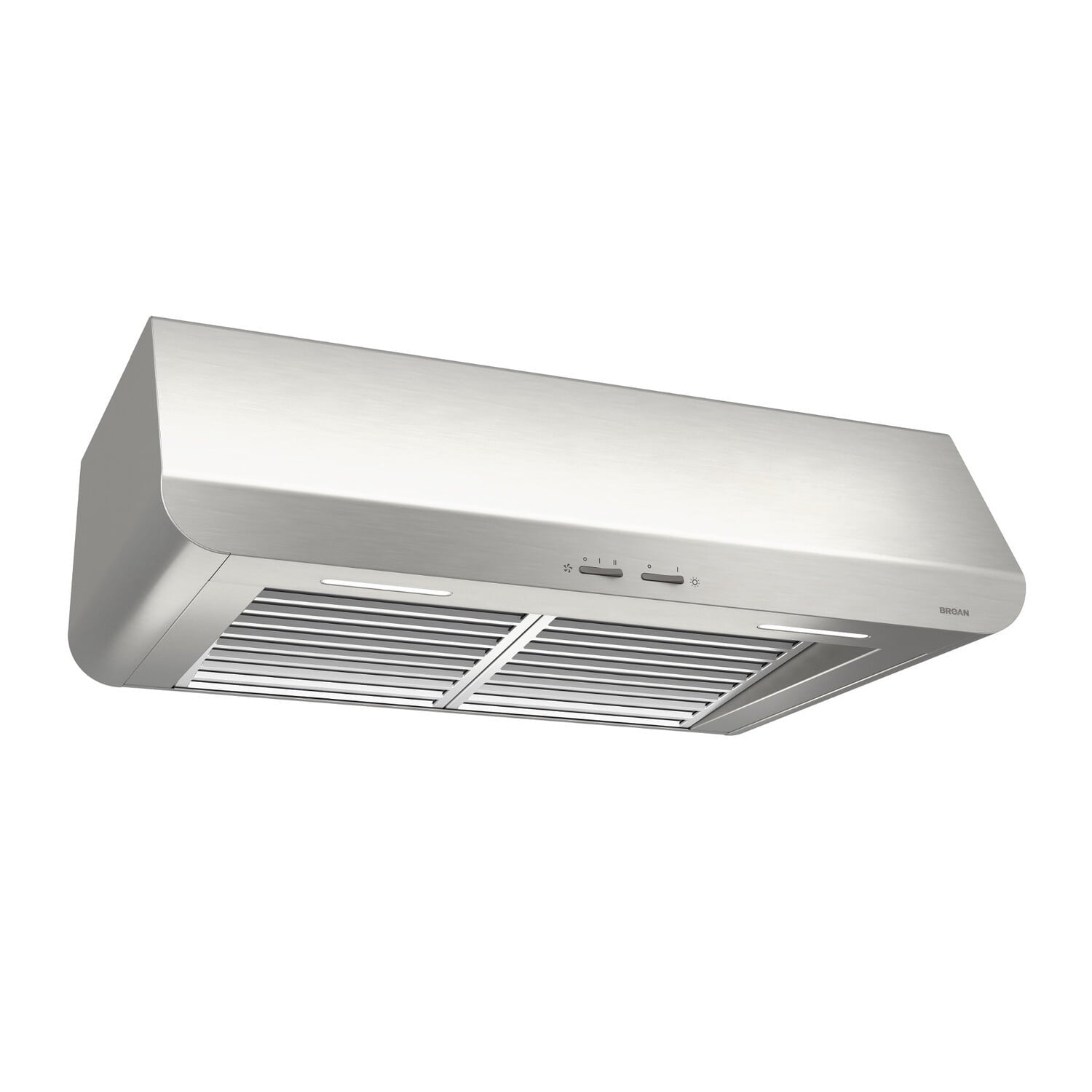

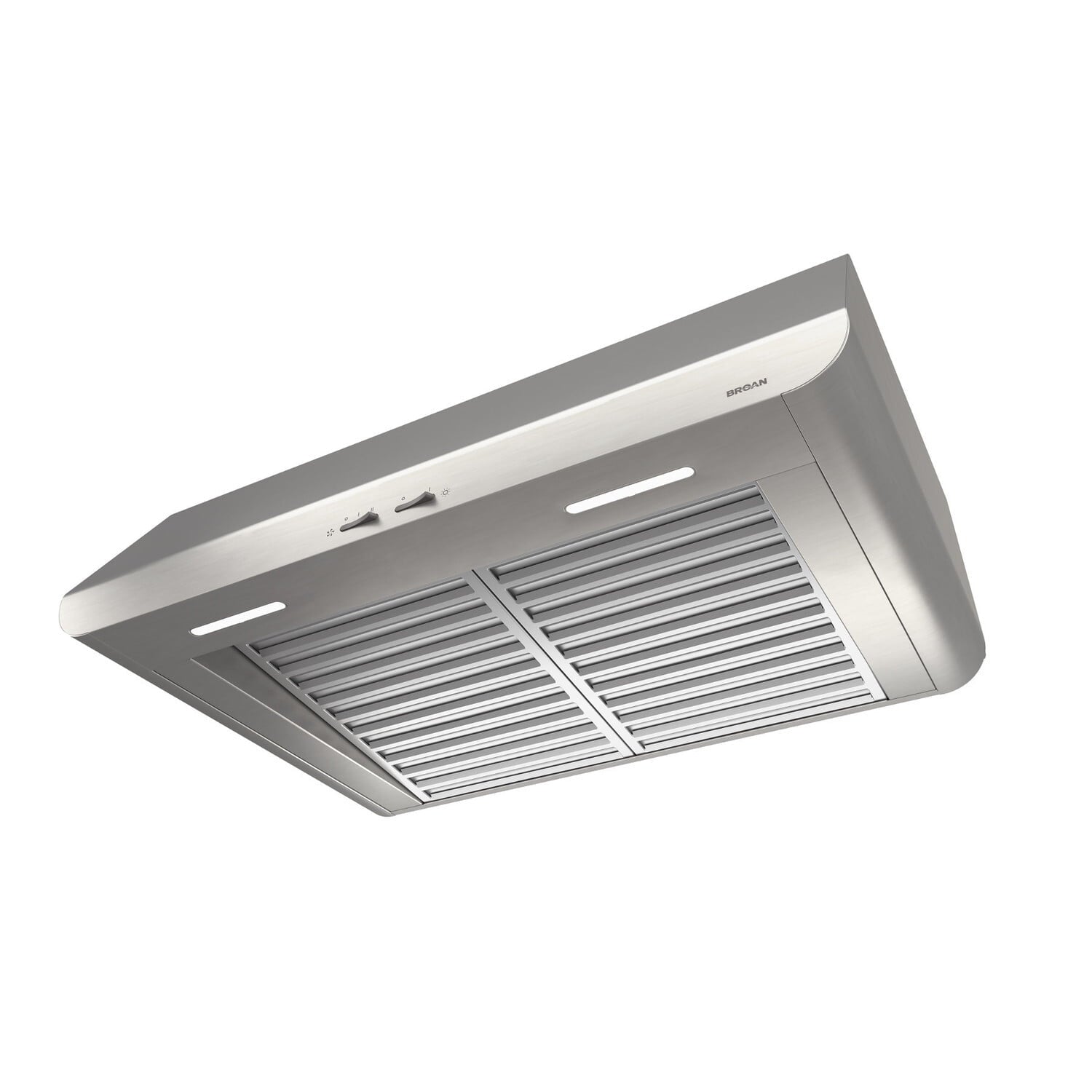

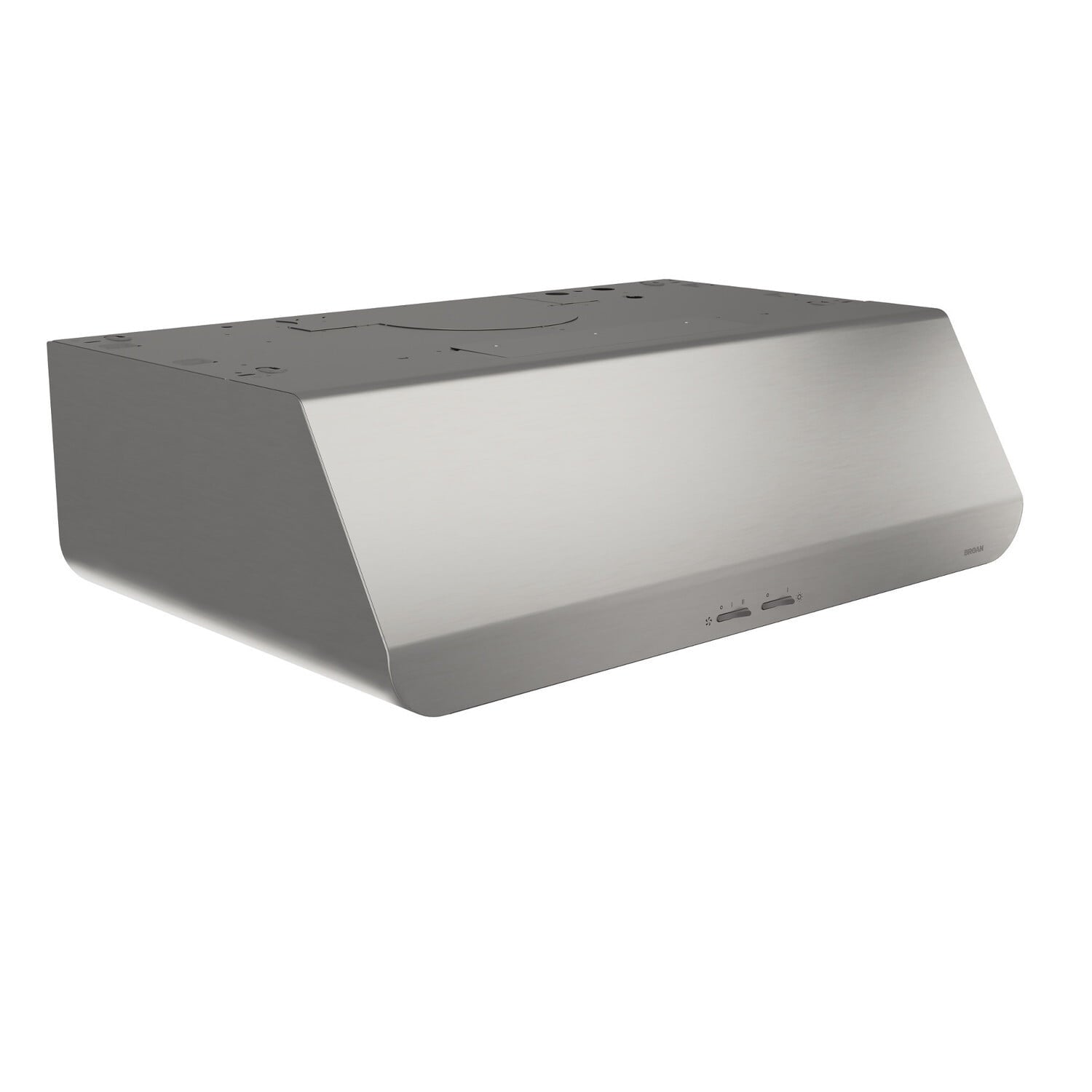

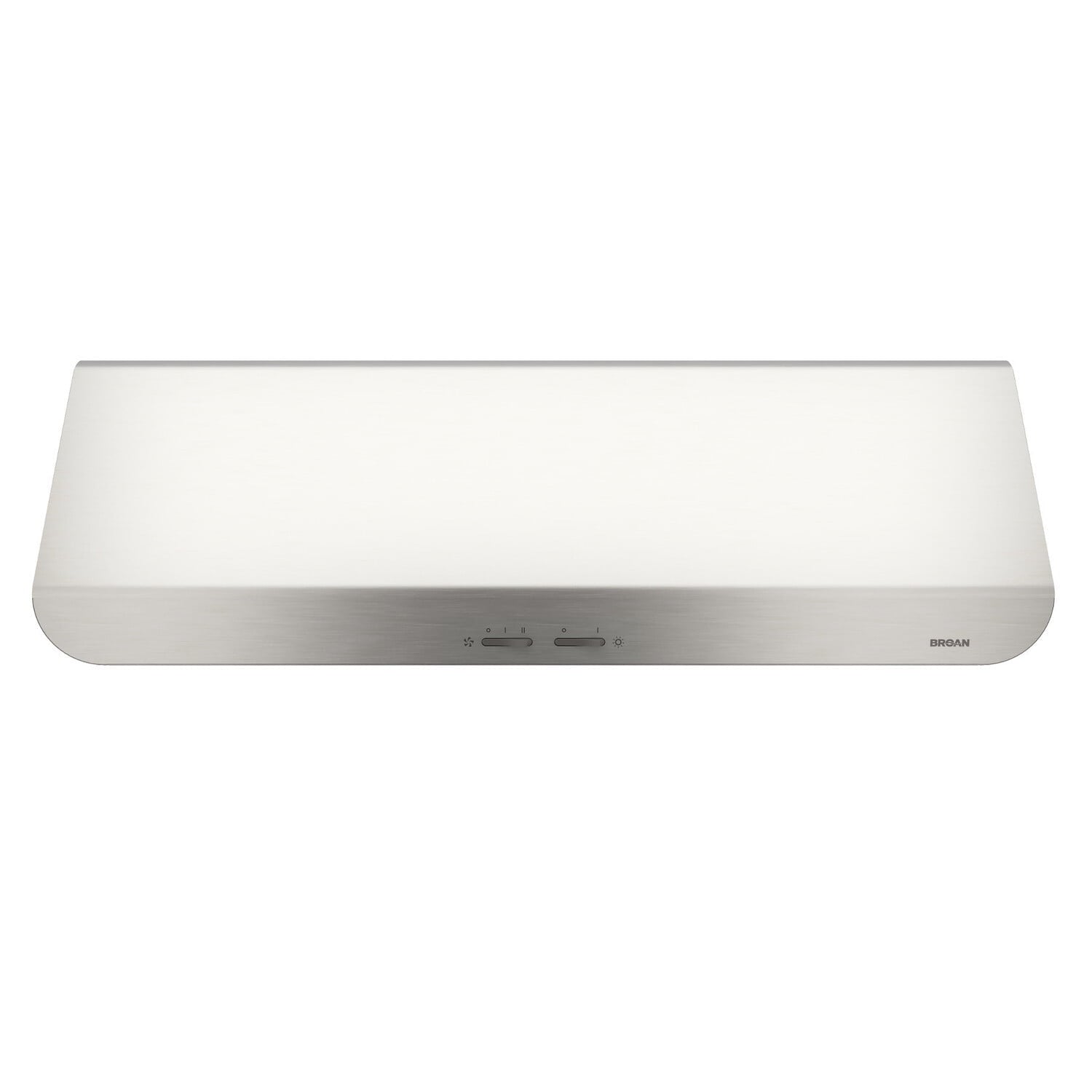

Broan BPDP148SS Broan® 48-Inch Convertible Under-Cabinet Range Hood, 400 Cfm, Stainless Steel
Broan Brings You Spire, An Exciting New Shape In A Pro-Style Hood. The New Design Incorporates M... Read more...
SKU:BPDP148SS
UPC:026715247929
Colors:
Stainless Steel
Broan Brings You Spire, An Exciting New Shape In A Pro-Style Hood. The New Design Incorporates Modern Features Like The Quiet Captur System And Led Lighting.
- EZ1 Installation System
- We watched countless installations as we set out to simplify and accellerate the process. The result is a two-bracket system that holds the hood for you while you make electrical and ducting connections. It's easy and fast - up to 50% less installation time.
- Superior Capture Over the Competition
- The Broan Captur exhaust ventilation system provides the fastest air flow management and filtration in its class for better performance, quieter operation and less energy use.
- Brilliant LED Lighting
- Energy-efficient LEDs provide bright, even lighting that will last many years without dimming. These LEDs are specially designed to withstand high heat cooking environments.
- Control. Just the Way You Want it.
- Streamlined, deluxe 2-speed rocker control operates light and fan speeds.
- Functional Filtration for Your Sense of Style
- Pro-style, dishwasher-safe, hybrid baffle filters provide ultra-efficient grease removal with superior air flow.
- EZ1 Installation System
- We watched countless installations as we set out to simplify and accellerate the process. The result is a two-bracket system that holds the hood for you while you make electrical and ducting connections. It's easy and fast - up to 50% less installation time.
- Superior Capture Over the Competition
- The Broan Captur exhaust ventilation system provides the fastest air flow management and filtration in its class for better performance, quieter operation and less energy use.
| Filter Type | Hybrid Baffle |
| Heat Sentry | No |
| HVI Certified | Yes |
| Lighting Type | LED |
| UL Listed | Yes |
| ADA Compliance | Yes |
| Damper Included | No |
| ENERGY STAR® certified | No |
| Light Bulb Wattage | 4.5 |
| Light Bulbs Included | Yes |
| Light Levels | 1 |
| Material | Steel |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | 2 |
| Switch Control Type | Deluxe Rocker |
| Rated Voltage | 120 |
| Boost Mode | No |
| Country of Origin | Mexico |
| Color Finish | Stainless Steel |
| Rated Amps | 1.4 |

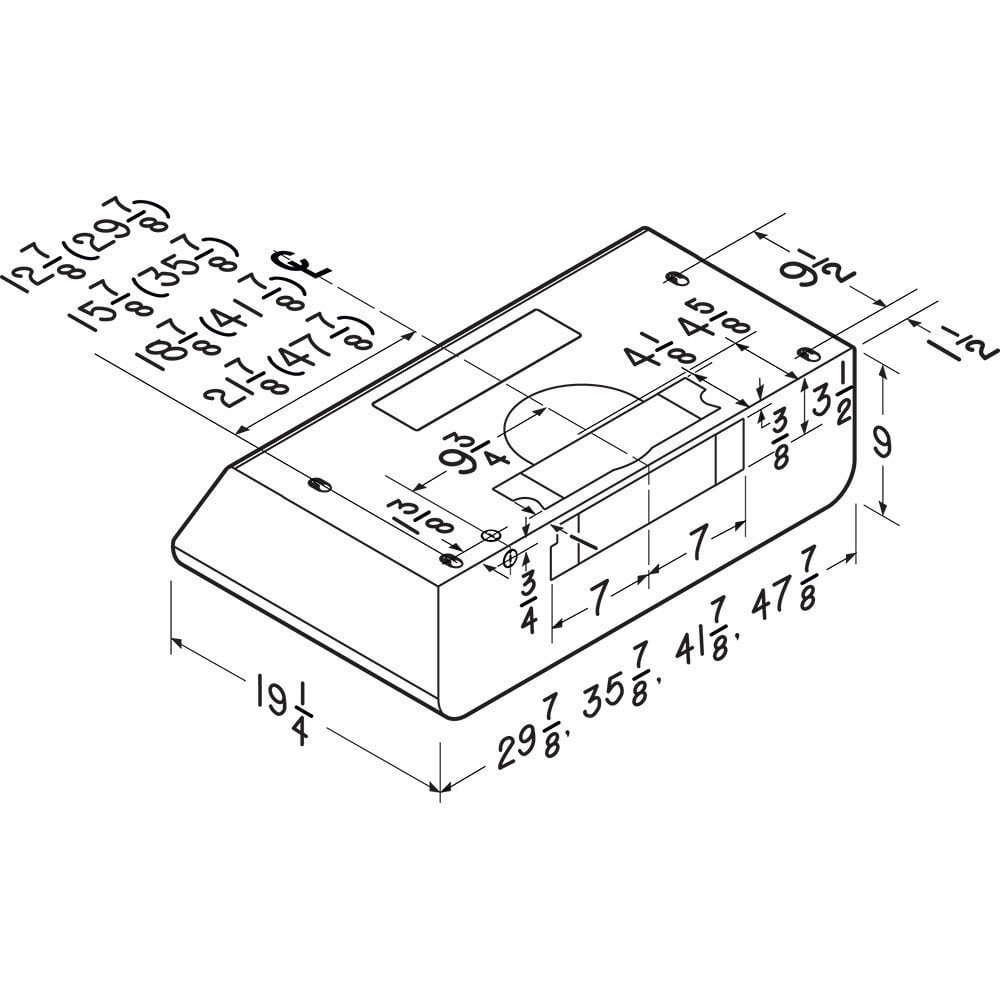

| Product Depth | 19.25' |
| Product Height | 9' |
| Product Width | 48' |
| Built-In Timer | No |
| Capture Efficiency | 98.5 |
| CFM | 400 |
| Diameter | 7' Round |
| Vent Type | Convertible Built-In |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | Integrated LED Module |
| Light Color Temp | 3000 |
| Manufacturer Warranty | 1 Year, 3 Year LED module |
| Wattage | 168 |
Broan EZ1 Installation System Features and Benefits
Broan Spire BPDP1 Twin Blower Under Cabinet Range Hood Installation
Captur Shadowgraph Broan
Cleaning a Range Hood Filter
Indoor Air Quality: Passions
Older Homes and Indoor Air Quality
Proper Use of a Range Hood
Proper Ventilation Equals a Healthy Home
Range Hoods Reinvented
Spire BPDP1 Family Range Hoods
Spot Ventilation Can Improve the Indoor Air Quality in Your Home
Description
Broan Brings You Spire, An Exciting New Shape In A Pro-Style Hood. The New Design Incorporates Modern Features Like The Quiet Captur System And Led Lighting.
Features
- The Captur system's advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Two-speed blower control exhausts at a strong 400 CFM
- Smooth-flow blower wheel design and high flow filters ensure quiet, less than 1.0 sones operation at normal speed
- Streamlined, deluxe rocker control operates light and fan speeds
- Pro-style, dishwasher-safe, hybrid baffle filters provide ultra-efficient grease removal with superior air flow
- EZ1 brackets make it easy for single-person installation in less than half the time of traditional methods
- ADA compliant, remote operation is possible using a standard UL approved wall switch
- Compatible with optional Broan Make-up Air Dampers (sold separately) to fit 6", 8" or 10" ducting and help to balance the air pressure when the range hood is in use, keeping your environment comfortable and meeting local codes
- Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
Specifications
| Filter Type | Hybrid Baffle |
| Heat Sentry | No |
| HVI Certified | Yes |
| Lighting Type | LED |
| UL Listed | Yes |
| ADA Compliance | Yes |
| Damper Included | No |
| ENERGY STAR® certified | No |
| Light Bulb Wattage | 4.5 |
| Light Bulbs Included | Yes |
| Light Levels | 1 |
| Material | Steel |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | 2 |
| Switch Control Type | Deluxe Rocker |
| Rated Voltage | 120 |
| Boost Mode | No |
| Country of Origin | Mexico |
| Color Finish | Stainless Steel |
| Rated Amps | 1.4 |
| Product Depth | 19.25' |
| Product Height | 9' |
| Product Width | 48' |
| Built-In Timer | No |
| Capture Efficiency | 98.5 |
| CFM | 400 |
| Diameter | 7' Round |
| Vent Type | Convertible Built-In |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | Integrated LED Module |
| Light Color Temp | 3000 |
| Manufacturer Warranty | 1 Year, 3 Year LED module |
| Wattage | 168 |
