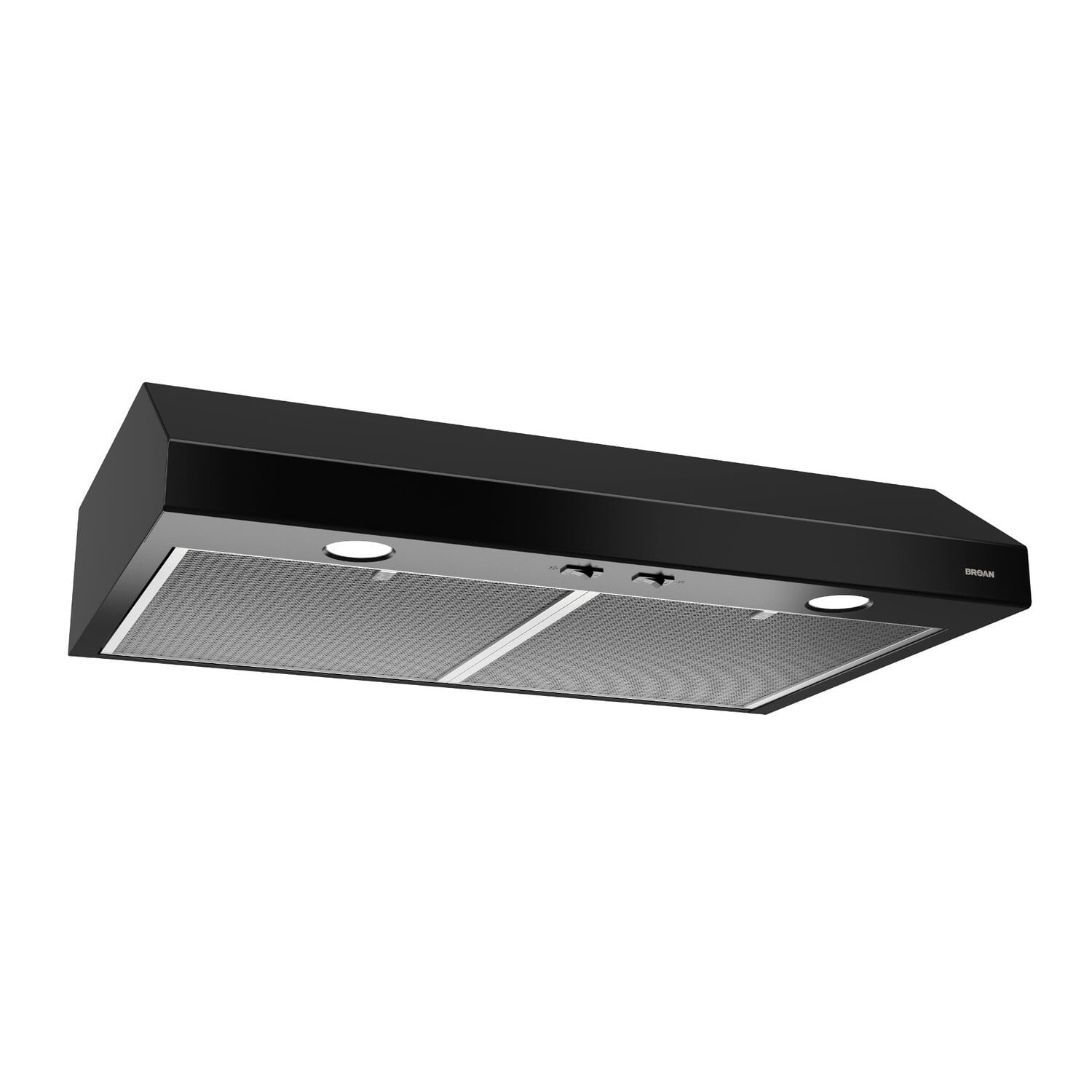

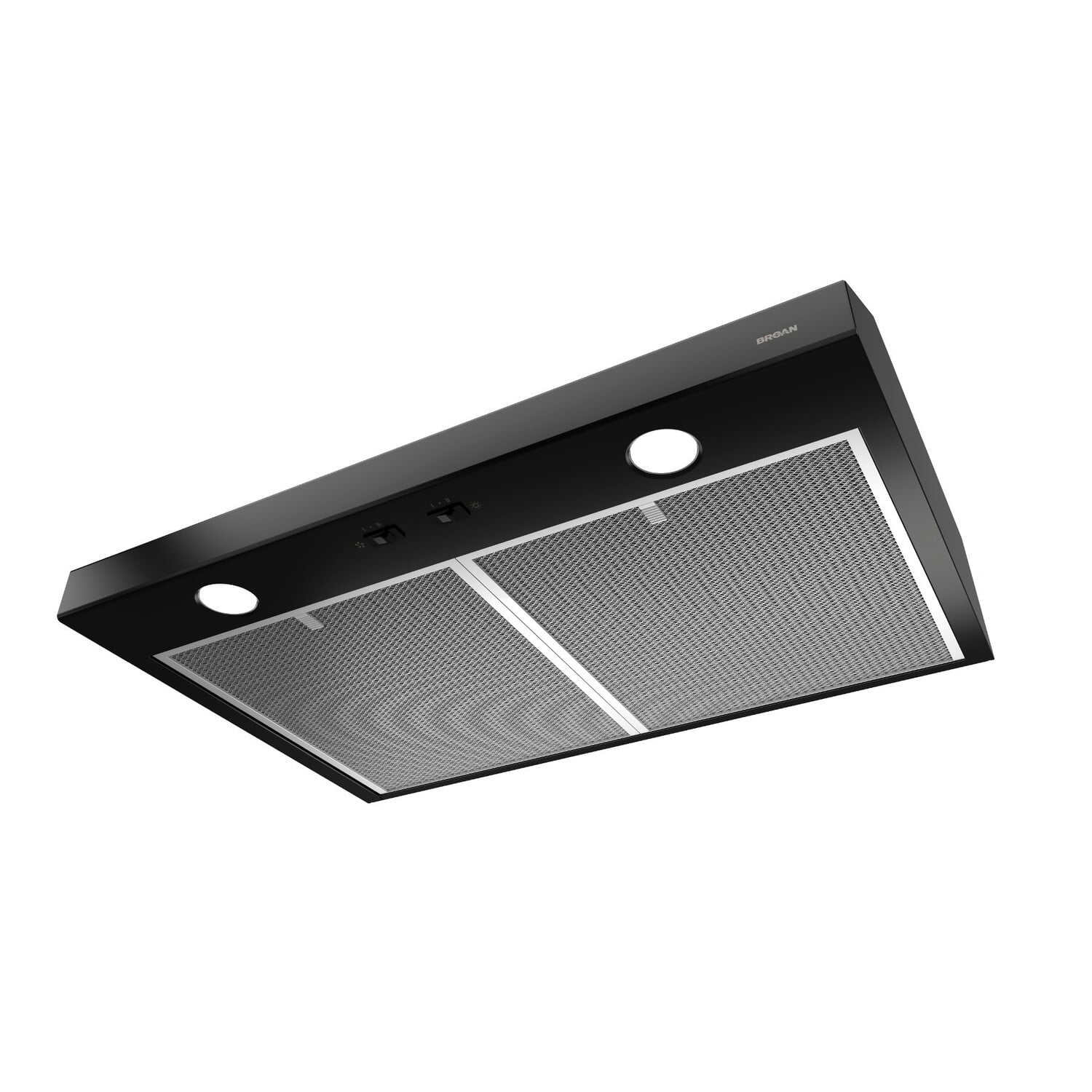

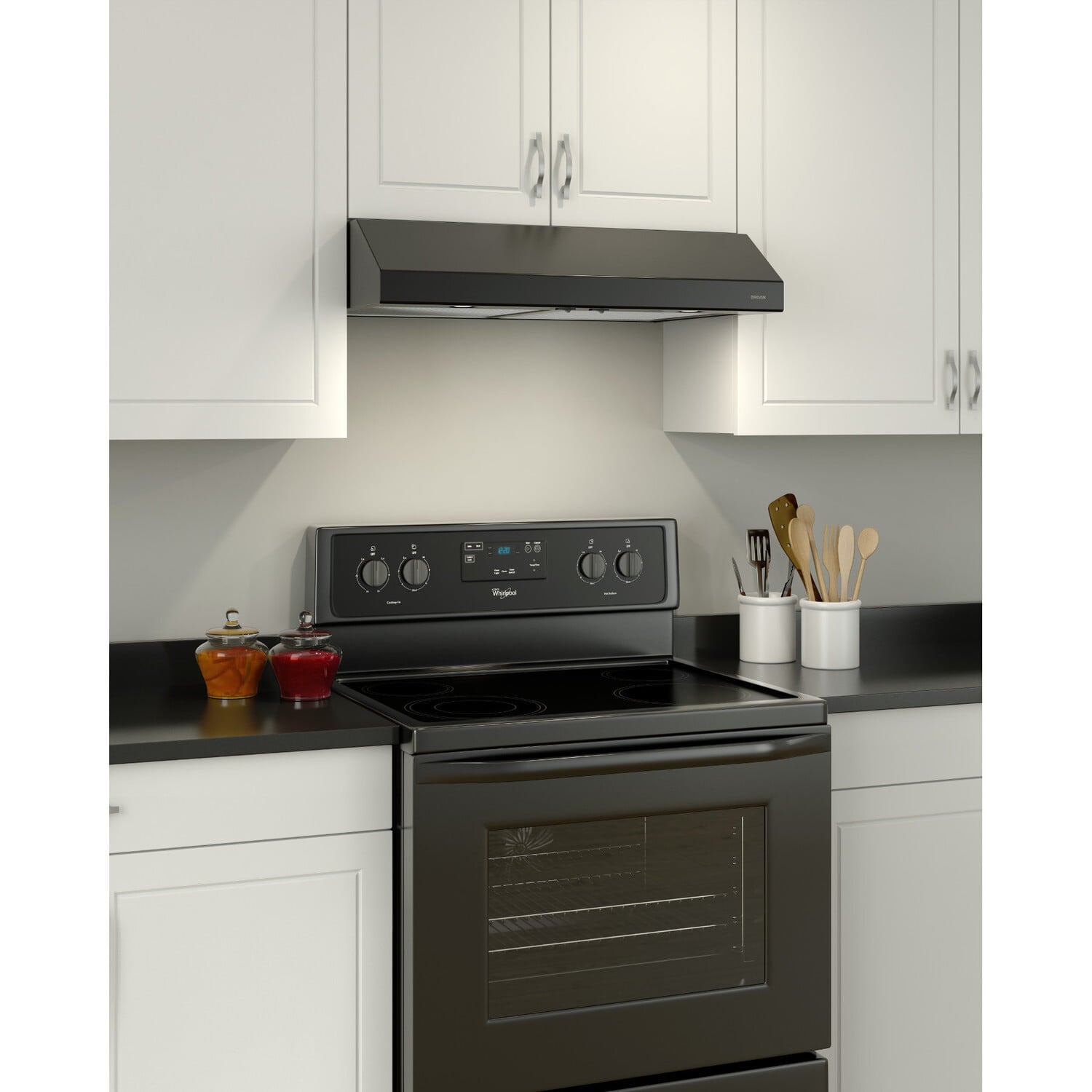

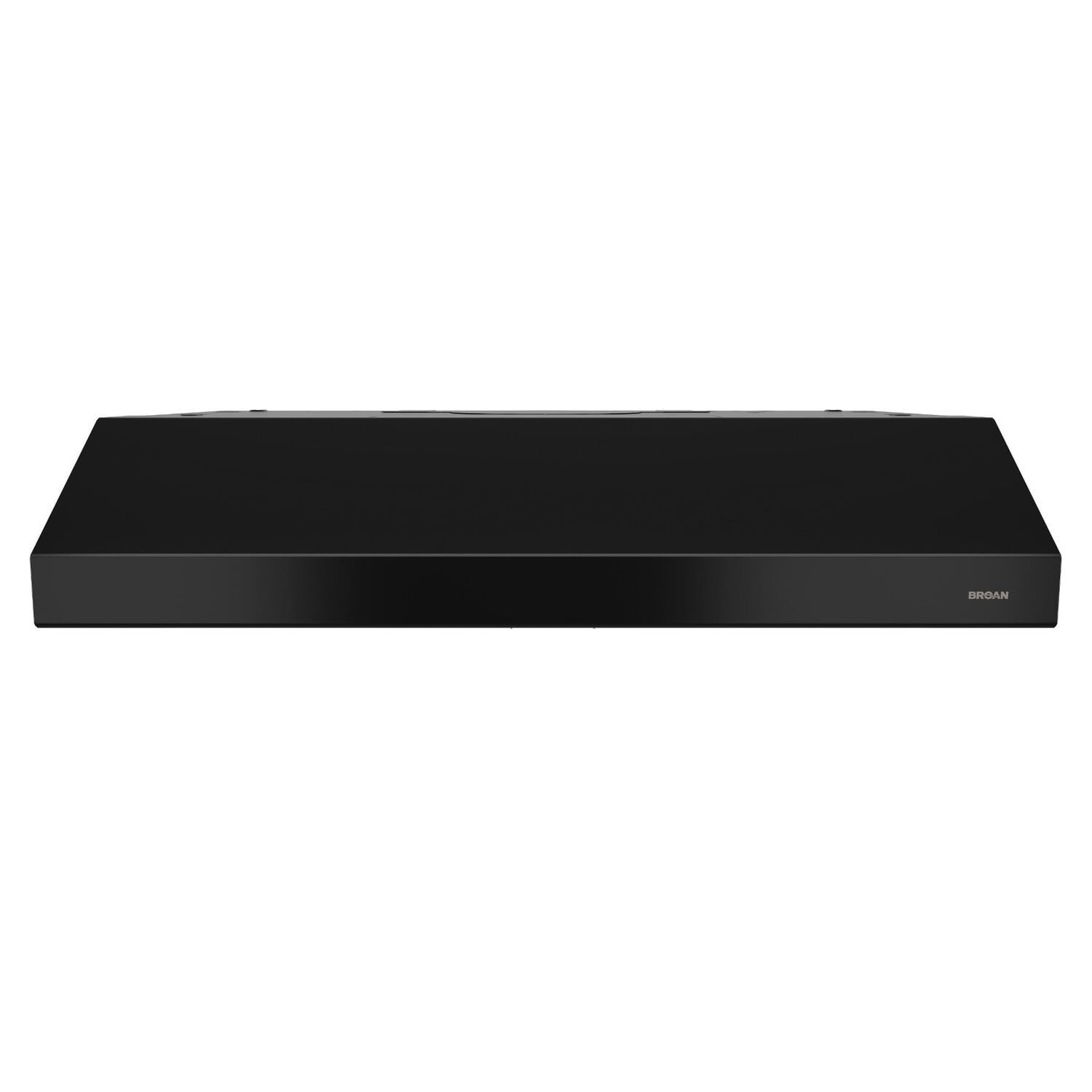

Glacier Bcsd1 Is A 42 In. Under-Cabinet Convertible Range Hood In Black Finish That Features A Clean, Contemporary Shape To Complement Nearly Any Kitchen Design. Equipped With The Exclusive Broan Captur System, Which Combines Advanced Blower Design With New Filter Technology, This 250 Cfm-Rated Hood Provides 97.4% Removal Of Smoke And Odor To Protect Your Home And Family From Airborne Pollutants Caused From Cooking. The Quiet-Running Glacier Is Also Designed With Smooth Flow Technology, Which Streamlines The Path Of Air For Improved Efficiency And Noise Reduction. Easy-Flip Rocker Switches Control The 2 Fan Speeds And Halogen Lighting System. Using The Included Ez1 System, Glacier Can Easily Be Installed By One Person In Up To Half The Time Of A Standard Install.
- EZ1 Installation System
- We watched countless installations as we set out to simplify and accellerate the process. The result is a two-bracket system that holds the hood for you while you make electrical and ducting connections. It's easy and fast - up to 50% less installation time.
- Superior Capture Over the Competition
- The Broan Captur exhaust ventilation system provides the fastest air flow management and filtration in its class for better performance, quieter operation and less energy use.
- Bright Halogen Lighting
- The warm glow of powerful, multi-level halogen lighting provides full illumination over and around cooktop areas.
- Control. Just the Way You Want it.
- Hidden on/off rocker switches control blower speeds and light levels.
- Functional Filtration for Your Sense of Style
- Dual dishwasher-safe, open-mesh filters provide efficient grease removal and can be installed without tools.
- EZ1 Installation System
- We watched countless installations as we set out to simplify and accellerate the process. The result is a two-bracket system that holds the hood for you while you make electrical and ducting connections. It's easy and fast - up to 50% less installation time.
- Superior Capture Over the Competition
- The Broan Captur exhaust ventilation system provides the fastest air flow management and filtration in its class for better performance, quieter operation and less energy use.
| Filter Type | Open Mesh |
| Heat Sentry | No |
| HVI Certified | Yes |
| Lighting Type | Halogen |
| UL Listed | Yes |
| ADA Compliance | Yes |
| Damper Included | No |
| ENERGY STAR® certified | No |
| Light Bulb Wattage | 50 |
| Light Bulbs Included | No |
| Light Levels | 2 |
| Material | Steel |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | 2 |
| Switch Control Type | Rocker |
| Rated Voltage | 120 |
| Boost Mode | No |
| Country of Origin | Mexico |
| Color Finish | Black |
| Rated Amps | 1.4 |
| Product Depth | 19.625 |
| Product Height | 6' |
| Product Width | 42' |
| Built-In Timer | No |
| Capture Efficiency | 97.4 |
| CFM | 250 |
| Diameter | 7' Round |
| Vent Type | Convertible Built-In |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | GU10 MR16 |
| Manufacturer Warranty | 1 Year |
| Wattage | 168 |
Broan EZ1 Installation System Features and Benefits
Broan Glacier BCSD1, BCSEK1, BCDF1 Single Blower Under-Cabinet Range Hood Installation
Captur Shadowgraph Broan
Cleaning a Range Hood Filter
Glacier BCDF1, BCDJ1 & BCSD1 Family Range Hoods
Indoor Air Quality: Passions
Older Homes and Indoor Air Quality
Proper Use of a Range Hood
Proper Ventilation Equals a Healthy Home
Range Hoods Reinvented
Spot Ventilation Can Improve the Indoor Air Quality in Your Home
Description
Glacier Bcsd1 Is A 42 In. Under-Cabinet Convertible Range Hood In Black Finish That Features A Clean, Contemporary Shape To Complement Nearly Any Kitchen Design. Equipped With The Exclusive Broan Captur System, Which Combines Advanced Blower Design With New Filter Technology, This 250 Cfm-Rated Hood Provides 97.4% Removal Of Smoke And Odor To Protect Your Home And Family From Airborne Pollutants Caused From Cooking. The Quiet-Running Glacier Is Also Designed With Smooth Flow Technology, Which Streamlines The Path Of Air For Improved Efficiency And Noise Reduction. Easy-Flip Rocker Switches Control The 2 Fan Speeds And Halogen Lighting System. Using The Included Ez1 System, Glacier Can Easily Be Installed By One Person In Up To Half The Time Of A Standard Install.
Features
- Clean lines and contemporary style in an under-cabinet convertible range hood that will complement nearly any kitchen
- Hidden rocker switches adjust fan speed and lighting levels
- Captur exhaust system and 250 CFM blower is 97.4% efficient in removal of smoke and odor from cooking
- Convertible to accommodate either top or rear venting applications or non-ducted operation using charcoal filters, which are sold separately (Filter Model HFP42)
- 2 dishwasher-safe open mesh filters feature advanced high-flow technology to grab more airborne grease
- 2-halogen bulbs (purchase separately) provide warm light over the cooking surface, adjustable to high or low levels
- 1-year limited manufacturer's warranty
- EZ1 system enables easy single-person installation in up to half the time of traditional methods
Specifications
| Filter Type | Open Mesh |
| Heat Sentry | No |
| HVI Certified | Yes |
| Lighting Type | Halogen |
| UL Listed | Yes |
| ADA Compliance | Yes |
| Damper Included | No |
| ENERGY STAR® certified | No |
| Light Bulb Wattage | 50 |
| Light Bulbs Included | No |
| Light Levels | 2 |
| Material | Steel |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | 2 |
| Switch Control Type | Rocker |
| Rated Voltage | 120 |
| Boost Mode | No |
| Country of Origin | Mexico |
| Color Finish | Black |
| Rated Amps | 1.4 |

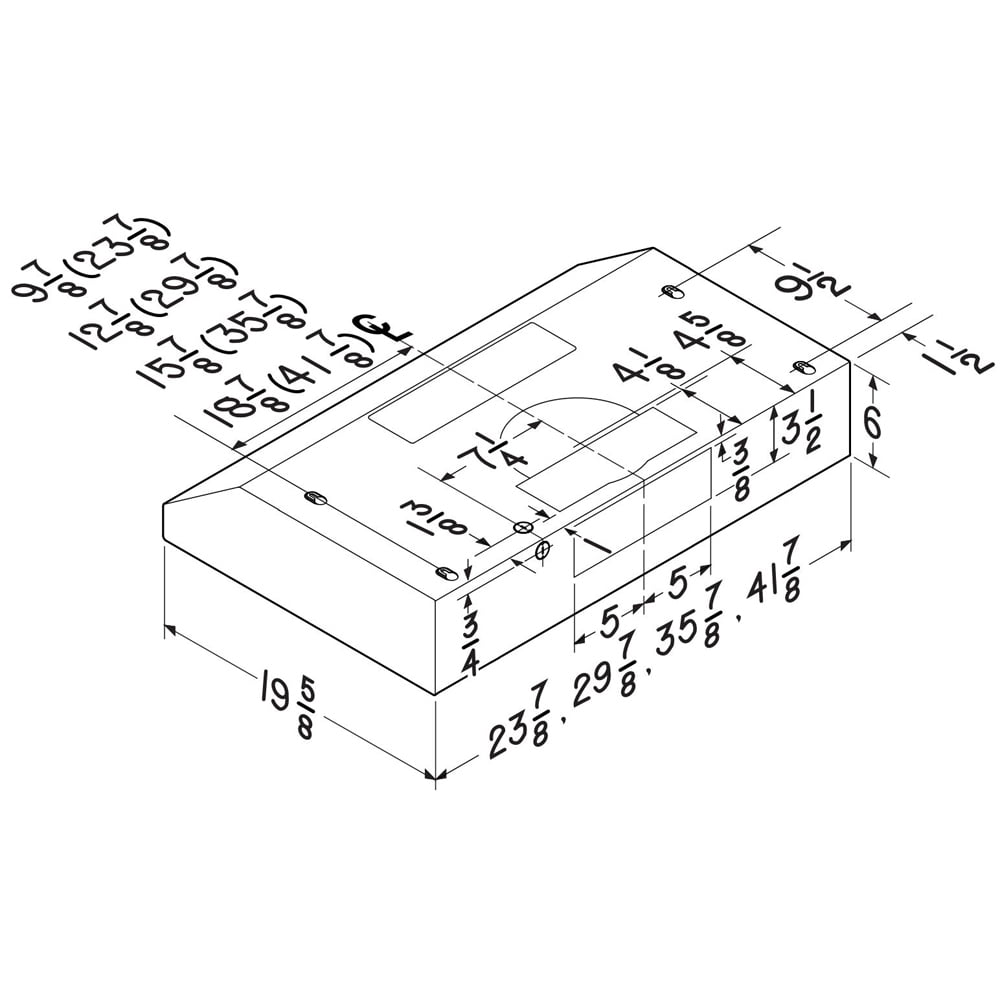

| Product Depth | 19.625 |
| Product Height | 6' |
| Product Width | 42' |
| Built-In Timer | No |
| Capture Efficiency | 97.4 |
| CFM | 250 |
| Diameter | 7' Round |
| Vent Type | Convertible Built-In |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | GU10 MR16 |
| Manufacturer Warranty | 1 Year |
| Wattage | 168 |
