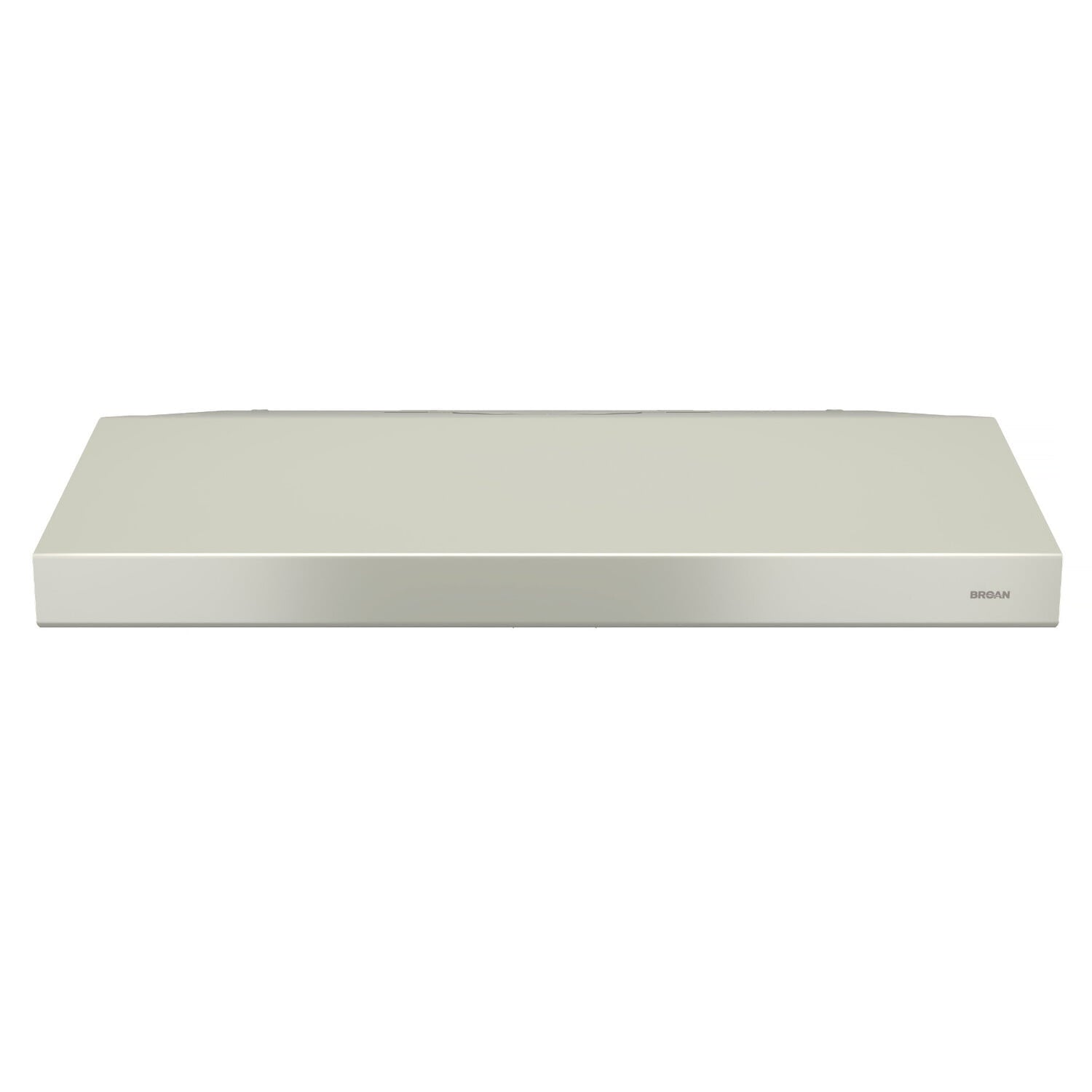

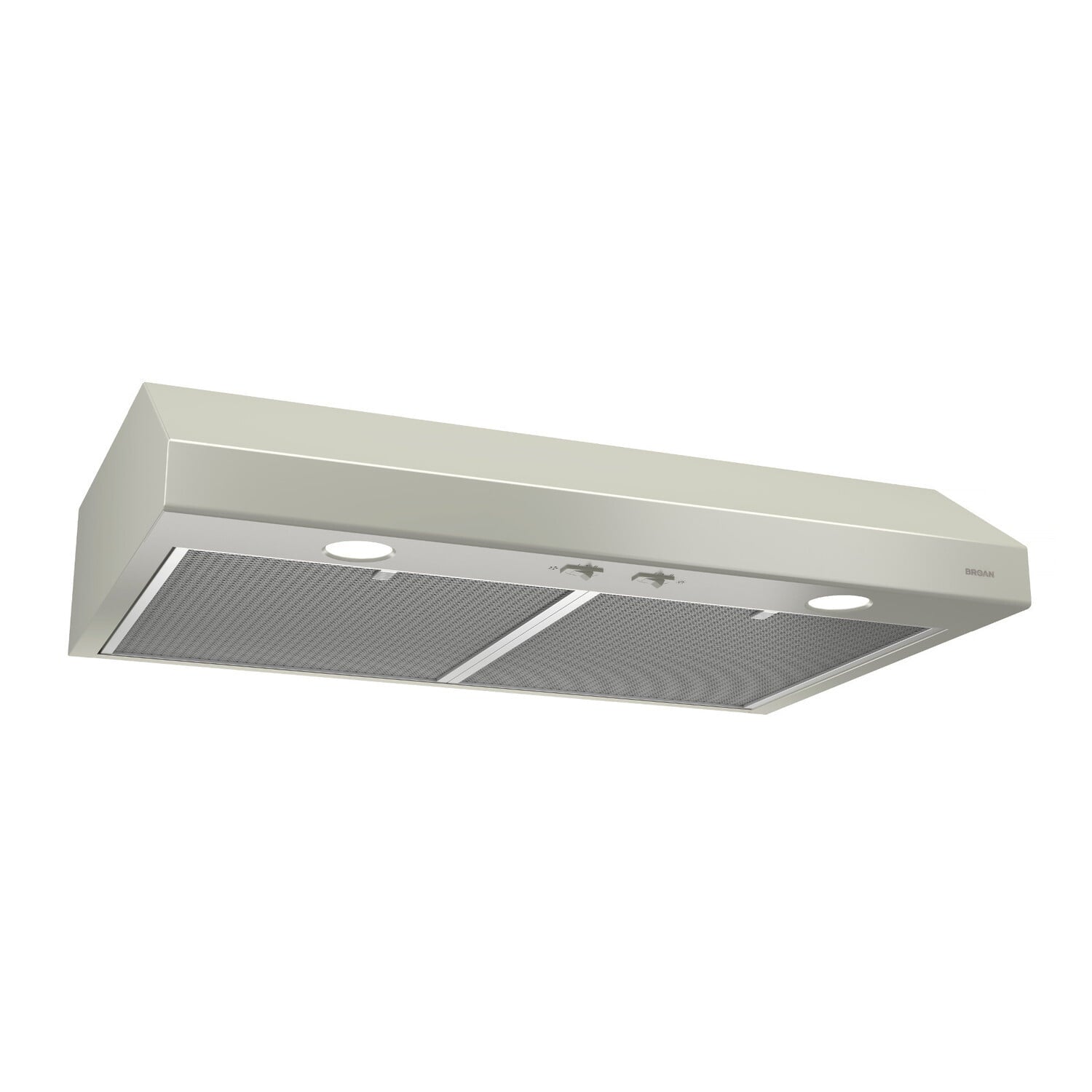

  • Broan BCSD130BC Broan® 30-Inch Convertible Under-Cabinet Range Hood, Bisque

    Glacier Bcsd1 Is A 30 In. Under-Cabinet Convertible Range Hood In Bisque Finish That Features A ... Read moreRead more...

    Colors:

    Click to Call

    To order or learn more please call us at: 800-288-1647

    Extended protection

    3 year plan

    $76.99 $96.99

    5 year plan

    $158.99 $198.99

    Extended Protection

    Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.

    This Protection Plan includes:

    - Full parts and labor coverage during the whole period of the extension plan.
    - Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
    - Food loss protection (click here for details)
    - 24/7 toll-free number for support (1-877-879-6395)

    Additional Services
  • Where will services be needed?

    When Will I Get My Order?
    Glacier Bcsd1 Is A 30 In. Under-Cabinet Convertible Range Hood In Bisque Finish That Features A Clean, Contemporary Shape To Complement Nearly Any Kitchen Design. Equipped With The Exclusive Broan Captur System, Which Combines Advanced Blower Design With New Filter Technology, This 250 Cfm-Rated Hood Provides 97.4% Removal Of Smoke And Odor To Protect Your Home And Family From Airborne Pollutants Caused From Cooking. The Quiet-Running Glacier Is Also Designed With Smooth Flow Technology, Which Streamlines The Path Of Air For Improved Efficiency And Noise Reduction. Easy-Flip Rocker Switches Control The 2 Fan Speeds And Halogen Lighting System. Using The Included Ez1 System, Glacier Can Easily Be Installed By One Person In Up To Half The Time Of A Standard Install.
    • EZ1 Installation System
    • We watched countless installations as we set out to simplify and accellerate the process. The result is a two-bracket system that holds the hood for you while you make electrical and ducting connections. It's easy and fast - up to 50% less installation time.
    • Superior Capture Over the Competition
    • The Broan Captur exhaust ventilation system provides the fastest air flow management and filtration in its class for better performance, quieter operation and less energy use.
    • Bright Halogen Lighting
    • The warm glow of powerful, multi-level halogen lighting provides full illumination over and around cooktop areas.
    • Control. Just the Way You Want it.
    • Hidden on/off rocker switches control blower speeds and light levels.
    • Functional Filtration for Your Sense of Style
    • Dual dishwasher-safe, open-mesh filters provide efficient grease removal and can be installed without tools.
    • EZ1 Installation System
    • We watched countless installations as we set out to simplify and accellerate the process. The result is a two-bracket system that holds the hood for you while you make electrical and ducting connections. It's easy and fast - up to 50% less installation time.
    • Superior Capture Over the Competition
    • The Broan Captur exhaust ventilation system provides the fastest air flow management and filtration in its class for better performance, quieter operation and less energy use.

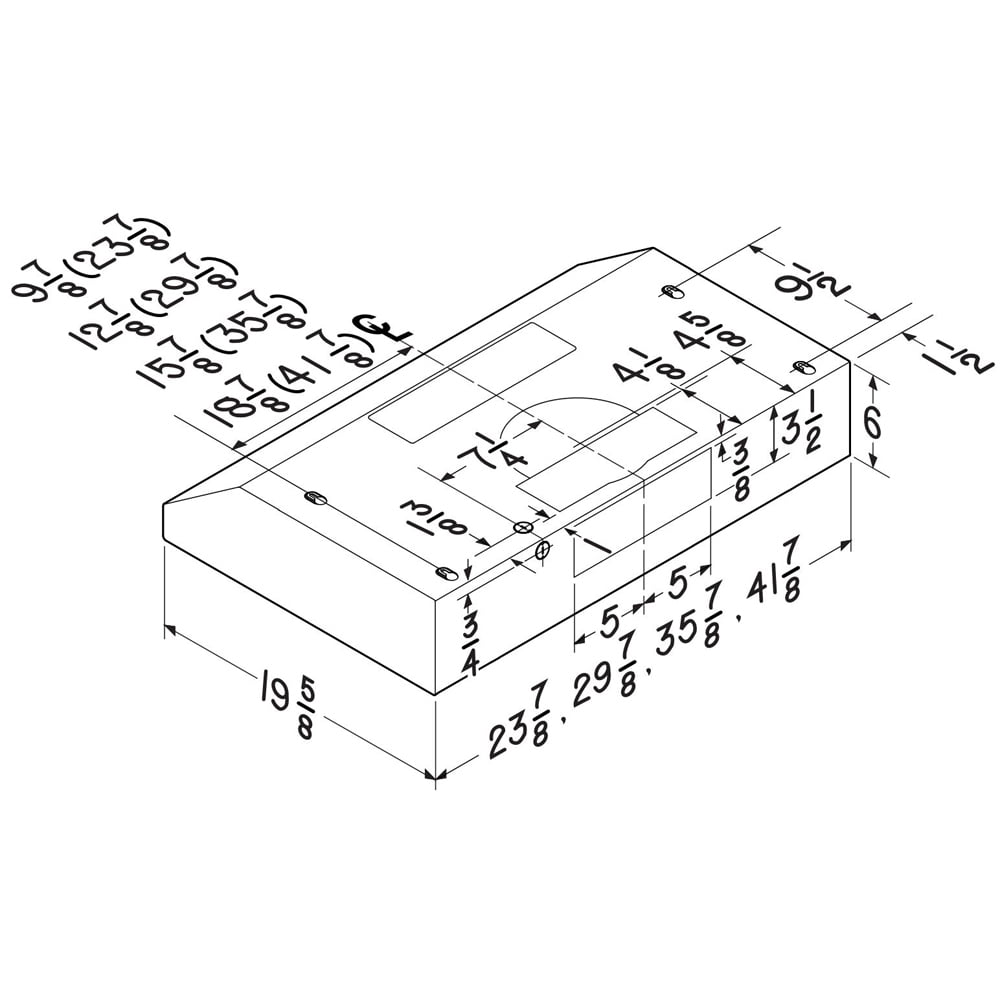

    Dimensions

    width

    29.875"

    height

    6"

    depth

    19 5/8"
    Filter Type Open Mesh
    Heat Sentry No
    HVI Certified Yes
    Lighting Type Halogen
    UL Listed Yes
    ADA Compliance Yes
    Damper Included No
    ENERGY STAR® certified No
    Light Bulb Wattage 50
    Light Bulbs Included No
    Light Levels 2
    Material Steel
    Nightlight Or Nighlight Setting No
    Ductless Recirculation Capable Yes
    Ductless Filter Or Kit Included No
    Remote Operation Capable No
    Speed Levels 2
    Switch Control Type Rocker
    Rated Voltage 120
    Boost Mode No
    Country of Origin Mexico
    Color Finish Bisque
    Rated Amps 1.4
    Product Depth 19.625
    Product Height 6'
    Product Width 30'
    Built-In Timer No
    Capture Efficiency 97.4
    CFM 250
    Diameter 7' Round
    Vent Type Convertible Built-In
    Duct Direction Horizontal/Vertical
    Bulb (Recommended Type) GU10 MR16
    Manufacturer Warranty 1 Year
    Wattage 168

    Broan EZ1 Installation System Features and Benefits

    Broan Glacier BCSD1, BCSEK1, BCDF1 Single Blower Under-Cabinet Range Hood Installation

    Captur Shadowgraph Broan

    Cleaning a Range Hood Filter

    Glacier BCDF1, BCDJ1 & BCSD1 Family Range Hoods

    Indoor Air Quality: Passions

    Older Homes and Indoor Air Quality

    Proper Use of a Range Hood

    Proper Ventilation Equals a Healthy Home

    Range Hoods Reinvented

    Spot Ventilation Can Improve the Indoor Air Quality in Your Home

    Description

    Glacier Bcsd1 Is A 30 In. Under-Cabinet Convertible Range Hood In Bisque Finish That Features A Clean, Contemporary Shape To Complement Nearly Any Kitchen Design. Equipped With The Exclusive Broan Captur System, Which Combines Advanced Blower Design With New Filter Technology, This 250 Cfm-Rated Hood Provides 97.4% Removal Of Smoke And Odor To Protect Your Home And Family From Airborne Pollutants Caused From Cooking. The Quiet-Running Glacier Is Also Designed With Smooth Flow Technology, Which Streamlines The Path Of Air For Improved Efficiency And Noise Reduction. Easy-Flip Rocker Switches Control The 2 Fan Speeds And Halogen Lighting System. Using The Included Ez1 System, Glacier Can Easily Be Installed By One Person In Up To Half The Time Of A Standard Install.

    Features

    • Clean lines and contemporary style in an under-cabinet convertible range hood that will complement nearly any kitchen
    • Hidden rocker switches adjust fan speed and lighting levels
    • Captur exhaust system and 250 CFM blower is 97.4% efficient in removal of smoke and odor from cooking
    • Convertible to accommodate either top or rear venting applications or non-ducted operation using charcoal filters, which are sold separately (Filter Model HPF30)

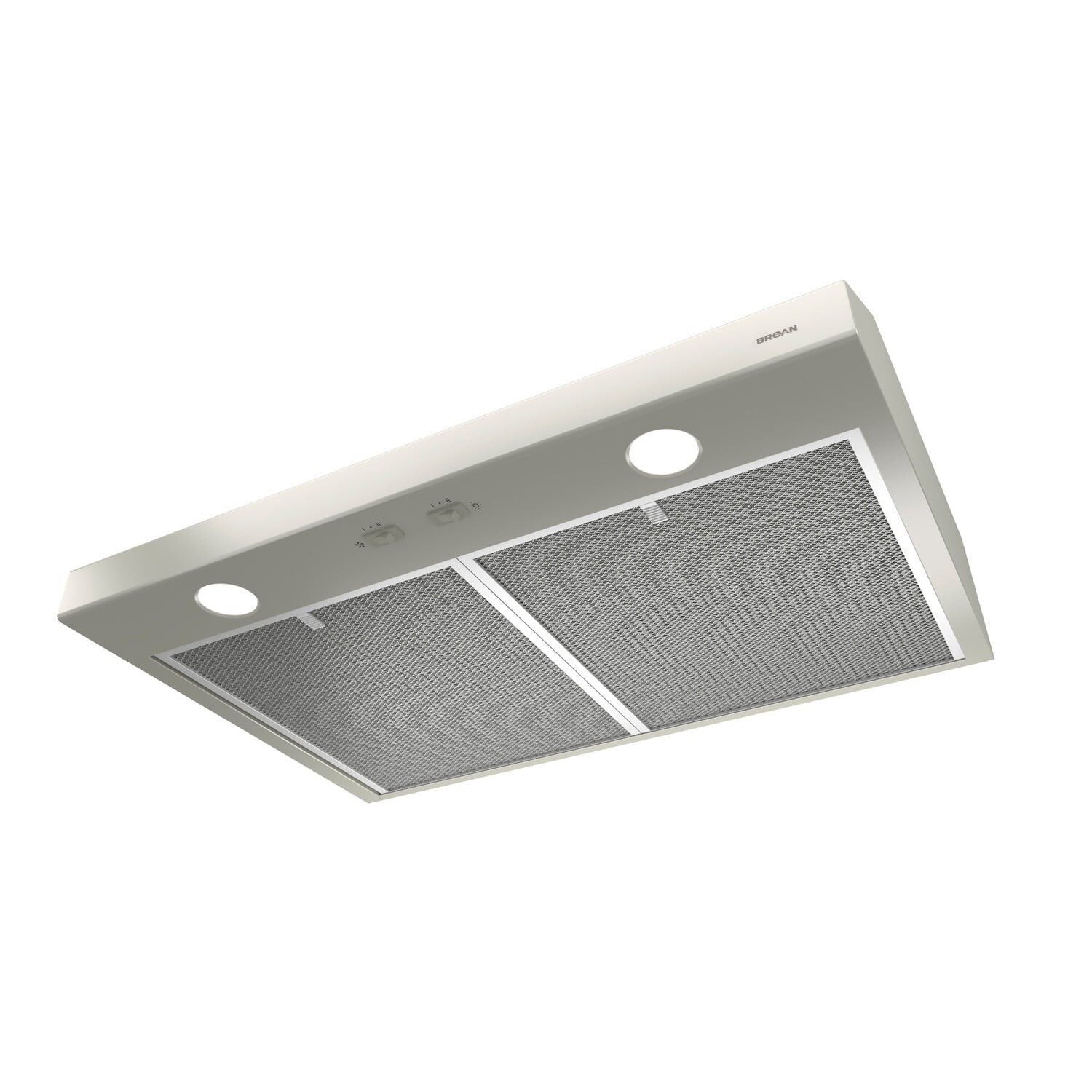

    • 2 dishwasher-safe open mesh filters feature advanced high-flow technology to grab more airborne grease
    • 2-halogen bulbs (purchase separately) provide warm light over the cooking surface, adjustable to high or low levels
    • 1-year limited manufacturer's warranty
    • EZ1 system enables easy single-person installation in up to half the time of traditional methods

    Specifications

    Filter Type Open Mesh
    Heat Sentry No
    HVI Certified Yes
    Lighting Type Halogen
    UL Listed Yes
    ADA Compliance Yes
    Damper Included No
    ENERGY STAR® certified No
    Light Bulb Wattage 50
    Light Bulbs Included No
    Light Levels 2
    Material Steel
    Nightlight Or Nighlight Setting No
    Ductless Recirculation Capable Yes
    Ductless Filter Or Kit Included No
    Remote Operation Capable No
    Speed Levels 2
    Switch Control Type Rocker
    Rated Voltage 120
    Boost Mode No
    Country of Origin Mexico
    Color Finish Bisque
    Rated Amps 1.4
    Product Depth 19.625
    Product Height 6'
    Product Width 30'
    Built-In Timer No
    Capture Efficiency 97.4
    CFM 250
    Diameter 7' Round
    Vent Type Convertible Built-In
    Duct Direction Horizontal/Vertical
    Bulb (Recommended Type) GU10 MR16
    Manufacturer Warranty 1 Year
    Wattage 168
