> Broan BCDJ130WH Broan® 30-Inch Convertible Under-Cabinet Range Hood W/ Heat Sentry®, 400 Cfm, White
The Luxury Of An Lcd Display And Deluxe Micro-Mesh Filters Will Make Any Meal Preparation Delightful. And, The Glacier Range Hood'S Contemporary Shape Complements Any Kitchen Design.
- EZ1 Installation System
- We watched countless installations as we set out to simplify and accellerate the process. The result is a two-bracket system that holds the hood for you while you make electrical and ducting connections. It's easy and fast - up to 50% less installation time.
- Superior Capture Over the Competition
- The Broan Captur exhaust ventilation system provides the fastest air flow management and filtration in its class for better performance, quieter operation and less energy use.
- Brilliant LED Lighting
- Energy-efficient LEDs provide bright, even lighting that will last many years without dimming. These LEDs are specially designed to withstand high heat cooking environments.
- Control. Just the Way You Want it.
- Three-speed electronic pushbutton control incorporates an LCD display to show hood status for fan and light setting, filter clean reminder, Heat Sentry and delay off.
- Functional Filtration for Your Sense of Style
- Dishwasher-safe, deluxe micro-mesh filters provide highly efficient grease removal and patterned cover provides a decorative complement to the hood design. The filter clean reminder ensures they will always maintain a high level of efficiency.
- EZ1 Installation System
- We watched countless installations as we set out to simplify and accellerate the process. The result is a two-bracket system that holds the hood for you while you make electrical and ducting connections. It's easy and fast - up to 50% less installation time.
- Superior Capture Over the Competition
- The Broan Captur exhaust ventilation system provides the fastest air flow management and filtration in its class for better performance, quieter operation and less energy use.
Filter Type | Deluxe Micro Mesh |
Heat Sentry | Yes |
HVI Certified | Yes |
Lighting Type | LED |
UL Listed | Yes |
ADA Compliance | Yes |
Damper Included | No |
ENERGY STAR® certified | No |
Light Bulb Wattage | 4.5 |
Light Bulbs Included | Yes |
Light Levels | 3 |
Material | Steel |
Nightlight Or Nighlight Setting | No |
Ductless Recirculation Capable | Yes |
Ductless Filter Or Kit Included | No |
Remote Operation Capable | No |
Speed Levels | 3 |
Switch Control Type | Push Button with LCD |
Rated Voltage | 120 |
Boost Mode | No |
Country of Origin | Mexico |
Color Finish | White |
Rated Amps | 1.4 |
Product Depth | 19.625' |
Product Height | 6' |
Product Width | 30' |
Built-In Timer | No |
Capture Efficiency | 98.5 |
CFM | 400 |
Diameter | 7' Round |
Vent Type | Convertible Built-In |
Duct Direction | Horizontal/Vertical |
Bulb (Recommended Type) | Integrated LED Module |
Light Color Temp | 3000 |
Manufacturer Warranty | 1 Year, 3 Year LED module |
Wattage | 168 |
Broan EZ1 Installation System Features and Benefits
Broan Glacier BCDJ1 Twin Blower Under Cabinet Range Hood Installation

Captur Shadowgraph Broan

Cleaning a Range Hood Filter

Glacier BCDF1, BCDJ1 & BCSD1 Family Range Hoods

Indoor Air Quality: Passions

Older Homes and Indoor Air Quality

Proper Use of a Range Hood

Proper Ventilation Equals a Healthy Home

Range Hoods Reinvented

Spot Ventilation Can Improve the Indoor Air Quality in Your Home

Description
The Luxury Of An Lcd Display And Deluxe Micro-Mesh Filters Will Make Any Meal Preparation Delightful. And, The Glacier Range Hood'S Contemporary Shape Complements Any Kitchen Design.
Features
- The Captur system's advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Three-speed blower control exhausts at a strong 400 CFM
- Smooth-flow blower wheel design and high flow filters ensure quiet, less than 0.5 sones operation at normal speed
- Bright, three-level LED modules-supported by a three-year warranty-illuminate evenly and are tested in cooking environments to ensure long life without dimming. Color Temperature 3000 K
- Three-speed electronic pushbutton control incorporates an LCD display to show hood status for fan and light setting, filter clean reminder, Heat Sentry(R) and delay off
- Broan Heat Sentry(R) detects excessive heat and adjusts the blower speed to prolong the life of the product and provide proper ventilation

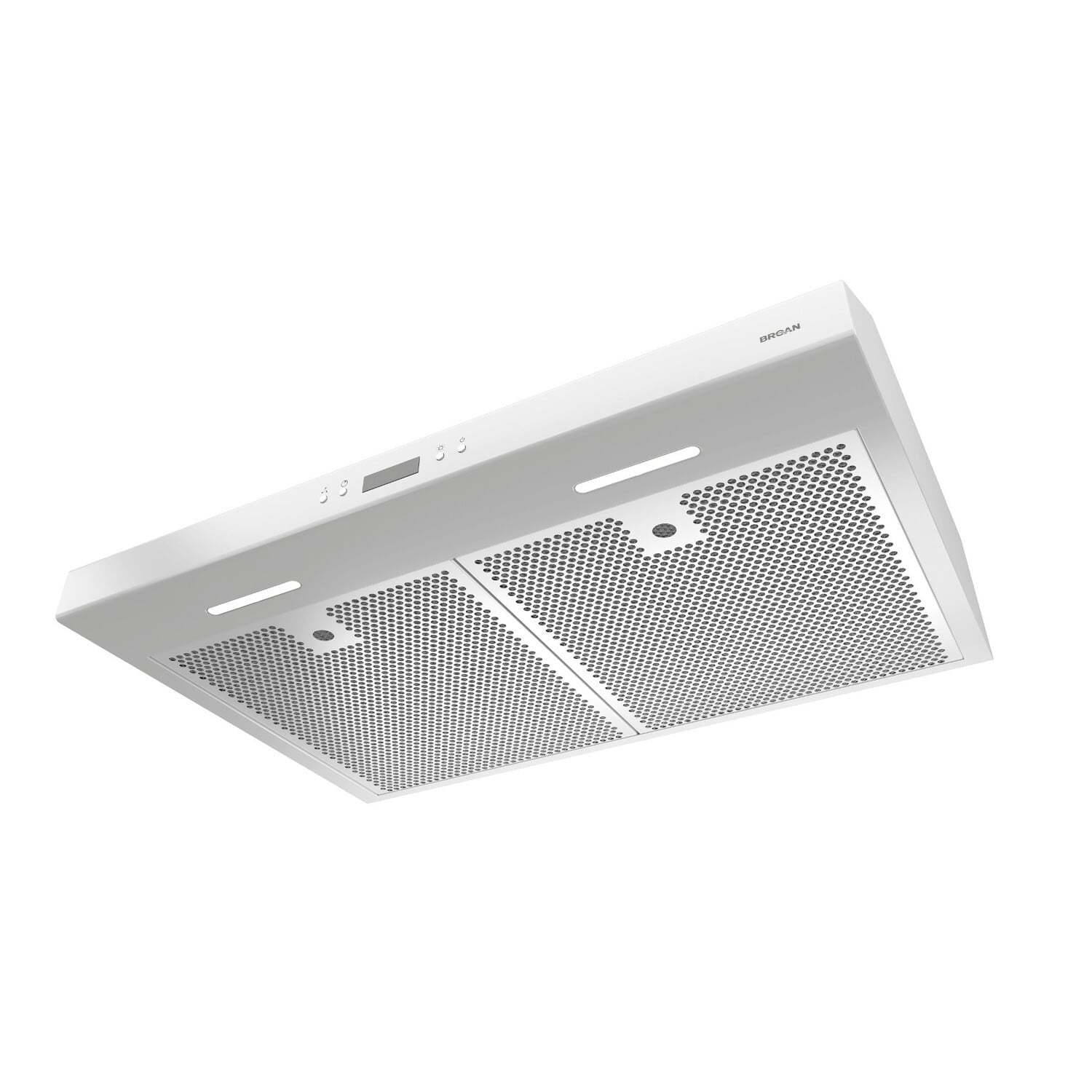

- Dishwasher-safe, deluxe micro-mesh filters provide highly efficient grease removal and patterned cover provides a decorative complement to the hood design.
- The filter clean reminder ensures they will always maintain a high level of efficiency
- EZ1 brackets make it easy for single-person installation in less than half the time of traditional methods
- ADA compliant, remote operation is possible using a standard UL approved wall switch
- Compatible with optional Broan Make-up Air Dampers (sold separately) to fit 6", 8" or 10" ducting and help to balance the air pressure when the range hood is in use, keeping your environment comfortable and meeting local codes
- Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
Specifications
Filter Type | Deluxe Micro Mesh |
Heat Sentry | Yes |
HVI Certified | Yes |
Lighting Type | LED |
UL Listed | Yes |
ADA Compliance | Yes |
Damper Included | No |
ENERGY STAR® certified | No |
Light Bulb Wattage | 4.5 |
Light Bulbs Included | Yes |
Light Levels | 3 |
Material | Steel |
Nightlight Or Nighlight Setting | No |
Ductless Recirculation Capable | Yes |
Ductless Filter Or Kit Included | No |
Remote Operation Capable | No |
Speed Levels | 3 |
Switch Control Type | Push Button with LCD |
Rated Voltage | 120 |
Boost Mode | No |
Country of Origin | Mexico |
Color Finish | White |
Rated Amps | 1.4 |
Product Depth | 19.625' |
Product Height | 6' |
Product Width | 30' |
Built-In Timer | No |
Capture Efficiency | 98.5 |
CFM | 400 |
Diameter | 7' Round |
Vent Type | Convertible Built-In |
Duct Direction | Horizontal/Vertical |
Bulb (Recommended Type) | Integrated LED Module |
Light Color Temp | 3000 |
Manufacturer Warranty | 1 Year, 3 Year LED module |
Wattage | 168 |
Videos
Broan EZ1 Installation System Features and Benefits
Broan Glacier BCDJ1 Twin Blower Under Cabinet Range Hood Installation

Captur Shadowgraph Broan

Cleaning a Range Hood Filter

Glacier BCDF1, BCDJ1 & BCSD1 Family Range Hoods

Indoor Air Quality: Passions

Older Homes and Indoor Air Quality

Proper Use of a Range Hood

Proper Ventilation Equals a Healthy Home

Range Hoods Reinvented

Spot Ventilation Can Improve the Indoor Air Quality in Your Home
