Broan AR80X Broan-Nutone® Wall Vent Kit, 3" Or 4" Round Duct
Broan® Roomside Series 80 Cfm 2.0 Sones Ventilation Fan Clear Up Foggy Mirrors, Whisk Away Odors ... Read more...
SKU:AR80X
UPC:026715157815
- Regular price
- Sale price
-
Our Price: $94.00
- Regular price
- Unit price
- per
Extended protection
3 year plan
$86.995 year plan
$168.99Extended Protection
Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.
This Protection Plan includes:
- Full parts and labor coverage during the whole period of the extension plan.
- Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
- Food loss protection (click here for details)
- 24/7 toll-free number for support (1-877-879-6395)
Installation and Removal
Where will services be needed?
When Will I Get My Order?

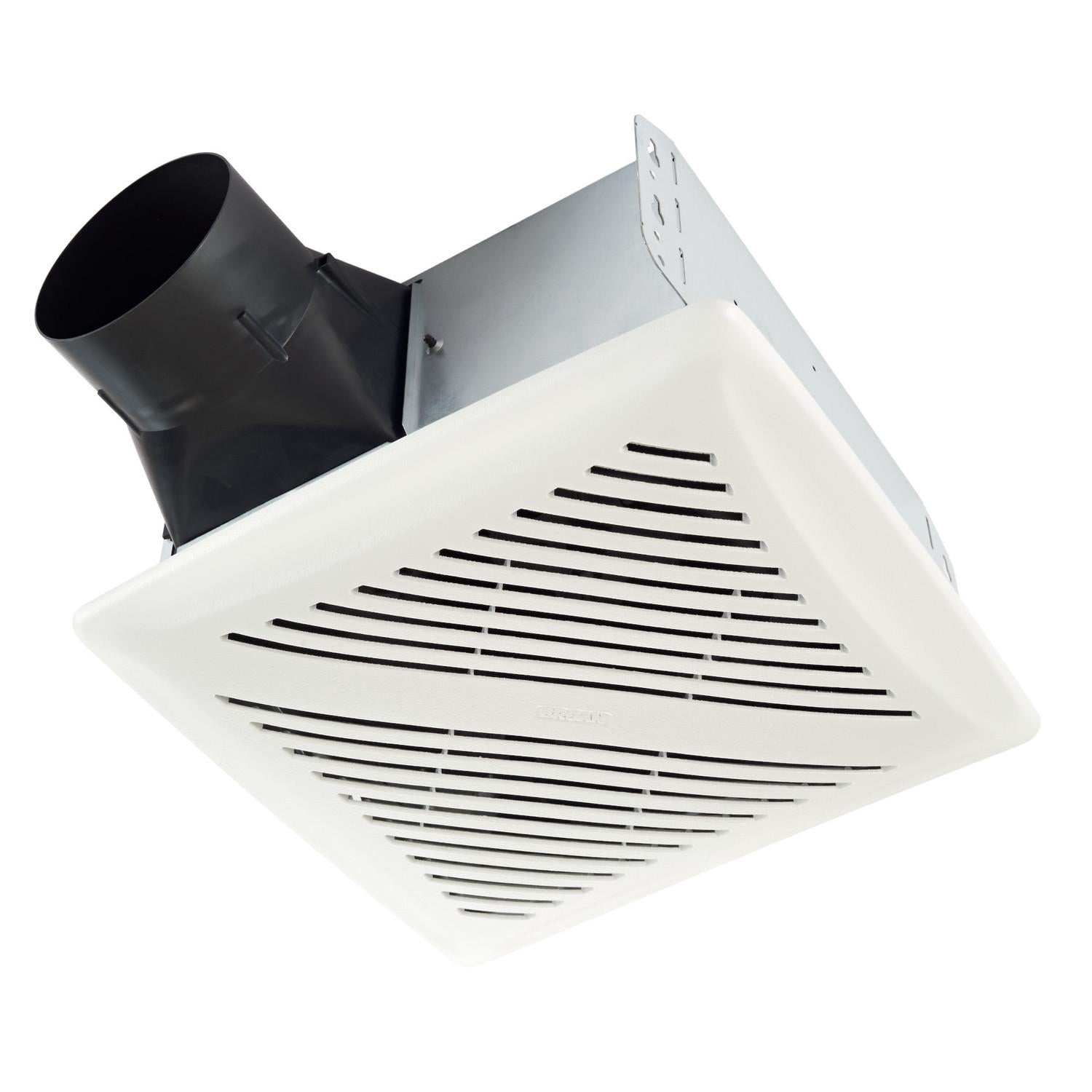

Broan® Roomside Series 80 Cfm 2.0 Sones Ventilation Fan Clear Up Foggy Mirrors, Whisk Away Odors And Enjoy A More Comfortable Bathroom In Minutes. The Broan® Arn80Hd Roomside Series White 80 Cfm Exhaust Bath Fan Moves Air At A Brisk 80 Cfm, Quickly Reducing Moisture And Humidity To Prevent Mildew. Boasting A 2.0 Sones Sound Rating For Quiet Operation, This Durable Bath Fan Efficiently Ventilates Bathrooms Up To 75 Sq. Ft. Broan® Roomside Series Fans Offer Hassle-Free Room-Side Installation With No Attic Access Needed, Thanks To An Ezduct™ Connector And Foldable Mounting Ears.
- EzDuct Connector
- Connecting to an existing duct can be done room-side with no attic access required, fan housing connection has never been easier.
- Versatile Installation

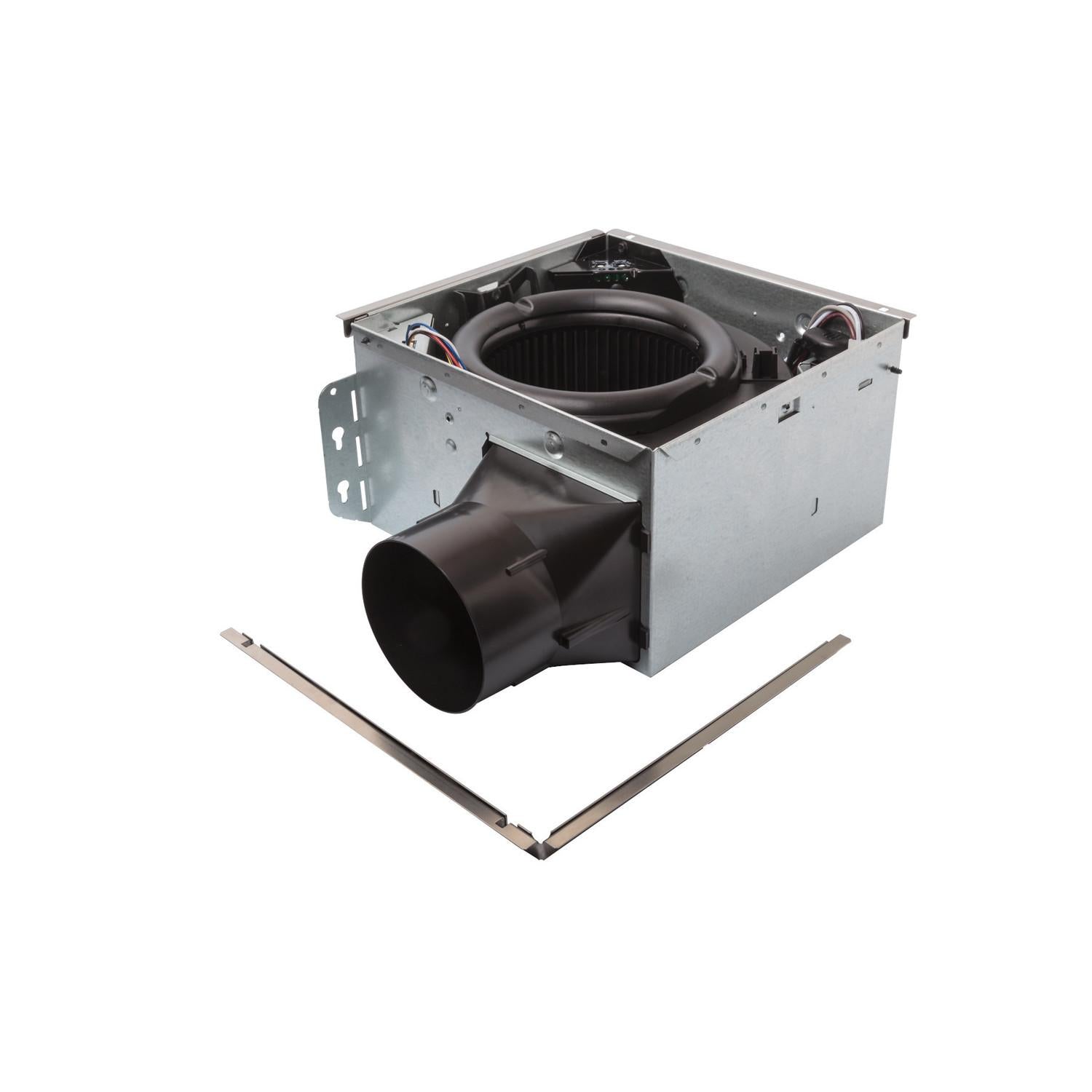

- FoldAway Mounting Ears are precisely positioned for new construction and fold flat for room-side retrofits. Every installation can be handled more efficiently.
- Airtight Performance
- With our TrueSeal Damper Technology, InVent fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests.
- EzDuct Connector
- Connecting to an existing duct can be done room-side with no attic access required, fan housing connection has never been easier.
- Versatile Installation
- FoldAway Mounting Ears are precisely positioned for new construction and fold flat for room-side retrofits. Every installation can be handled more efficiently.
| CFM | 80 |
| Color Finish | White |
| Duct Size | 4 |
| ENERGY STAR® certified | No |
| Grille Length | 11.5 |
| Grille Width | 12.25 |

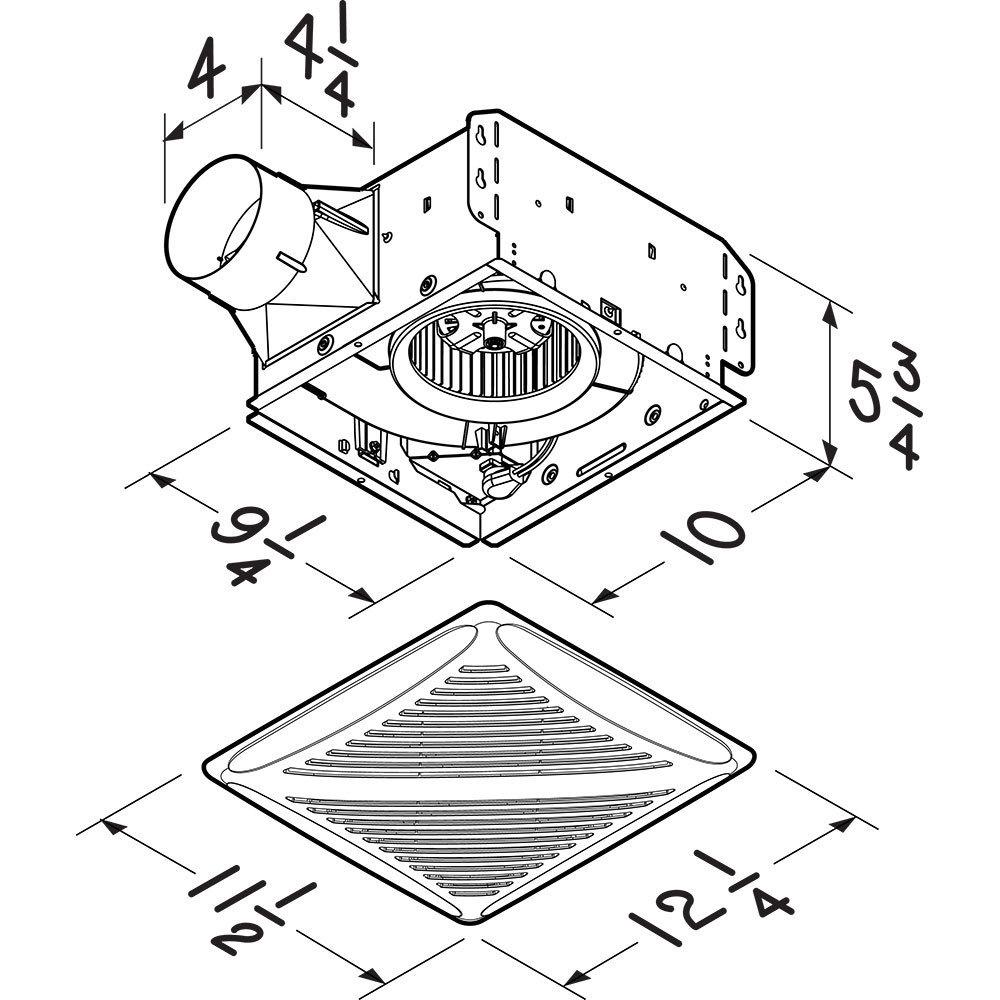

| Housing Dimensions | 9-1/4' x 10' x 5-3/4' |
| Sound Level (Sones) | 2 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 75 |
| Rated Amps | 0.4 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2' x 6' |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
Description
Broan® Roomside Series 80 Cfm 2.0 Sones Ventilation Fan Clear Up Foggy Mirrors, Whisk Away Odors And Enjoy A More Comfortable Bathroom In Minutes. The Broan® Arn80Hd Roomside Series White 80 Cfm Exhaust Bath Fan Moves Air At A Brisk 80 Cfm, Quickly Reducing Moisture And Humidity To Prevent Mildew. Boasting A 2.0 Sones Sound Rating For Quiet Operation, This Durable Bath Fan Efficiently Ventilates Bathrooms Up To 75 Sq. Ft. Broan® Roomside Series Fans Offer Hassle-Free Room-Side Installation With No Attic Access Needed, Thanks To An Ezduct™ Connector And Foldable Mounting Ears.
Features
- 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 2.0 Sones for Quiet performance , enough sound to know your fan is on
- EzDuct™ connector can be installed from the room side, with no attic access required
- TrueSeal™ Damper technology reduces air leakage up to 50%
- Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
- Can be installed in a wall if mounted 8-ft. or more above the floor
- UL listed and HVI-2100 Certified for safety
- UL listed for use over tub or shower with a GFCI branch circuit (ceiling mount only)
- Powerful enough for rooms up to 75 sq. ft.

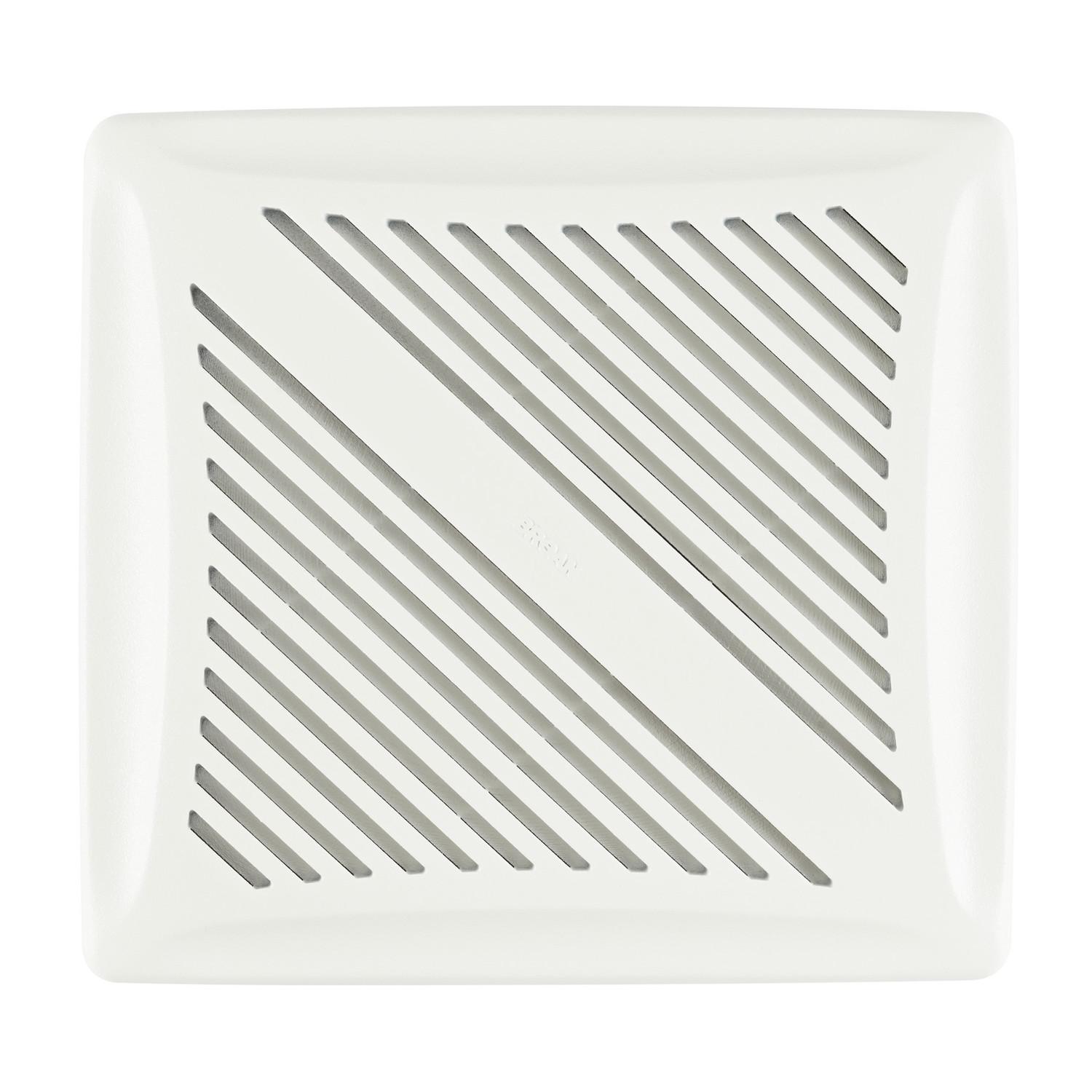

- Brighter white grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
Specifications
| CFM | 80 |
| Color Finish | White |
| Duct Size | 4 |
| ENERGY STAR® certified | No |
| Grille Length | 11.5 |
| Grille Width | 12.25 |
| Housing Dimensions | 9-1/4' x 10' x 5-3/4' |
| Sound Level (Sones) | 2 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 75 |
| Rated Amps | 0.4 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2' x 6' |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
