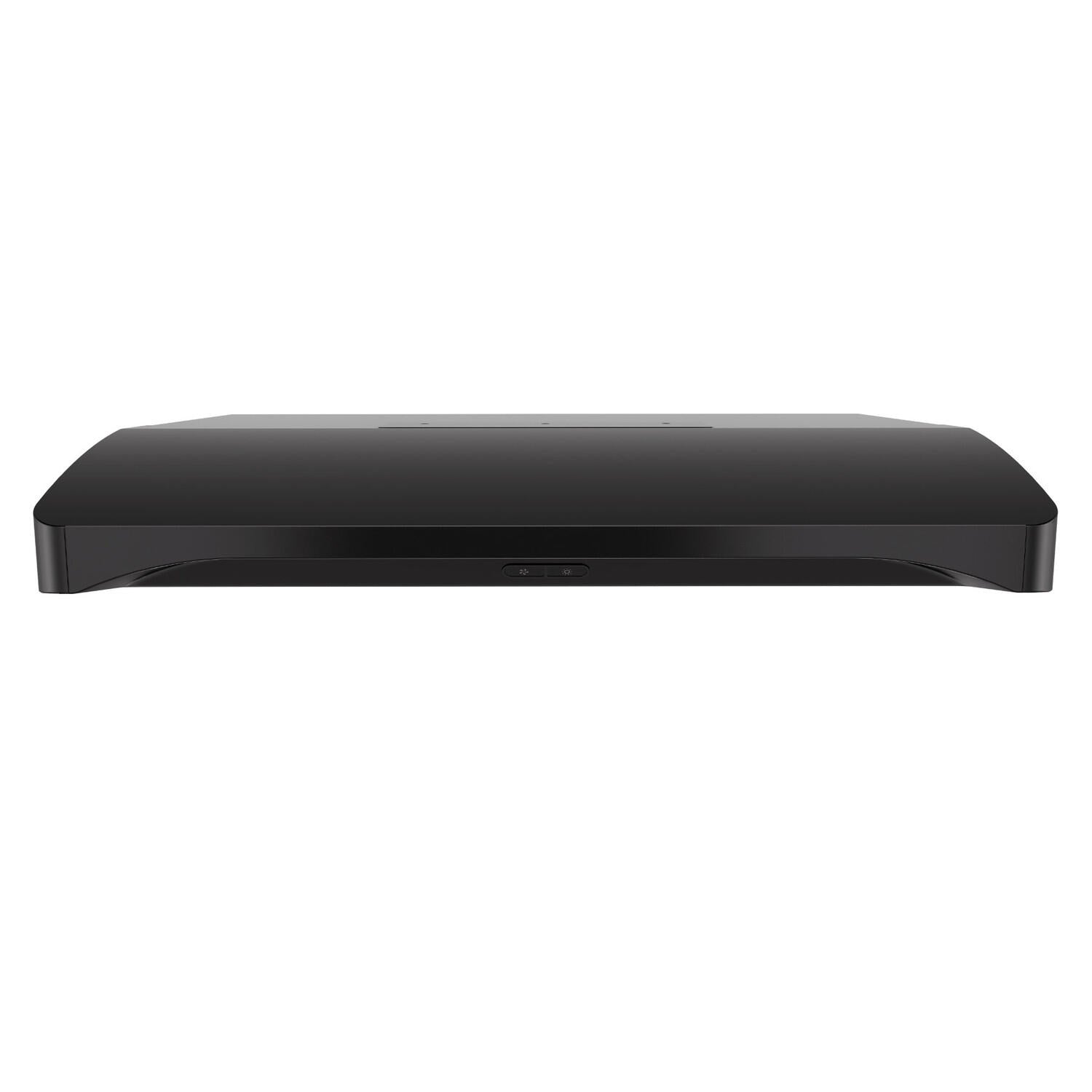

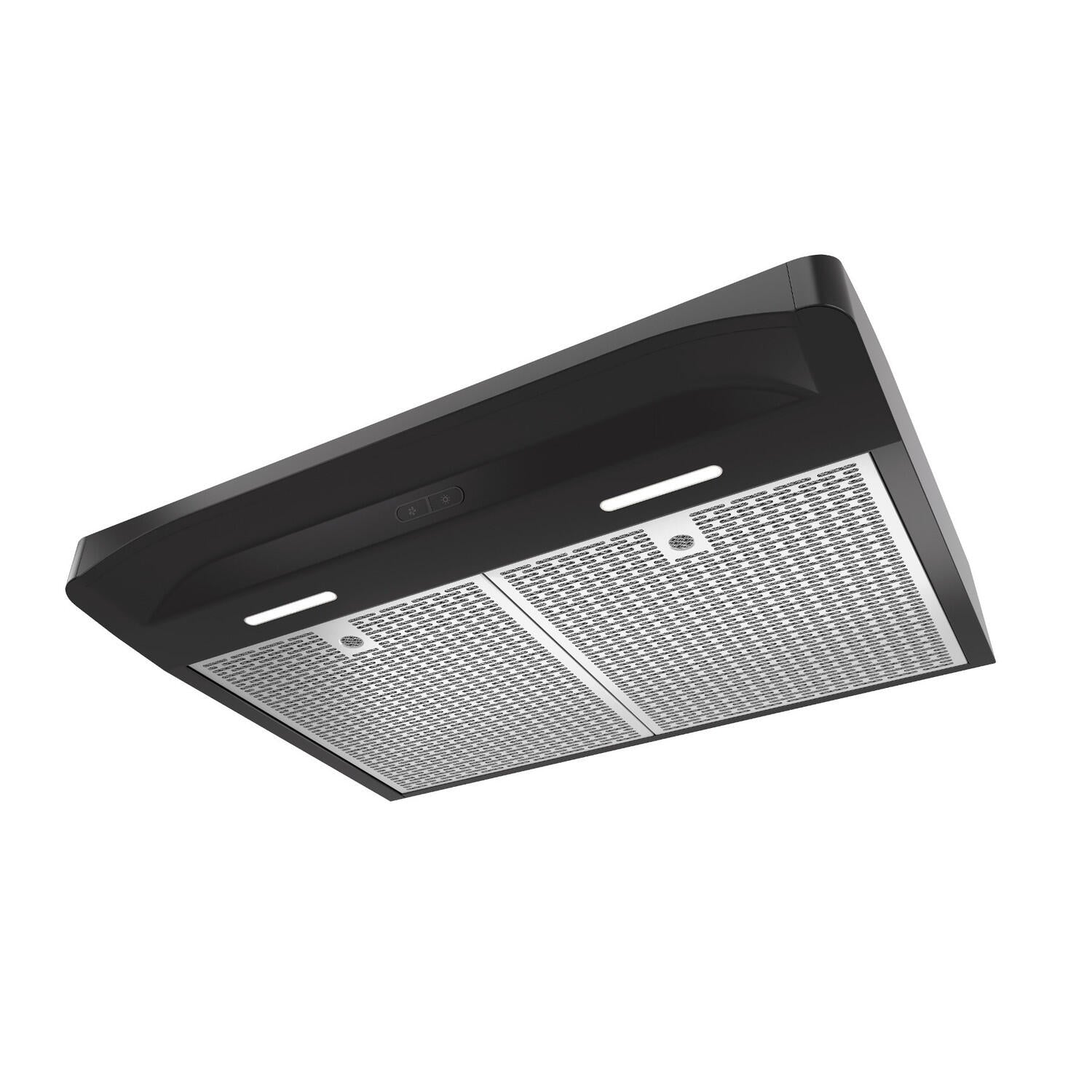

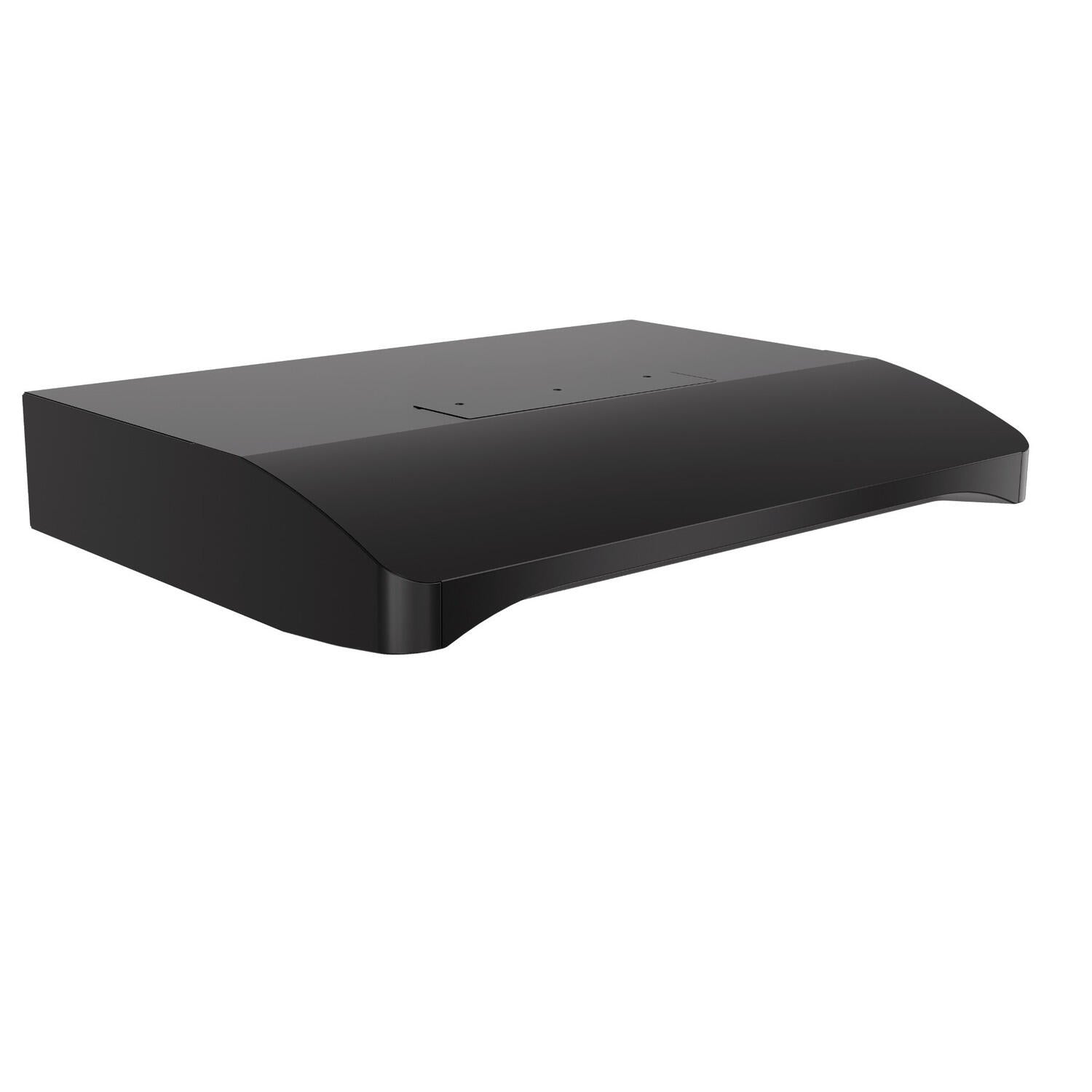

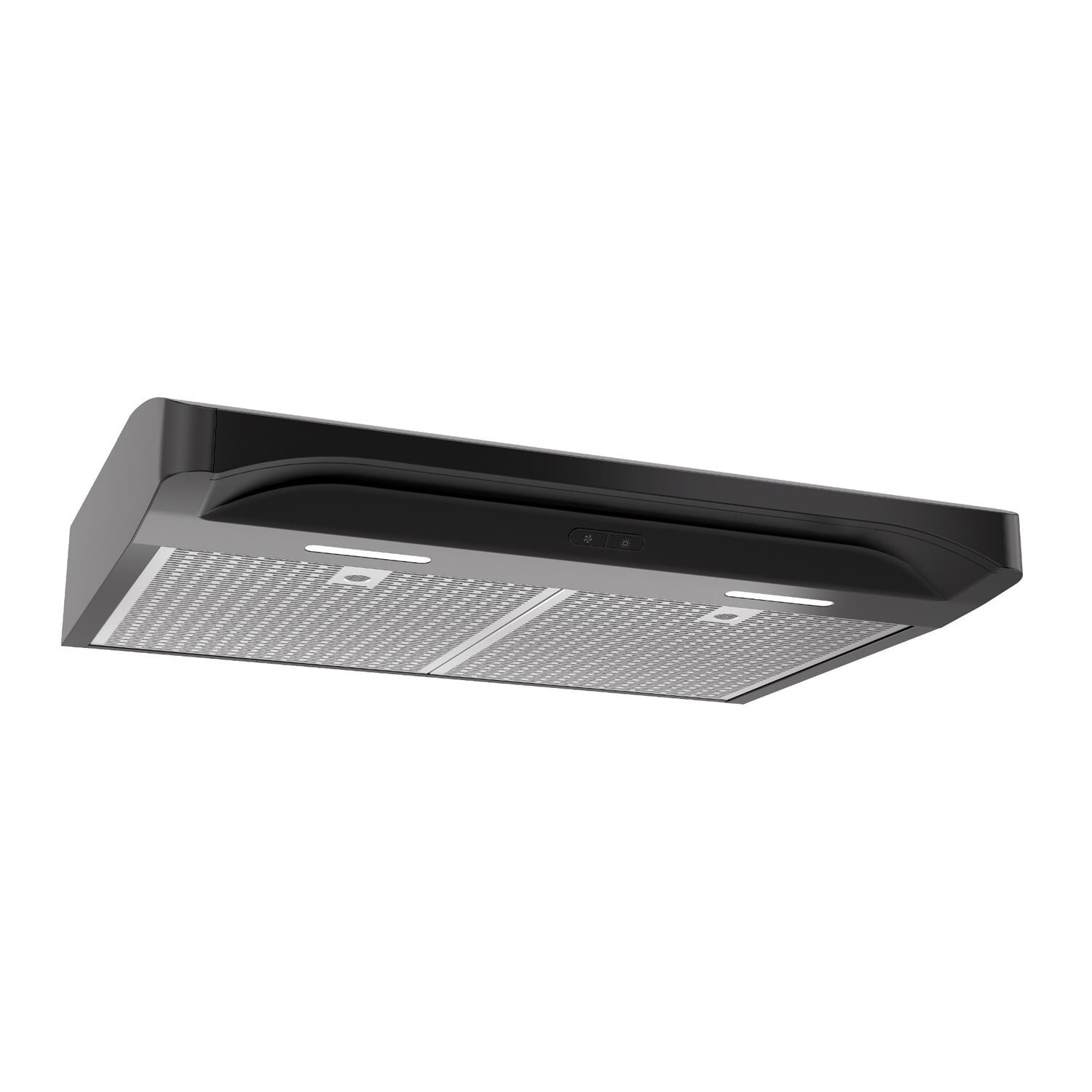

Broan ALT230BL Broan® Elite 30-Inch Convertible Under-Cabinet Range Hood, Black
Broan® Elite 30-Inch Convertible Under-Cabinet Range Hood, Black The Sculpted Lines Of Alta Bring... Read more...
SKU:ALT230BL
UPC:026715263929
Colors:
Black
White
Stainless Steel- Regular price
- Sale price
-
List Price: $400.00
You save: $40.00 (10%)Our Price: $360.00
- Regular price
- Unit price
- per
Extended protection
3 year plan
$86.995 year plan
$168.99Extended Protection
Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.
This Protection Plan includes:
- Full parts and labor coverage during the whole period of the extension plan.
- Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
- Food loss protection (click here for details)
- 24/7 toll-free number for support (1-877-879-6395)
Installation and Removal
Where will services be needed?
When Will I Get My Order?
Broan® Elite 30-Inch Convertible Under-Cabinet Range Hood, Black The Sculpted Lines Of Alta Bring An Exciting, New Choice To Typical Range Hood Shapes. Wide Curves, Tap-Touch Capacitive Controls And Led Lighting Present A Clean, Striking Design.
- Model replaced BQDD130BL
- The Captur system's advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Three-speed blower control exhausts at 300 CFM
- Smooth-flow blower wheel design and high flow filters ensure quiet, 1.2 sones operation at normal speed
- Bright, two-level LED modules - supported by a 3-year warranty - illuminate evenly and are tested in cooking environments to ensure long life without dimming. Color Temperature 3000 K
- Tap-touch, 3-speed capacitive control features a smooth, easy-to-clean surface
- Dishwasher-safe, deluxe micro-mesh filters provide highly efficient grease removal and patterned cover provides a decorative complement to the hood design. The filter clean reminder ensures they will always maintain a high level of capture
- EZ1 brackets make it easy for single person installation in less than half the time of traditional methods
- ADA compliant, remote operation is possible using a standard UL approved wall switch.
- Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
- Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
| Filter Type | Deluxe Micro Mesh |
| Heat Sentry | No |
| HVI Certified | Yes |
| Lighting Type | LED |
| Sound Level (Sones) | 1.5 |
| UL Listed | Yes |
| ADA Compliance | Yes |
| Damper Included | No |
| ENERGY STAR® certified | No |
| Light Bulb Wattage | 4.5 |
| Light Bulbs Included | Yes |
| Light Levels | 2 |
| Material | Steel |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | 3 |
| Switch Control Type | Capacitive Touch |
| Rated Voltage | 120 |
| Boost Mode | No |
| Country of Origin | Mexico |
| Color Finish | Black |
| Rated Amps | 0.65 |
| Product Depth | 22 |
| Product Height | 5' |
| Product Width | 30' |
| Built-In Timer | No |
| Capture Efficiency | 98.1 |
| CFM | 300 |
| Diameter | 7' Round |
| Vent Type | Convertible Built-In |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | Integrated LED Module |
| Light Color Temp | 3000 |
| Manufacturer Warranty | 1 Year, 3 Year LED module |
| Wattage | 78 |
Description
Broan® Elite 30-Inch Convertible Under-Cabinet Range Hood, Black The Sculpted Lines Of Alta Bring An Exciting, New Choice To Typical Range Hood Shapes. Wide Curves, Tap-Touch Capacitive Controls And Led Lighting Present A Clean, Striking Design.
Features
- Model replaced BQDD130BL
- The Captur system's advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Three-speed blower control exhausts at 300 CFM
- Smooth-flow blower wheel design and high flow filters ensure quiet, 1.2 sones operation at normal speed
- Bright, two-level LED modules - supported by a 3-year warranty - illuminate evenly and are tested in cooking environments to ensure long life without dimming. Color Temperature 3000 K
- Tap-touch, 3-speed capacitive control features a smooth, easy-to-clean surface
- Dishwasher-safe, deluxe micro-mesh filters provide highly efficient grease removal and patterned cover provides a decorative complement to the hood design. The filter clean reminder ensures they will always maintain a high level of capture
- EZ1 brackets make it easy for single person installation in less than half the time of traditional methods
- ADA compliant, remote operation is possible using a standard UL approved wall switch.
- Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
- Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
Specifications
| Filter Type | Deluxe Micro Mesh |
| Heat Sentry | No |
| HVI Certified | Yes |
| Lighting Type | LED |
| Sound Level (Sones) | 1.5 |
| UL Listed | Yes |
| ADA Compliance | Yes |
| Damper Included | No |
| ENERGY STAR® certified | No |
| Light Bulb Wattage | 4.5 |
| Light Bulbs Included | Yes |
| Light Levels | 2 |
| Material | Steel |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | 3 |
| Switch Control Type | Capacitive Touch |
| Rated Voltage | 120 |
| Boost Mode | No |
| Country of Origin | Mexico |
| Color Finish | Black |
| Rated Amps | 0.65 |
| Product Depth | 22 |
| Product Height | 5' |
| Product Width | 30' |
| Built-In Timer | No |
| Capture Efficiency | 98.1 |
| CFM | 300 |
| Diameter | 7' Round |
| Vent Type | Convertible Built-In |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | Integrated LED Module |
| Light Color Temp | 3000 |
| Manufacturer Warranty | 1 Year, 3 Year LED module |
| Wattage | 78 |
