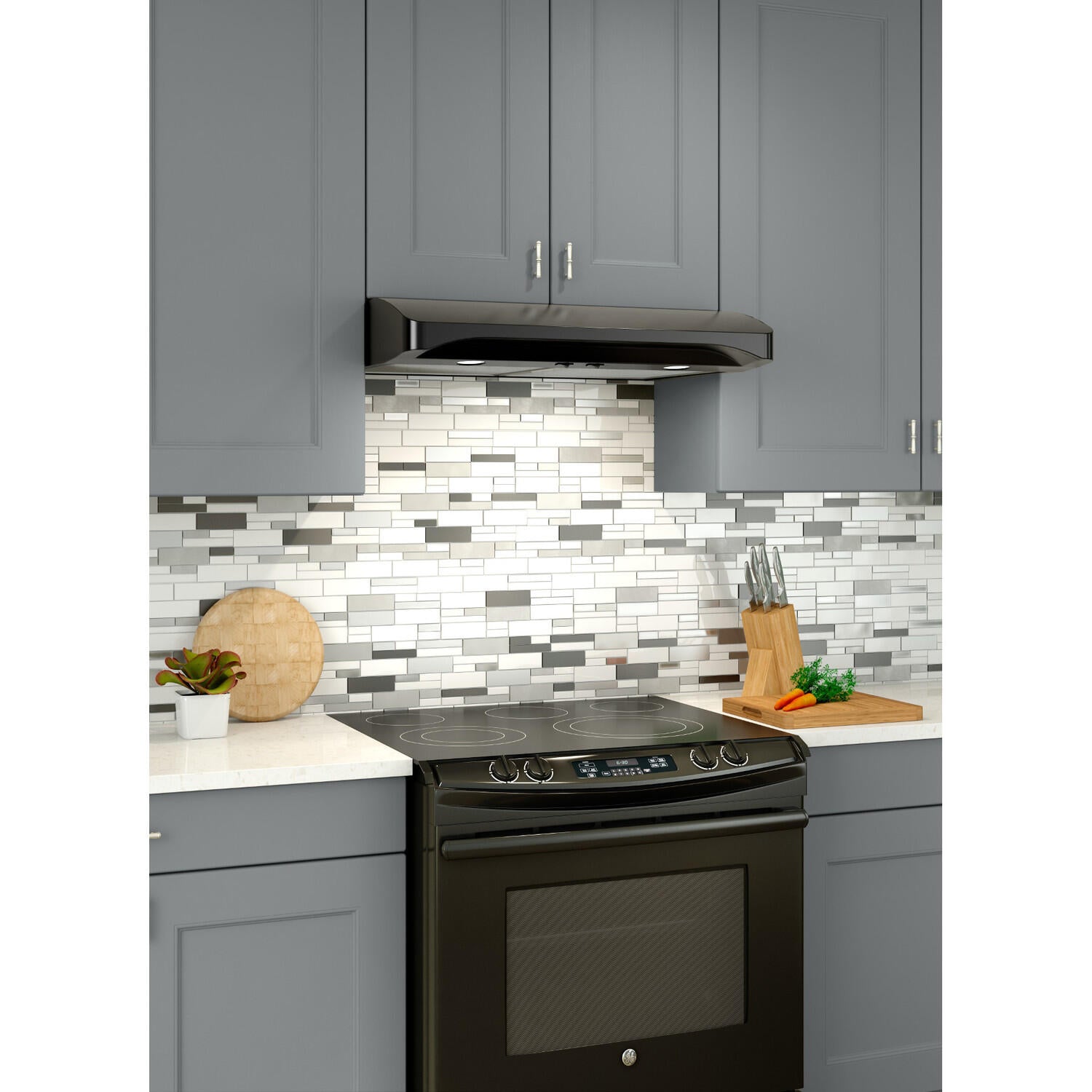

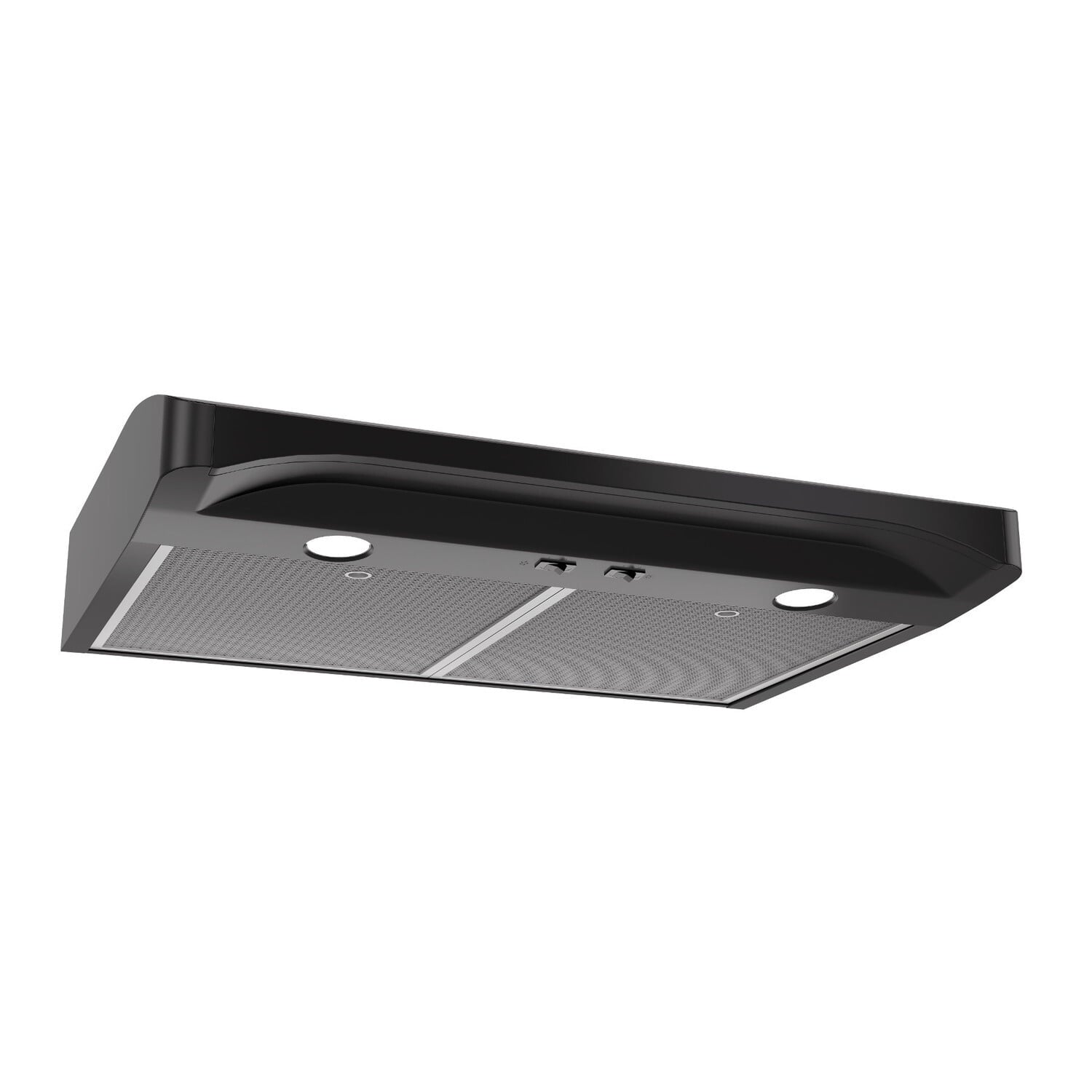

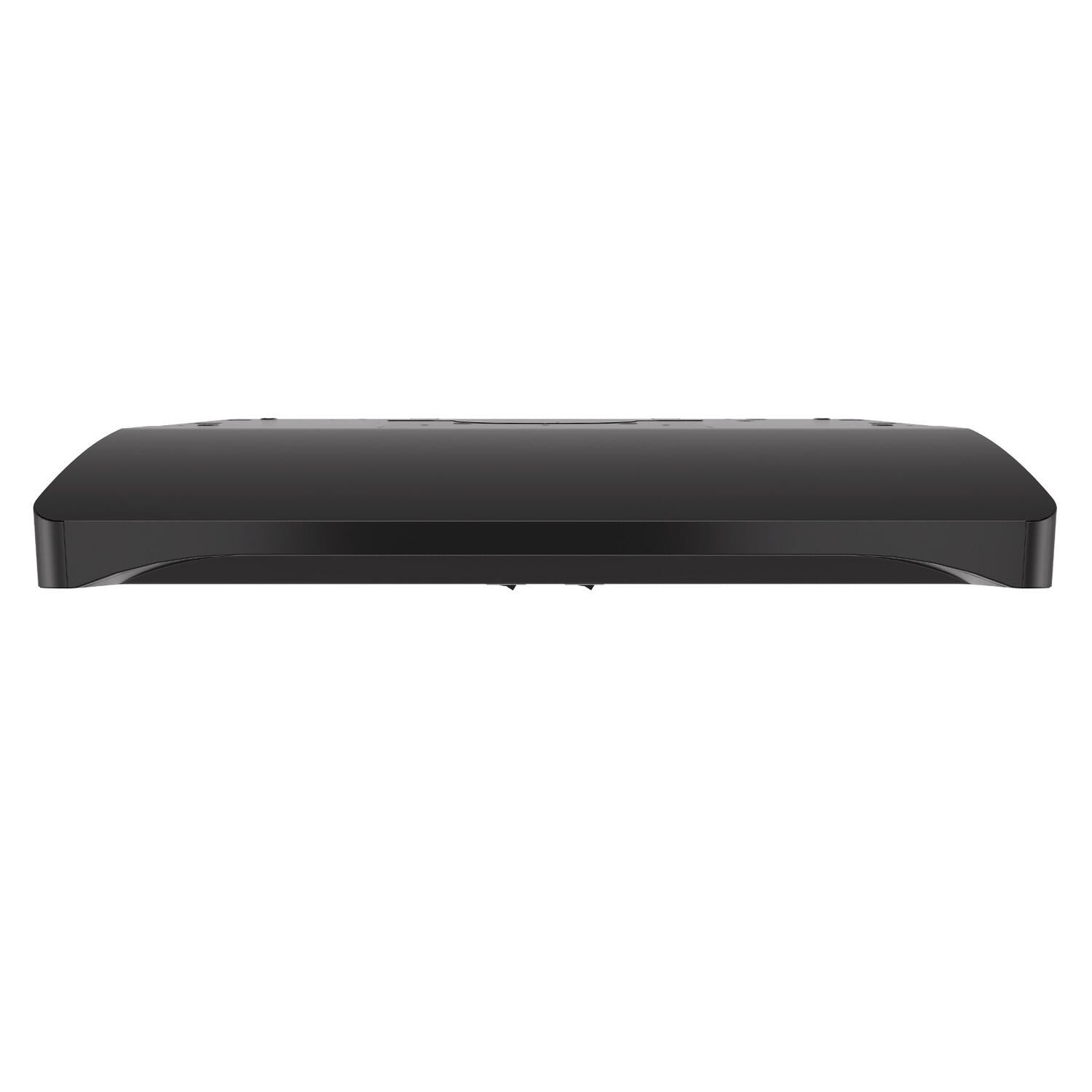

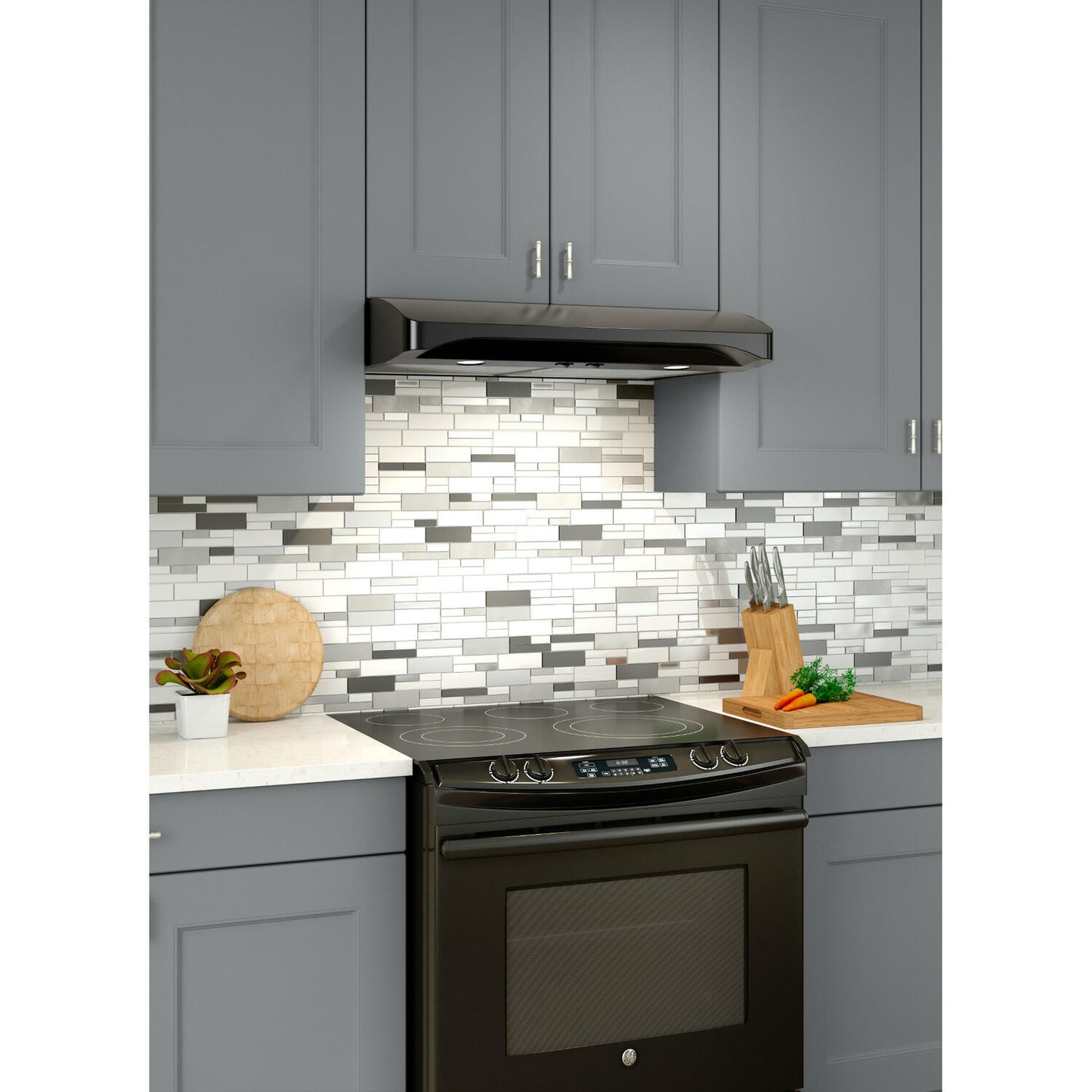

Broan ALT136BL Broan® Elite 36-Inch Convertible Under-Cabinet Range Hood, Black
Broan® Elite 36-Inch Convertible Under-Cabinet Range Hood, Black The Sculpted Lines Of Alta Bring An Exciting, New Choice To Typical Range Hood Shapes. Sophisticated Curves And Hidden Controls Offer A Beautiful Alternative To Traditional Designs.
- Model replaced BQSJ136BL
- The Captur system's advanced blower/wheel design features a centric inlet to remove smoke and odor faster. Two-speed blower control exhausts at 250 CFM
- Forward placement and smooth-flow blower wheel design ensure quiet, 1.5 sones operation at normal speed
- Hidden on/off rocker switches control blower speeds and light levels

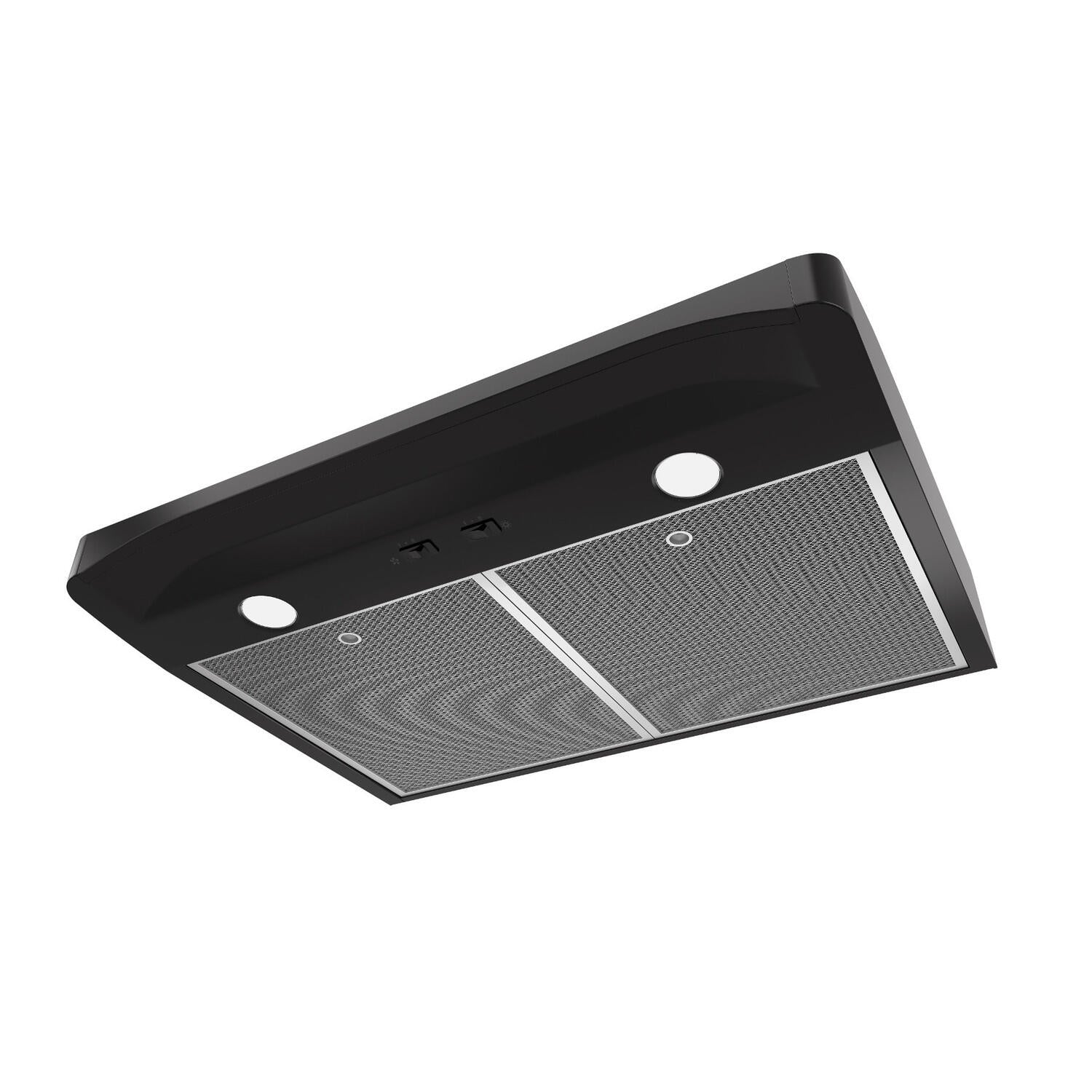

- Dishwasher-safe, micro-mesh filters provide efficient grease removal
- EZ1 brackets enable single-person installation in less than half the time of traditional methods
- ADA compliant, remote operation is possible using a standard UL approved wall switch.
- EZ1 system enables easy single-person installation in up to half the time of traditional methods
- Two-level, halogen bulbs flood the cooktop and surrounding area with generous illumination.
- Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
Filter Type | Micro Mesh |
Heat Sentry | No |
HVI Certified | Yes |
Lighting Type | Halogen |
Sound Level (Sones) | 1.5 |
UL Listed | Yes |
ADA Compliance | Yes |
Damper Included | No |
ENERGY STAR® certified | No |
Light Bulbs Included | Yes |
Light Levels | 2 |
Material | Steel |
Nightlight Or Nighlight Setting | No |
Ductless Recirculation Capable | Yes |
Ductless Filter Or Kit Included | No |
Remote Operation Capable | No |
Speed Levels | 2 |
Switch Control Type | Rocker |
Rated Voltage | 120 |
Boost Mode | No |
Country of Origin | Mexico |
Color Finish | Black |
Rated Amps | 1.4 |

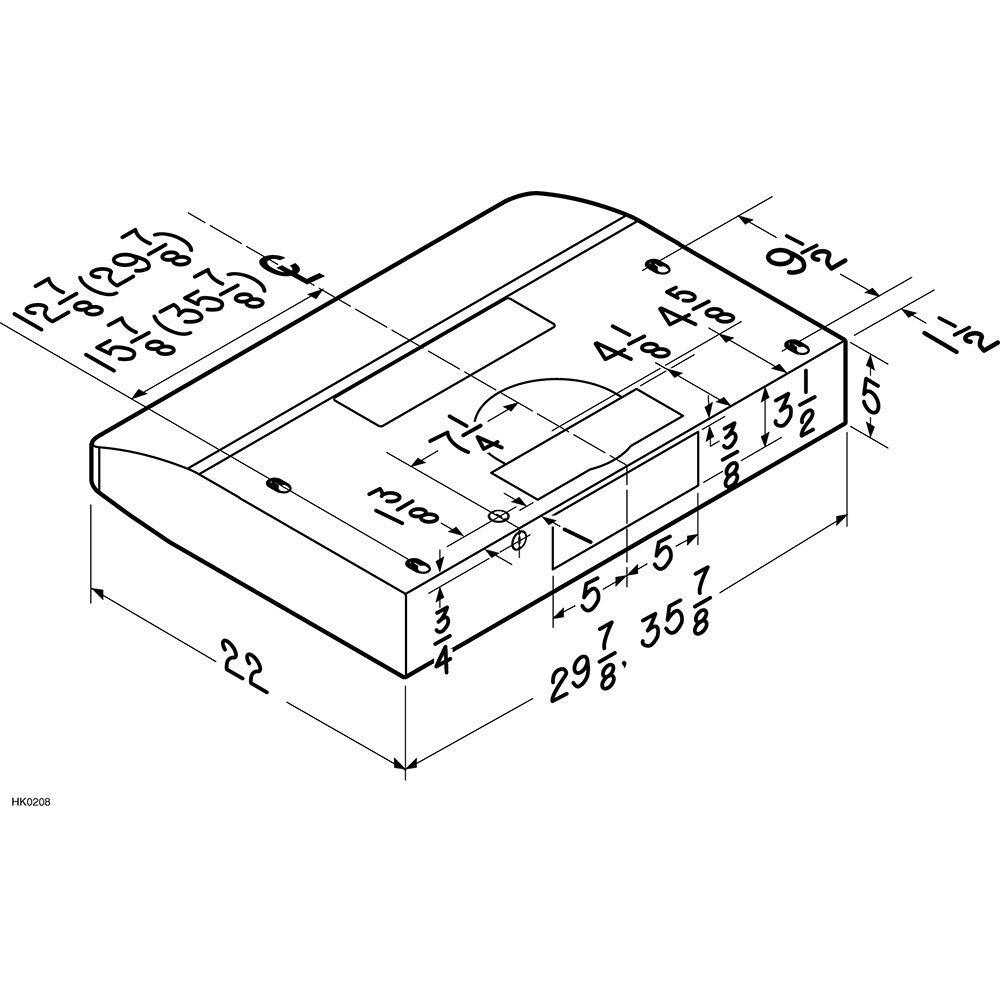

Product Depth | 22 |
Product Height | 5' |
Product Width | 36' |
Built-In Timer | No |
Capture Efficiency | 97.4 |
CFM | 250 |
Diameter | 7' Round |
Duct Direction | Horizontal/Vertical |
Bulb (Recommended Type) | MR16 or PAR16 |
Manufacturer Warranty | 1 Year |
Wattage | 168 |
