Broan AEW110 Broan-Nutone® Wall Vent Kit, 3" Or 4" Round Duct
Broan® Roomside Series 110 Cfm 1.0 Sones Ventilation Fan Energy Star® The Broan® Roomside Series ... Read more...
SKU:AEW110
UPC:026715157815
- Regular price
- Sale price
-
List Price: $165.00
You save: $18.00 (10%)Our Price: $147.00
- Regular price
- Unit price
- per
Extended protection
3 year plan
$86.995 year plan
$168.99Extended Protection
Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.
This Protection Plan includes:
- Full parts and labor coverage during the whole period of the extension plan.
- Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
- Food loss protection (click here for details)
- 24/7 toll-free number for support (1-877-879-6395)
Installation and Removal
Where will services be needed?
When Will I Get My Order?
Broan® Roomside Series 110 Cfm 1.0 Sones Ventilation Fan Energy Star® The Broan® Roomside Series 110 Cfm Ceiling Exhaust Bath Fan With Light Energy Star® Offers Easy, Room Side Installation, With "No Attic Access Required". Ceiling Mounted Ventilation Fan Features Foldable Mounting Ears And Ezduct™ Connector For Easy Installation. New Duct Damper Technology Provides A Tighter Seal, Resulting In Reduced Warm And Cold Air Backdrafts. This Energy Efficient Fan Operates At 110 Cfm And A Very Quiet 1.0 Sones.
- EzDuct Connector
- Connecting to an existing duct can be done room-side with no attic access required, fan housing connection has never been easier.
- Versatile Installation
- FoldAway Mounting Ears are precisely positioned for new construction and fold flat for room-side retrofits. Every installation can be handled more efficiently.
- Airtight Performance
- With our TrueSeal Damper Technology, InVent fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests.
- EzDuct Connector
- Connecting to an existing duct can be done room-side with no attic access required, fan housing connection has never been easier.
- Versatile Installation
- FoldAway Mounting Ears are precisely positioned for new construction and fold flat for room-side retrofits. Every installation can be handled more efficiently.
| CFM | 110 |
| Color Finish | White |
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 11.5 |
| Grille Width | 12.25 |

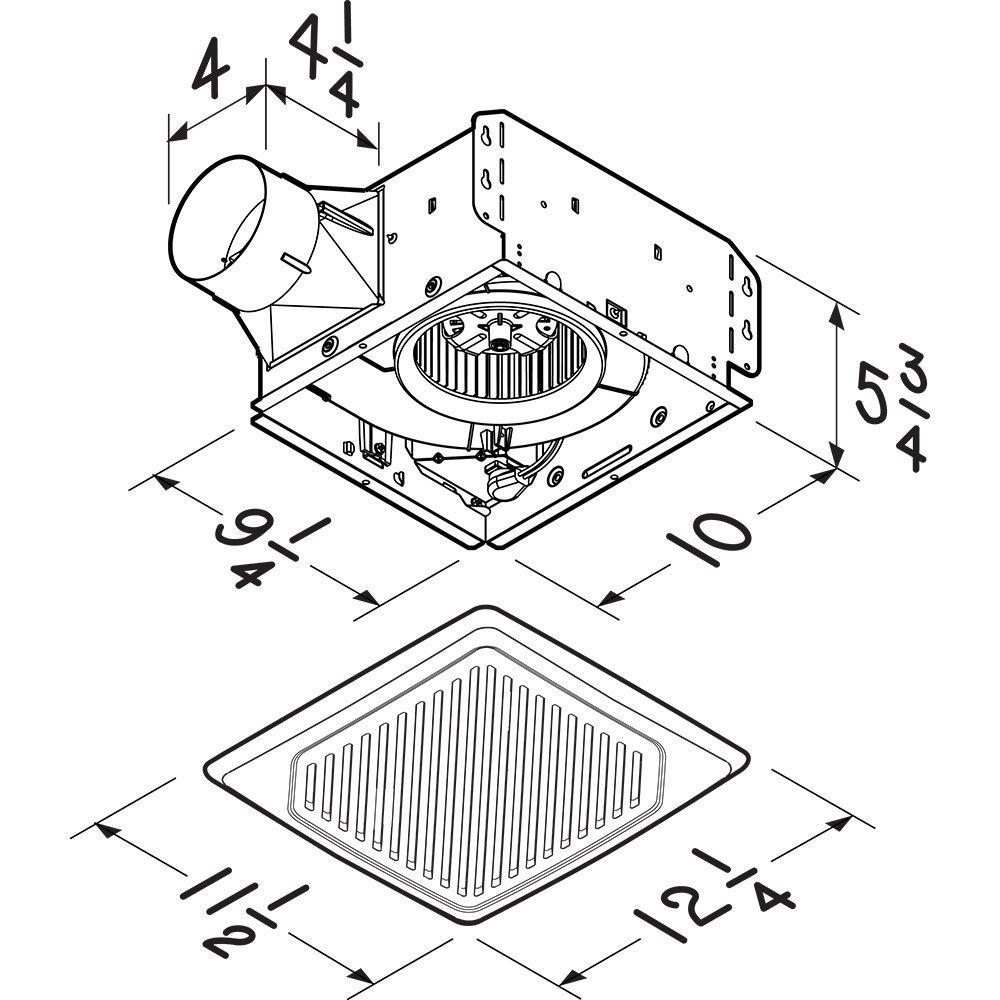

| Housing Dimensions | 9-1/4' x 10' x 5-3/4' |
| Sound Level (Sones) | 1 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 105 |
| Rated Amps | 0.3 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2' x 6' |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
Description
Broan® Roomside Series 110 Cfm 1.0 Sones Ventilation Fan Energy Star® The Broan® Roomside Series 110 Cfm Ceiling Exhaust Bath Fan With Light Energy Star® Offers Easy, Room Side Installation, With "No Attic Access Required". Ceiling Mounted Ventilation Fan Features Foldable Mounting Ears And Ezduct™ Connector For Easy Installation. New Duct Damper Technology Provides A Tighter Seal, Resulting In Reduced Warm And Cold Air Backdrafts. This Energy Efficient Fan Operates At 110 Cfm And A Very Quiet 1.0 Sones.
Features
- 110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 1.0 Sones for Ultra quiet performance, you might not notice it's on
- Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
- TrueSeal™ Damper technology reduces air leakage up to 50%
- EzDuct™ connector can be installed from the room side, with no attic access required
- UL Listed for use over tubs and showers with a GFCI circuit
- Powerful enough for rooms up to 100 sq. ft.
- Brighter white grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
Specifications
| CFM | 110 |
| Color Finish | White |
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 11.5 |
| Grille Width | 12.25 |
| Housing Dimensions | 9-1/4' x 10' x 5-3/4' |
| Sound Level (Sones) | 1 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 105 |
| Rated Amps | 0.3 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2' x 6' |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
