Broan AE50110DCSL Broan-Nutone® Wall Vent Kit, 3" Or 4" Round Duct
Broan® Humidity Sensing Bathroom Exhaust Fan W/ Led Light, Energy Star®, 50-110 Cfm Broan® Ae50-1... Read more...
SKU:AE50110DCSL
UPC:026715257027
- Regular price
- Sale price
-
List Price: $301.00
You save: $30.00 (9%)Our Price: $271.00
- Regular price
- Unit price
- per
Extended protection
3 year plan
$86.995 year plan
$168.99Extended Protection
Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.
This Protection Plan includes:
- Full parts and labor coverage during the whole period of the extension plan.
- Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
- Food loss protection (click here for details)
- 24/7 toll-free number for support (1-877-879-6395)
Installation and Removal
Where will services be needed?
When Will I Get My Order?
Broan® Humidity Sensing Bathroom Exhaust Fan W/ Led Light, Energy Star®, 50-110 Cfm Broan® Ae50-110Dcsl Flex Dc Series 80 Cfm Humidity Sensing Exhaust Bath Fan, Energy Star® Offers Easy, Room Side Installation, With "No Attic Access Required". Ceiling Mounted Ventilation Fan Features Foldable Mounting Ears And Ez Duct Connector For Easy Installation. New Duct Damper Technology Provides A Tighter Seal, Resulting In Reduced Warm And Cold Air Backdrafts. The Humidity Sensing Feature Will Automatically Turn The Fan On When A Preset Level Has Been Reached, Thus Allowing For Proper Ventilation Throughout The Room. This Energy Efficient Fan Operates At A Selectable Cfm Range Of 50-80-110 At A Quiet Operation Of <0.3-0.4-0.9 Sones.
- Versatile Installation
- FoldAway Mounting Ears are precisely positioned for new construction and fold flat for room-side retrofits. Every installation can be handled more efficiently.
- Airtight Performance
- With our TrueSeal Damper Technology, InVent fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests.
- EzDuct Connector
- Connecting to an existing duct can be done room-side with no attic access required, fan housing connection has never been easier.
- LED Lighting
- offers greater energy efficiency and longevity, and adds a unique design detail to this hard-working fan. 11 watt, 800 Lumens integrated LED module lasts up to 25,000 hours.
- Versatile Installation
- FoldAway Mounting Ears are precisely positioned for new construction and fold flat for room-side retrofits. Every installation can be handled more efficiently.
- Airtight Performance
- With our TrueSeal Damper Technology, InVent fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests.
| CFM | 50-80-110 |
| Color Finish | White |
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 11.75 |
| Grille Width | 12.5 |

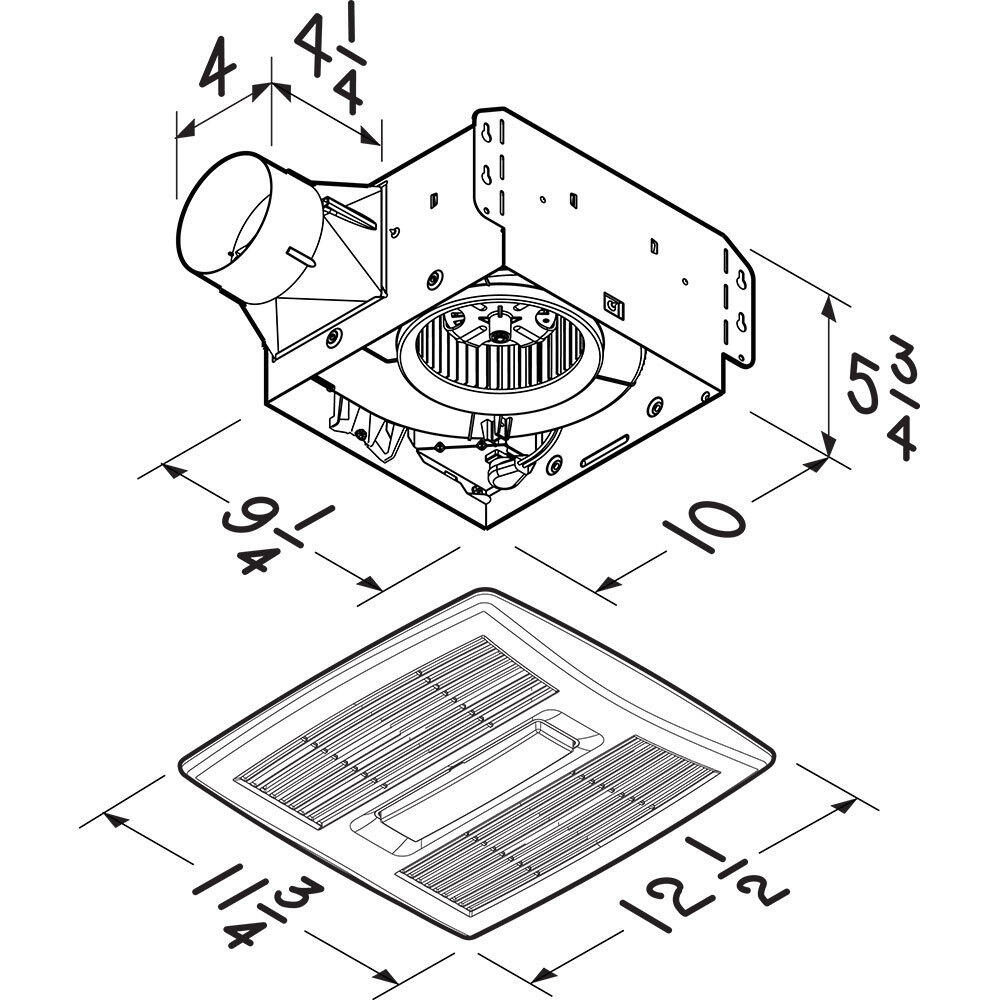

| Housing Dimensions | 9-1/4' x 10' x 5-3/4' |
| Sound Level (Sones) | 0 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | Yes |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 105 |
| Rated Amps | 0.4 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | Integrated LED Module |
| Minimum Construction Space Required | 2' x 6' |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
Description
Broan® Humidity Sensing Bathroom Exhaust Fan W/ Led Light, Energy Star®, 50-110 Cfm Broan® Ae50-110Dcsl Flex Dc Series 80 Cfm Humidity Sensing Exhaust Bath Fan, Energy Star® Offers Easy, Room Side Installation, With "No Attic Access Required". Ceiling Mounted Ventilation Fan Features Foldable Mounting Ears And Ez Duct Connector For Easy Installation. New Duct Damper Technology Provides A Tighter Seal, Resulting In Reduced Warm And Cold Air Backdrafts. The Humidity Sensing Feature Will Automatically Turn The Fan On When A Preset Level Has Been Reached, Thus Allowing For Proper Ventilation Throughout The Room. This Energy Efficient Fan Operates At A Selectable Cfm Range Of 50-80-110 At A Quiet Operation Of <0.3-0.4-0.9 Sones.
Features
- FlexFlow technology, select between 50, 80 or 110 CFM
- <0.3-0.4-0.9 sones for ultra quiet performance, you might not notice it's on
- Bright 3500K energy efficient LED lighting to help illuminate your room
- Sensaire humidity sensing technology, senses humidity up to 4X faster than the competition
- Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
- EzDuct connector can be installed from the room side, with no attic access required
- TrueSeal Damper technology reduces air leakage up to 50%
- SnapFit Flange Kit offers flexible installation for new construction or retrofit upgrades
- Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
- ENERGY STAR® certified product
- UL Listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only)
- Powerful enough for rooms up to 100 sq. ft.
- Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
Specifications
| CFM | 50-80-110 |
| Color Finish | White |
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 11.75 |
| Grille Width | 12.5 |
| Housing Dimensions | 9-1/4' x 10' x 5-3/4' |
| Sound Level (Sones) | 0 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | Yes |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 105 |
| Rated Amps | 0.4 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | Integrated LED Module |
| Minimum Construction Space Required | 2' x 6' |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
