Broan AE50110DCS Broan-Nutone® Wall Vent Kit, 3" Or 4" Round Duct
Broan® Humidity Sensing Bathroom Exhaust Fan Energy Star®, 50-110 Cfm Broan® Ae50110Dcs Flex Dc S... Read more...
SKU:AE50110DCS
UPC:026715256976
- Regular price
- Sale price
-
List Price: $259.00
You save: $26.00 (10%)Our Price: $233.00
- Regular price
- Unit price
- per
Extended protection
3 year plan
$86.995 year plan
$168.99Extended Protection
Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.
This Protection Plan includes:
- Full parts and labor coverage during the whole period of the extension plan.
- Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
- Food loss protection (click here for details)
- 24/7 toll-free number for support (1-877-879-6395)
Installation and Removal
Where will services be needed?
When Will I Get My Order?
Broan® Humidity Sensing Bathroom Exhaust Fan Energy Star®, 50-110 Cfm Broan® Ae50110Dcs Flex Dc Series Humidity Sensing Exhaust Bath Fan, Energy Star® Offers Easy, Room Side Installation, With "No Attic Access Required". Ceiling Mounted Ventilation Fan Features Foldable Mounting Ears And Ez Duct Connector For Easy Installation. New Duct Damper Technology Provides A Tighter Seal, Resulting In Reduced Warm And Cold Air Backdrafts. The Humidity Sensing Feature Will Automatically Turn The Fan On When A Preset Level Has Been Reached, Thus Allowing For Proper Ventilation Throughout The Room. This Energy Efficient Fan Operates At A Selectable Cfm Range Of 50-80-110 At A Quiet Operation Of <0.3-0.4-0.9 Sones.
- Versatile Installation
- FoldAway Mounting Ears are precisely positioned for new construction and fold flat for room-side retrofits. Every installation can be handled more efficiently.
- Airtight Performance
- With our TrueSeal Damper Technology, InVent fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests.
- EzDuct Connector
- Connecting to an existing duct can be done room-side with no attic access required, fan housing connection has never been easier.
- Versatile Installation
- FoldAway Mounting Ears are precisely positioned for new construction and fold flat for room-side retrofits. Every installation can be handled more efficiently.
- Airtight Performance
- With our TrueSeal Damper Technology, InVent fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests.
| CFM | 50-80-110 |
| Color Finish | White |
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 11.5 |
| Grille Width | 12.25 |

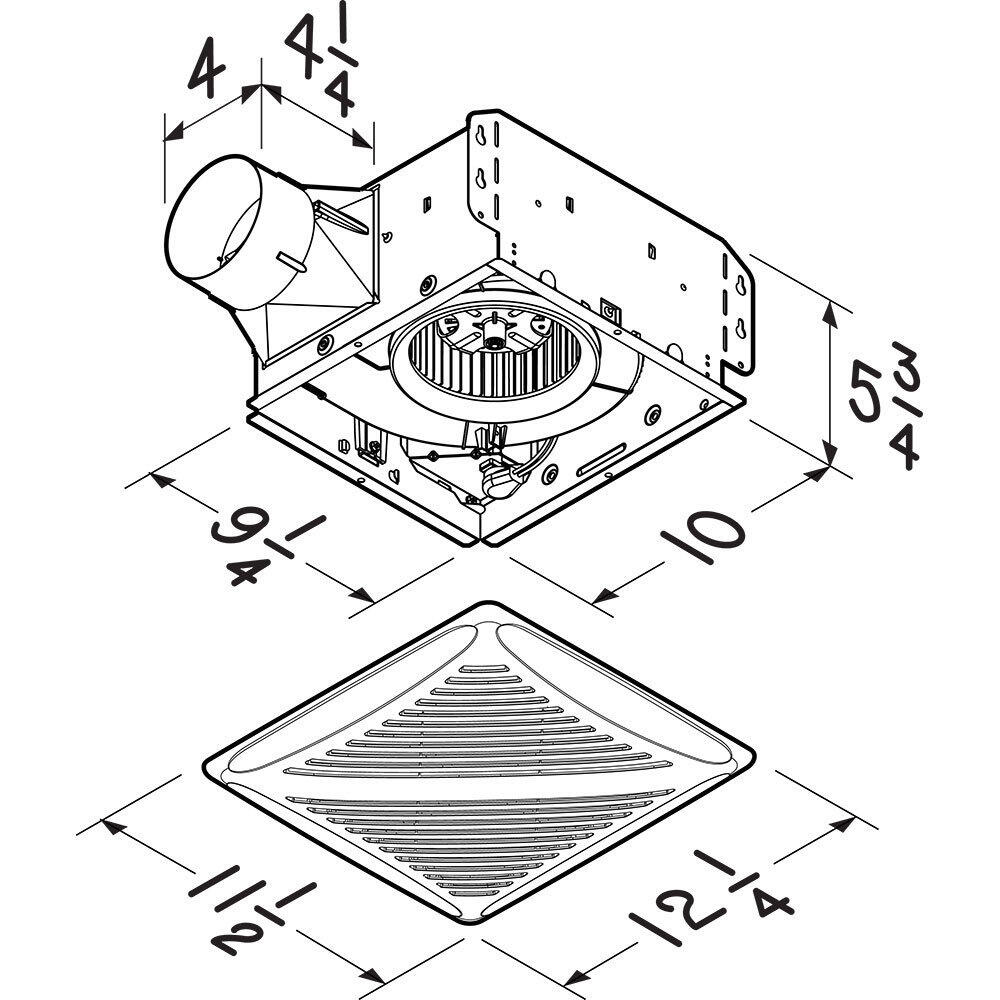

| Housing Dimensions | 9-1/4' x 10' x 5-3/4' |
| Sound Level (Sones) | 0 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | Yes |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 105 |
| Rated Amps | 0.3 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2' x 6' |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
Description
Broan® Humidity Sensing Bathroom Exhaust Fan Energy Star®, 50-110 Cfm Broan® Ae50110Dcs Flex Dc Series Humidity Sensing Exhaust Bath Fan, Energy Star® Offers Easy, Room Side Installation, With "No Attic Access Required". Ceiling Mounted Ventilation Fan Features Foldable Mounting Ears And Ez Duct Connector For Easy Installation. New Duct Damper Technology Provides A Tighter Seal, Resulting In Reduced Warm And Cold Air Backdrafts. The Humidity Sensing Feature Will Automatically Turn The Fan On When A Preset Level Has Been Reached, Thus Allowing For Proper Ventilation Throughout The Room. This Energy Efficient Fan Operates At A Selectable Cfm Range Of 50-80-110 At A Quiet Operation Of <0.3-0.4-0.9 Sones.
Features
- FlexFlow technology, select between 50, 80 or 110 CFM
- Quiet operation at <0.3-0.4-0.9 sones
- Sensaire Humidity control automatically turns fans ON when a rapid to moderate (user adjustable) increase of humidity is sensed or when humidity rises above the user-adjustable set-point (50% to 80% RH)
- Powerful ventilation reduces humidity to quickly eliminate fogged mirrors and manage moisture, so your vision will always be clear and your surroundings will always be comfortable
- Retrofit installations can be done entirely from the room-side - no attic access required. This means a faster, easier installation
- Flex DC fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
- Plug in, permanently lubricated, brushless DC motor - engineered for continuous operation
- Can be installed in a wall if mounted 8-ft. or more above the floor
- UL Listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only)
- ENERGY STAR® certified product
Specifications
| CFM | 50-80-110 |
| Color Finish | White |
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 11.5 |
| Grille Width | 12.25 |
| Housing Dimensions | 9-1/4' x 10' x 5-3/4' |
| Sound Level (Sones) | 0 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | Yes |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 105 |
| Rated Amps | 0.3 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2' x 6' |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
