Broan AE50110DCLF Broan-Nutone® Wall Vent Kit, 3" Or 4" Round Duct
Broan® Flex Dc Series 50-80-110 Selectable Cfm <0.3-0.4-0.9 Sones Ventilation Fan Light Finish... Read more...
SKU:AE50110DCLF
UPC:026715257003
- Regular price
- Sale price
-
List Price: $210.00
You save: $21.00 (10%)Our Price: $189.00
- Regular price
- Unit price
- per
Extended protection
3 year plan
$86.995 year plan
$168.99Extended Protection
Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.
This Protection Plan includes:
- Full parts and labor coverage during the whole period of the extension plan.
- Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
- Food loss protection (click here for details)
- 24/7 toll-free number for support (1-877-879-6395)
Installation and Removal
Where will services be needed?
When Will I Get My Order?

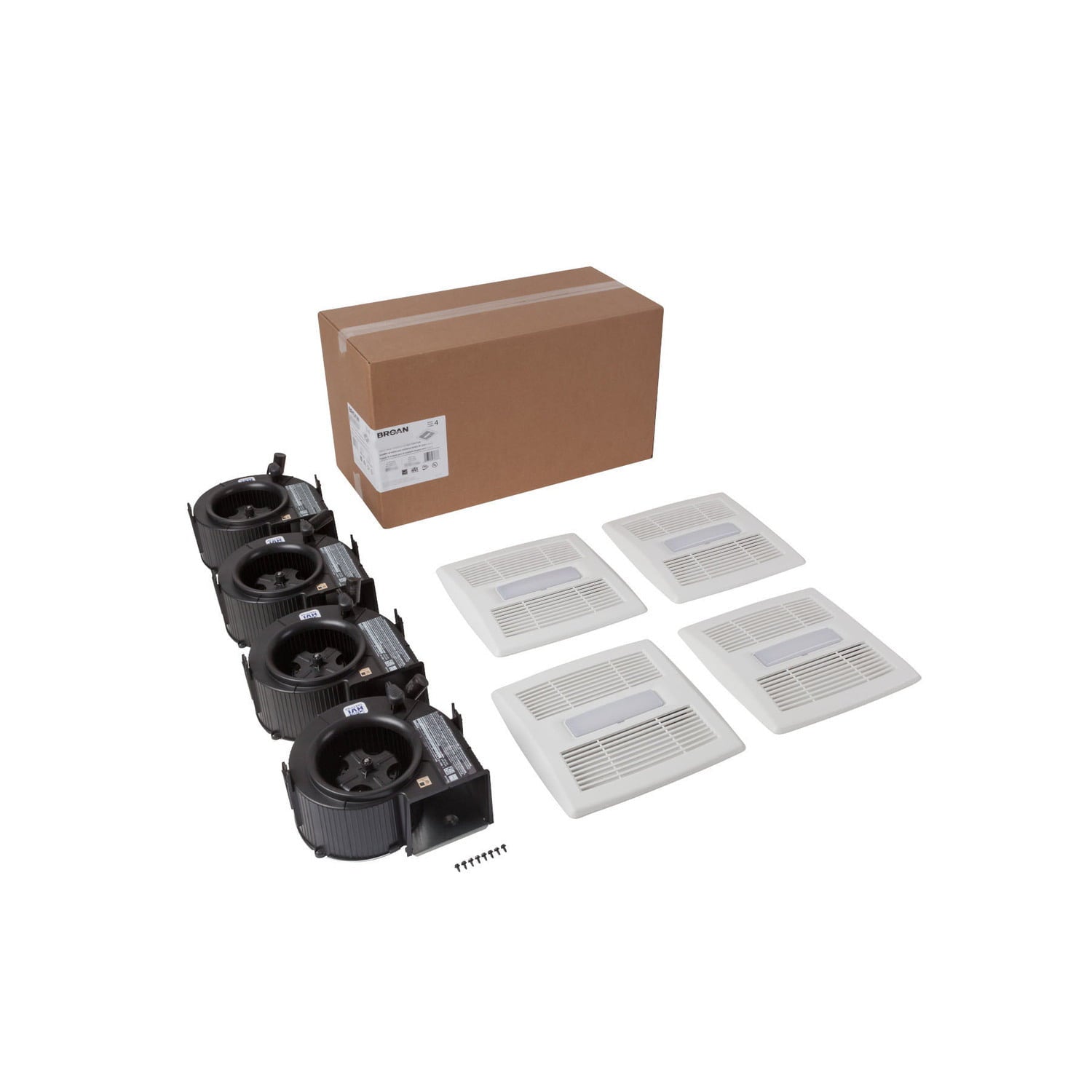

Broan® Flex Dc Series 50-80-110 Selectable Cfm <0.3-0.4-0.9 Sones Ventilation Fan Light Finish Pack Project Packs Are Ideal For Contractors And Builders Who Have Yet To Pick Out The Final Product. With The Housing For The Fan Sold Separately From The Grille And Motor, Contractors Are Able To Continue With Construction And Not Have To Worry About Damaging, Losing Or Storing The Product. Once All Construction Is Complete, The Purchase Of A Finish Pack, 4 Grilles And 4 Motor/Blower Wheels, Can Be Made To Add The Finishing Touches To The Room. The Flex Dc Series Housing And Finish Packs Provide Revolutionary Innovations Such As Foldable Mounting Ears, A New Damper, Tighter Housing To Decrease Air Leakage, While The Finish Pack Grilles Complement Any Decor.
- Versatile Installation
- FoldAway Mounting Ears are precisely positioned for new construction and fold flat for room-side retrofits. Every installation can be handled more efficiently.
- Airtight Performance
- With our TrueSeal Damper Technology, InVent fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests.
- EzDuct Connector
- Connecting to an existing duct can be done room-side with no attic access required, fan housing connection has never been easier.
- Versatile Installation
- FoldAway Mounting Ears are precisely positioned for new construction and fold flat for room-side retrofits. Every installation can be handled more efficiently.
- Airtight Performance
- With our TrueSeal Damper Technology, InVent fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests.
| CFM | 50-80-110 |
| Color Finish | White |
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 11.75 |
| Grille Width | 12.5 |

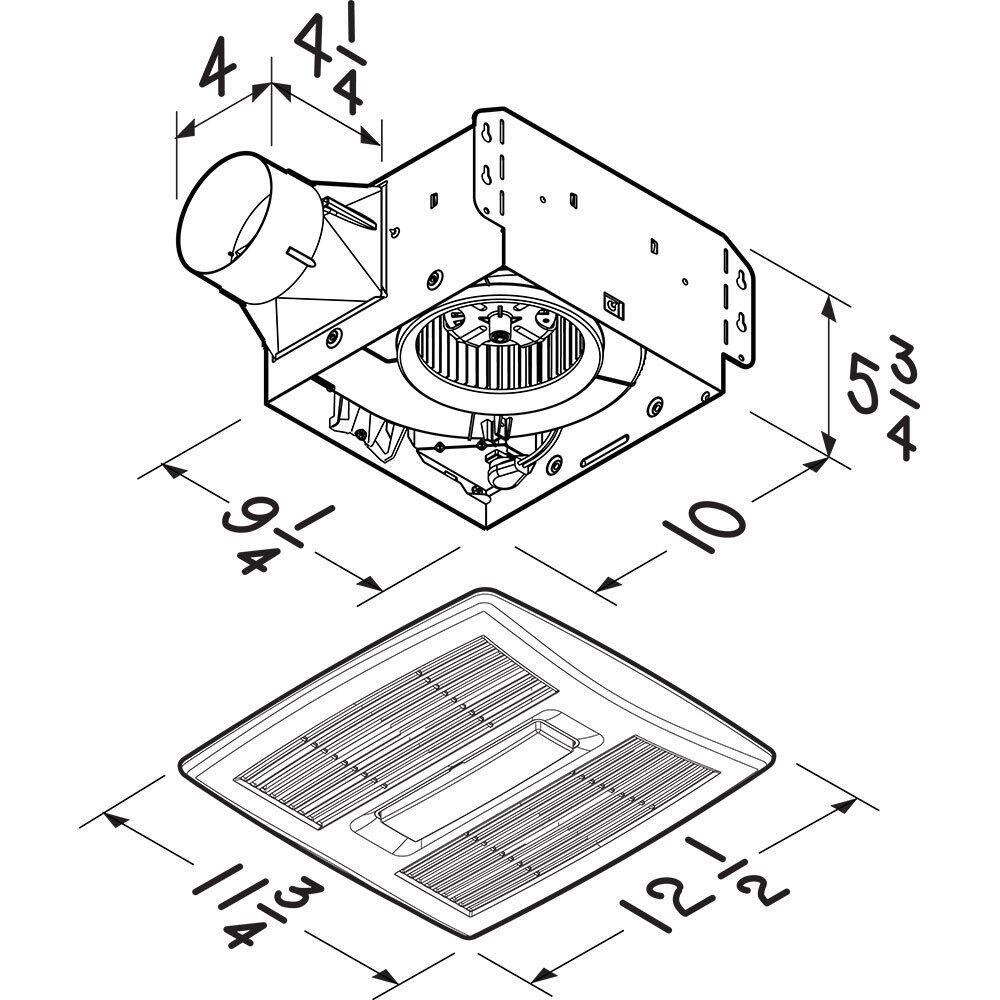

| Housing Dimensions | 9-1/4' x 10' x 5-3/4' |
| Sound Level (Sones) | 0 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 105 |
| Rated Amps | 0.4 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | Integrated LED Module |
| Minimum Construction Space Required | 2' x 6' |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
Description
Broan® Flex Dc Series 50-80-110 Selectable Cfm <0.3-0.4-0.9 Sones Ventilation Fan Light Finish Pack Project Packs Are Ideal For Contractors And Builders Who Have Yet To Pick Out The Final Product. With The Housing For The Fan Sold Separately From The Grille And Motor, Contractors Are Able To Continue With Construction And Not Have To Worry About Damaging, Losing Or Storing The Product. Once All Construction Is Complete, The Purchase Of A Finish Pack, 4 Grilles And 4 Motor/Blower Wheels, Can Be Made To Add The Finishing Touches To The Room. The Flex Dc Series Housing And Finish Packs Provide Revolutionary Innovations Such As Foldable Mounting Ears, A New Damper, Tighter Housing To Decrease Air Leakage, While The Finish Pack Grilles Complement Any Decor.
Features
- Selectable setting of 50, 80 or 110 CFM for Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- <0.3-0.4-0.9 sones for ultra quiet performance, you might not notice it's on
- Bright 3500K energy efficient LED lighting to help illuminate your room
- Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
- TrueSeal Damper technology reduces air leakage up to 50%
- Can be installed in a wall if mounted 8-ft. or more above the floor
- ENERGY STAR® certified product
- UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
- Powerful enough for rooms up to 100 sq. ft.
- Brighter white grilles blend in to match most common ceiling paint
- Brushless DC electronically controlled digital motor is 3X more efficient than standard AC powered ventilation
Specifications
| CFM | 50-80-110 |
| Color Finish | White |
| Duct Size | 4 |
| ENERGY STAR® certified | Yes |
| Grille Length | 11.75 |
| Grille Width | 12.5 |
| Housing Dimensions | 9-1/4' x 10' x 5-3/4' |
| Sound Level (Sones) | 0 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 105 |
| Rated Amps | 0.4 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | Integrated LED Module |
| Minimum Construction Space Required | 2' x 6' |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
