Broan 655 Broan-Nutone® Wall Vent Kit, 3" Or 4" Round Duct
Broan® 70 Cfm Heater/Ventilation Fan/Light, White Plastic Grille,100W Incandescent Light, 4.0 Son... Read more...
SKU:655
UPC:026715079377

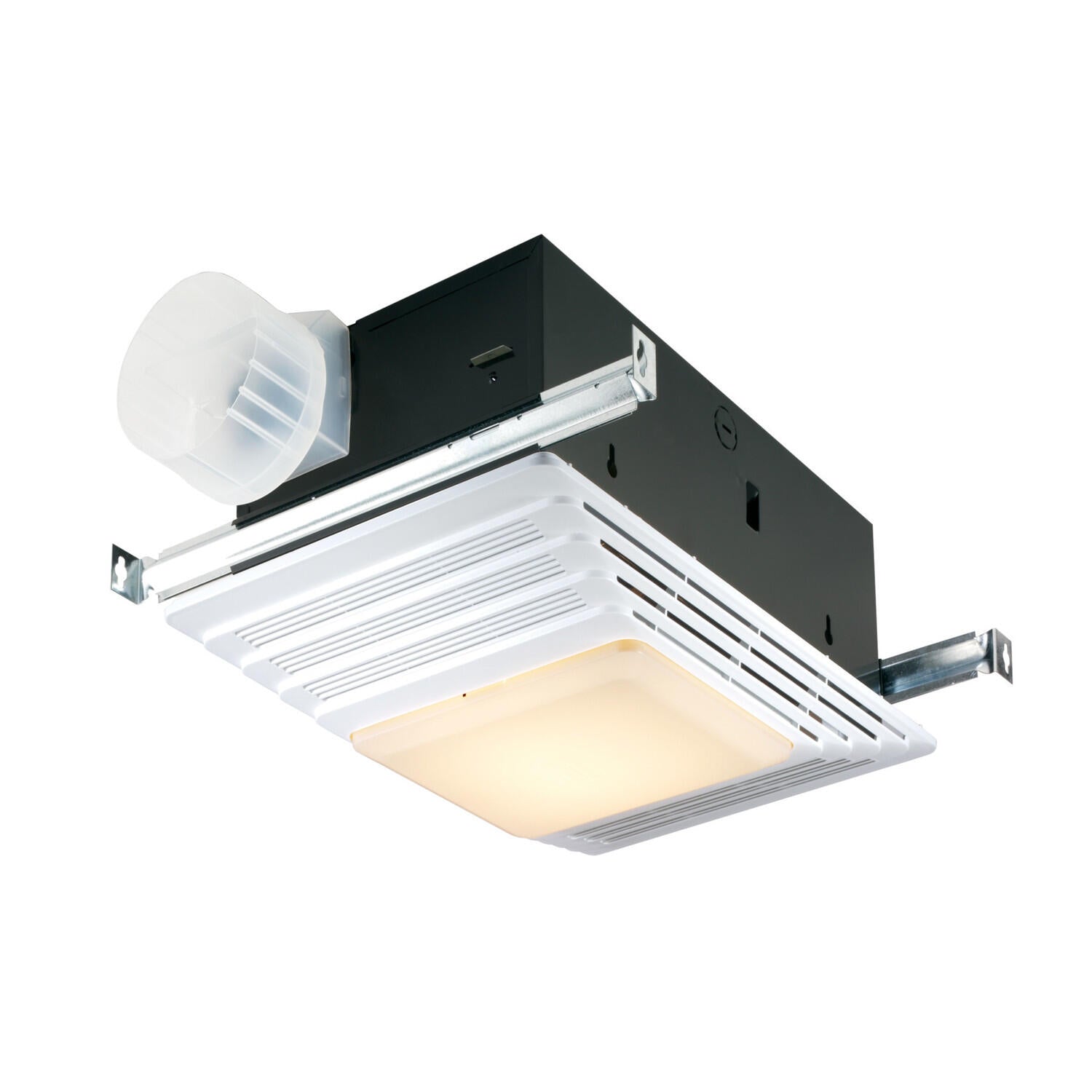

Broan® 70 Cfm Heater/Ventilation Fan/Light, White Plastic Grille,100W Incandescent Light, 4.0 Sones Expect More From Your Bath Fan With A The Addition Of A Light And A Heater. The Broan® 655 Offers Customers The Ability To Heat A Small Space Such As A Bathroom In A Short Amount Of Time. With The Addition Of A Light, This Fan Can Contribute 3 Things To A Small Area Making It Comfortable And Properly Ventilated. With The Included Adjustable Mounting Brackets, Installation Is Quick, Easy And Always Secure.
- 70 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
- 4.0 audible sones for privacy while using your bathroom.
- PowerHeat design ensures powerful heating, light, and ventilation are available at the touch of a switch
- Fan and heater function independently or together
- Bright 100-watt light capacity (bulb not included)
- 1300-watt heater for fast, even heat distribution
- Adjustable, slotted mounting brackets span up to 24" for easy installation
- Built-in damper prevents backdrafts and eliminates metallic clatter
- Durable 4" round duct features a 2" long tapered sleeve for easy, positive ducting
- Two- or three-function wall controls are available separately
- Suitable for use in insulated ceilings (Type IC)
| CFM | 70 |
| Color Finish | White |
| Duct Size | 4 |
| ENERGY STAR® certified | No |

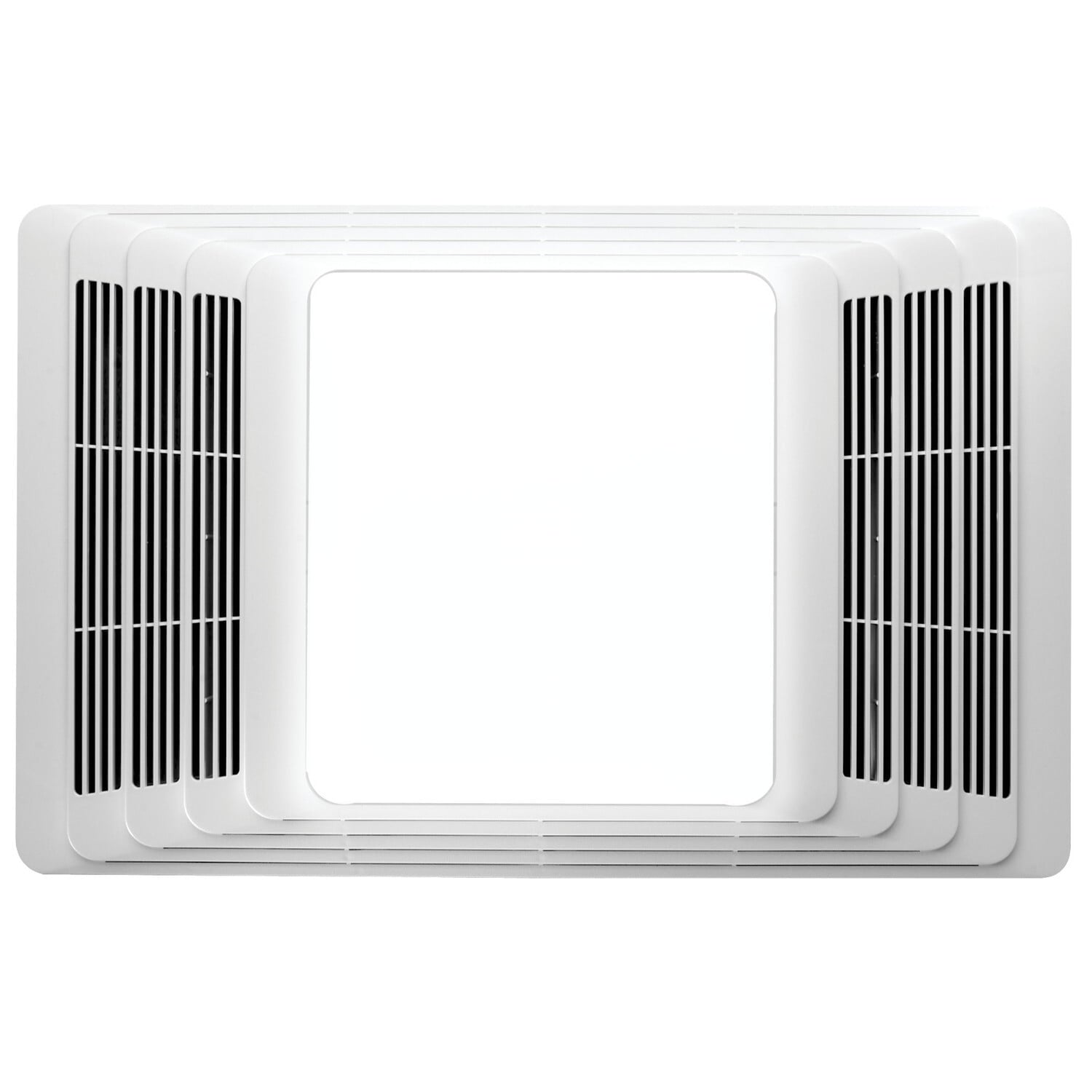

| Grille Length | 16.75 |
| Grille Width | 10.625 |

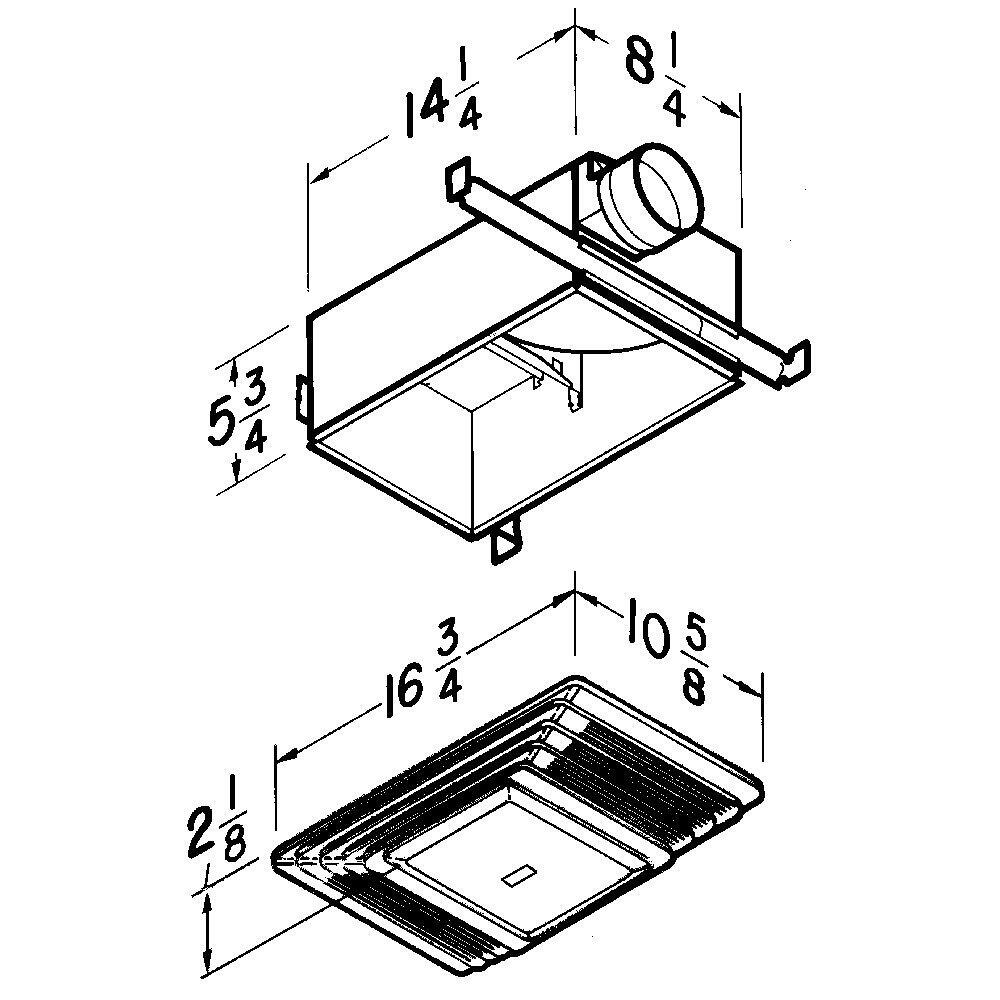

| Housing Dimensions | 14-1/4' x 8-1/4' x 5-3/4' |
| Sound Level (Sones) | 4 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | No |
| Heater Wattage | 1300 |
| Recommended Room Size (Sq Ft) | 65 |
| Rated Amps | 12.8 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | A19 |
| Minimum Construction Space Required | 2' x 6' |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
Cleaning a Bath Exhaust Fan
How long can the venting for my bath vent be? Can I use flexible duct? - Danny Lipford
Humidity Sensing Wall Control with Sensaire® Technology How-To Set Up Video
Humidity Sensing Wall Control with Sensaire® Technology Features & Benefits Video
Selecting Proper Ventilation Fan Size is Easy
What are CFMs? - Danny Lipford
Description
Broan® 70 Cfm Heater/Ventilation Fan/Light, White Plastic Grille,100W Incandescent Light, 4.0 Sones Expect More From Your Bath Fan With A The Addition Of A Light And A Heater. The Broan® 655 Offers Customers The Ability To Heat A Small Space Such As A Bathroom In A Short Amount Of Time. With The Addition Of A Light, This Fan Can Contribute 3 Things To A Small Area Making It Comfortable And Properly Ventilated. With The Included Adjustable Mounting Brackets, Installation Is Quick, Easy And Always Secure.
Features
- 70 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
- 4.0 audible sones for privacy while using your bathroom.
- PowerHeat design ensures powerful heating, light, and ventilation are available at the touch of a switch
- Fan and heater function independently or together
- Bright 100-watt light capacity (bulb not included)
- 1300-watt heater for fast, even heat distribution
- Adjustable, slotted mounting brackets span up to 24" for easy installation
- Built-in damper prevents backdrafts and eliminates metallic clatter
- Durable 4" round duct features a 2" long tapered sleeve for easy, positive ducting
- Two- or three-function wall controls are available separately
- Suitable for use in insulated ceilings (Type IC)
Specifications
| CFM | 70 |
| Color Finish | White |
| Duct Size | 4 |
| ENERGY STAR® certified | No |
| Grille Length | 16.75 |
| Grille Width | 10.625 |
| Housing Dimensions | 14-1/4' x 8-1/4' x 5-3/4' |
| Sound Level (Sones) | 4 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | No |
| Heater Wattage | 1300 |
| Recommended Room Size (Sq Ft) | 65 |
| Rated Amps | 12.8 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | A19 |
| Minimum Construction Space Required | 2' x 6' |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
