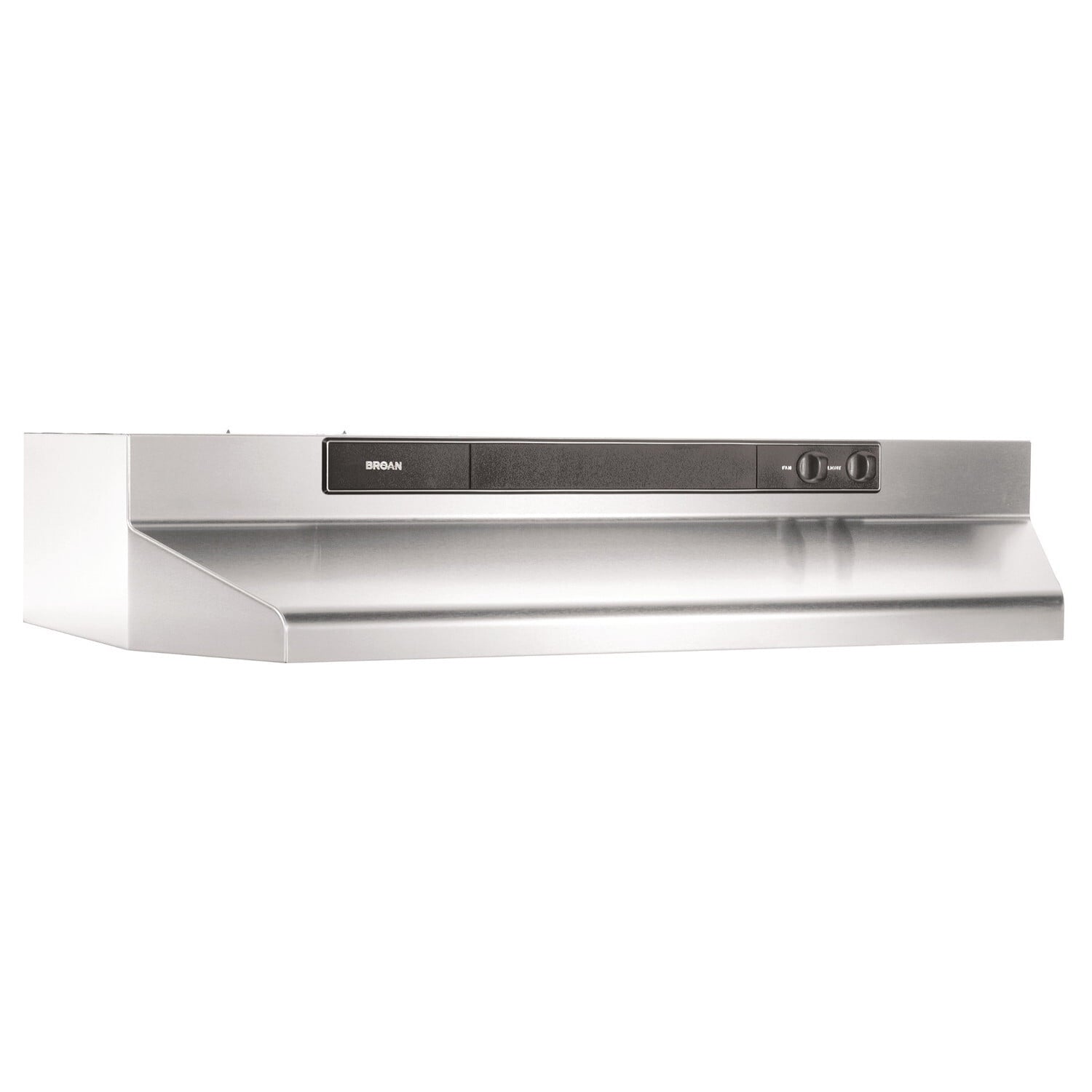

Broan 462404 Broan® 24-Inch Convertible Under-Cabinet Range Hood, 220 Cfm, Stainless Steel
With A Convertible Design That Offers Both Ducted And Ductless Installation, The Broan 46000 Series 24 In. Convertible Range Hood Makes It Easy To Tackle Tough Venting Jobs In Your Kitchen. The Range Hood'S Adjustable Dial Controls Make It Easy To Choose Between Variable Fan Motor Speeds. The 220 Cfm Blower Helps Quickly Remove Smoke And Cooking Odors From The Air. The Reusable Aluminum Mesh Filter Removes Easily From The Hood And Supports Dishwasher Cleaning, Making Maintenance A Snap. 2-Level Cooktop Lighting Offers Convenient Illumination. A 3-1/4 In. X 10 In. Damper/Adapter And A 7 In. Round Adapter Are Included For Easy Installation.
- Install as ducted or non-ducted to fit a variety of installation needs

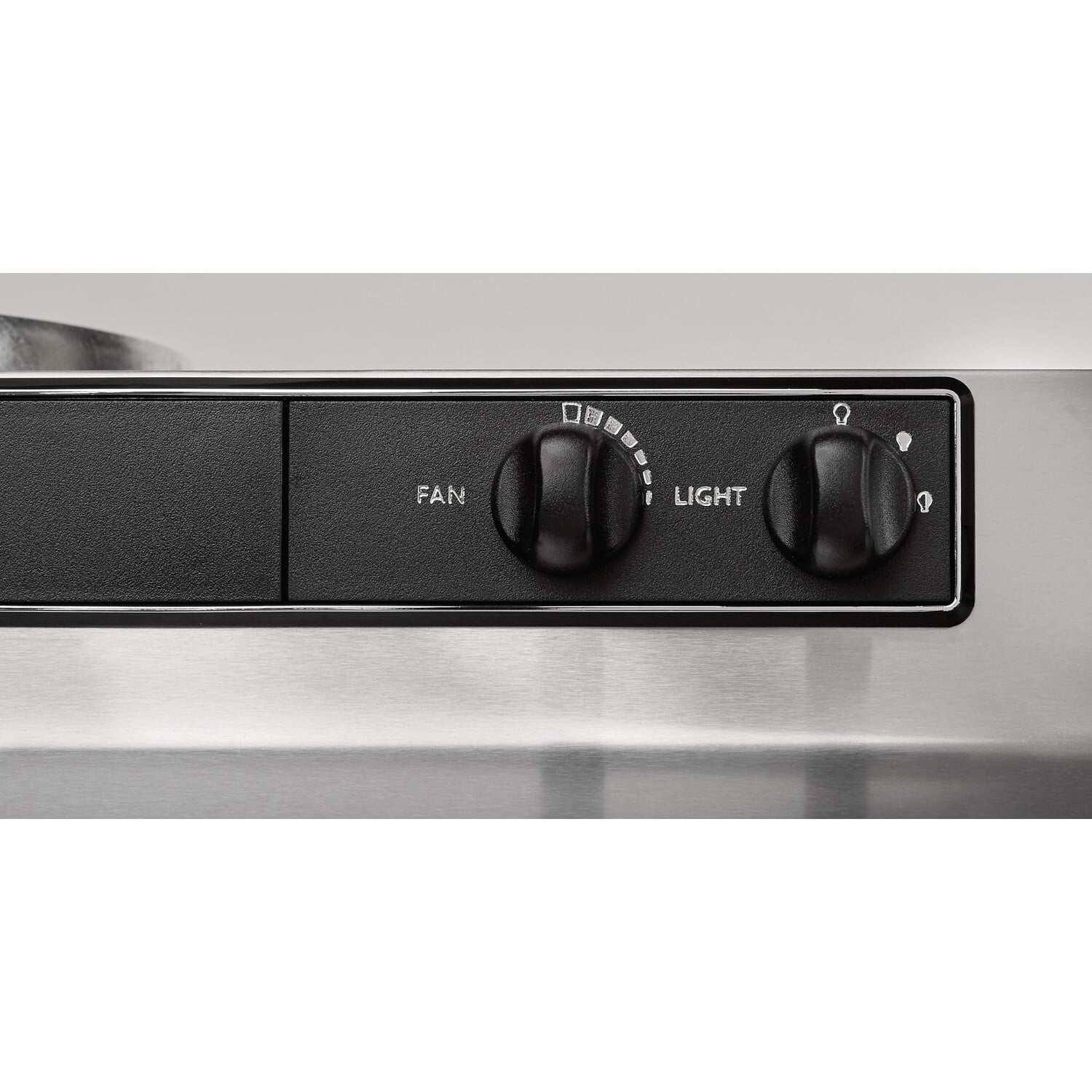

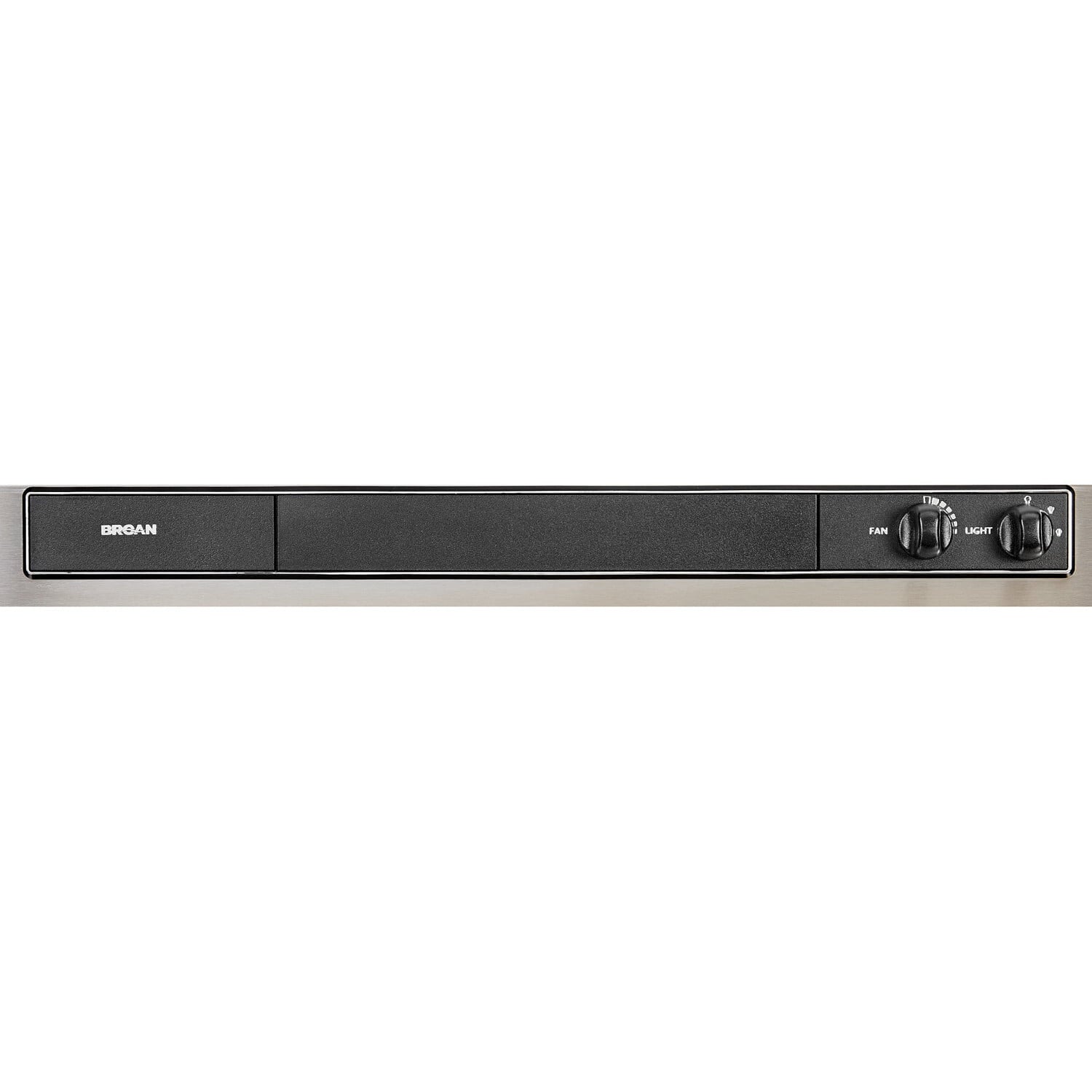

- Rotary dial controls for easy operation
- 220 CFM blower helps quickly remove smoke and cooking odors from the air
- Top or rear exhaust option lets you connect the ductwork to suit your installation requirement

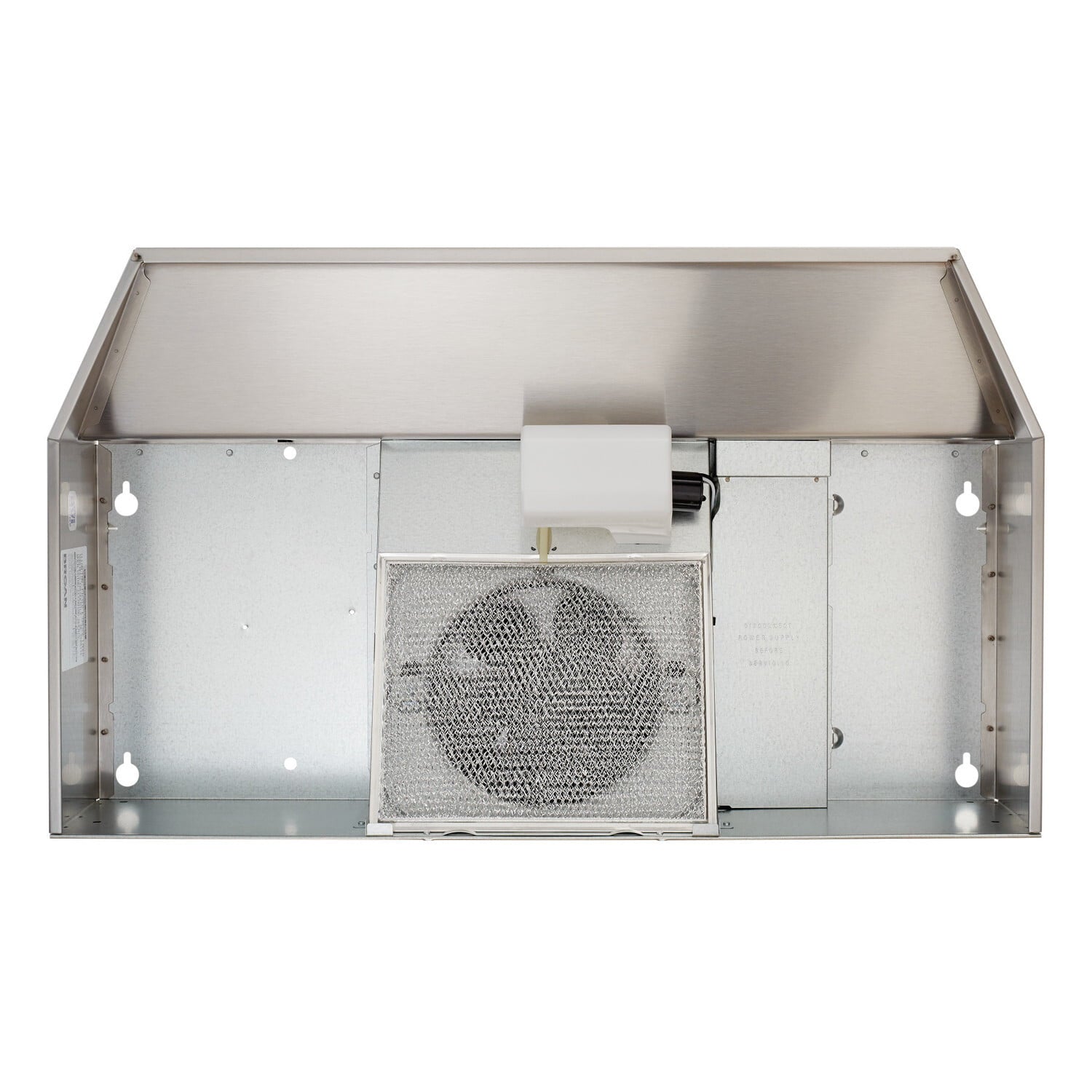

- Reusable aluminum mesh filter is dishwasher safe for easy cleaning
- 75-Watt cooktop lighting with protective polymeric lens for easy cooktop viewing (bulb not included)
- Includes a 3-1/4 in. x 10 in. damper/adapter and a 7 in. round adapter for easy installation
- Mitered sides and hemmed bottom for safety and good looks
- One year limited warranty
- UL listed and HVI-2100 certified for your safety and protection
Filter Type | Aluminum |
Heat Sentry | No |
HVI Certified | Yes |
Lighting Type | Incandescent |
UL Listed | Yes |
ADA Compliance | No |
Damper Included | No |
ENERGY STAR® certified | No |
Light Bulbs Included | No |
Light Levels | 2 |
Material | Stainless Steel |
Nightlight Or Nighlight Setting | No |
Ductless Recirculation Capable | Yes |
Ductless Filter Or Kit Included | No |
Remote Operation Capable | No |
Speed Levels | Variable |
Switch Control Type | Rotary |
Rated Voltage | 120 |
Boost Mode | No |
Country of Origin | United States |
Color Finish | Stainless Steel |
Rated Amps | 2.5 |
Product Depth | 17.5' |
Product Height | 6' |
Product Width | 24' |
Built-In Timer | No |
CFM | 220 |
Diameter | 7' Round |
Duct Direction | Horizontal/Vertical |
Bulb (Recommended Type) | A19 |
Manufacturer Warranty | 1 Year |
Wattage | 300 |
