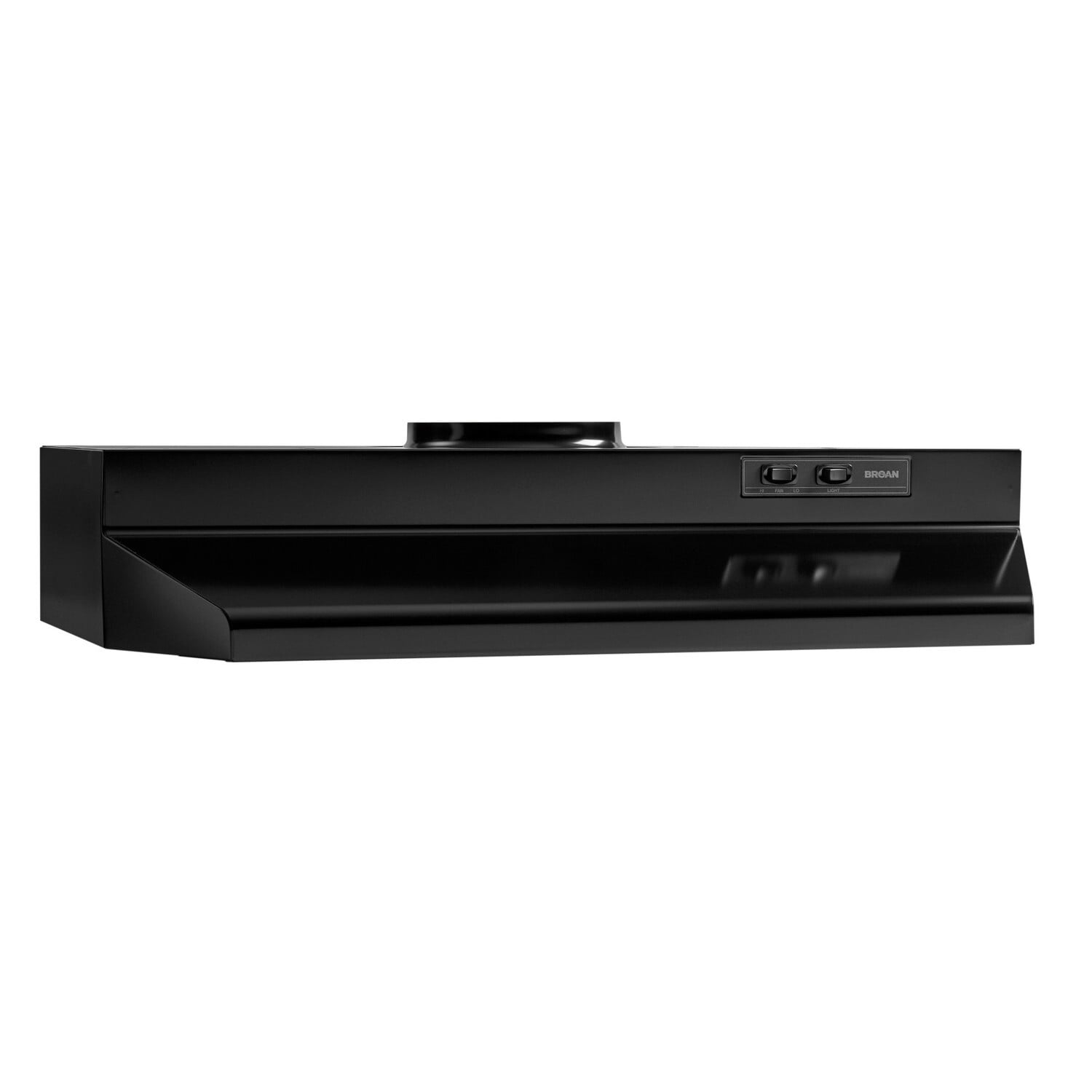

Broan 423023 Broan® 30-Inch Under-Cabinet Range Hood, Black
Quality Construction And Ease Of Installation Make The Broan 42000 Series Range Hood The Popular... Read more...
SKU:423023
UPC:026715031160
Quality Construction And Ease Of Installation Make The Broan 42000 Series Range Hood The Popular Choice In Vertically-Ducted Hoods. This 30 In. Range Hood Is Equipped With A 190 Cfm Blower To Tackle Heavy Venting Jobs. A Built-In Rocker Switch-Controlled Light Supports A 75-Watt Incandescent Bulb (Bulb Not Included). Mitered Sides And A Hemmed Bottom Join Forces To Help Ensure Safety And Provide A Decor-Complementary Look. A Damper Can Be Purchased Separately.
- Externally vented range hood offers powerful performance
- Rocker switch for simple fan speed adjustment
- 190 CFM blower quickly removes smoke and cooking odors from the air

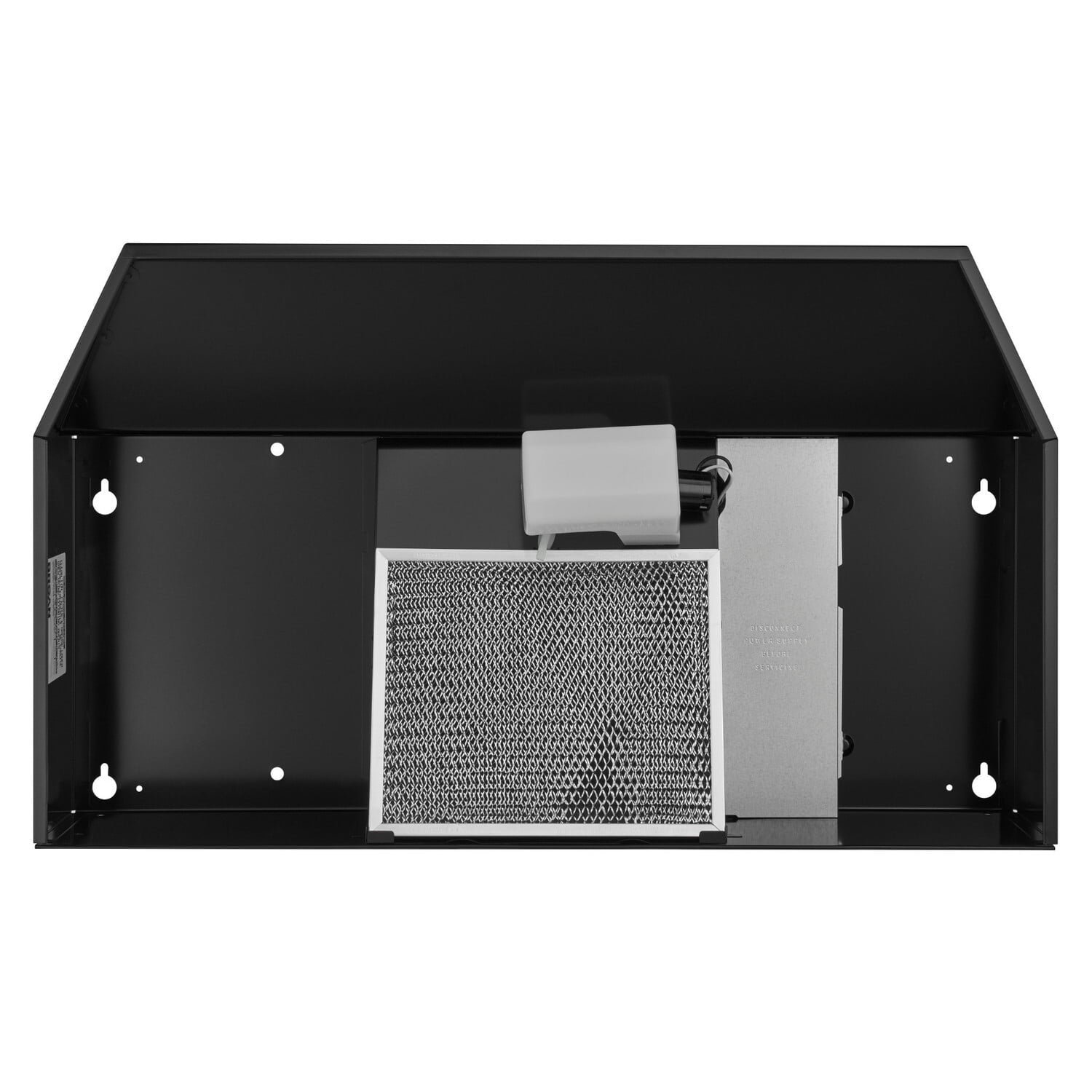

- Removable, dishwasher-safe metal mesh grease filter for easy cleaning and maintenance

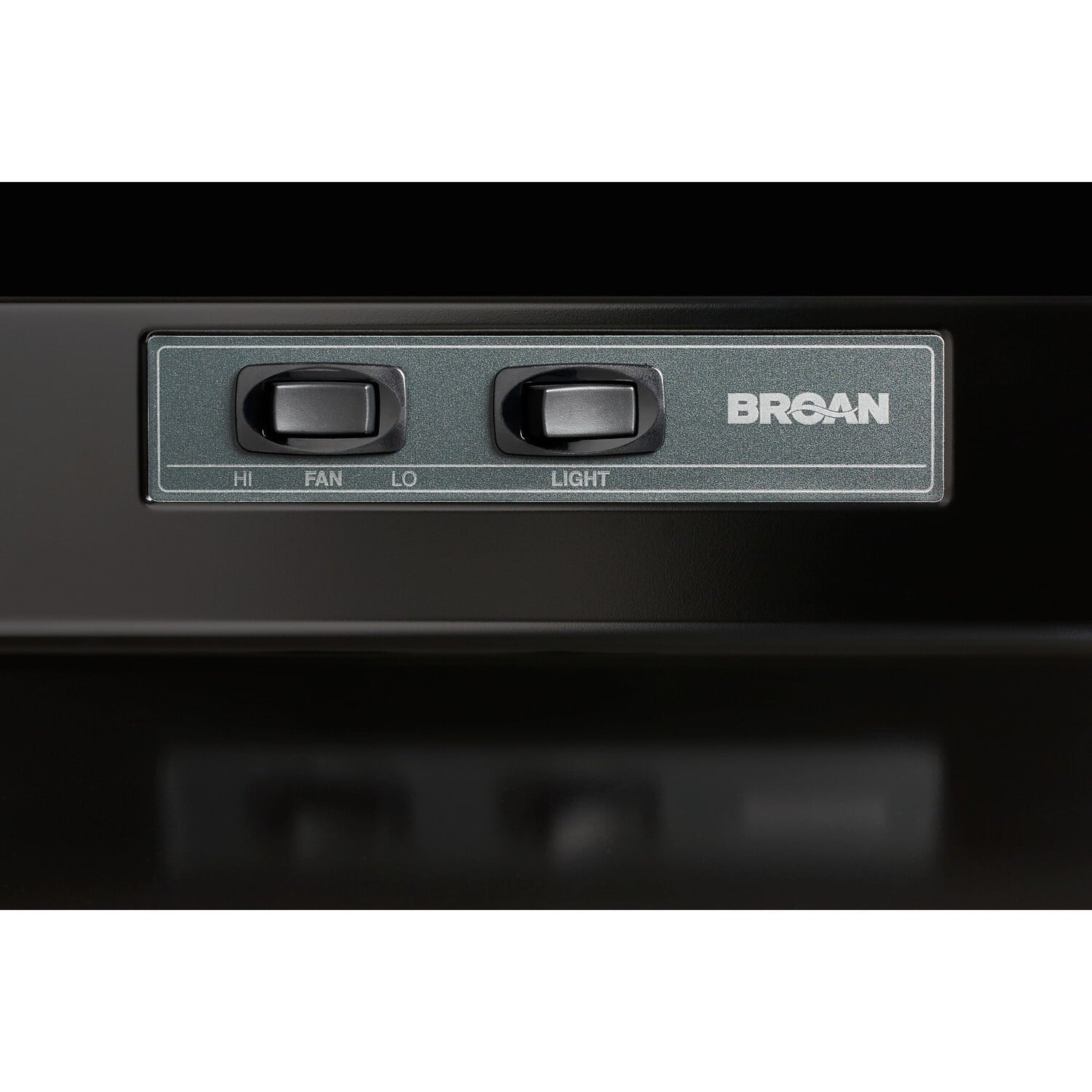

- Built-in light with rocker switch supports a 75-Watt incandescent bulb (not included) for cooktop illumination
- Designed to fit 7 in. round ductwork for simple installation
- Mitered sides and hemmed bottom for safety and good looks
- 1-year limited warranty
- UL Listed and HVI-2100 Certified for your safety and protection
| Filter Type | Aluminum |
| Heat Sentry | No |
| HVI Certified | Yes |
| Lighting Type | Incandescent |
| UL Listed | Yes |
| ADA Compliance | Yes |
| Damper Included | No |
| ENERGY STAR® certified | No |
| Light Bulbs Included | No |
| Light Levels | 1 |
| Material | Steel |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | No |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | 2 |
| Switch Control Type | Rocker |
| Rated Voltage | 120 |
| Boost Mode | No |
| Country of Origin | United States |
| Color Finish | Black |
| Rated Amps | 2 |

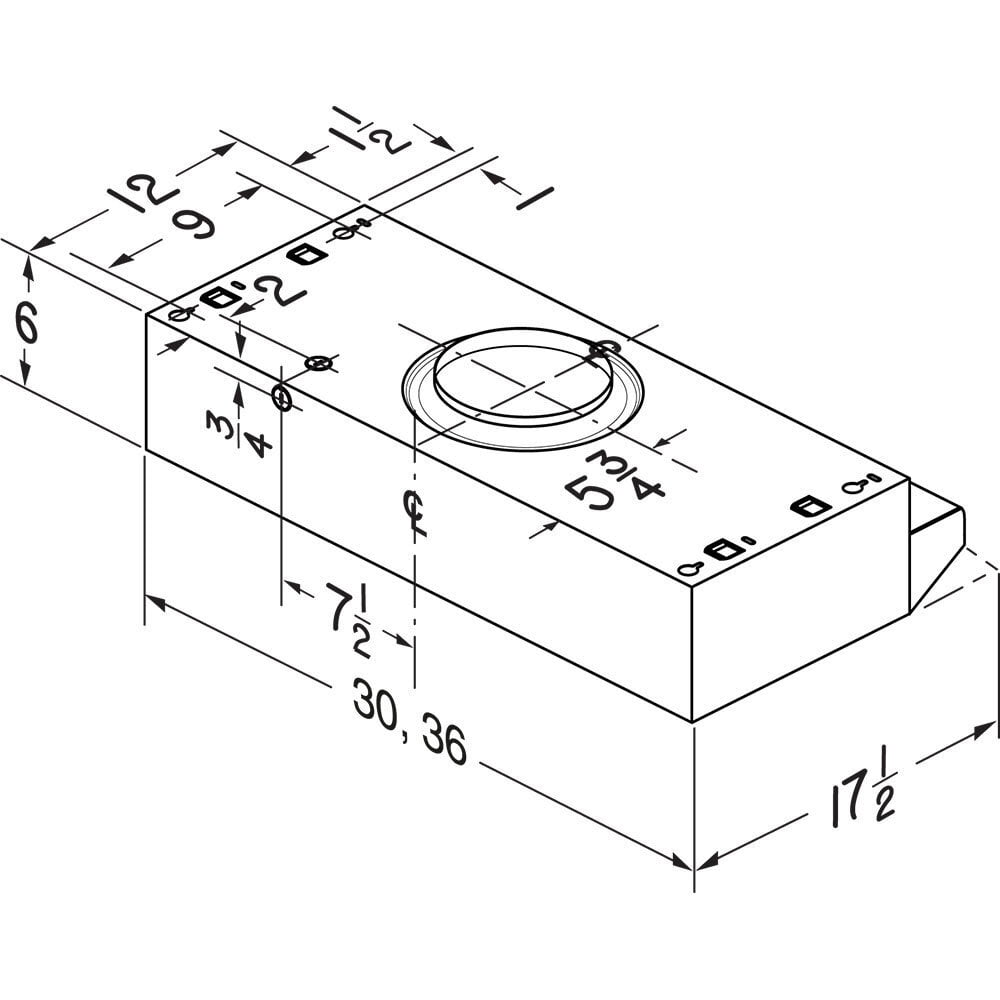

| Product Depth | 17.5 |
| Product Height | 6' |
| Product Width | 30' |
| Built-In Timer | No |
| CFM | 190 |
| Diameter | 7' Round |
| Vent Type | Ducted Only |
| Duct Direction | Vertical |
| Bulb (Recommended Type) | A19 |
| Manufacturer Warranty | 1 Year |
| Wattage | 240 |
Broan-NuTone Range Hood & Ventilation Fans Tip - Check Terminations of Ventilation Ducts
Can I install a range hood without venting it? - Danny Lipford
Cleaning a Range Hood Filter
Does an Over the Range microwave provide adequate Capture? - Danny Lipford
Give Your Kitchen A 72 Hour Facelift
How do I determine the size of the range hood I need? - Danny Lipford
How To Ventilate The Whole House
Importance of a Range Hood for Indoor Air Quality
Island Range Hoods for Kitchen Upgrades - Danny Lipford
Is there any regular maintenance needed on my range hood? - Danny Lipford
Kitchen Renovation Includes Adding Range Hood with Danny Lipford
Proper Use of a Range Hood
Proper Ventilation Equals a Healthy Home
What are CFMs? - Danny Lipford
Description
Quality Construction And Ease Of Installation Make The Broan 42000 Series Range Hood The Popular Choice In Vertically-Ducted Hoods. This 30 In. Range Hood Is Equipped With A 190 Cfm Blower To Tackle Heavy Venting Jobs. A Built-In Rocker Switch-Controlled Light Supports A 75-Watt Incandescent Bulb (Bulb Not Included). Mitered Sides And A Hemmed Bottom Join Forces To Help Ensure Safety And Provide A Decor-Complementary Look. A Damper Can Be Purchased Separately.
Features
- Externally vented range hood offers powerful performance
- Rocker switch for simple fan speed adjustment
- 190 CFM blower quickly removes smoke and cooking odors from the air
- Removable, dishwasher-safe metal mesh grease filter for easy cleaning and maintenance
- Built-in light with rocker switch supports a 75-Watt incandescent bulb (not included) for cooktop illumination
- Designed to fit 7 in. round ductwork for simple installation
- Mitered sides and hemmed bottom for safety and good looks
- 1-year limited warranty
- UL Listed and HVI-2100 Certified for your safety and protection
Specifications
| Filter Type | Aluminum |
| Heat Sentry | No |
| HVI Certified | Yes |
| Lighting Type | Incandescent |
| UL Listed | Yes |
| ADA Compliance | Yes |
| Damper Included | No |
| ENERGY STAR® certified | No |
| Light Bulbs Included | No |
| Light Levels | 1 |
| Material | Steel |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | No |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | 2 |
| Switch Control Type | Rocker |
| Rated Voltage | 120 |
| Boost Mode | No |
| Country of Origin | United States |
| Color Finish | Black |
| Rated Amps | 2 |
| Product Depth | 17.5 |
| Product Height | 6' |
| Product Width | 30' |
| Built-In Timer | No |
| CFM | 190 |
| Diameter | 7' Round |
| Vent Type | Ducted Only |
| Duct Direction | Vertical |
| Bulb (Recommended Type) | A19 |
| Manufacturer Warranty | 1 Year |
| Wattage | 240 |
